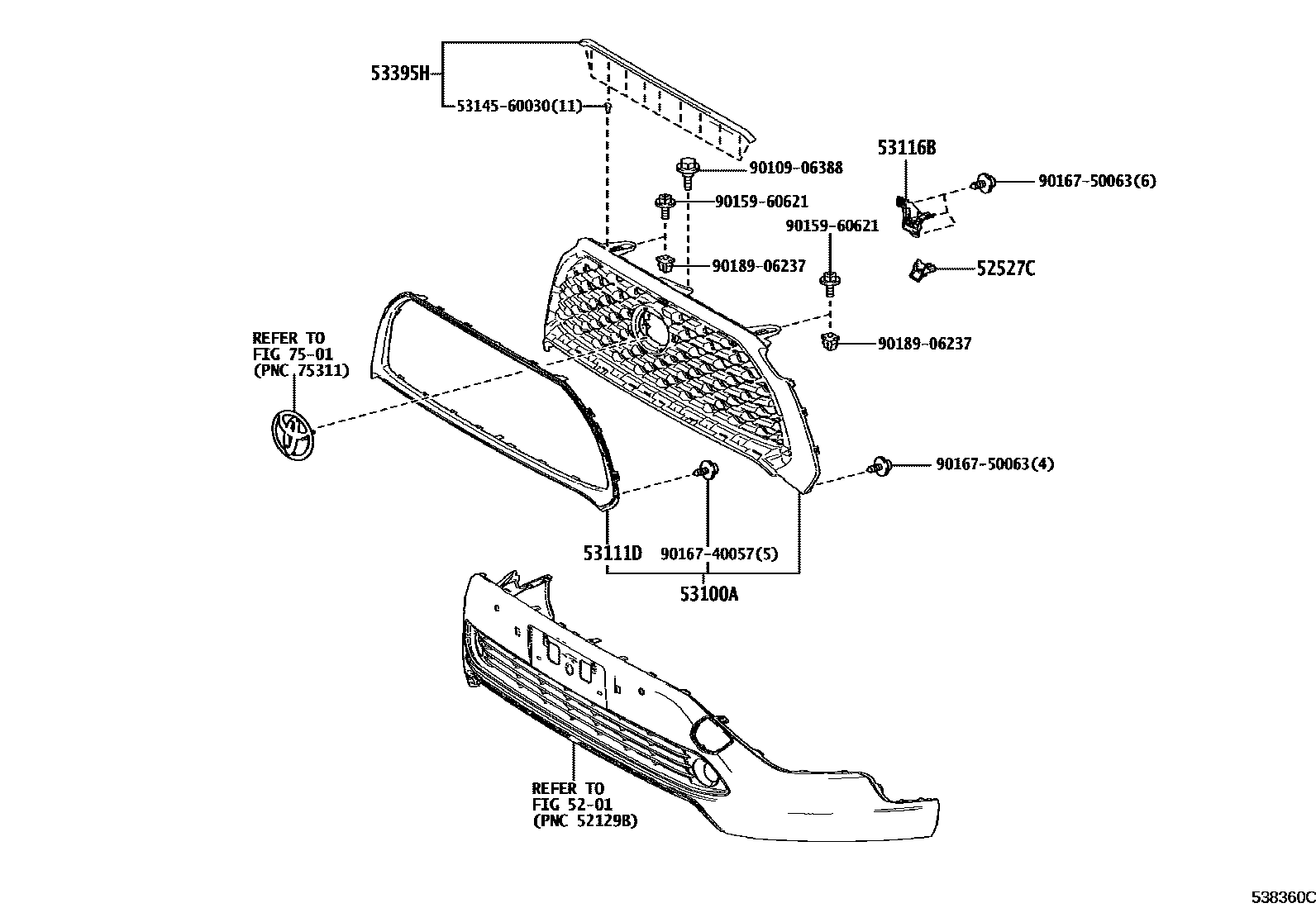

Toyota COROLLA radiator grille — Figure 5301
Toyota COROLLA EPC diagram 5301, radiator grille, with 1 images and 5 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 52527C | Front bumper No. 2 lower fixing bracket | 52527-12060 |
| 53100A | ENS. GRILLE, RADIATEUR | 53100-16010 · 53100-16020 · 53100-16030 · 53100-16040 |
| 53111D | Protective strip on the right side of the radiator grille | 53121-16080 · 53121-16090 |
| 53116B | Radiator grille bracket No. 2 | 53116-16030 |
| 53395H | Engine cover to radiator grille seal | 53395-16020 |
