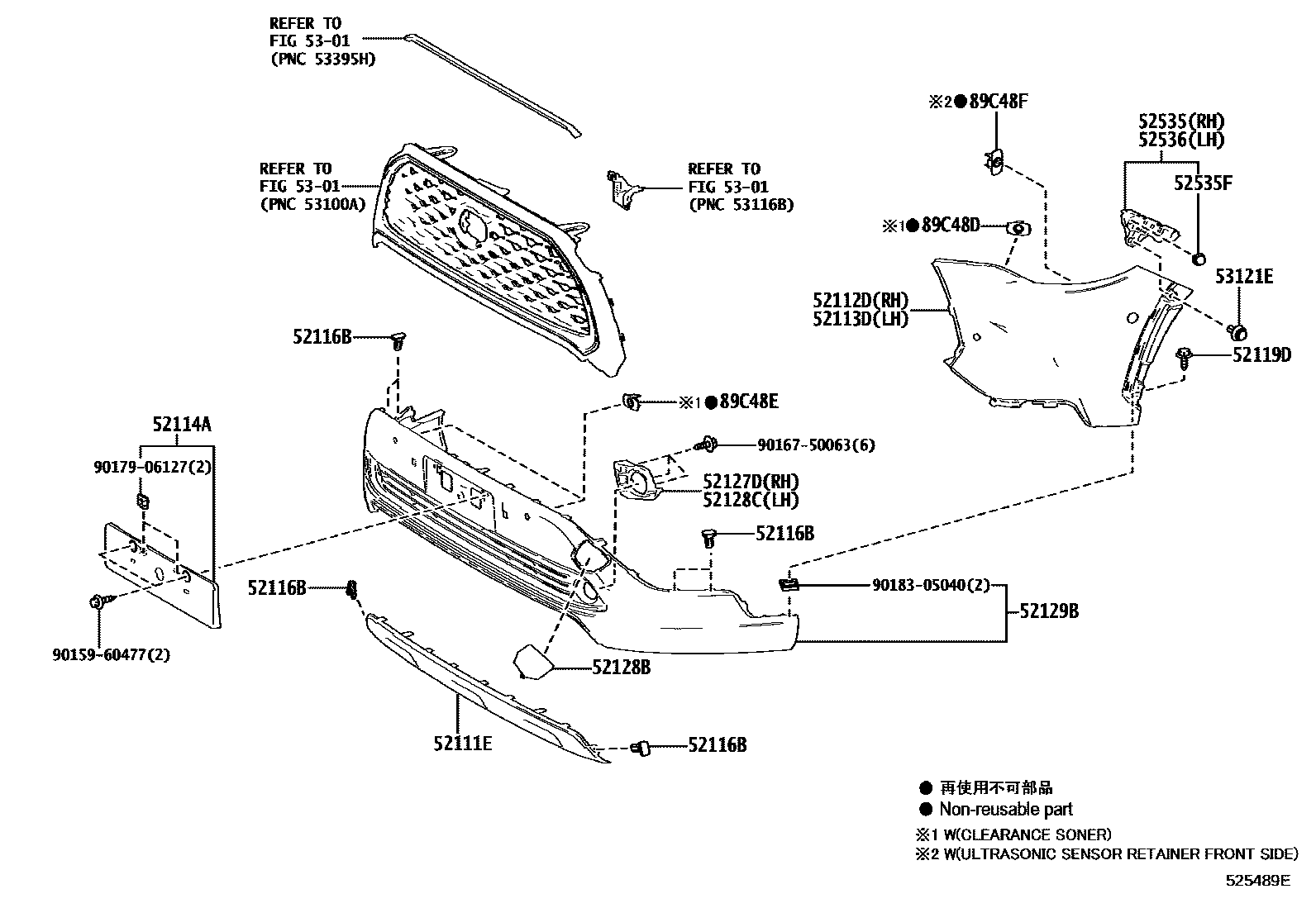

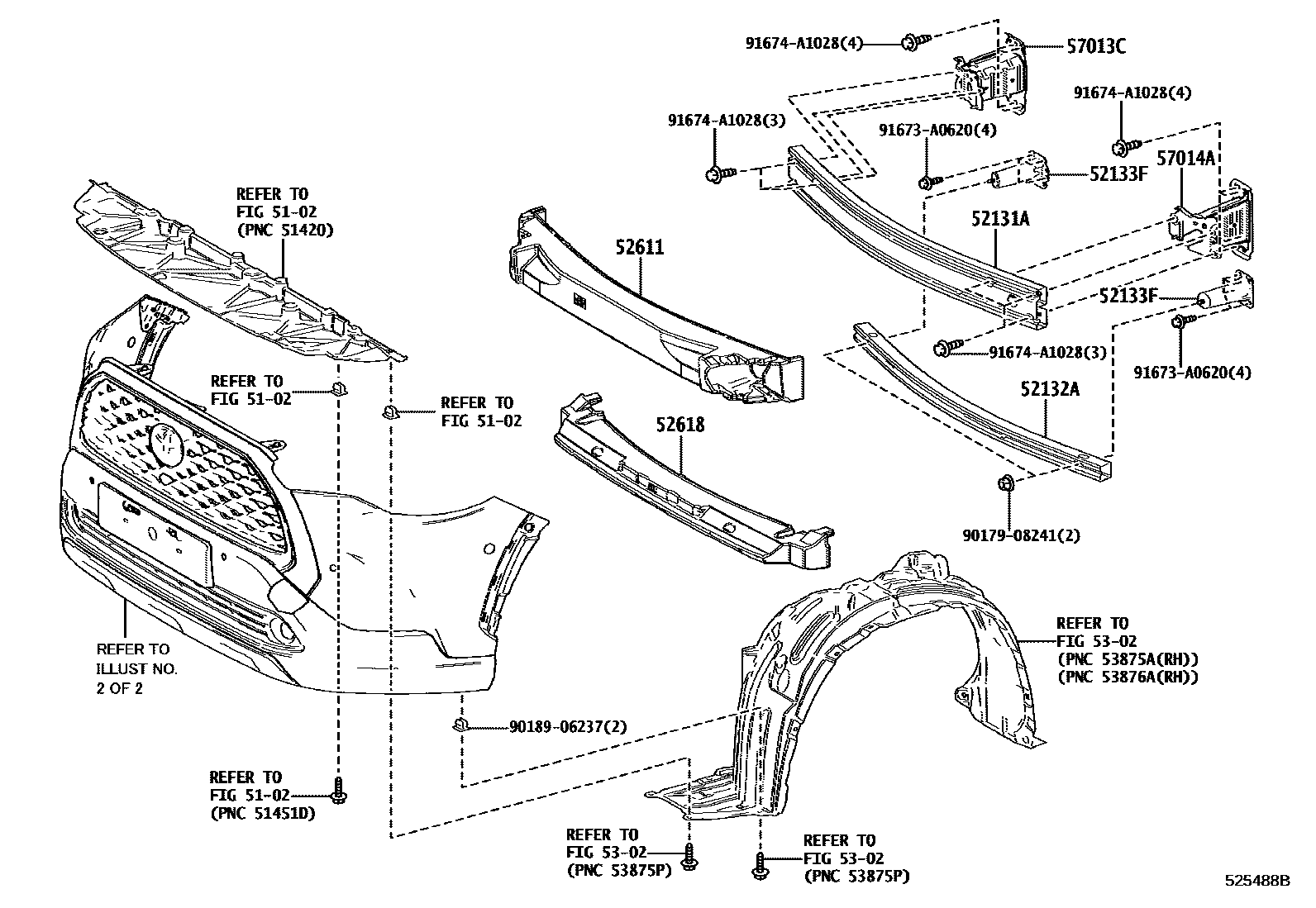

Toyota COROLLA 前保险杠及附件 — Figure 5201
Toyota COROLLA EPC diagram 5201, 前保险杠及附件, with 2 images and 23 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 52111E | front bumper stay | 52111-16902 |
| 52112D | Front bumper right extension | 52112-16900 · 52112-16901 · 52112-16902 |
| 52113D | Front bumper left extension | 52113-16900 · 52113-16901 · 52113-16902 |
| 52114A | Front bumper extension mounting bracket | 52114-16020 |
| 52116B | front bumper fixings | 75392-35220 |
| 52119D | VIS, NO.1 | 90167-50063 |
| 52127D | Front bumper right hole cover | 81481-16040 · 81481-16050 |
| 52128B | Front bumper left hole cover | 53128-16020 |
| 52128C | Front bumper left hole cover | 81482-16040 · 81482-16050 |
| 52129B | Front bumper lower cover | 52129-16902 · 52129-16903 |
| 52131A | Front bumper reinforcement | 52131-16110 |
| 52132A | No. 2 front bumper reinforcement | 52132-12150 · 52132-12151 |
| 52133F | Front bumper right side bracket | 52133-12190 |
| 52535 | Front bumper right side fixing bracket | 52535-16050 |
| 52535F | ATTACHE, RETENUE LATERALE PARE-CHOCS AV | 90467-09237 |
| 52536 | Front bumper left fixed bracket | 52536-16040 |
| 52611 | front bumper energy absorber | 52611-16070 |
| 52618 | Front bumper lower shock absorber | 52618-16010 |
| 53121E | Clamp No. 1 (for front bumper) | 90467-07220 |
| 57013C | Right front longitudinal beam bracket sub-assembly | 57013-16010 |
| 57014A | Left front longitudinal beam bracket sub-assembly | 57014-16010 |
| 89C48D | ARRETOIR, CAPTEUR A ULTRASONS, D'ANGLE AVANT | 89348-48311 |
| 89C48E | ARRETOIR, CAPTEUR A ULTRASONS, CENTRAL AVANT | 89348-48311 |
