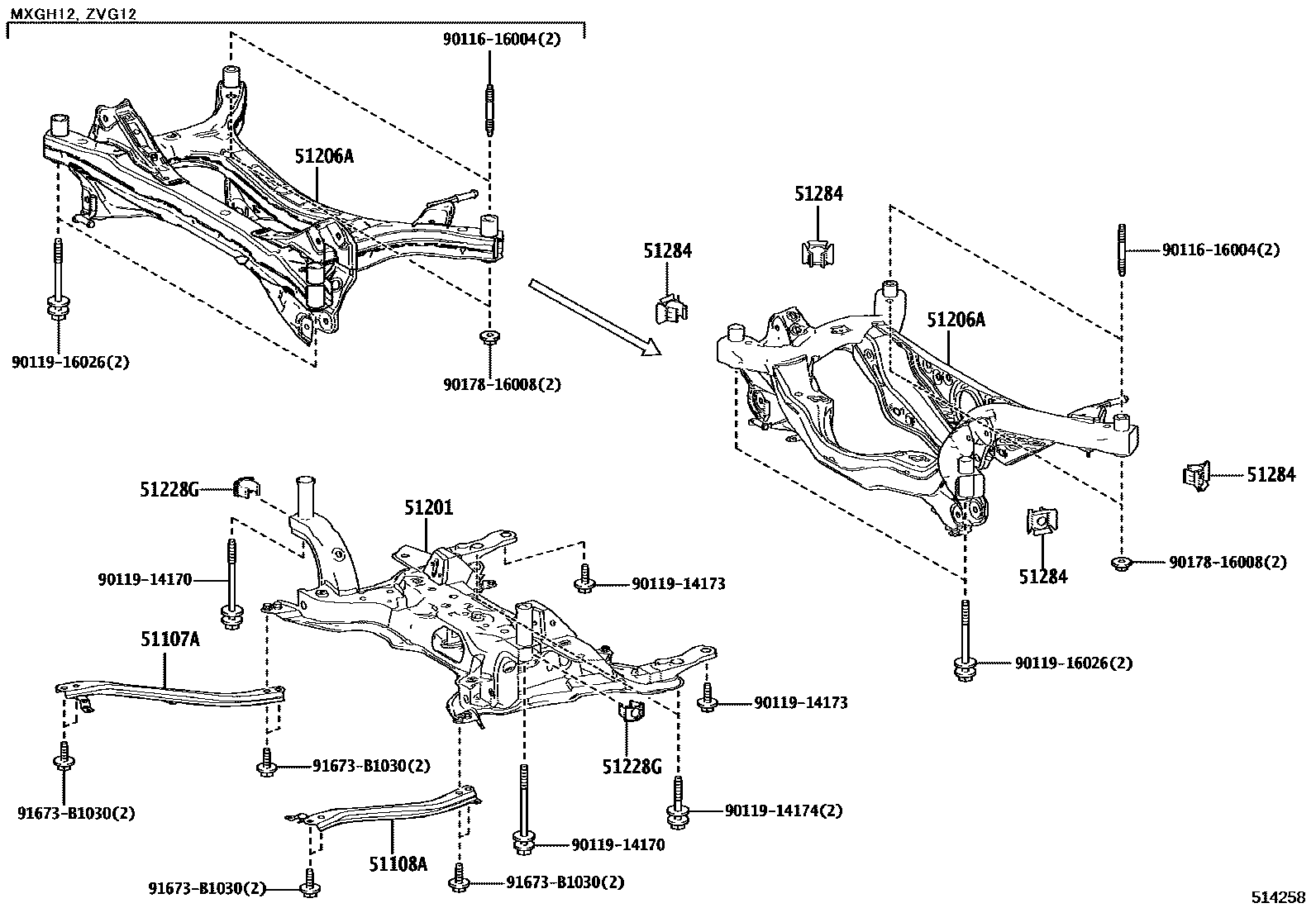

Toyota COROLLA 悬架横梁和发动机底罩 — Figure 5102
Toyota COROLLA EPC diagram 5102, 悬架横梁和发动机底罩, with 2 images and 14 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 51107A | Right rear longitudinal beam reinforcement sub-assembly | 51107-12040 |
| 51108A | Left rear longitudinal beam reinforcement sub-assembly | 51108-12040 |
| 51201 | Front suspension cross member sub-assembly | 51201-76032 |
| 51206A | Rear suspension cross member sub-assembly | 51206-16040 · 51206-16041 · 51206-16050 |
| 51228G | PLAQUE LONGERON SUSPENSION AVANT | 51228-47010 |
| 51284 | Rear suspension cross member hole cover | 51284-47010 |
| 51410 | Engine No. 1 bottom cover assembly | 51410-16010 · 51410-16011 |
| 51420 | COUV ASS, SOUS MOT, NO.2 | 51420-16020 |
| 51443C | Engine right rear bottom cover | 51443-12130 |
| 51444A | Engine left rear bottom cover | 51444-12120 |
| 51447D | No. 4 engine center bottom cover | 51447-16030 |
| 51451D | VIS, NO.1 | 90159-60477 |
| 51451J | BOULON, NO.1 | 90119-06A13 |
| 51454 | engine rear cover | 90467-07220 |
