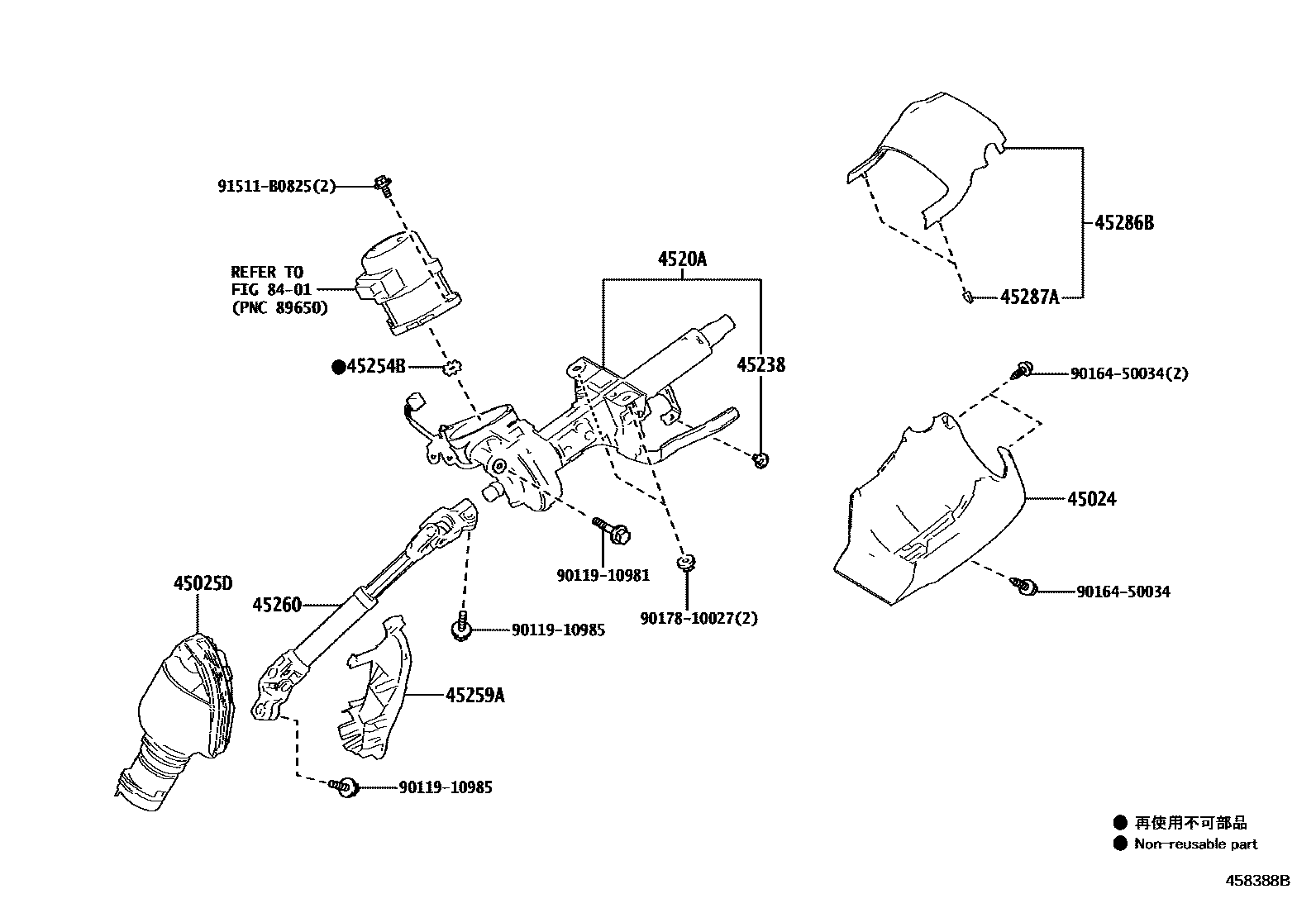

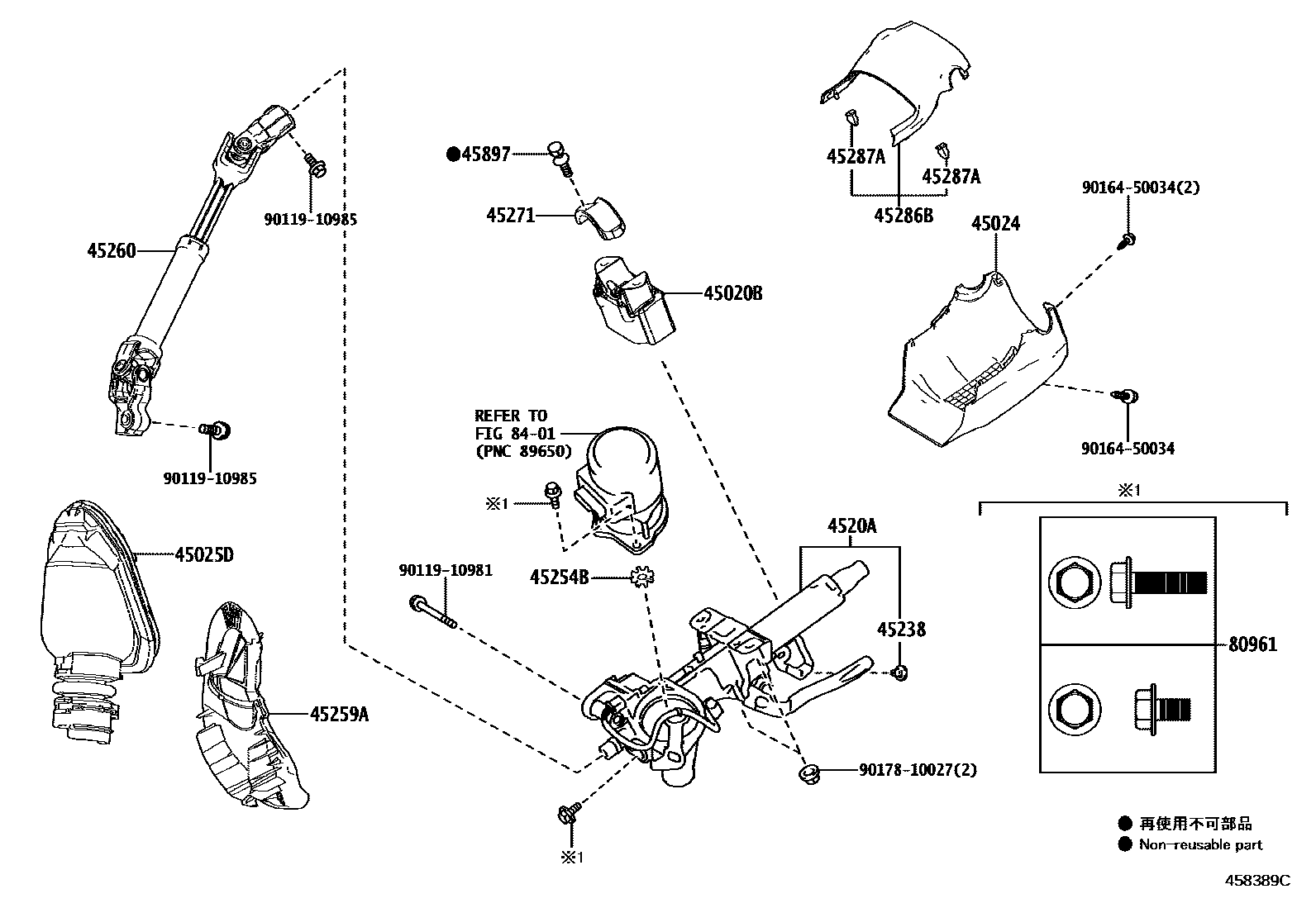

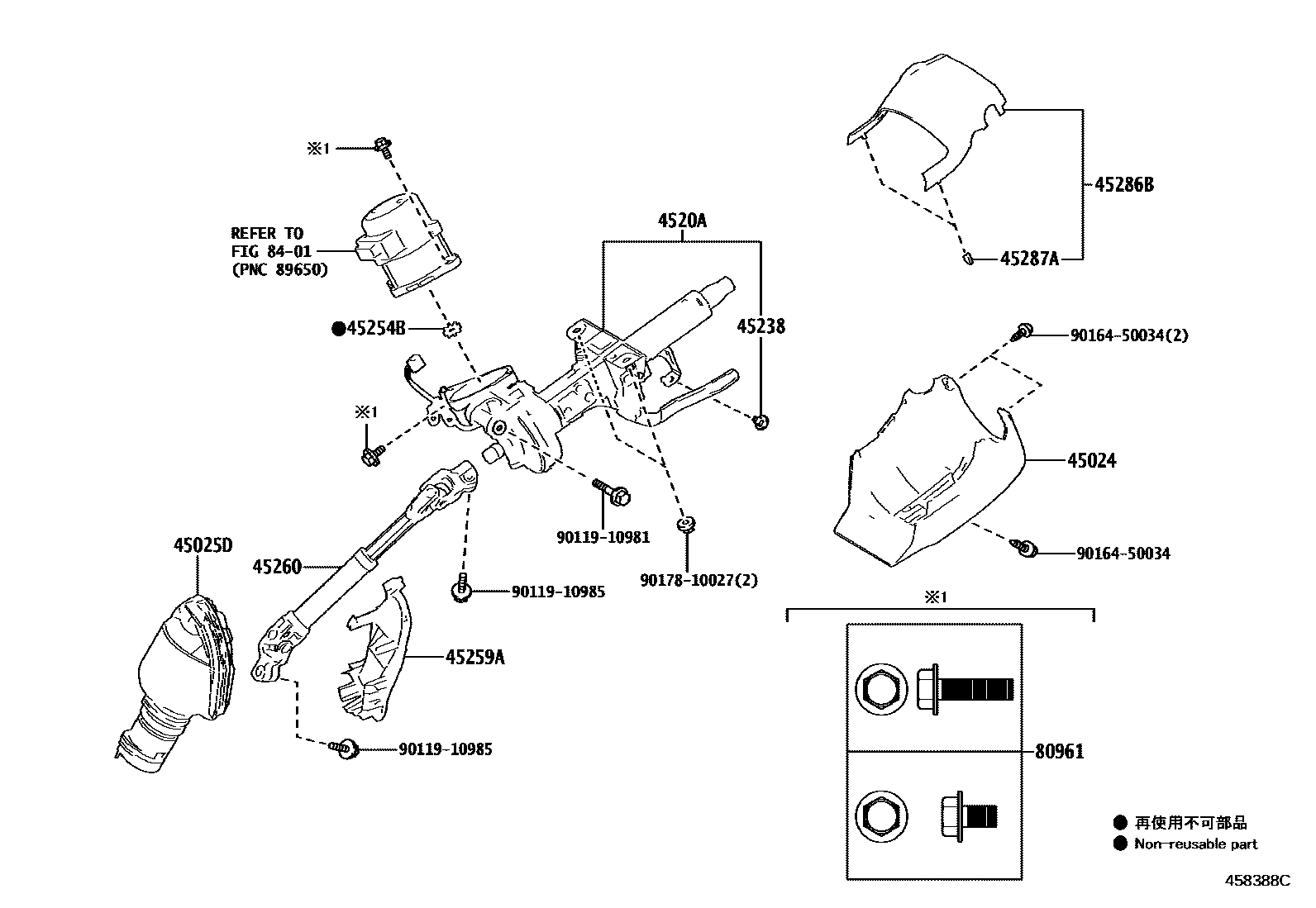

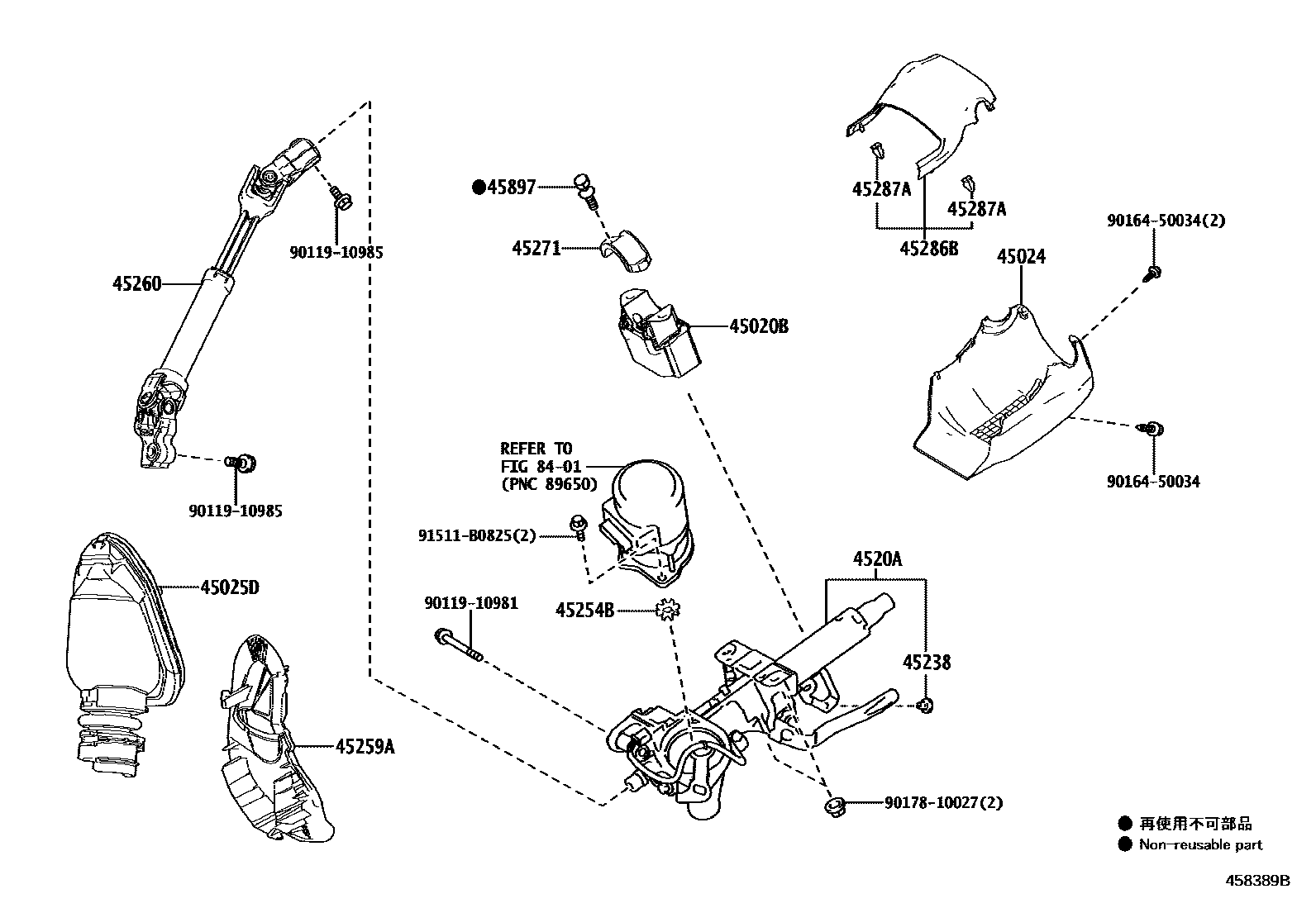

Toyota COROLLA Steering Column & Shaft — Figure 4501
Toyota COROLLA EPC diagram 4501, Steering Column & Shaft, with 4 images and 11 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 45020B | ACTIONNEUR OU ENSEMBLE SUPPORT SUPERIEUR, ANTIVOL DIRECTION | 45020-42280 |
| 45025D | No. 1 steering column hole cover sub-assembly | 45025-10110 · 45025-76010 |
| 4520A | Electric steering column sub-assembly | 4520A-16010 · 4520A-16040 · 4520A-16050 · 4520A-16060 · 4520A-16070 · 4520A-16080 |
| 45238 | Bolt clamp (for steering flex coupling) | 45238-52010 |
| 45254B | Electric steering motor shaft shock absorber | 45254-28040 |
| 45259A | Steering column hole cover silencer plate | 45259-10010 · 45259-16010 |
| 45260 | No. 2 steering intermediate shaft assembly | 45260-10030 · 45260-10040 · 45260-16100 · 45260-16120 · 45260-16130 |
| 45271 | Clamp on steering column | 45271-52030 |
| 45287A | ATTACHE(POUR CACHE DE COLONNE DE DIRECTION) | 90467-05171 |
| 45897 | Steering lock fixing bolt | 45897-12020 |
| 80961 | JEU FIXATIONS, MOTEUR DIRECTION ASSISTEE | 80961-52020 |
