Toyota COROLLA Alternator — Figure 1903

Toyota COROLLA EPC diagram 1903, Alternator, with 2 images and 15 PNC and OE references.

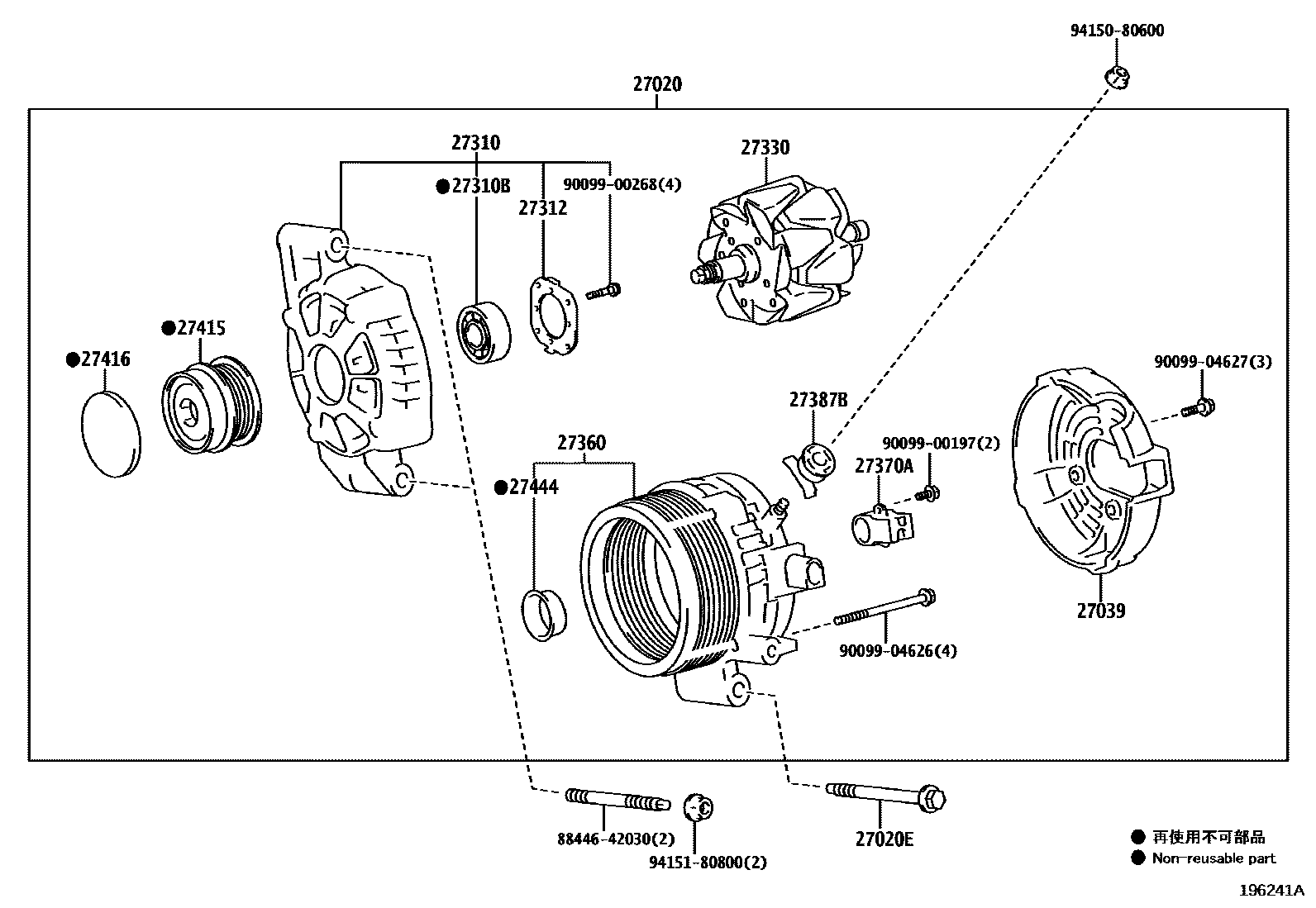

Toyota COROLLA Alternator EPC diagram — 196241A
Alternator — 196241A (202207 – 202302)

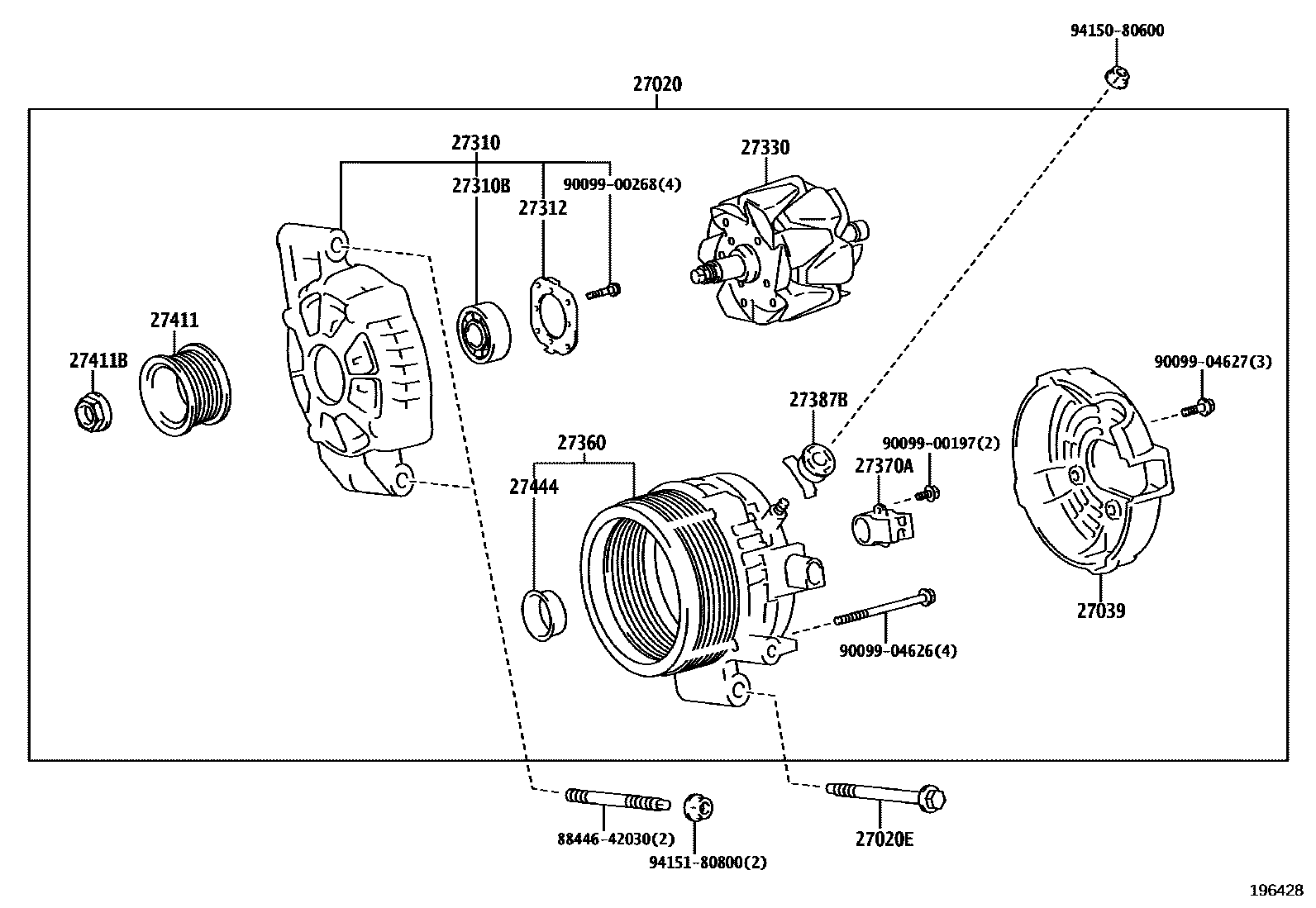

Toyota COROLLA Alternator EPC diagram — 196428
Alternator — 196428 (202302 – 999999)

PNC and OE references

PNCPart nameOE numbers
27020Alternator Assembly27060-24030 · 27060-24080
27020EBolts (for generator)90119-08C78
27039Alternator Rear End Cover27039-37220
27310Alternator Drive End Frame Assembly27310-24150
27310BBearing (for Alternator Drive End Frame)90099-10223
27312Retainer Plate27312-72100
27330Alternator Rotor Assembly27330-47330
27360Alternator Stator Coil Assembly27360-24150
27370AAlternator Brush Holder Assembly27370-31220
27387BGenerator terminal insulation pad27387-20130
27411Alternator Pulley27411-50190
27411BECROU(POUR POULIE ALTERNATEUR)90099-05171
27415PULLEY, ALTERNATOR W/CLUTCH27415-24010
27416Generator pulley cover27416-47010
27444Generator bearing cap seals27444-21190
