Toyota COROLLA Exhaust Pipe — Figure 1702

Toyota COROLLA EPC diagram 1702, Exhaust Pipe, with 5 images and 7 PNC and OE references.

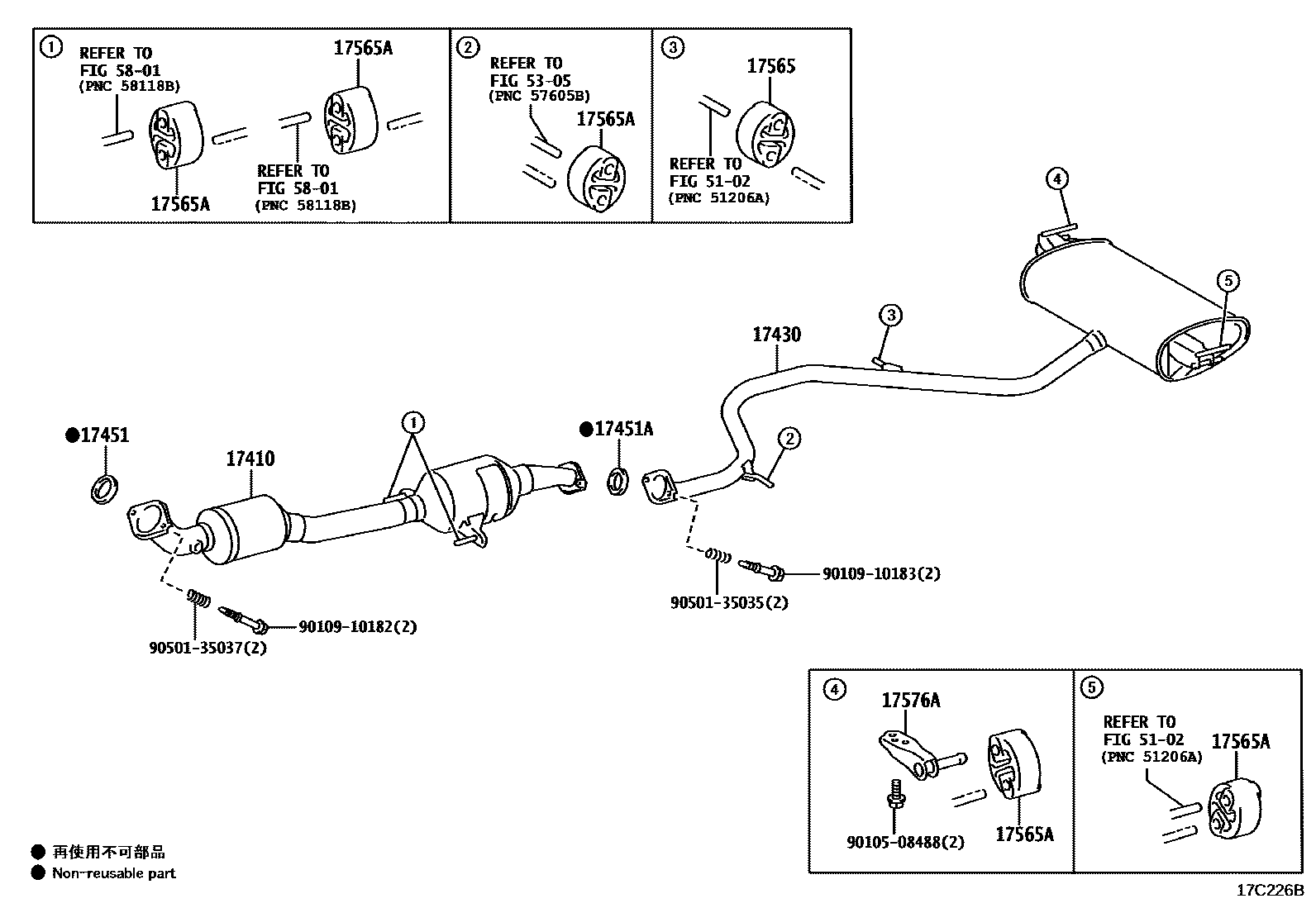

Toyota COROLLA Exhaust Pipe EPC diagram — 17C226B — Exhaust Pipe — 17C226B (202207 – 999999)

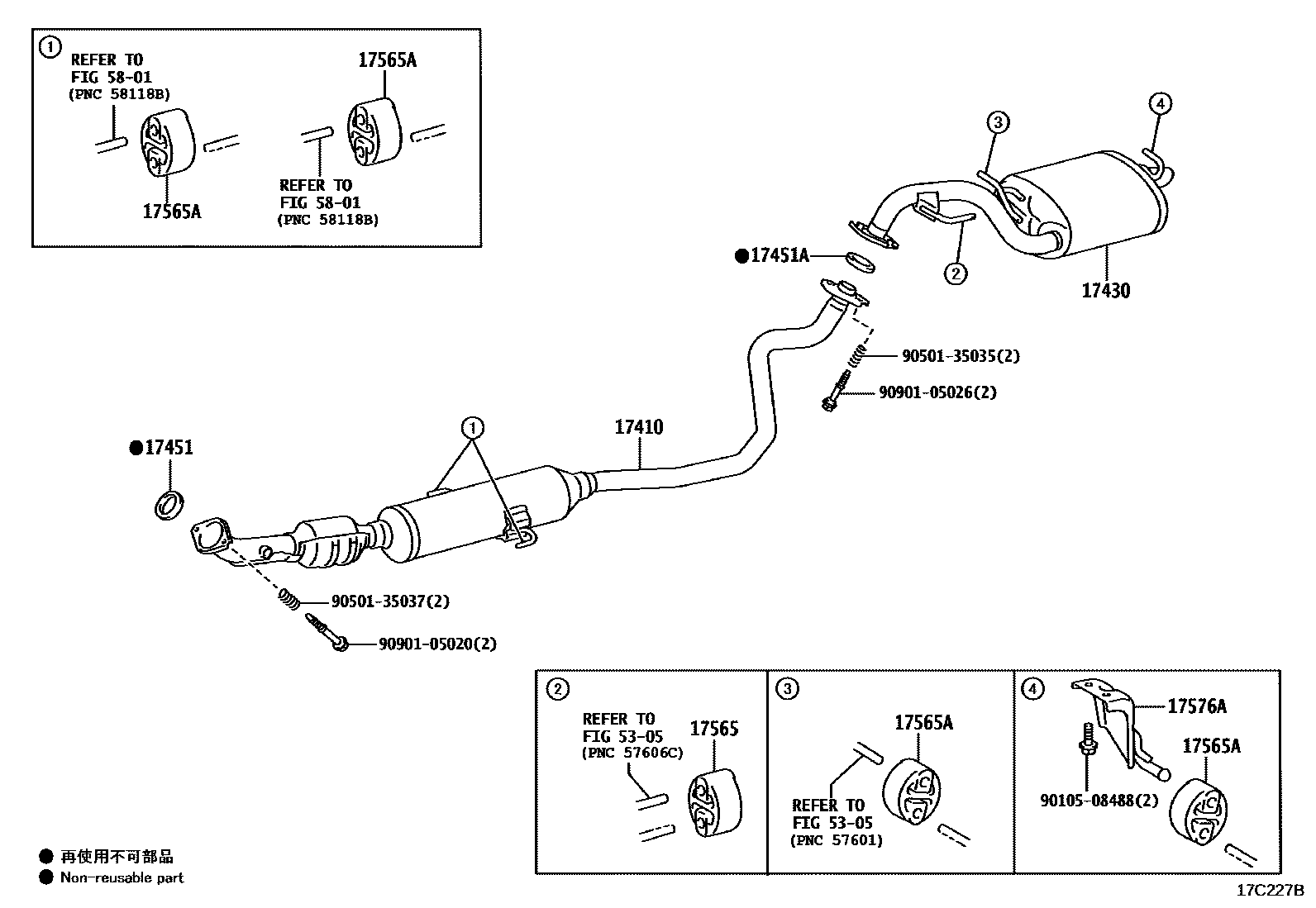

Toyota COROLLA Exhaust Pipe EPC diagram — 17C227B — Exhaust Pipe — 17C227B (202207 – 999999)

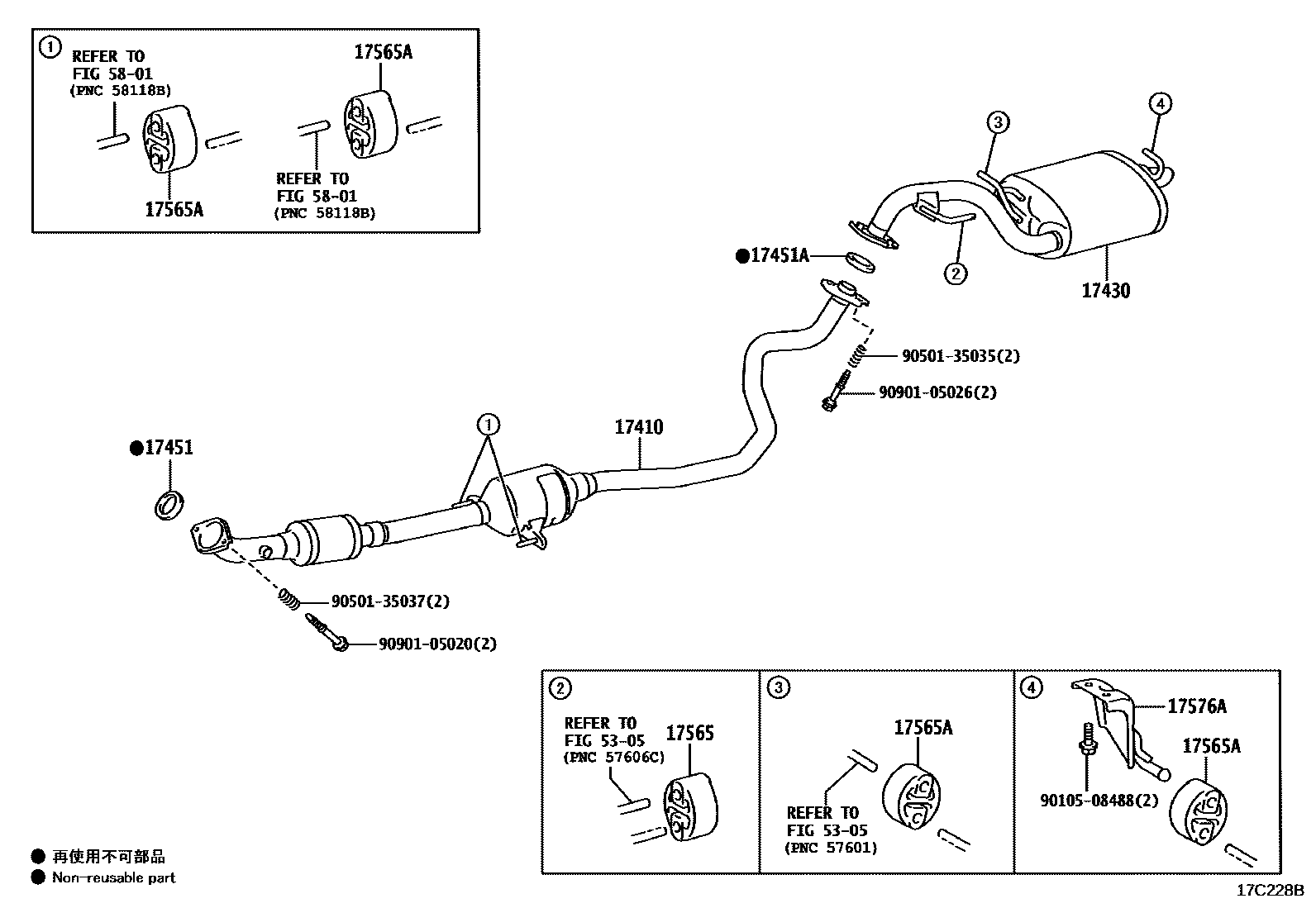

Toyota COROLLA Exhaust Pipe EPC diagram — 17C228B — Exhaust Pipe — 17C228B (202207 – 999999)

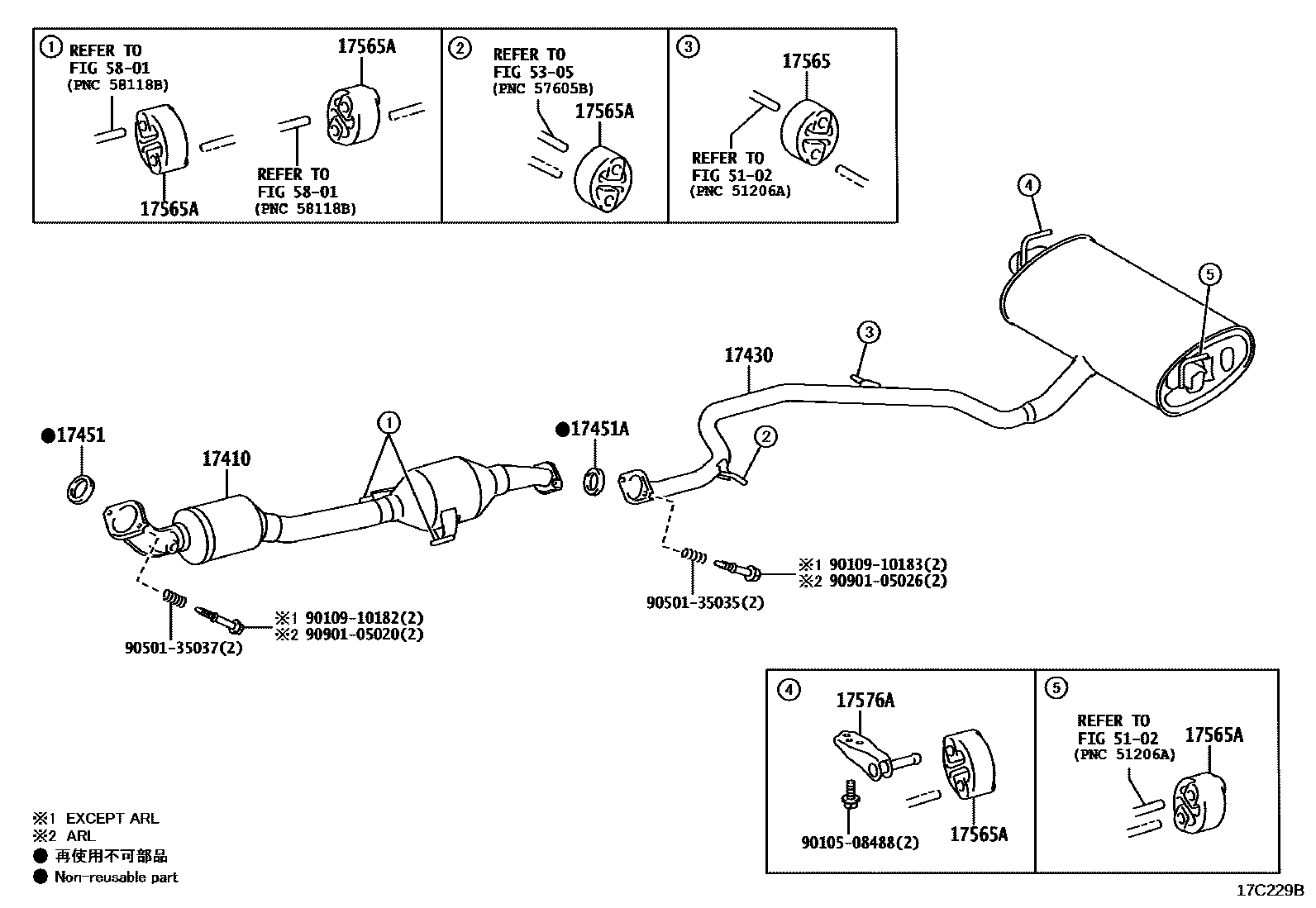

Toyota COROLLA Exhaust Pipe EPC diagram — 17C229B — Exhaust Pipe — 17C229B (202207 – 999999)

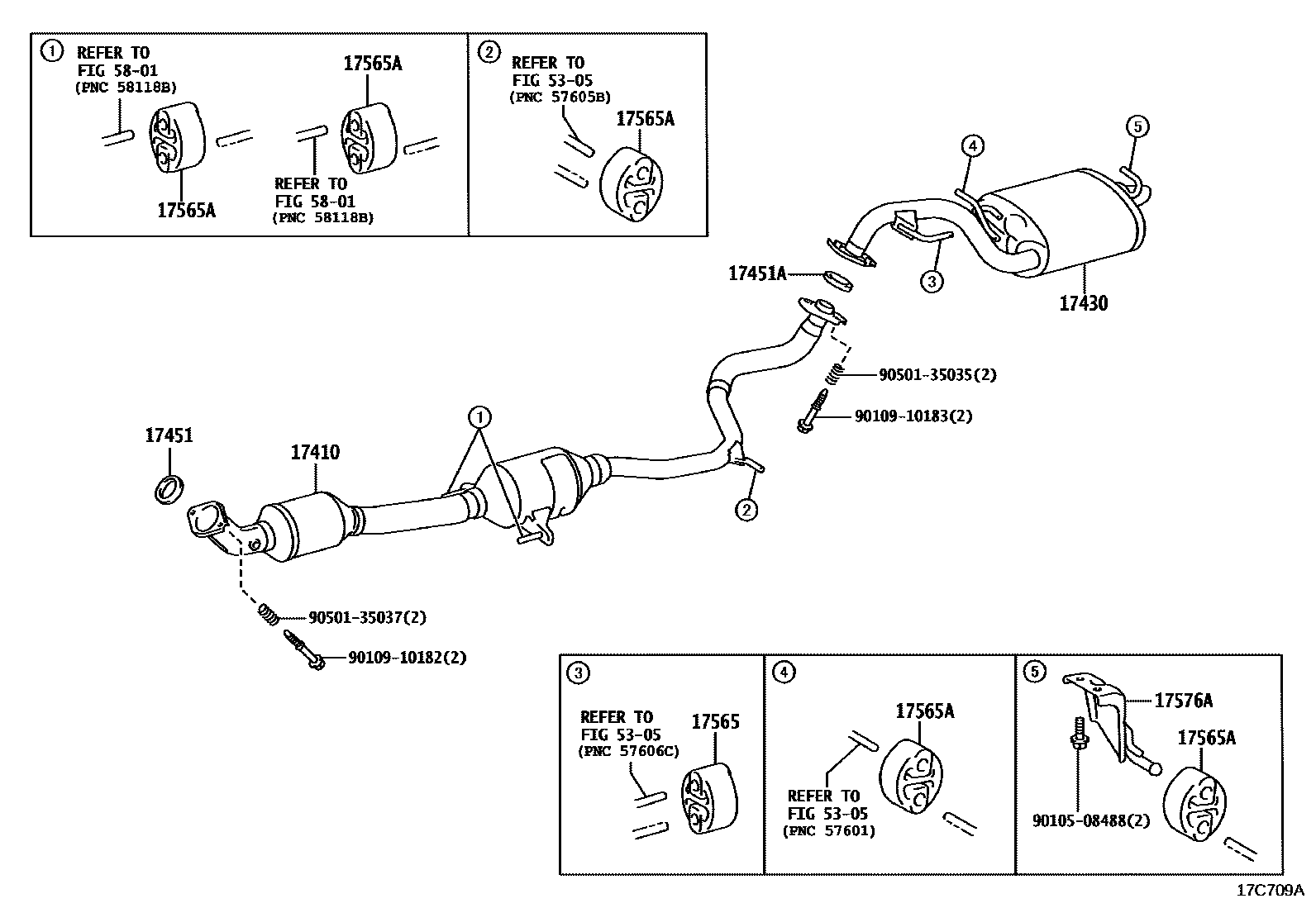

Toyota COROLLA Exhaust Pipe EPC diagram — 17C709A — Exhaust Pipe — 17C709A (202303 – 999999)

PNC and OE references

PNC	Part name	OE numbers
17410	Front exhaust pipe assembly	17410-24640 · 17410-24650 · 17410-24670 · 17410-24690 · 17410-24890 · 17410-24A00 · 17410-24A10 · 17410-37E20 · 17410-37F10 · 17410-37F20
17430	Exhaust tailpipe assembly	17430-24510 · 17430-24520 · 17430-24530 · 17430-24540 · 17430-37A20 · 17430-37C50
17451	Exhaust pipe gasket	17451-24010 · 17451-28040 · 17451-28041
17451A	No. 2 exhaust pipe gasket	17451-23042 · 17451-23043 · 17451-24020
17565	No. 5 exhaust pipe lifting lug	17565-28010
17565A	No. 4 exhaust pipe lifting lug	17565-22040
17576A	No. 6 exhaust pipe bracket	17575-37030 · 17576-37010
