Toyota COROLLA Oil Filter — Figure 1502

Toyota COROLLA EPC diagram 1502, Oil Filter, with 2 images and 5 PNC and OE references.

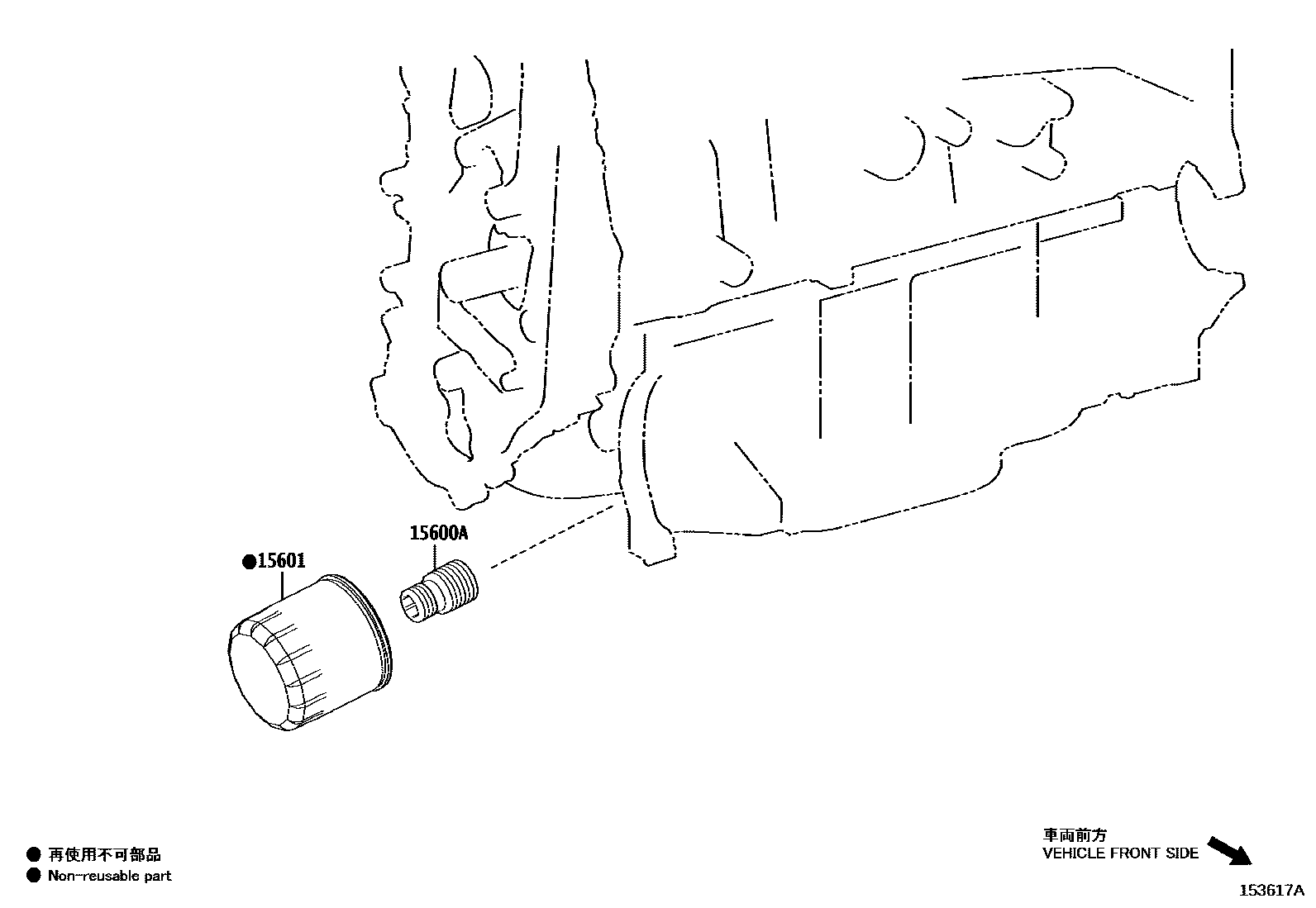

Toyota COROLLA Oil Filter EPC diagram — 153617A
Oil Filter — 153617A (202207 – 999999)

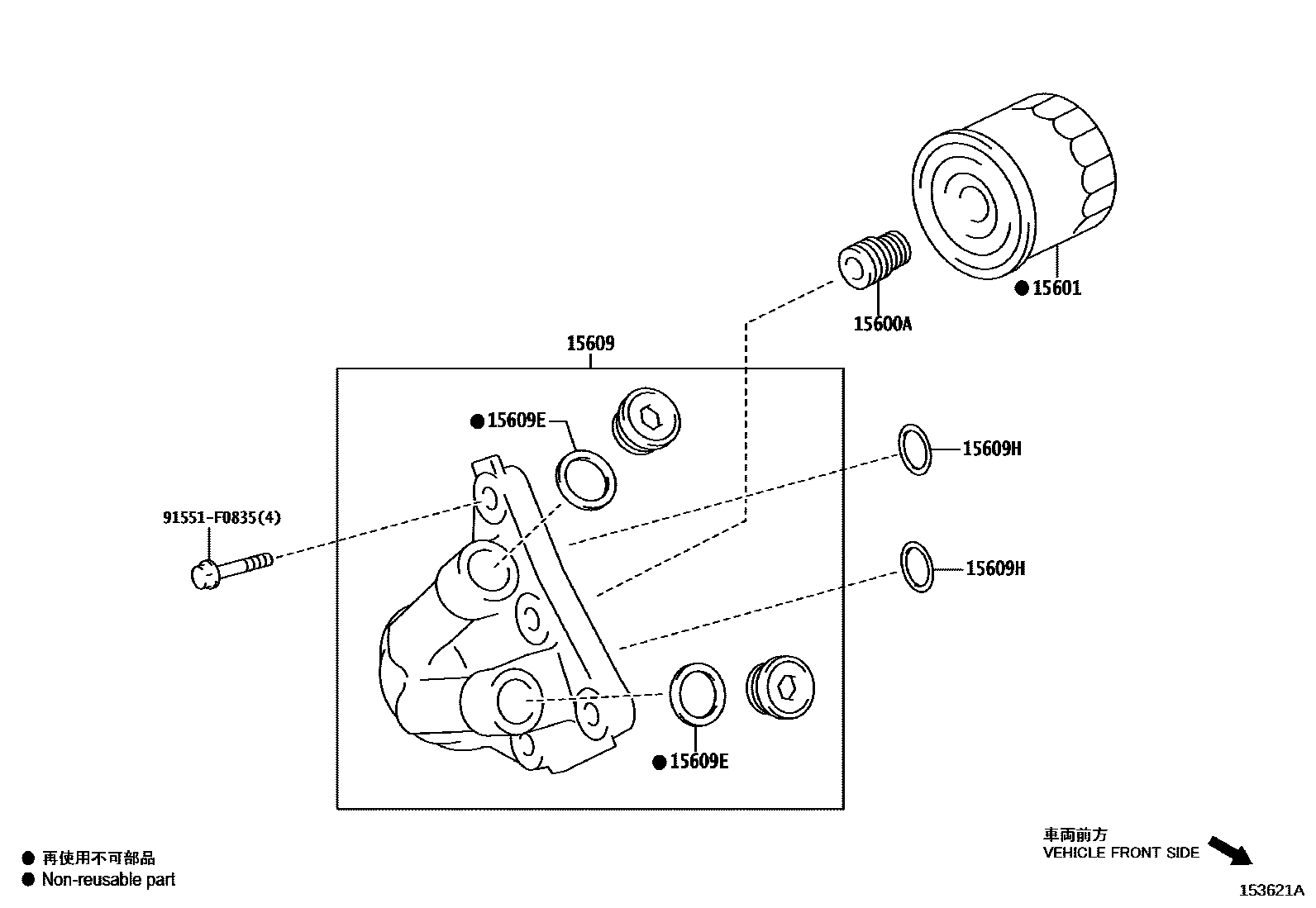

Toyota COROLLA Oil Filter EPC diagram — 153621A
Oil Filter — 153621A (202207 – 999999)

PNC and OE references

PNCPart nameOE numbers
15600AConnector (for oil filter)90904-04006
15601Oil filter sub-assembly90915-10003 · 90915-10009
15609Oil filter bracket sub-assembly15609-37070
15609EHeaded straight thread plug liner90430-20004
15609HO-ring (for oil filter bracket)96723-24020
