Toyota COROLLA Engine Oil Pump — Figure 1501

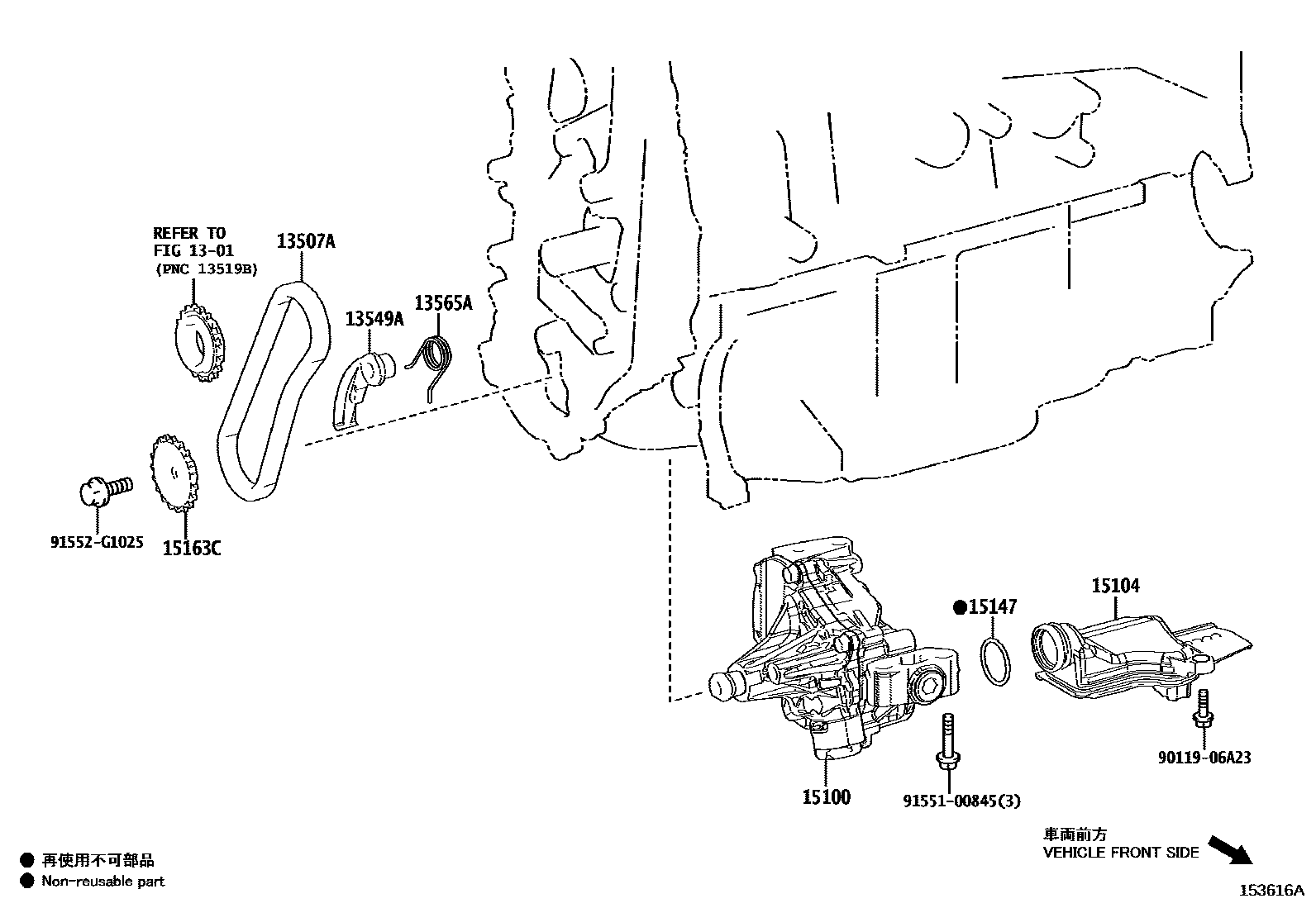

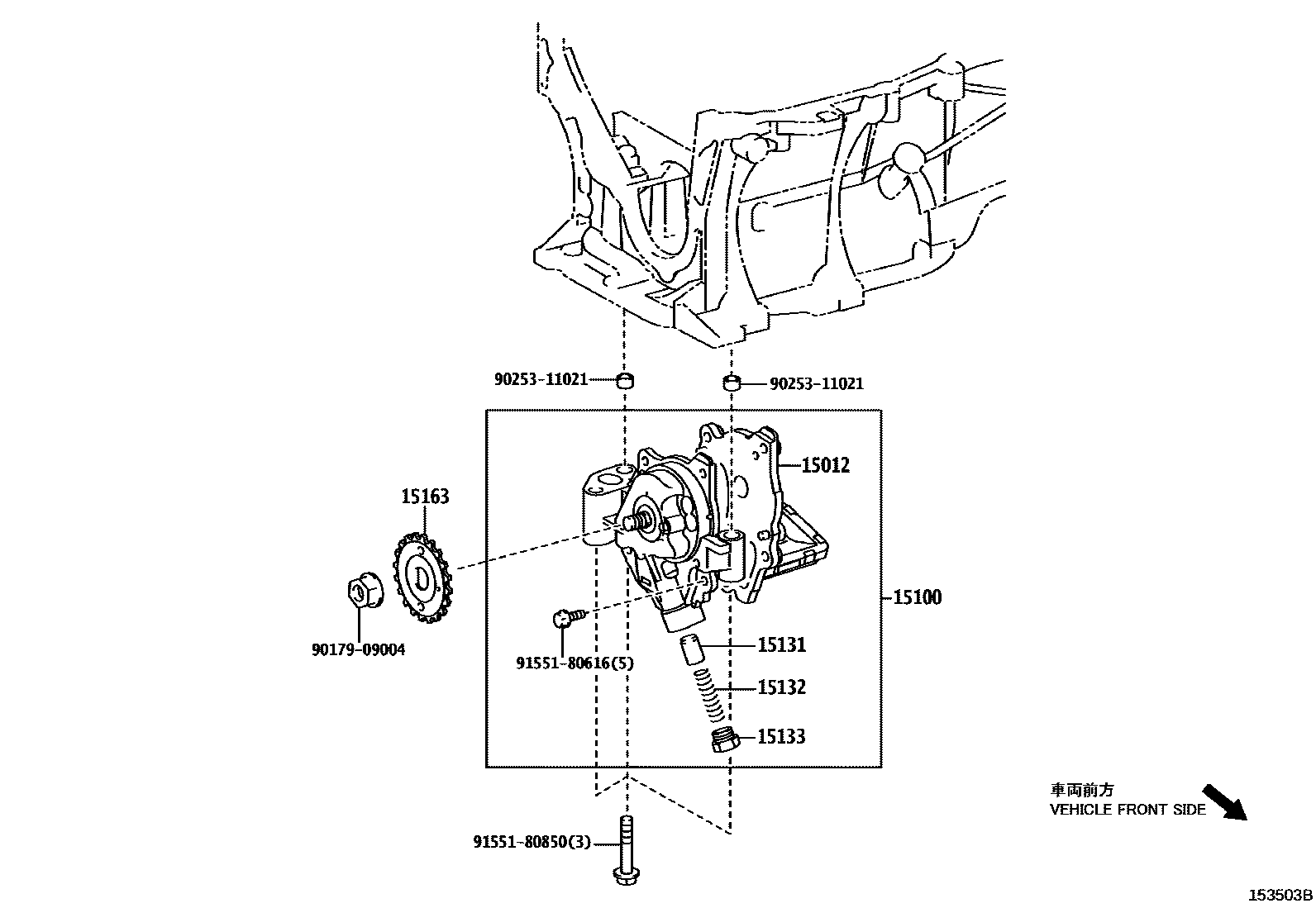

Toyota COROLLA EPC diagram 1501, Engine Oil Pump, with 2 images and 12 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 13507A | Oil pump drive chain sub-assembly | 13507-24020 |
| 13549A | PLAQUE TENDEUR CHAINE | 13549-25020 |
| 13565A | chain damper spring | 13565-25010 |
| 15012 | Oil pump cover sub-assembly | 15012-37070 |
| 15100 | Oil pump assembly | 15100-24020 · 15100-37070 |
| 15104 | Oil filter sub-assembly | 15104-24010 |
| 15131 | Oil pump pressure reducing valve | 15131-0A040 |
| 15132 | Oil pump pressure reducing valve spring | 15132-46060 |
| 15133 | PLUG, OIL PUMP RELIEF VALVE | 15133-28020 |
| 15147 | Oil filter gasket | 15147-25010 |
| 15163 | Oil pump drive shaft gear | 15163-28010 |
| 15163C | PIGNON, ARBRE ENTR POMPE HUILE | 15163-25010 |
