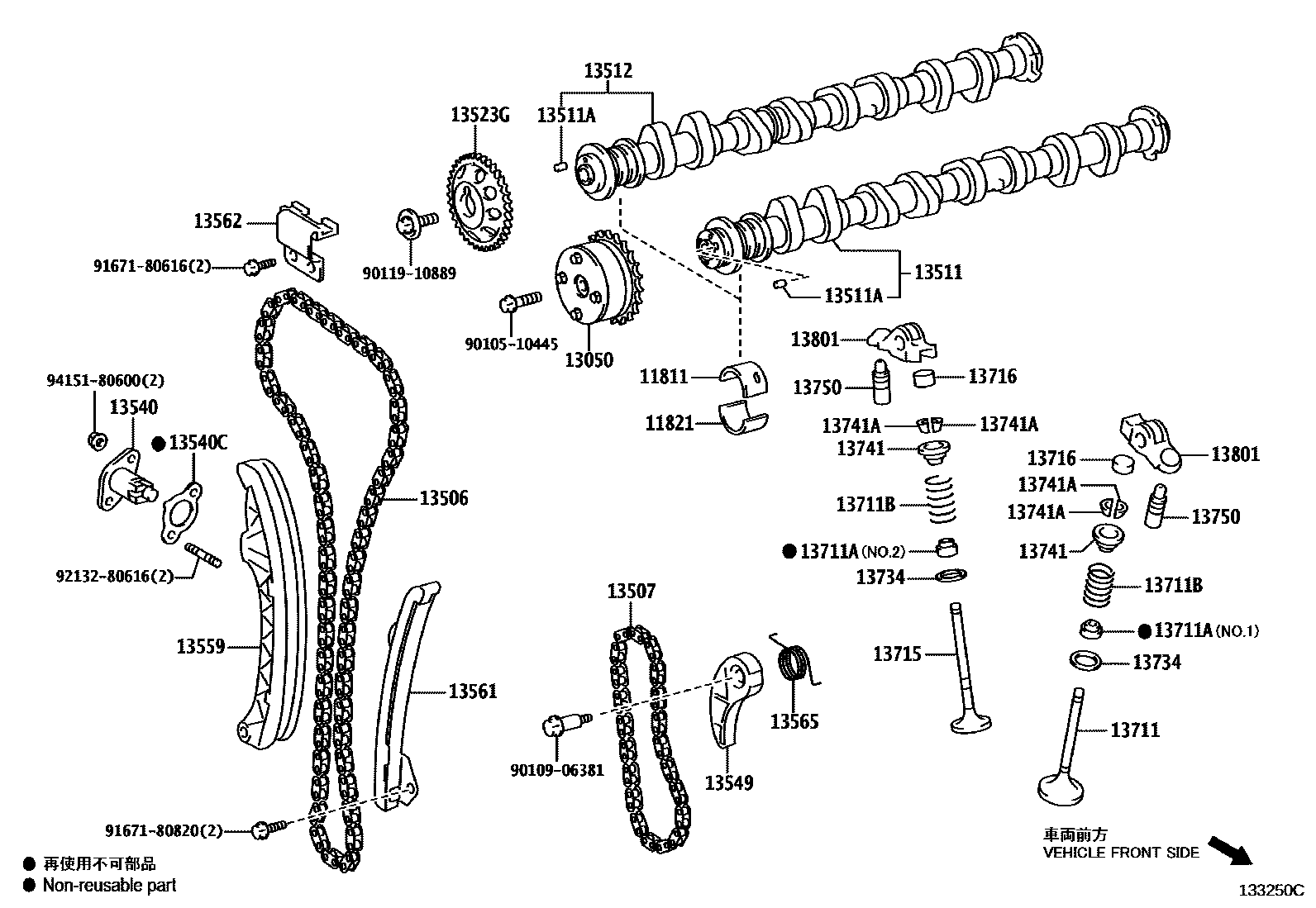

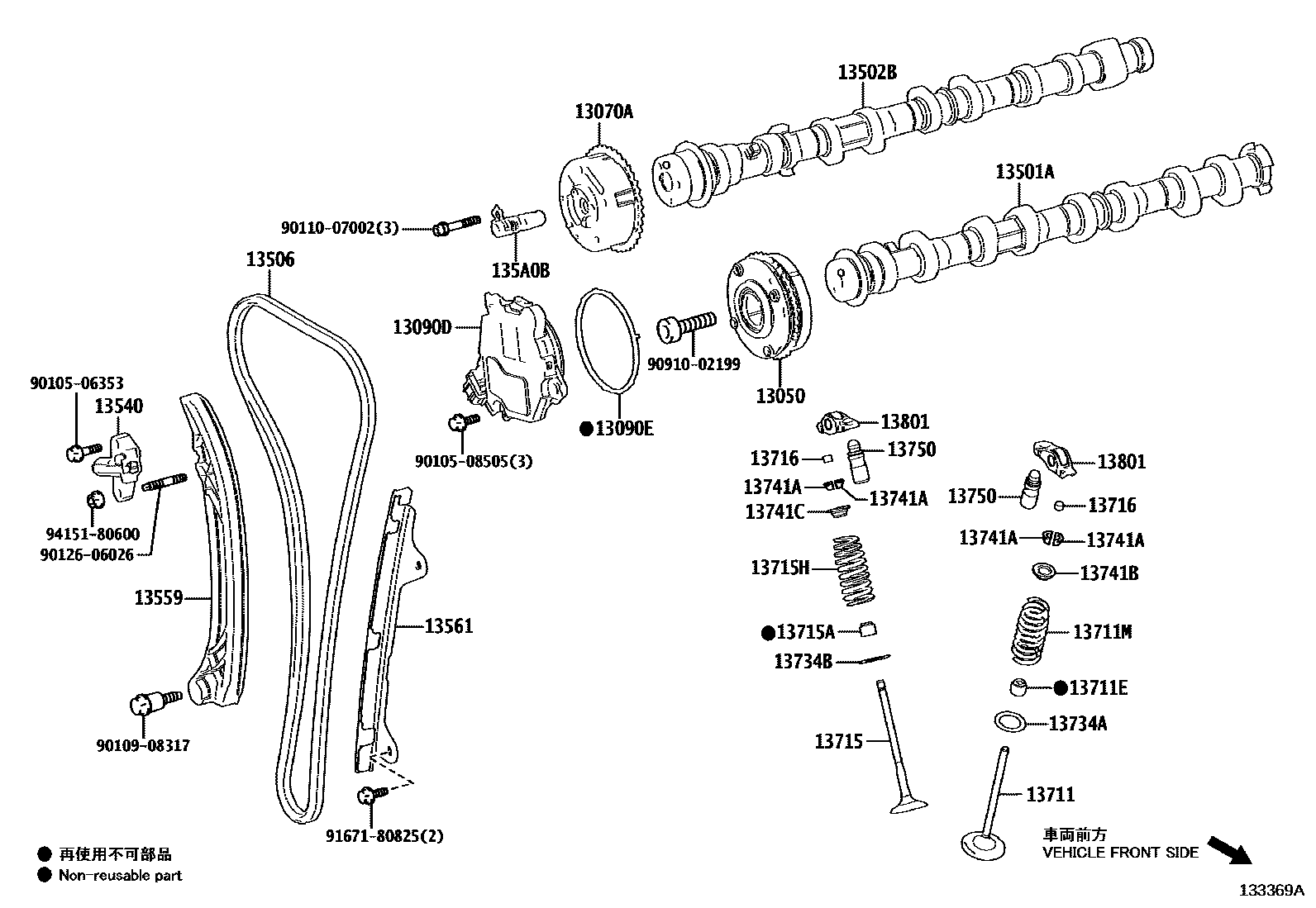

Toyota COROLLA Camshaft & Valve — Figure 1302
Toyota COROLLA EPC diagram 1302, Camshaft & Valve, with 2 images and 40 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 11811 | No. 1 camshaft bearing | 11811-37010 · 11811-37020 |
| 11821 | No. 2 camshaft bearing | 11821-37010 · 11821-37020 |
| 13050 | Camshaft timing gear assembly | 13050-25010 · 13050-37050 |
| 13070A | Exhaust camshaft timing gear assembly | 13070-25030 |
| 13090D | ENS. MOTEUR, COM. AVAN. ALLUM. CAME AVEC EDU | 13090-25010 |
| 13090E | JOINT TOR. (DE MOTEUR COM. AVAN. ALLUM. CAME) | 90301-92005 |
| 13501A | SS-ENS. ARBRE A CAMES, ADMISSION | 13501-24020 · 13501-24030 |
| 13502B | SS-ENS. ARBRE A CAMES, ECHAPPEMENT | 13502-24010 · 13502-24020 |
| 13506 | Chain sub-assembly | 13506-24020 · 13506-37070 |
| 13507 | No. 2 chain sub-assembly | 13507-28010 |
| 13511 | camshaft | 13501-37080 |
| 13511A | Direct pin (for camshaft locking pin) | 90250-05027 |
| 13512 | Camshaft No. 2 | 13502-37070 |
| 13523G | Camshaft timing sprocket | 13523-22020 |
| 13540 | No. 1 chain tensioner assembly | 13540-25020 · 13540-37030 |
| 13540C | Pad (for chain tensioner) | 13552-37010 |
| 13549 | chain tensioner pressure plate | 13549-37020 |
| 13559 | chain tensioner guide plate | 13559-24010 · 13559-37050 |
| 13561 | No. 1 chain shock absorber | 13561-15010 · 13561-37050 |
| 13562 | No. 2 chain shock absorber | 13562-37020 |
| 13565 | chain damper spring | 13565-37010 |
| 135A0B | ENS. SOUPAPE, DISTRIB ARBRE A CAMES | 135A0-25020 |
| 13711 | intake valve | 13711-24040 · 13711-37020 |
| 13711A | Oil seal or O-ring (for valve stem) | 90913-02101 · 90913-02112 |
| 13711B | Compression spring (for inner side) | 90501-30039 |
| 13711E | Intake valve stem oil seal | 90913-02101 |
| 13711M | RESSORT, COMPRESSION(POUR SOUPAPE ADMISSION) | 90501-31035 · 90501-33034 |
| 13715 | exhaust valve | 13715-24040 · 13715-37030 |
| 13715A | Exhaust valve stem oil seal | 90913-02112 |
| 13715H | RESSORT, COMPRESSION(POUR SOUPAPE ECHAPPEMENT) | 90501-31035 · 90501-33035 |
| 13716 | valve stem cover | 13716-25010 · 13716-75020 |
| 13734 | Valve spring seat | 13734-62020 |
| 13734A | Intake valve spring seat | 13734-62020 |
| 13734B | Exhaust valve spring seat | 13734-62020 |
| 13741 | Valve spring seat ring | 13741-36010 |
| 13741A | Valve spring seat lock plate | 90913-03028 |
| 13741B | Intake valve spring seat ring | 13741-36010 |
| 13741C | Exhaust valve spring seat ring | 13741-36010 |
| 13750 | Valve lash adjuster assembly | 13750-21010 · 13750-25010 |
| 13801 | No. 1 valve rocker arm sub-assembly | 13801-25010 · 13801-36020 |
