Toyota COROLLA Engine Mounting — Figure 1107

Toyota COROLLA EPC diagram 1107, Engine Mounting, with 3 images and 10 PNC and OE references.

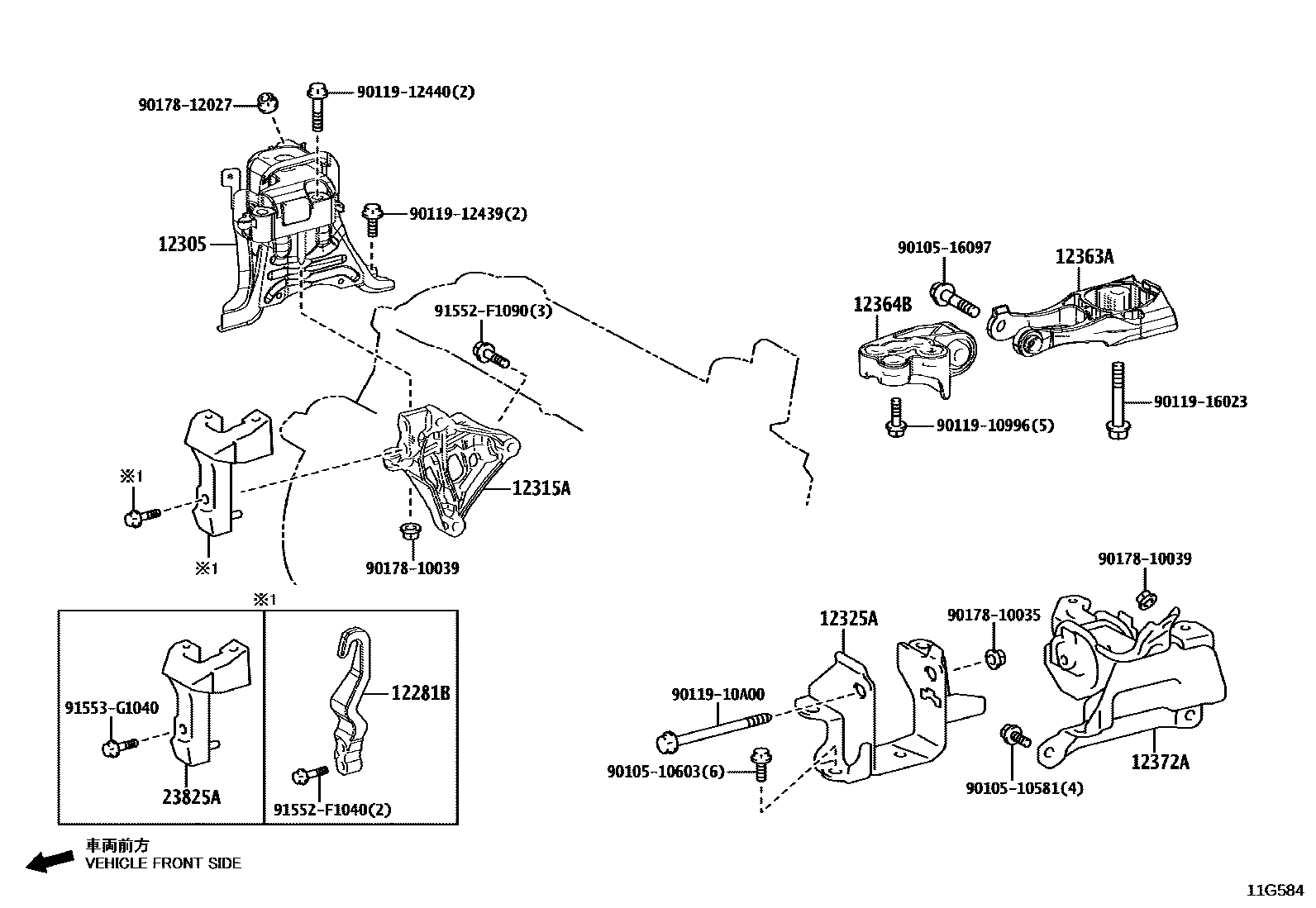

Toyota COROLLA Engine Mounting EPC diagram — 11G584
Engine Mounting — 11G584 (202207 – 999999)

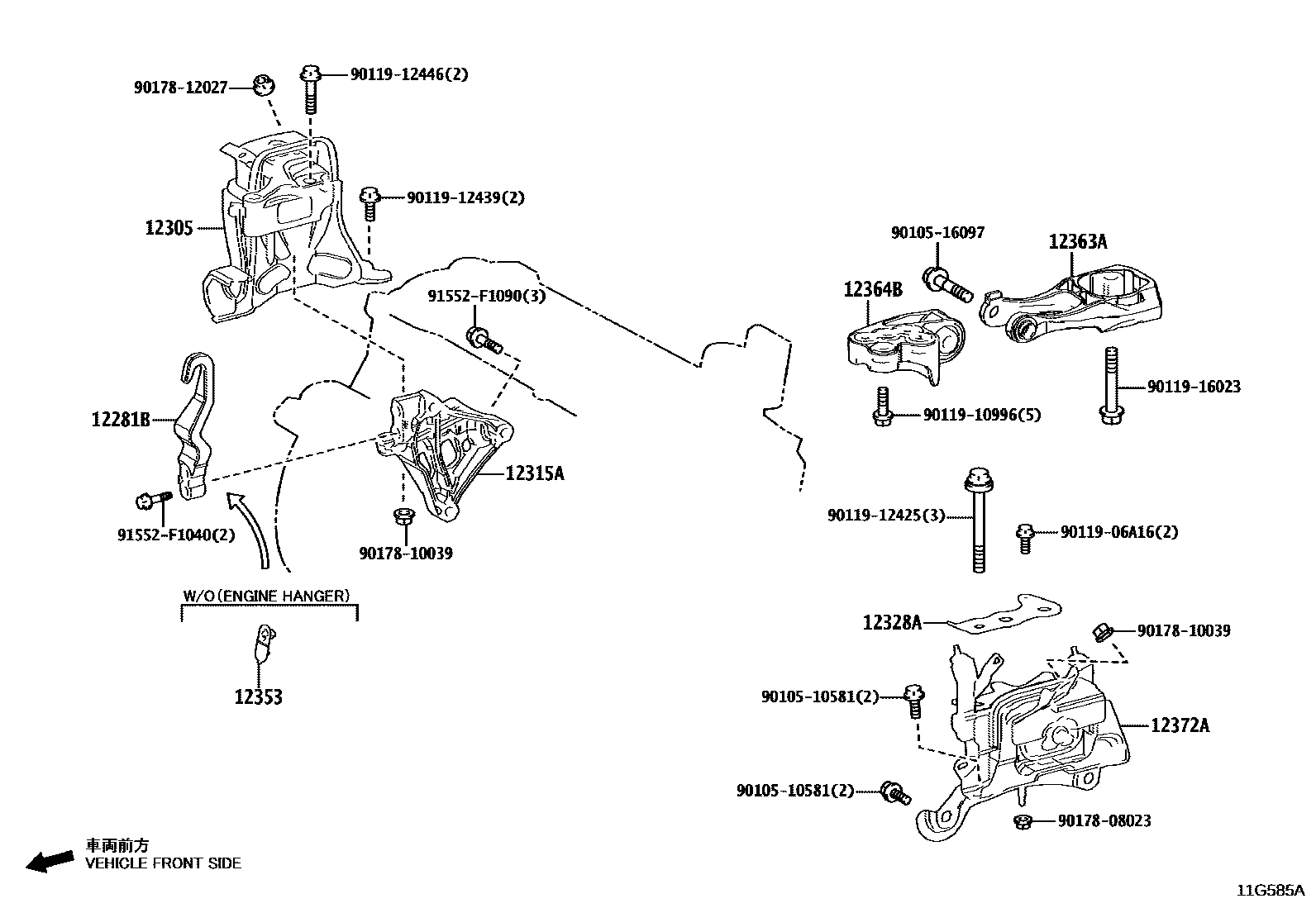

Toyota COROLLA Engine Mounting EPC diagram — 11G585A
Engine Mounting — 11G585A (202207 – 999999)

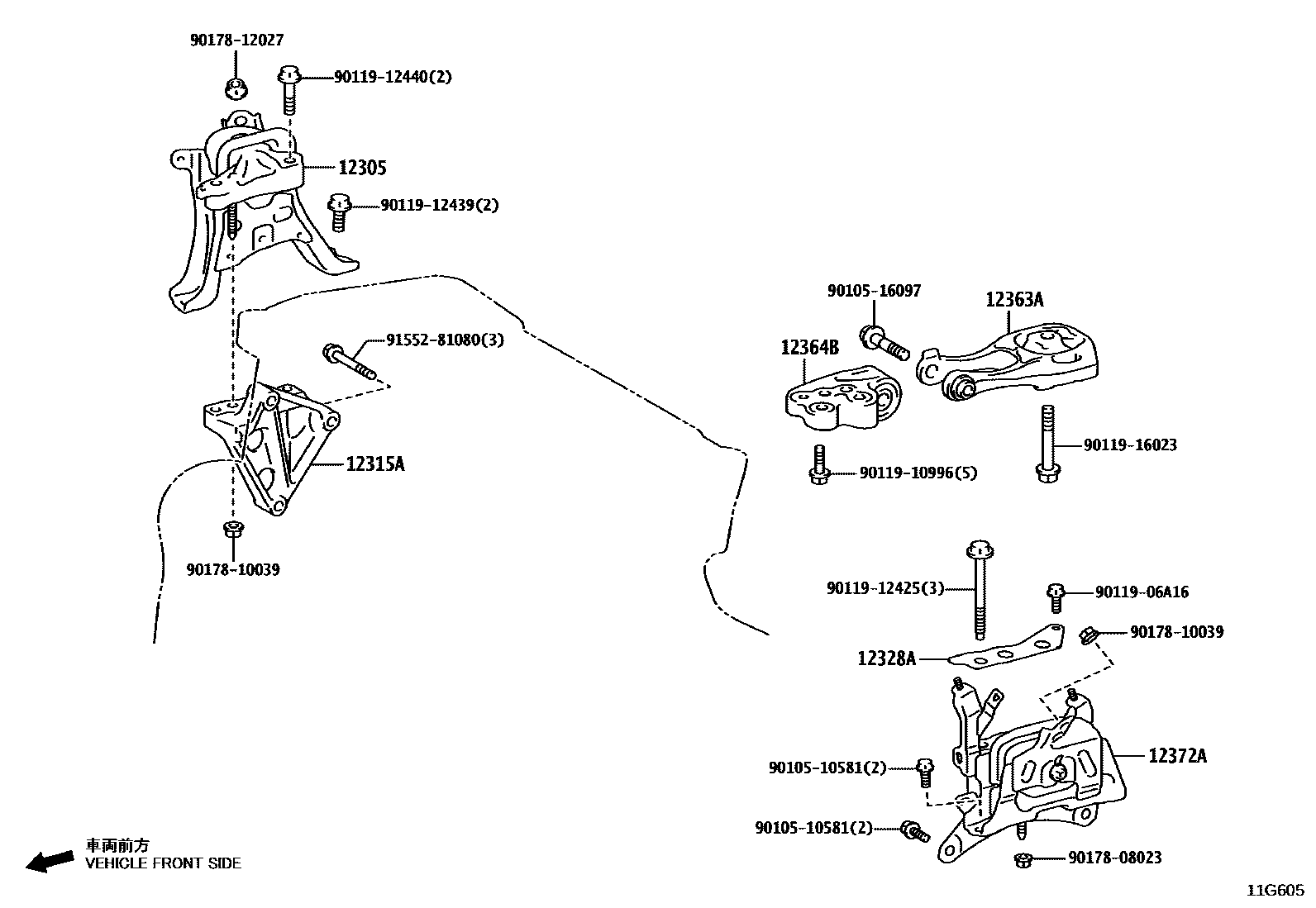

Toyota COROLLA Engine Mounting EPC diagram — 11G605
Engine Mounting — 11G605 (202207 – 999999)

PNC and OE references

PNCPart nameOE numbers
12281BCROCHET SUSPENSION MOTEUR NO.112281-25030
12305Engine right side mounting vibration isolation pad sub-assembly12305-24010 · 12305-24050 · 12305-37380
12315AEngine right side mounting bracket (for transversely mounted engine)12315-24011 · 12315-37070
12325AEngine left side mounting bracket (for transversely mounted engine)12325-24070
12328AEngine No. 2 left side mounting bracket12328-24040 · 12328-37020 · 12328-37021
12353CHAPEAU, SUPPORT FIXATION MOTEUR12353-15010
12363AEngine movement control lever12363-24020 · 12363-24040 · 12363-24050 · 12363-37060 · 12363-37080
12364BEngine No. 2 motion control lever12364-24030
12372AEngine left-side mounting vibration isolation pad (for transversely mounted engines)12372-24080 · 12372-24081 · 12372-24090 · 12372-37320 · 12372-37321
23825APROTECTION, ALIM CARBURANT23825-24010
