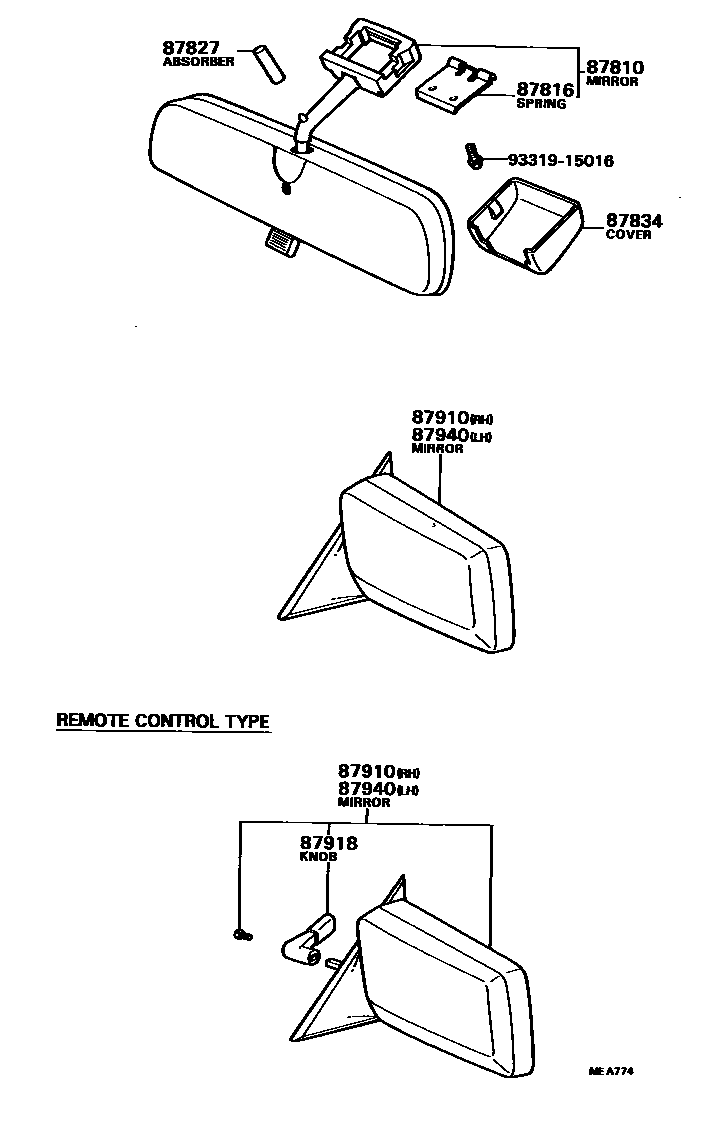

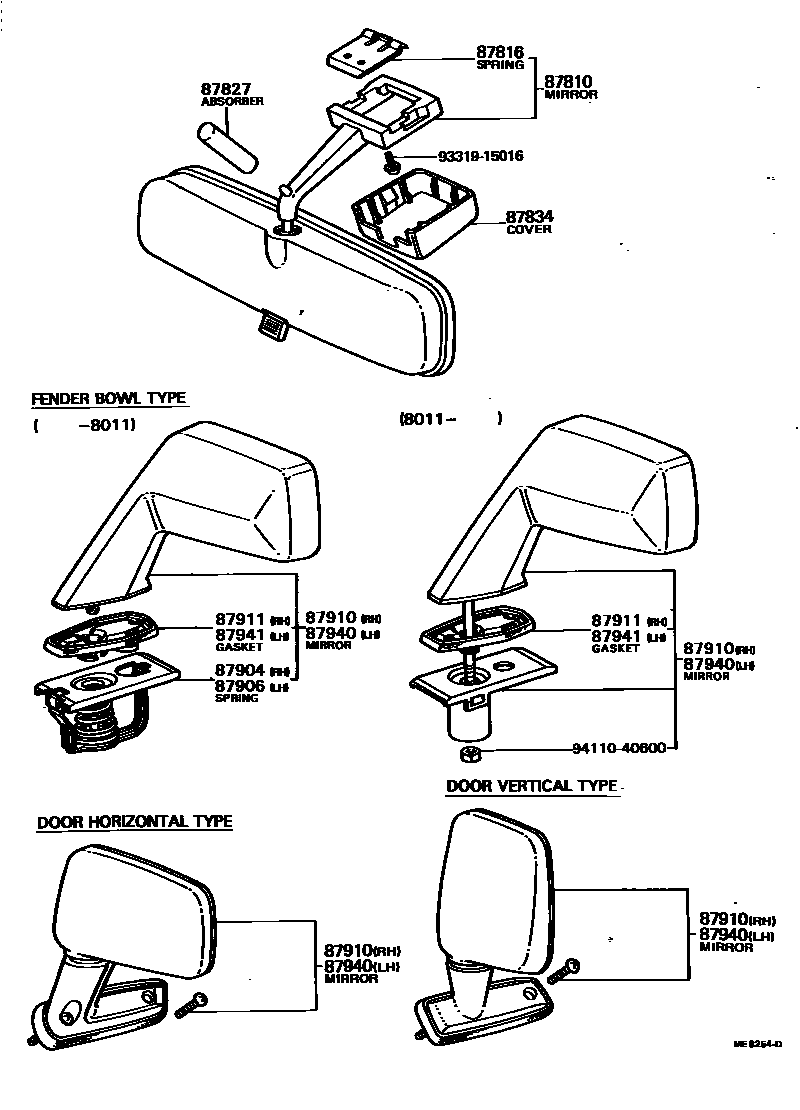

Toyota COROLLA 后视镜 — Figure 8701
Toyota COROLLA EPC diagram 8701, 后视镜, with 2 images and 9 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 87816 | Interior rearview mirror spring | 74372-30030 |
| 87827 | Interior rearview mirror shock absorber | 87828-12010 · 87828-12020 · 87828-12030 |
| 87904 | Right exterior rearview mirror spring sub-assembly | 87904-12050 |
| 87906 | Left exterior rearview mirror spring sub-assembly | 87905-12040 |
| 87910 | Right exterior rearview mirror assembly | 87910-12240 · 87910-12310 · 87910-12320 · 87910-12321 · 87910-12360 · 87910-12380 · 87910-12381 · 87910-12390 · 87910-12391 · 87910-12400 · 87910-12401 · 87910-12410 · 87910-12430 · 87910-12440 · 87910-12450 · 87910-13020 · 87910-13021 · 87910-19565 |
| 87911 | Right exterior mirror pad | 87911-12070 · 87911-12071 |
| 87918 | Exterior rearview mirror control handle | 87918-12020 |
| 87940 | Left exterior rearview mirror assembly | 87940-12310 · 87940-12370 · 87940-12371 · 87940-12430 · 87940-12440 · 87940-12441 · 87940-12450 · 87940-12460 · 87940-12461 · 87940-12490 · 87940-12500 · 87940-12501 · 87940-12510 · 87940-12520 · 87940-13020 · 87940-13021 · 87940-19575 |
| 87941 | Left exterior mirror pad | 87941-12070 · 87941-12071 |
