Toyota COROLLA 前大灯清洗器 — Figure 8505

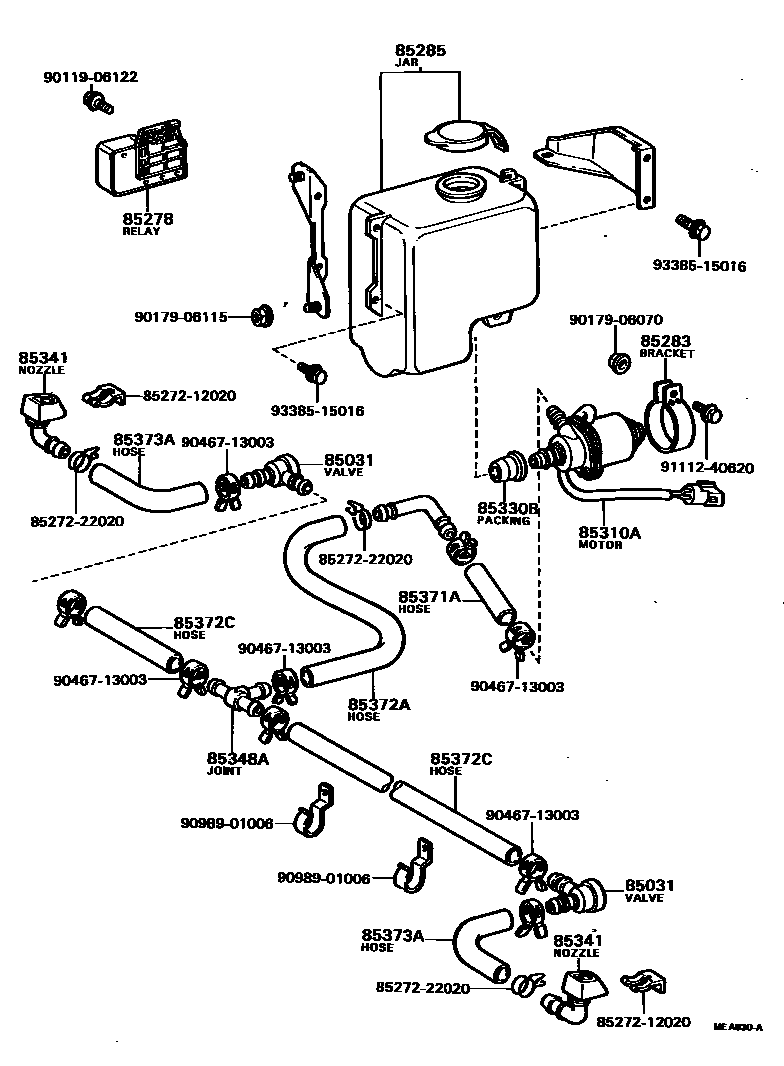

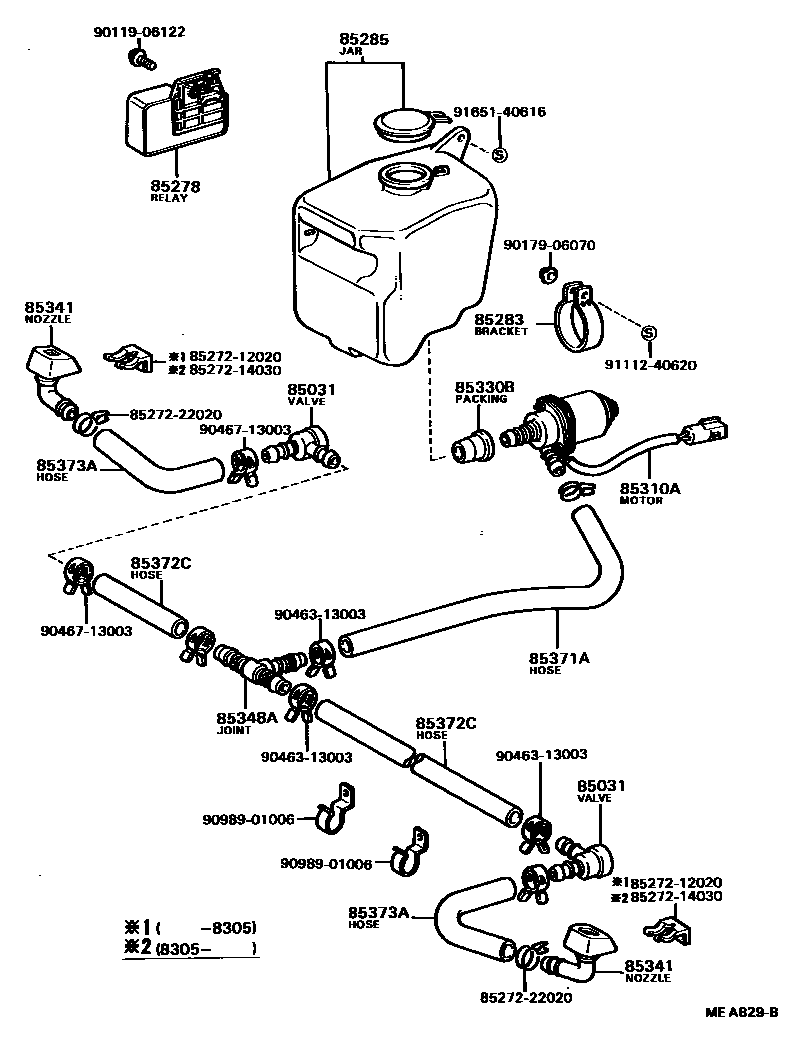

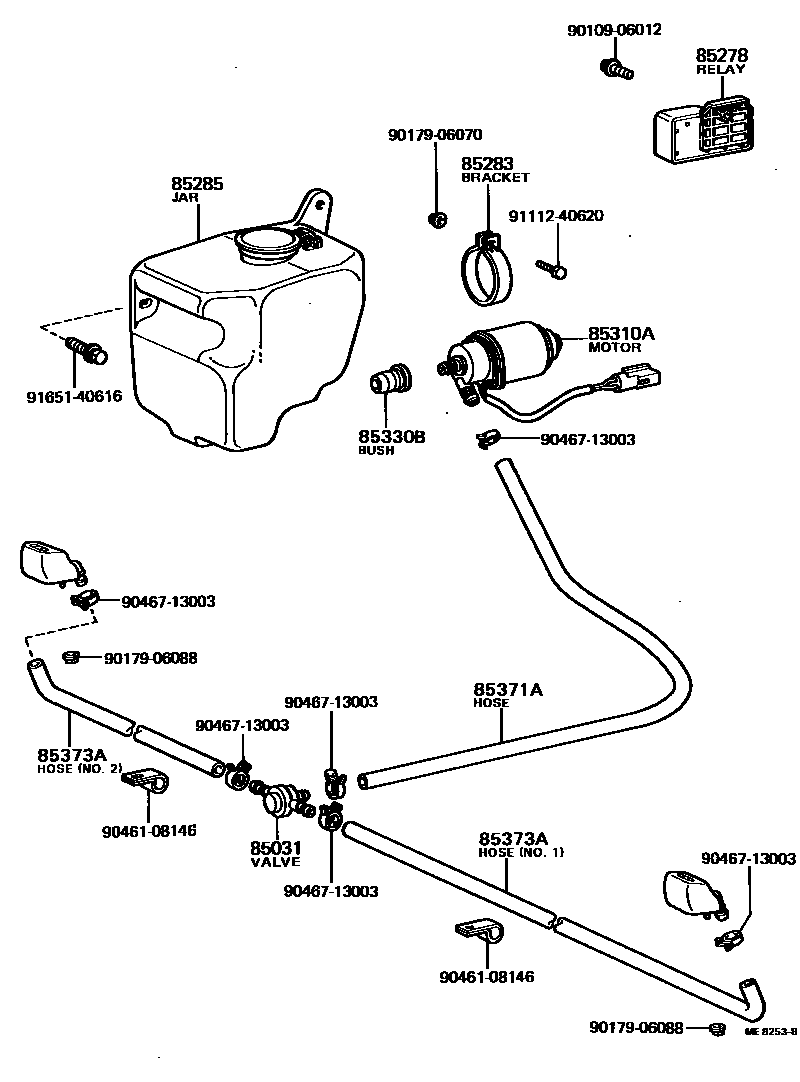

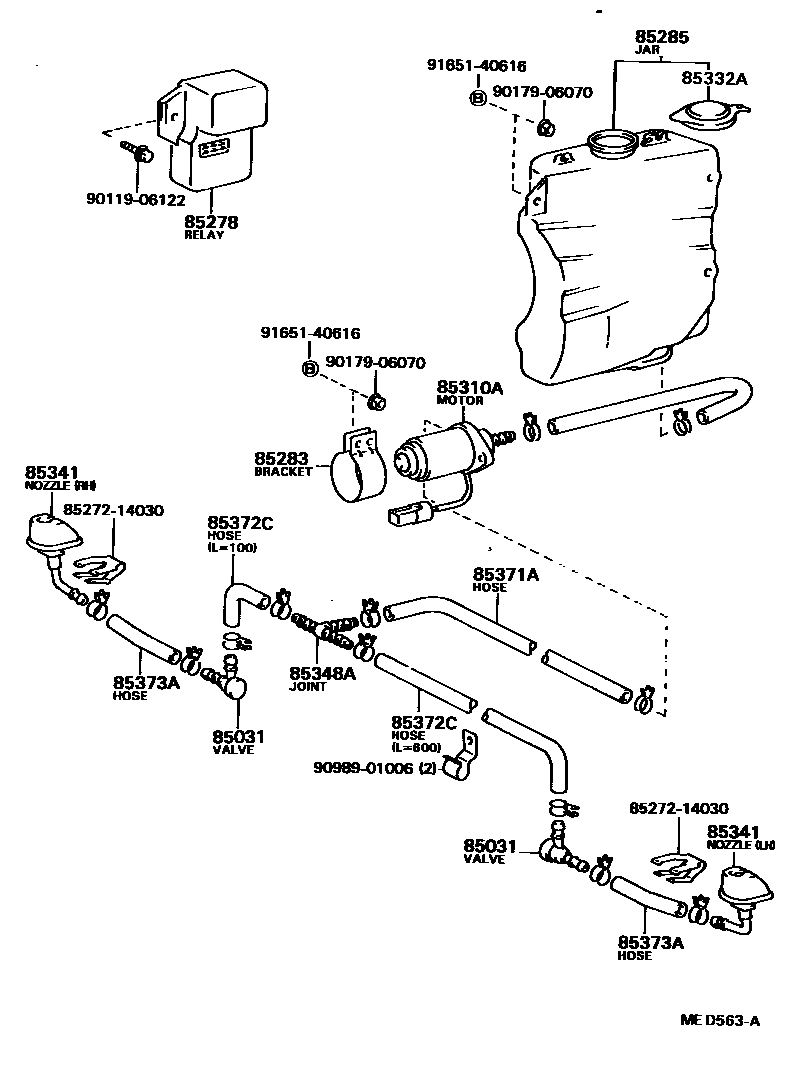

Toyota COROLLA EPC diagram 8505, 前大灯清洗器, with 4 images and 13 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 85031 | Headlight washer hose valve | 85031-12010 · 85031-30020 |
| 85278 | Headlight washer control relay assembly | 85276-14010 |
| 85283 | Headlight washer bracket | 85361-10070 |
| 85285 | Headlight washer cleaning fluid tank | 85330-12140 · 85330-12200 · 85330-12260 |
| 85310A | Headlight washer motor and pump assembly | 85310-10090 · 85310-16010 |
| 85330B | Headlight washer washer fluid tank bushing | 85336-10010 |
| 85332A | Headlight washer washer fluid tank cap | 85332-22040 |
| 85341 | Headlight washer nozzle | 85044-12030 · 85044-12040 · 85045-12030 · 85045-12040 |
| 85348A | Headlight washer hose connector No. 1 | 85352-12010 |
| 85371A | Headlight washer hose (from motor to connector) | 85271-87103 · 90445-14036 · 90445-14060 |
| 85372A | Headlight washer hose (from fitting to fitting or nozzle) | 90445-14056 |
| 85372C | Headlight washer hose (from connector to valve) | 85375-12062 · 90445-14042 · 90445-14073 |
| 85373A | Headlight washer hose (from connector to nozzle) | 85271-12020 · 85271-12030 · 85271-22020 · 85375-20190 · 90445-14048 |
