Toyota COROLLA 后刮水器 — Figure 8502

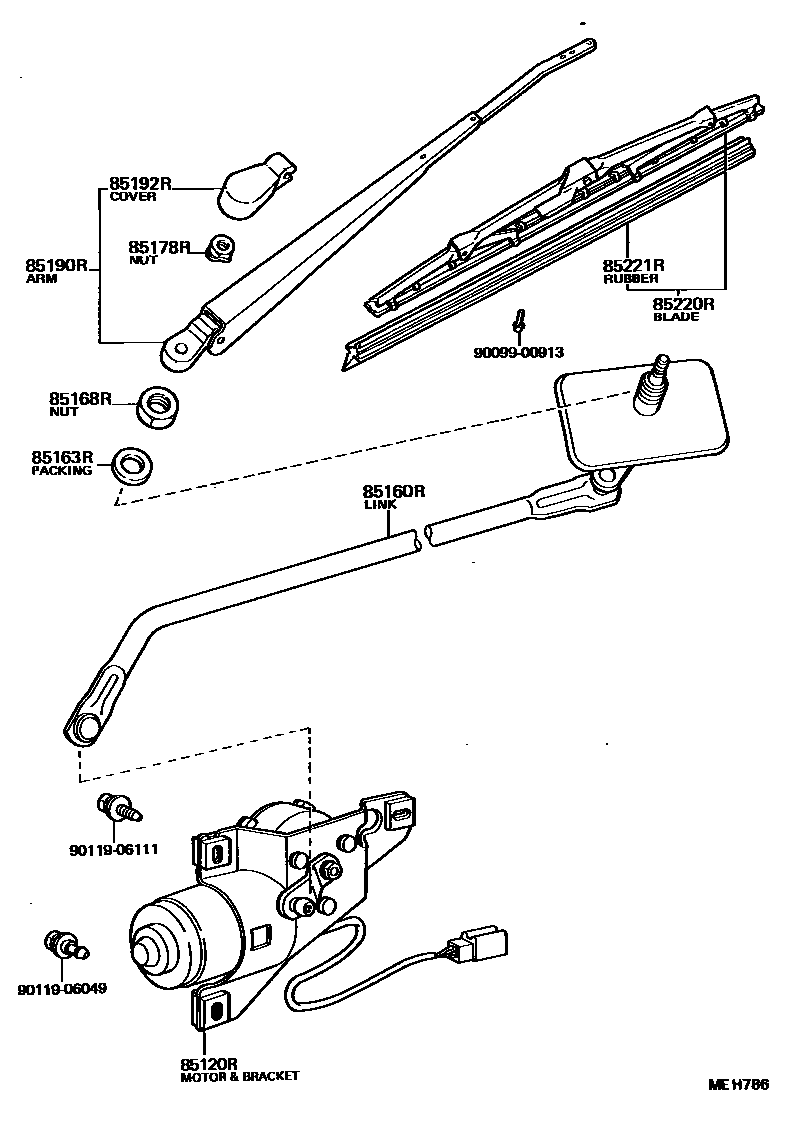

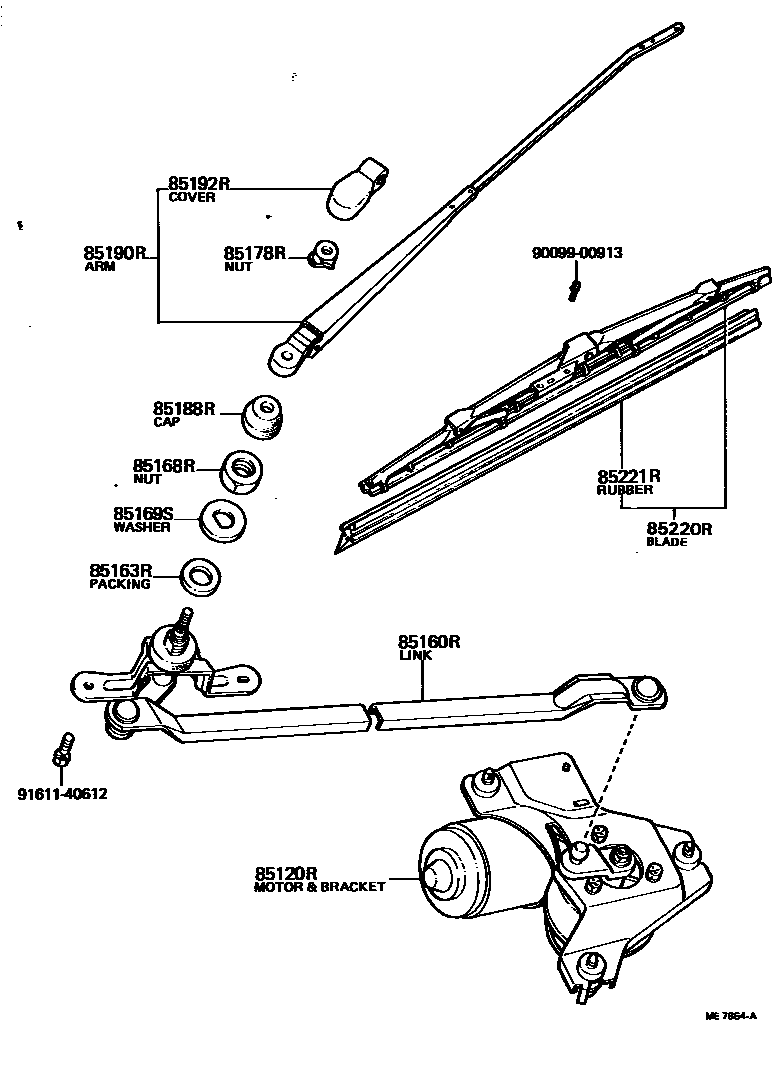

Toyota COROLLA EPC diagram 8502, 后刮水器, with 2 images and 11 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 85120R | Rear wiper motor and bracket assembly | 85120-12130 · 85120-13020 · 85120-13030 |
| 85160R | Rear wiper connecting rod assembly | 85160-12251 · 85160-13020 · 85160-13050 |
| 85163R | No. 1 rear wiper pivot seal | 85174-12320 · 85176-96440 |
| 85168R | No. 1 rear wiper link pivot nut | 85186-13011 · 90099-05141 |
| 85169S | No. 2 rear wiper link pivot washer | 90099-01458 |
| 85178R | Nut (for securing rear wiper arm) | 90179-06158 |
| 85188R | No. 1 rear wiper pivot cover | 85178-12320 |
| 85190R | Rear wiper arm assembly | 85190-12440 · 85190-13020 · 85190-13030 · 85190-13040 · 85190-13050 · 85190-14210 |
| 85192R | Rear wiper arm cover | 85192-14020 |
| 85220R | Rear wiper blade assembly | 85220-12310 · 85220-14110 · 85220-22370 · 85220-22520 |
| 85221R | Rear wiper blade | 85221-12170 · 85221-20060 · 85221-87002 |
