Toyota COROLLA 燃油箱和燃油管 — Figure 7701

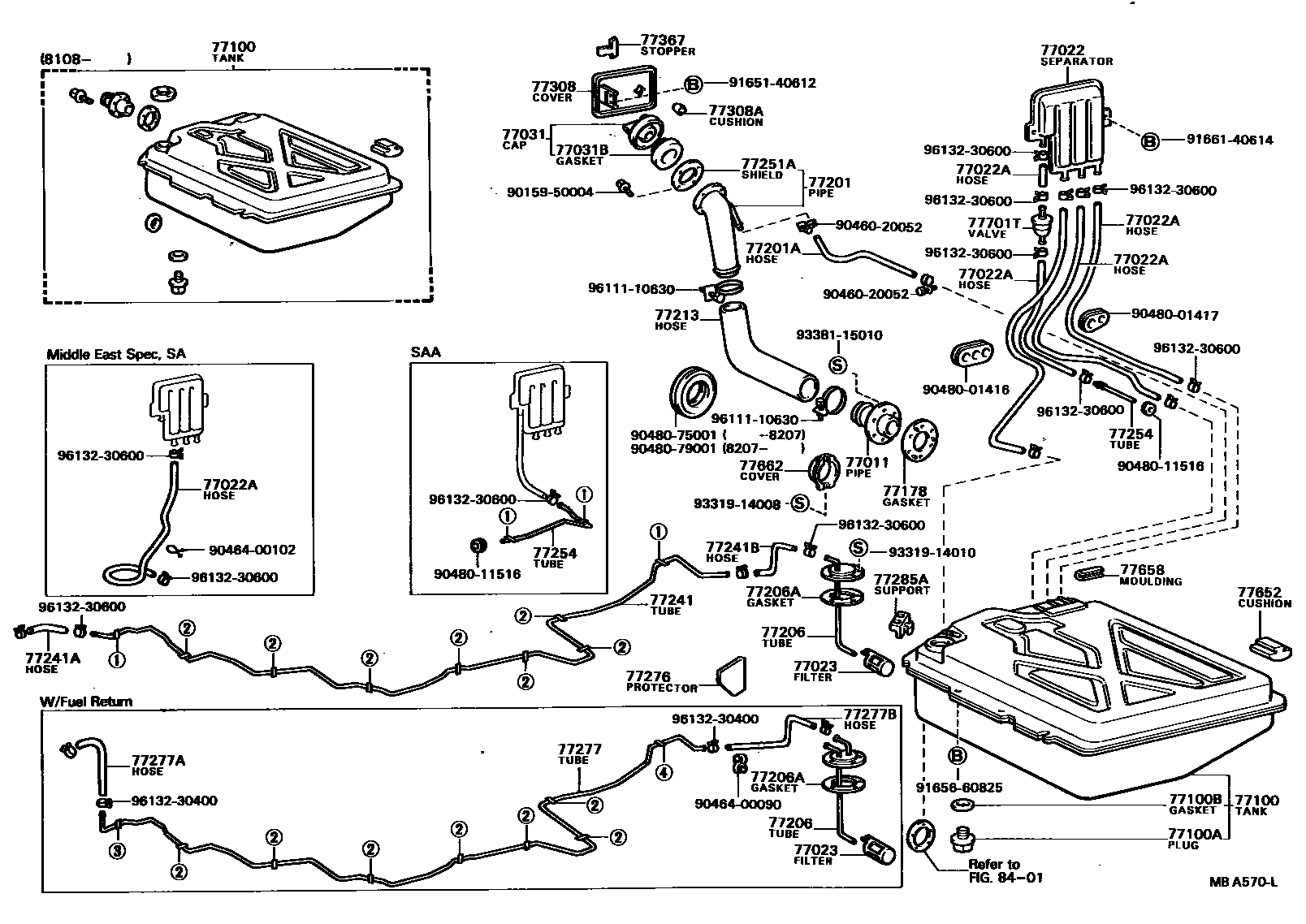

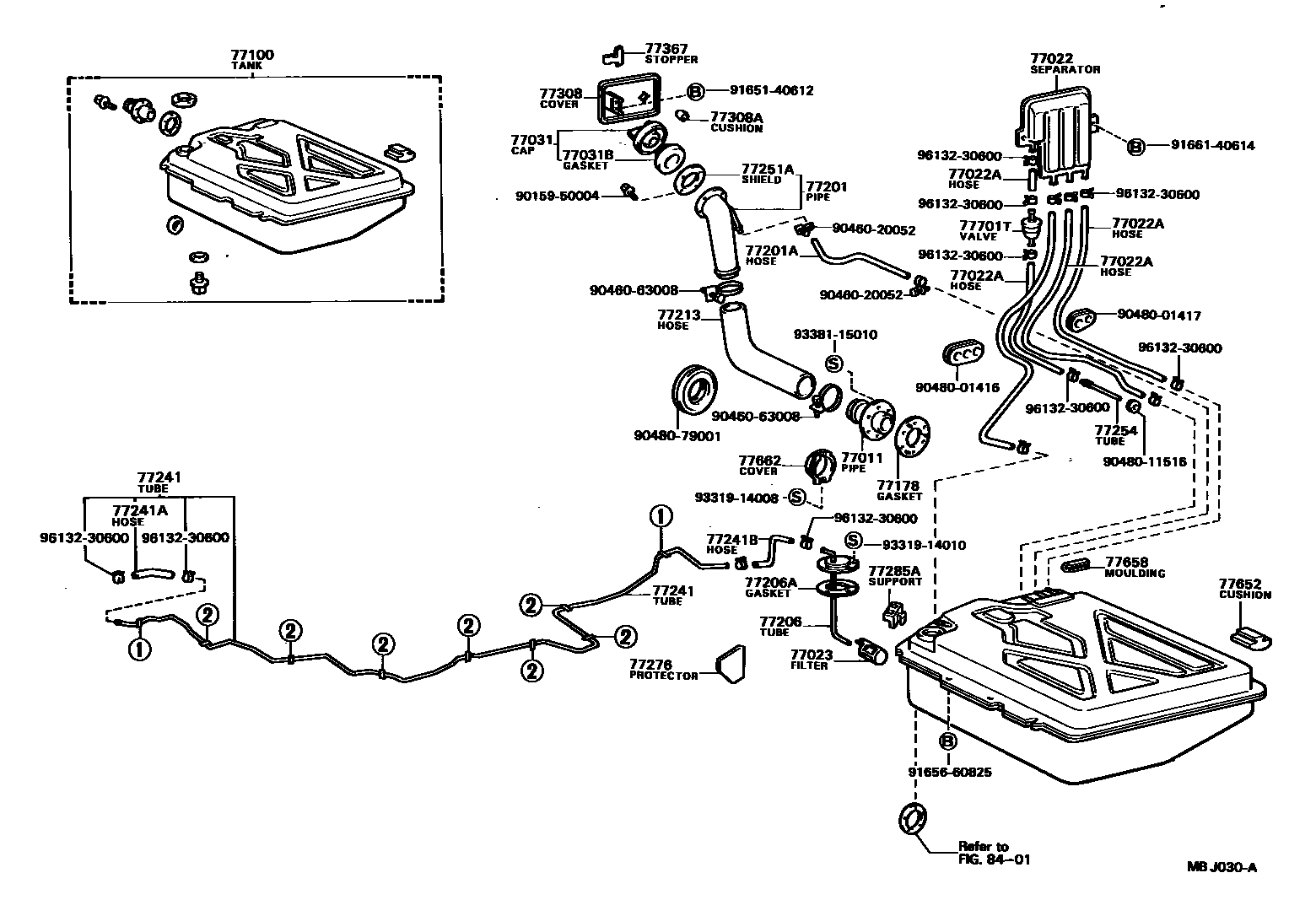

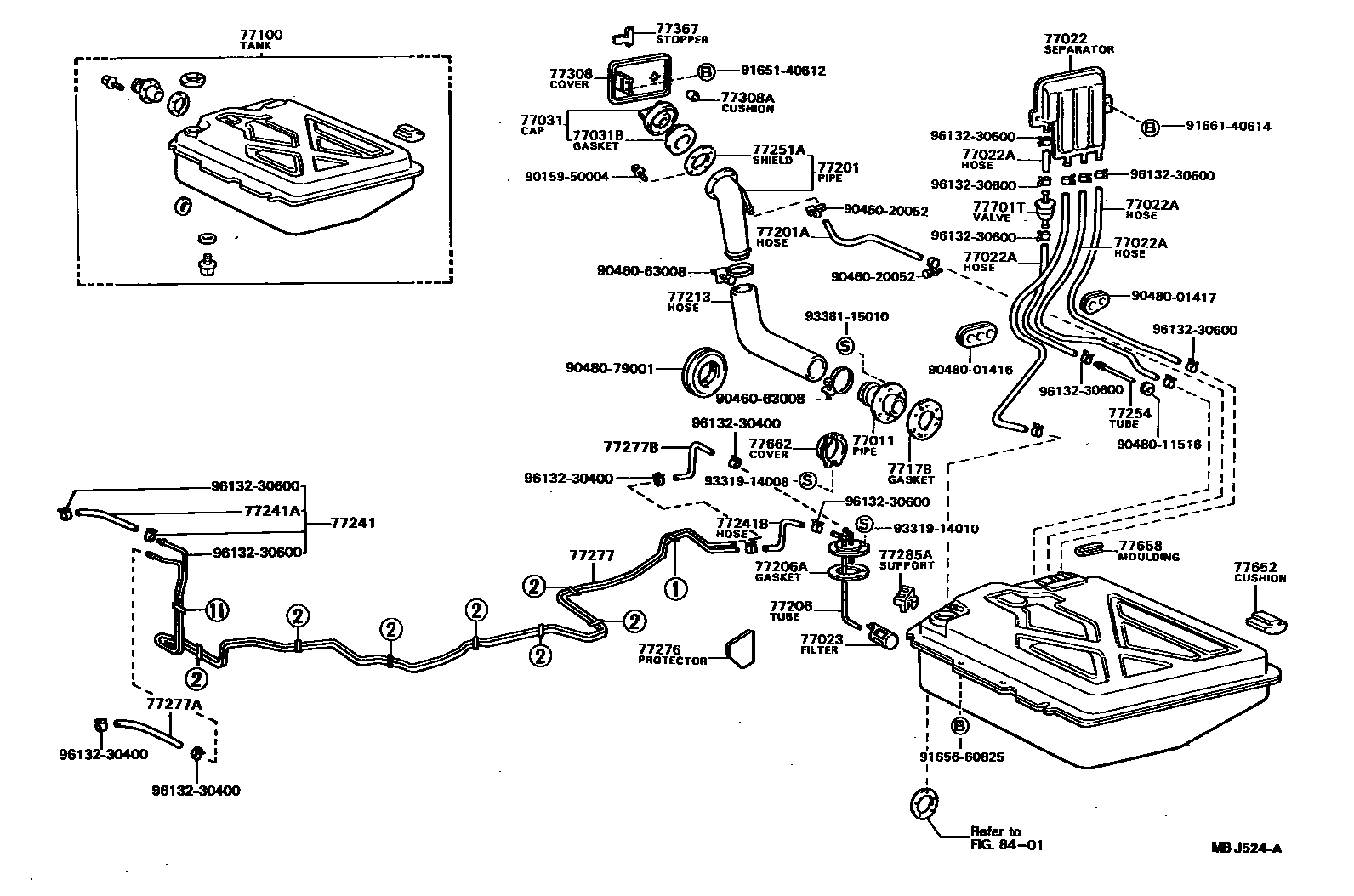

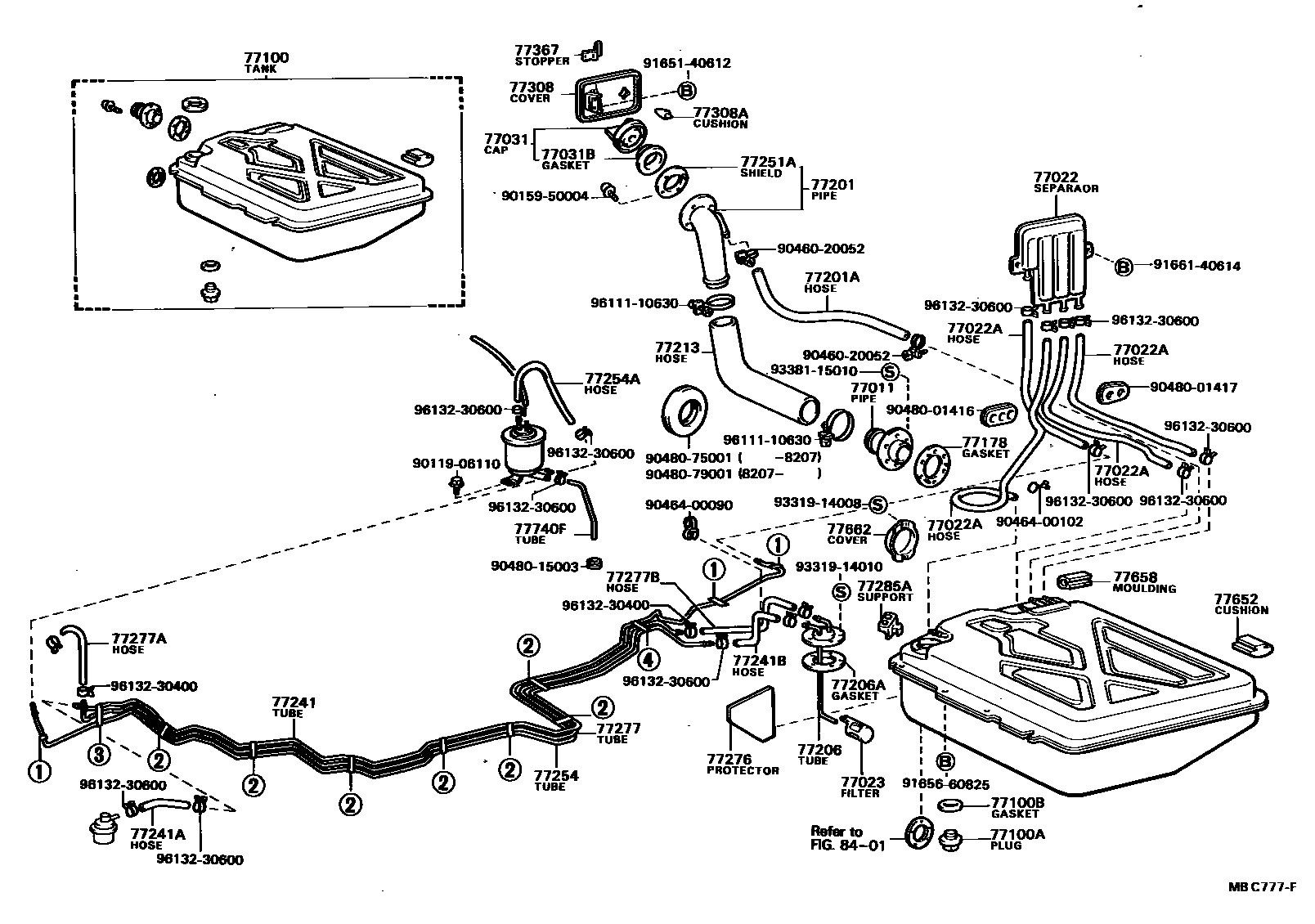

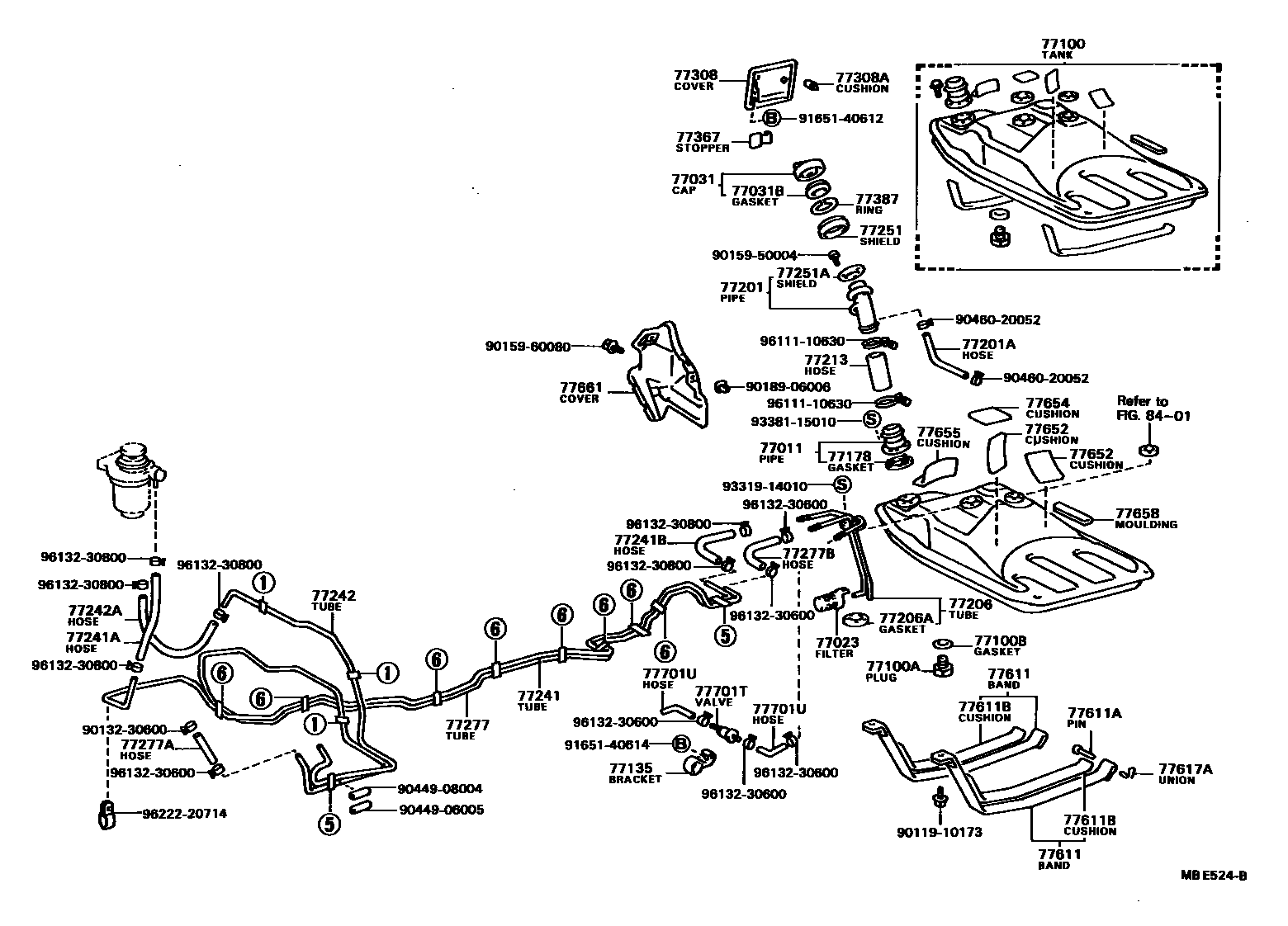

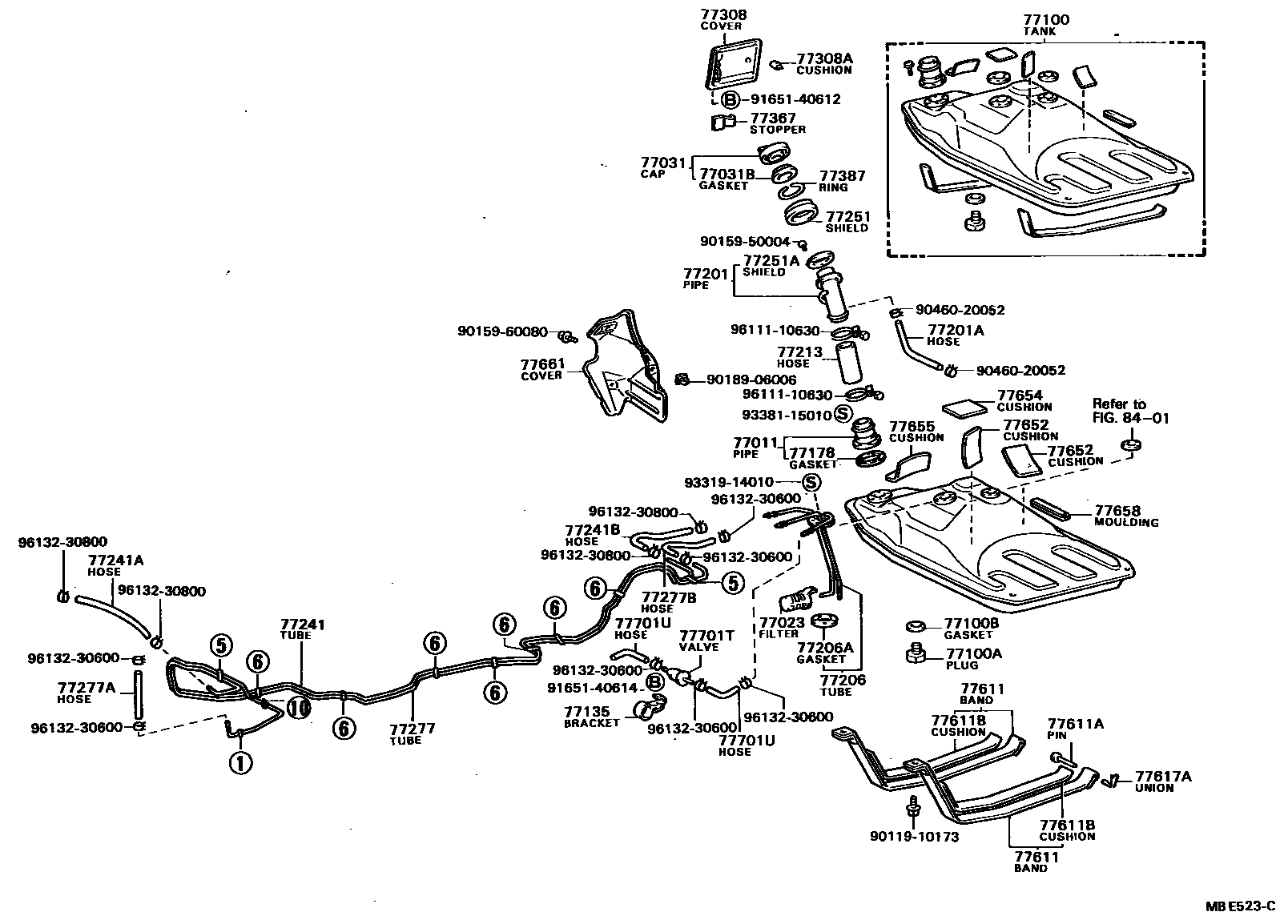

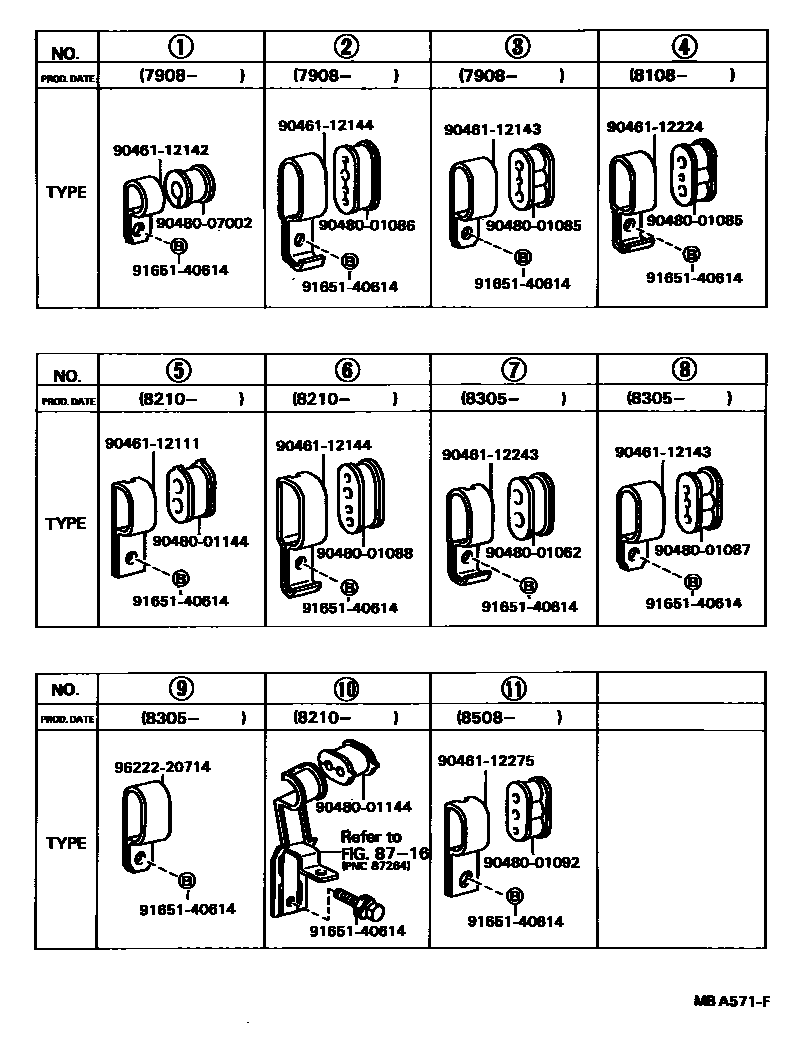

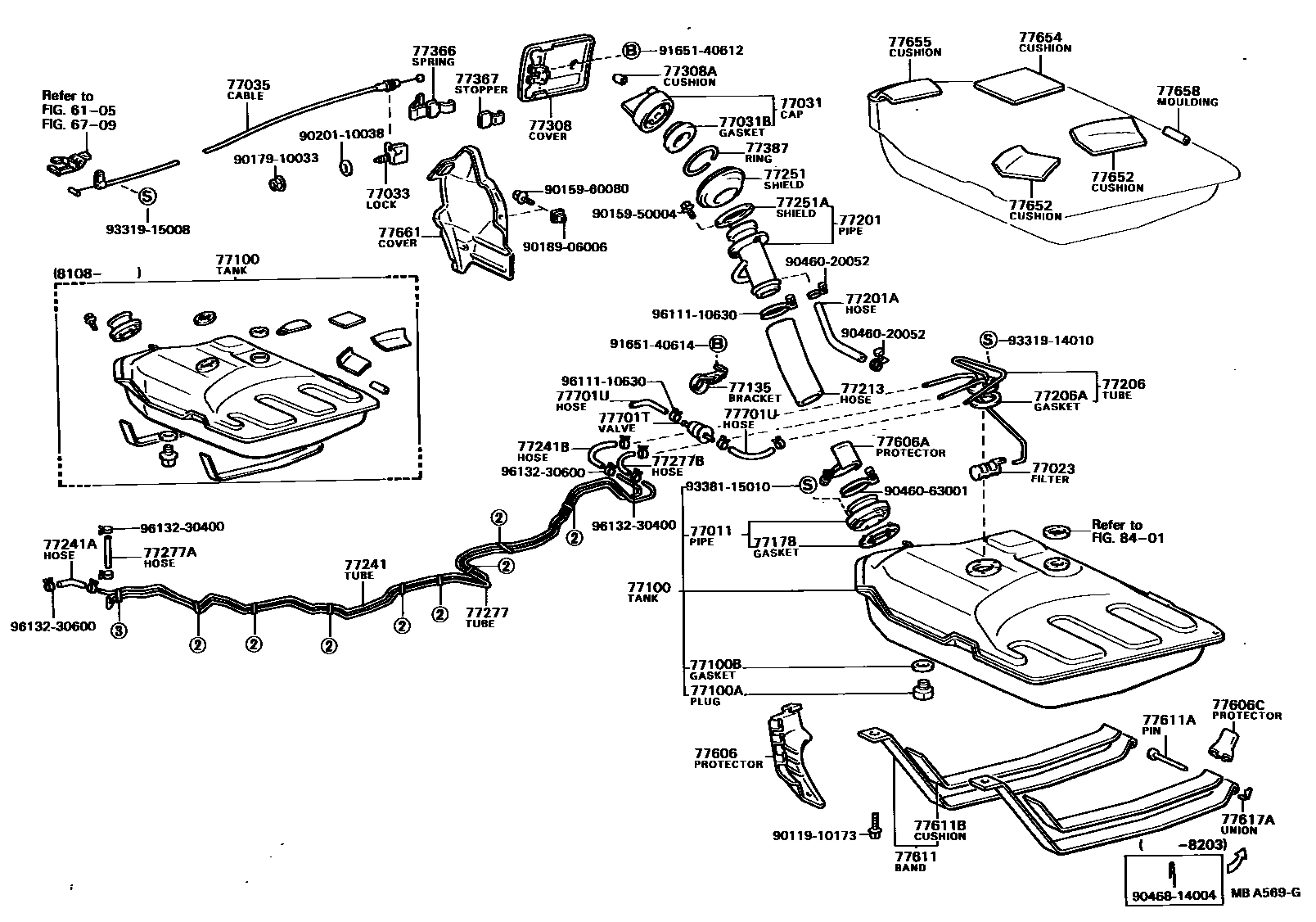

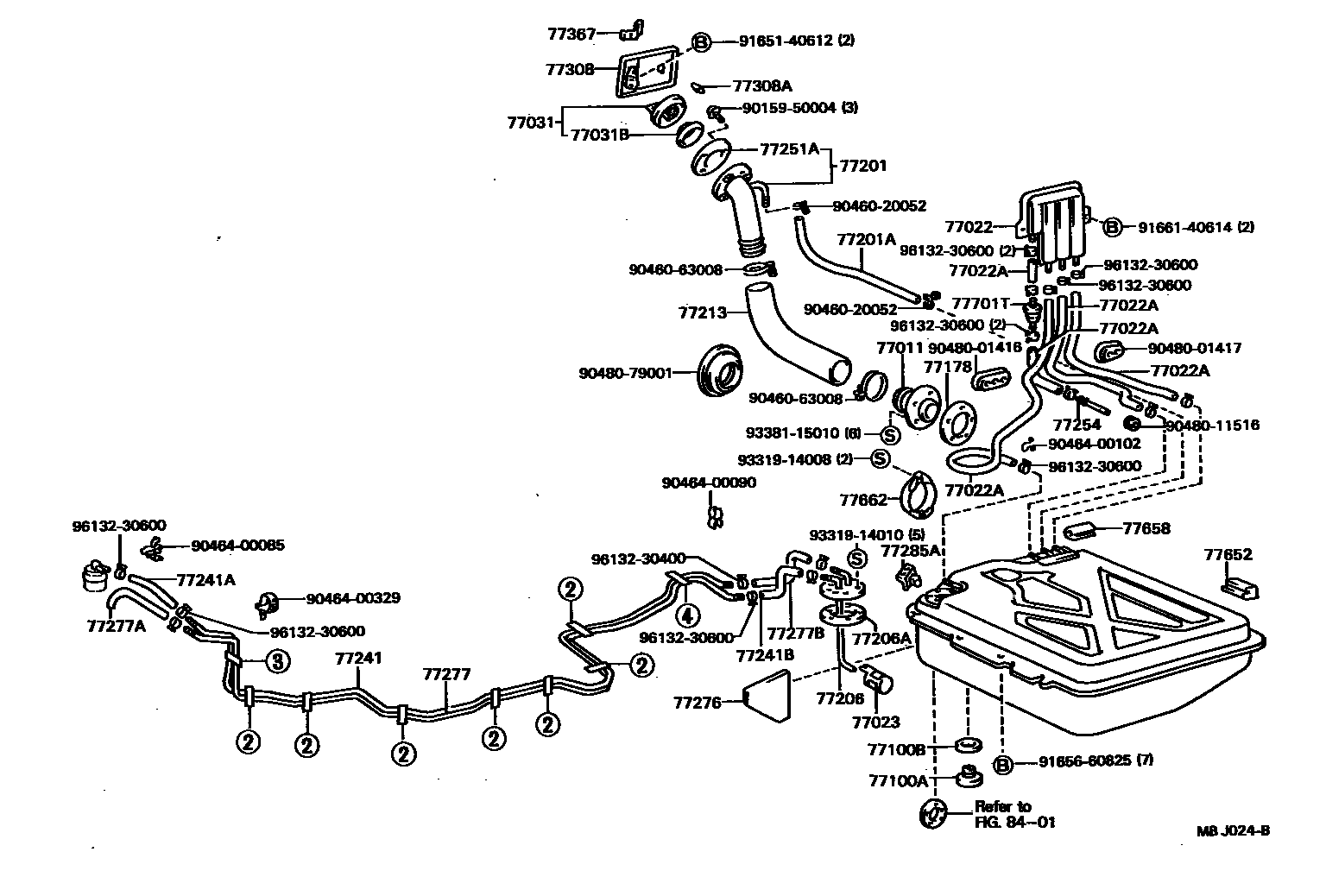

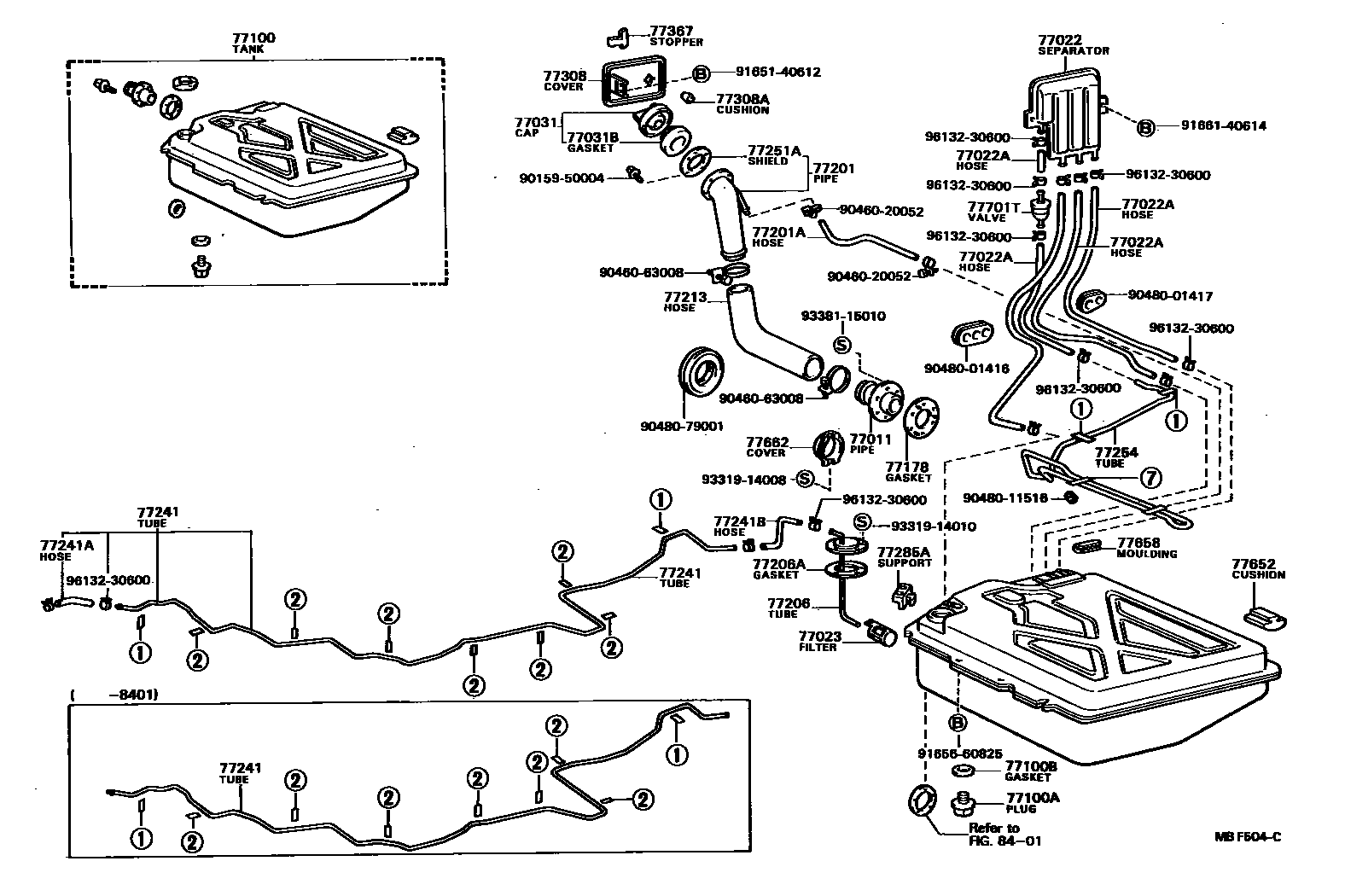

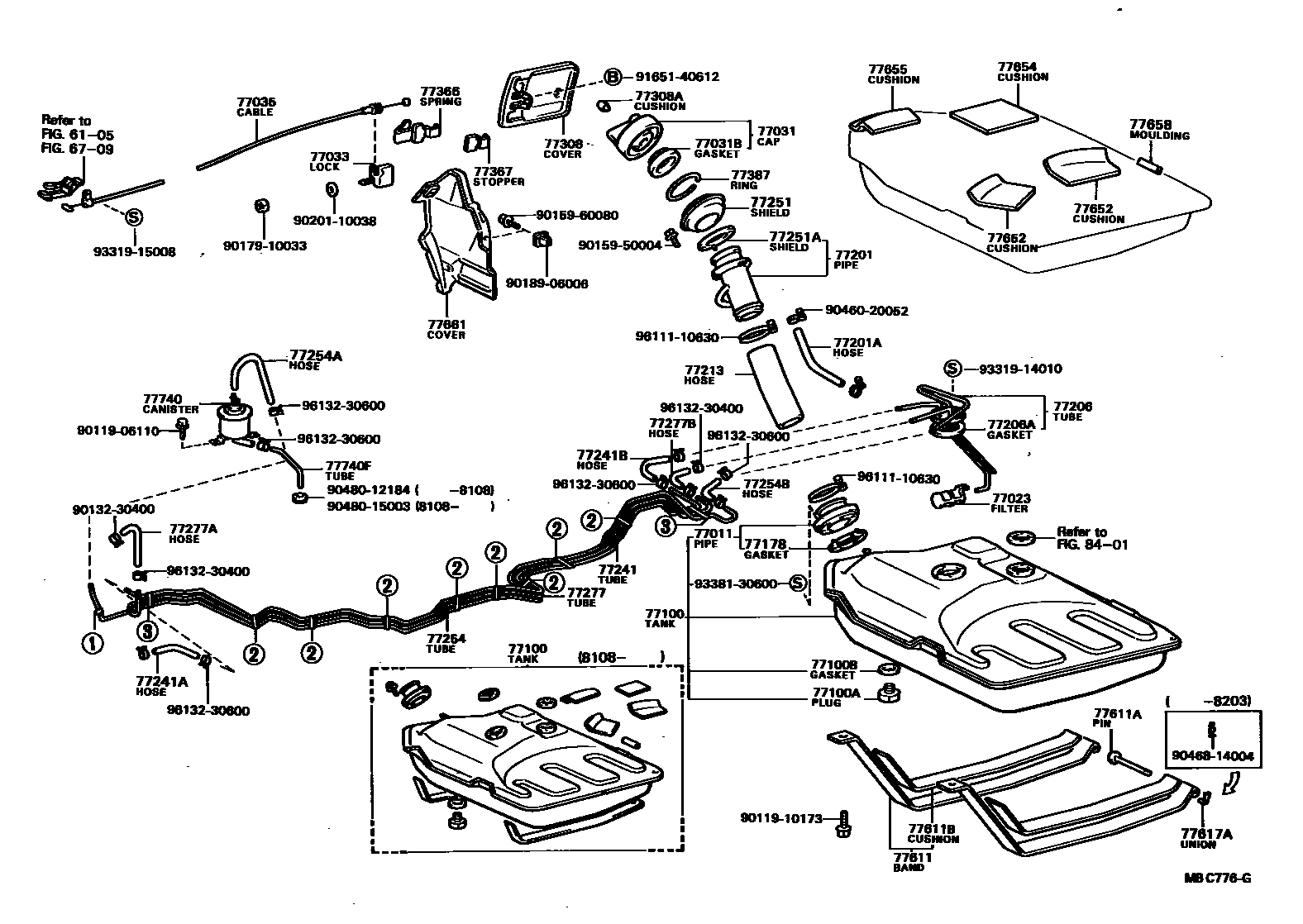

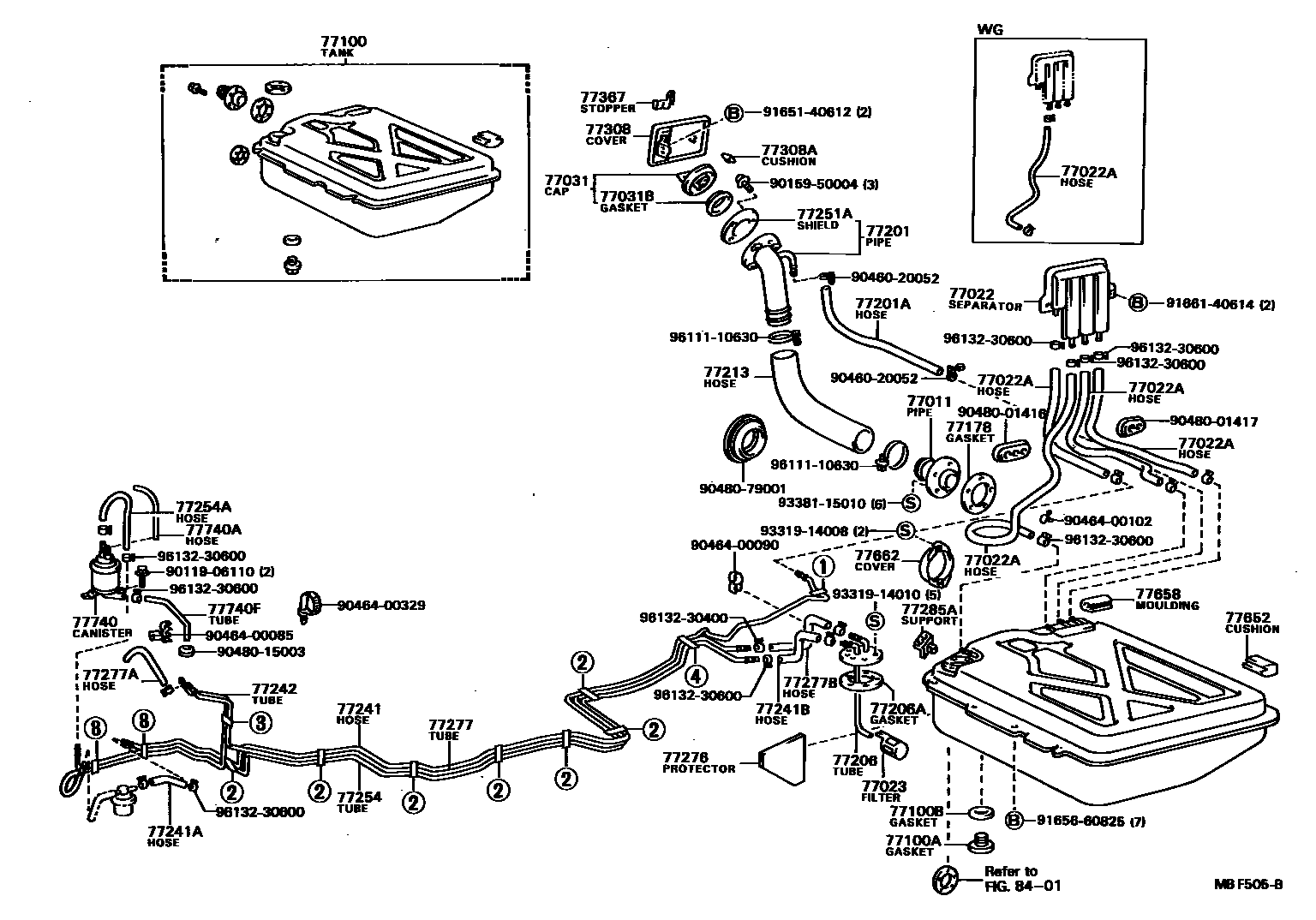

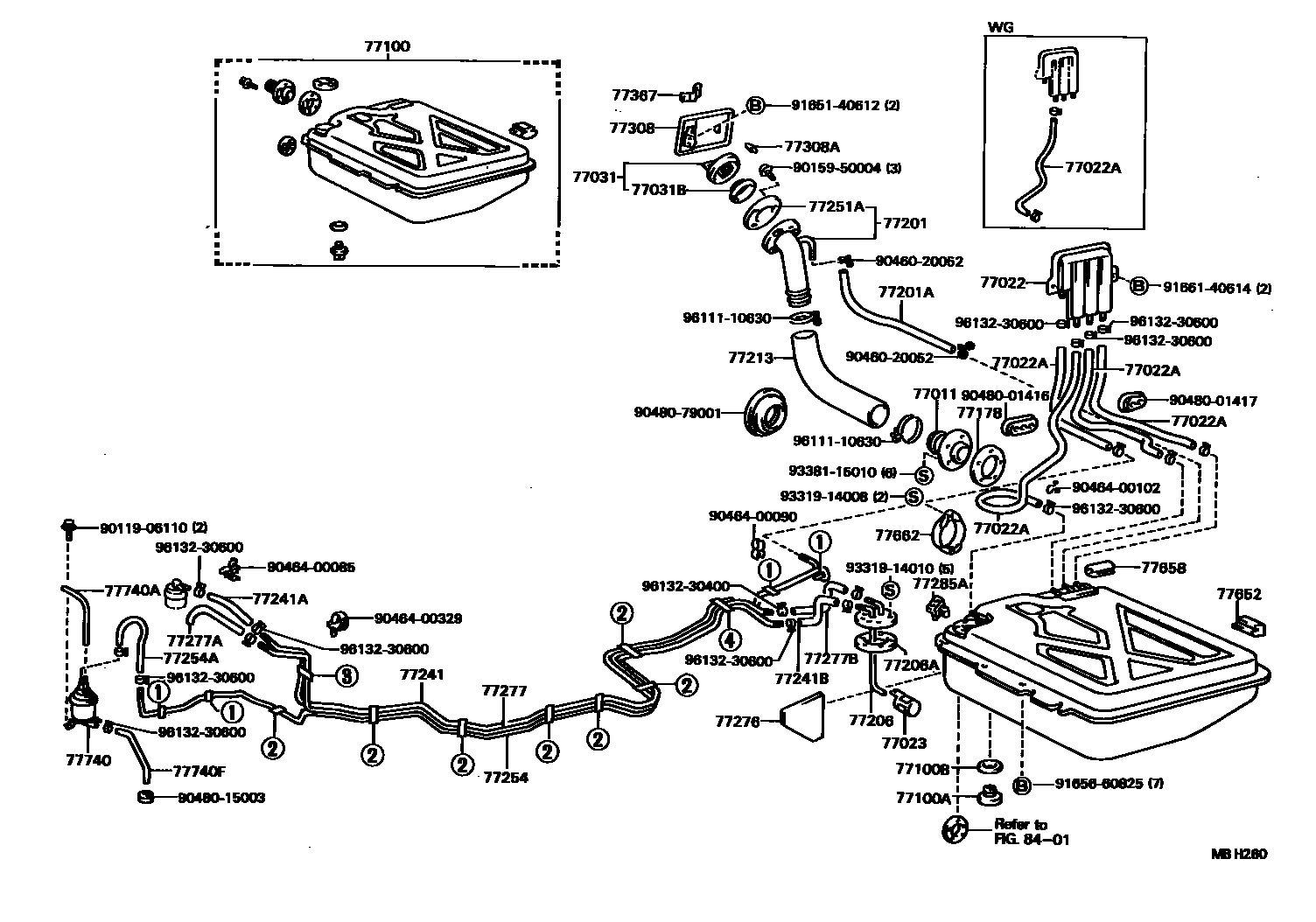

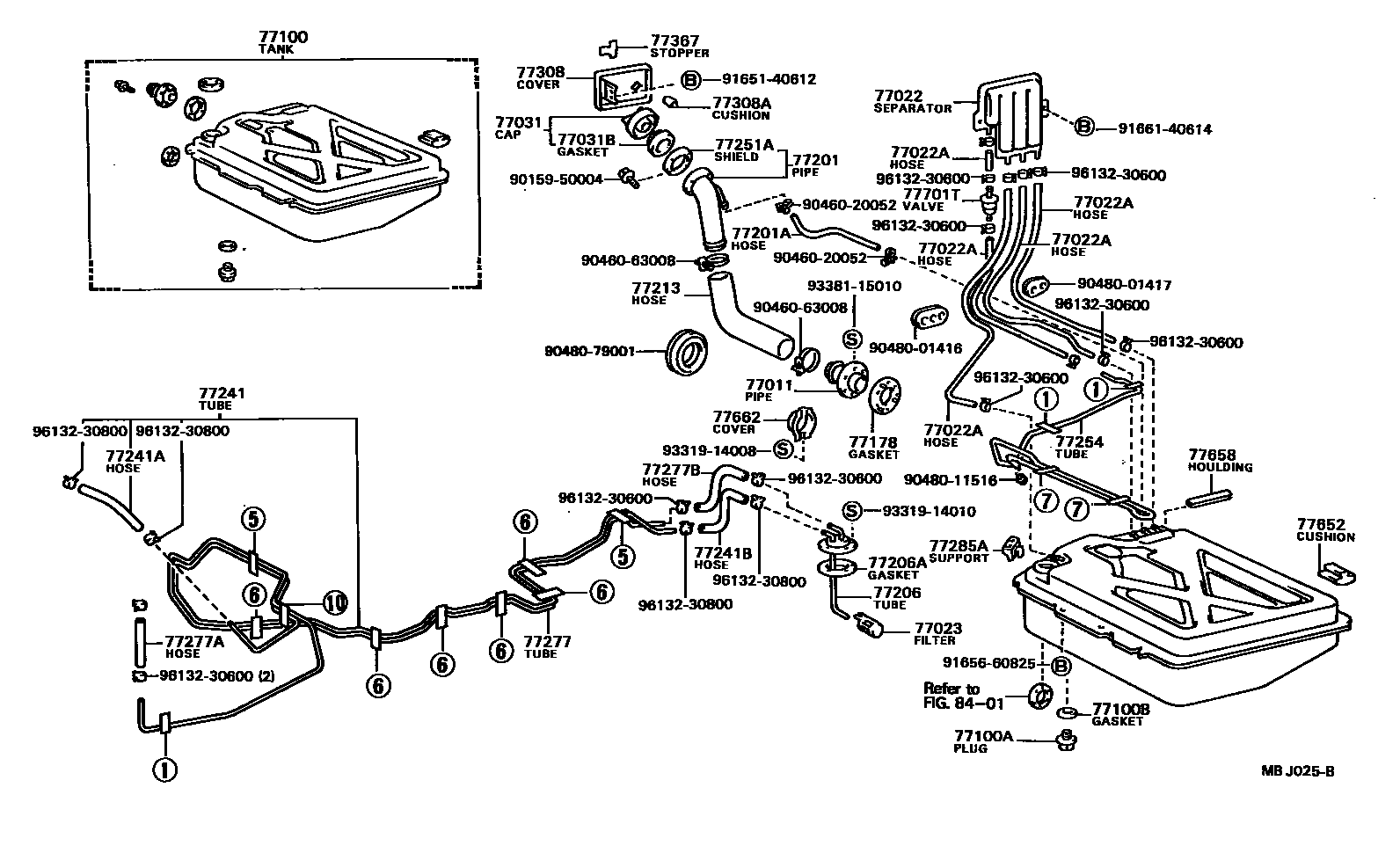

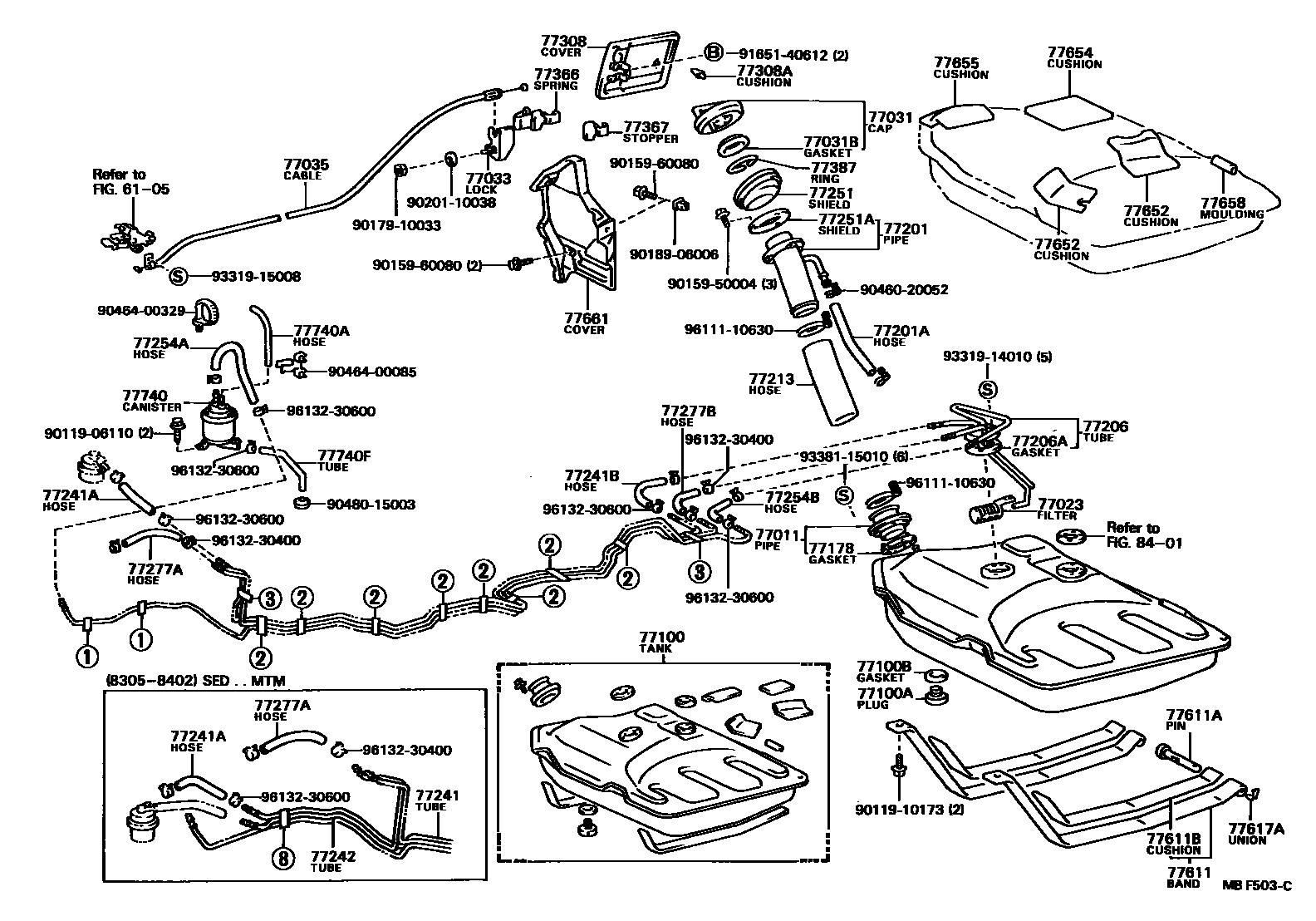

Toyota COROLLA EPC diagram 7701, 燃油箱和燃油管, with 16 images and 54 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 77011 | Filling pipe sub-assembly under fuel tank | 77011-10020 · 77011-12010 · 77011-13010 |
| 77022 | Fuel vapor separator sub-assembly | 77271-13010 |
| 77022A | Fuel hose (for fuel vapor separator) | 90445-12040 · 90910-05153 · 95332-06060 |
| 77023 | Fuel suction pipe filter sub-assembly | 77023-12050 · 77023-22040 |
| 77031 | Fuel tank cap assembly | 77310-12090 · 77310-12100 · 77310-35061 |
| 77031B | Gasket (for fuel tank cap) | 77316-12050 |
| 77033 | Fuel tank cap lock sub-assembly | 77037-12010 |
| 77035 | Fuel filler cap lock control cable sub-assembly | 77035-12020 · 77035-12030 |
| 77100 | fuel tank assembly | 77001-12906 · 77001-19065 · 77001-19075 · 77001-19155 · 77001-19195 · 77101-13900 · 77101-19025 · 77101-19035 · 77101-19055 · 77101-19065 · 77101-19075 |
| 77100A | Screw plug (for fuel tank) | 90341-20004 · 90341-24036 |
| 77100B | Gasket (for fuel tank) | 90430-20007 · 90430-24047 |
| 77135 | One-way valve bracket | 77277-12040 |
| 77178 | Fuel tank filler pipe lower gasket | 77178-10010 · 77178-13020 |
| 77201 | Fuel tank inlet pipe sub-assembly | 77201-12230 · 77201-12231 · 77201-12240 · 77201-12241 · 77201-13070 · 77201-13071 · 77201-13090 |
| 77201A | No. 1 fuel hose (for fuel tank inlet pipe) | 90445-18002 · 90445-18012 · 90445-18028 · 90445-18046 |
| 77206 | Fuel tank suction pipe sub-assembly | 77017-12140 · 77017-12170 · 77017-12180 · 77203-13050 · 77203-13060 · 77203-13071 · 77203-13080 · 77203-13090 |
| 77206A | Gasket (for fuel tank suction pipe) | 77169-14020 |
| 77213 | Fuel tank auxiliary fuel inlet hose | 77213-12110 · 77213-12130 · 77213-12131 · 77213-13040 |
| 77241 | No. 1 main fuel pipe | 77205-13070 · 77205-13100 · 77205-13110 · 77251-12060 · 77251-12130 · 77251-12150 · 77251-13040 · 77251-13041 · 77251-13042 · 77251-13081 · 77251-13100 · 77251-13110 |
| 77241A | No. 1 fuel hose (for No. 1 main fuel line) | 77259-13020 |
| 77241B | No. 2 fuel hose (for No. 1 main fuel line) | 90445-12085 · 90445-12105 · 90445-14087 · 95332-06020 · 95332-08020 |
| 77242 | No. 2 main fuel pipe | 77252-12100 · 77252-12120 |
| 77242A | No. 1 fuel hose (for No. 2 main pipe) | 95332-08030 |
| 77251 | No. 1 fuel tank inlet mask | 77292-12030 |
| 77251A | No. 2 fuel tank inlet mask | 77291-12020 · 77291-22010 |
| 77254 | No. 1 fuel evaporation exhaust pipe | 77261-12100 · 77261-13061 · 77261-13100 · 77261-13101 · 77263-13031 · 77263-13050 · 77263-13060 |
| 77254B | No. 2 fuel hose (for No. 1 drain pipe) | 95332-06020 |
| 77276 | Fuel hose protector | 77276-13020 |
| 77277 | No. 1 fuel return pipe | 77255-12050 · 77255-12120 · 77255-12140 · 77255-13070 · 77255-13090 · 77255-13100 · 77255-13110 · 77255-13120 |
| 77277A | No. 1 fuel hose (for No. 1 return pipe) | 90447-12040 · 95333-04024 |
| 77285A | Fuel return pipe and main pipe bracket | 77285-13020 · 77285-13030 |
| 77308 | Fuel inlet cap sub-assembly | 77350-12010 · 77350-12020 · 77350-12030 · 77350-12031 · 77350-12040 · 77350-12041 · 77350-13020 · 77350-13021 |
| 77308A | Cushion (for fuel inlet cap) | 90541-06001 · 90541-08003 · 90541-10006 |
| 77366 | Fuel filler cap hinge spring | 77366-12010 · 77366-12011 |
| 77367 | Fuel filler cap stopper | 77358-12020 · 77358-12021 · 77358-13010 · 77358-13011 |
| 77387 | fuel inlet ring | 77391-16010 |
| 77606 | No. 1 fuel tank protective shell sub-assembly | 77641-12110 · 77641-12111 |
| 77606A | Fuel tank filler pipe protection device | 77606-12100 |
| 77606C | No. 2 fuel tank protective shell | 77642-12010 |
| 77611 | fuel tank strap | 77601-12030 · 77601-12040 · 77601-12050 · 77602-12030 · 77602-12040 |
| 77611A | Pin (for fuel tank strap) | 90240-08020 |
| 77611B | No. 4 fuel tank liner | 77654-12020 · 77654-12021 |
| 77617A | Auxiliary fuel tank strap connector | 77617-12010 |
| 77652 | No. 1 fuel tank liner | 77651-12040 · 77651-12041 · 77651-13020 · 77655-12021 |
| 77654 | No. 2 fuel tank liner | 77652-12040 · 77652-12041 |
| 77655 | No. 3 fuel tank liner | 77653-12030 · 77653-12031 |
| 77658 | Fuel tank edge protection strip | 77658-12010 |
| 77661 | Fuel inlet pipe cover | 77661-12010 · 77661-12020 |
| 77662 | fuel tank cover | 77662-13010 |
| 77701T | Check valve (for main fuel tank) | 90917-10020 |
| 77701U | Fuel hose (for check valve) | 95332-06020 |
| 77740 | Carbon canister assembly | 77740-12280 · 77740-12290 · 77740-15010 |
| 77740A | No. 1 fuel hose (for canister) | 95411-39960 |
| 77740F | No. 1 fuel pipe (for charcoal canister) | 77264-12070 |
