Toyota COROLLA 车身镶条 — Figure 7507

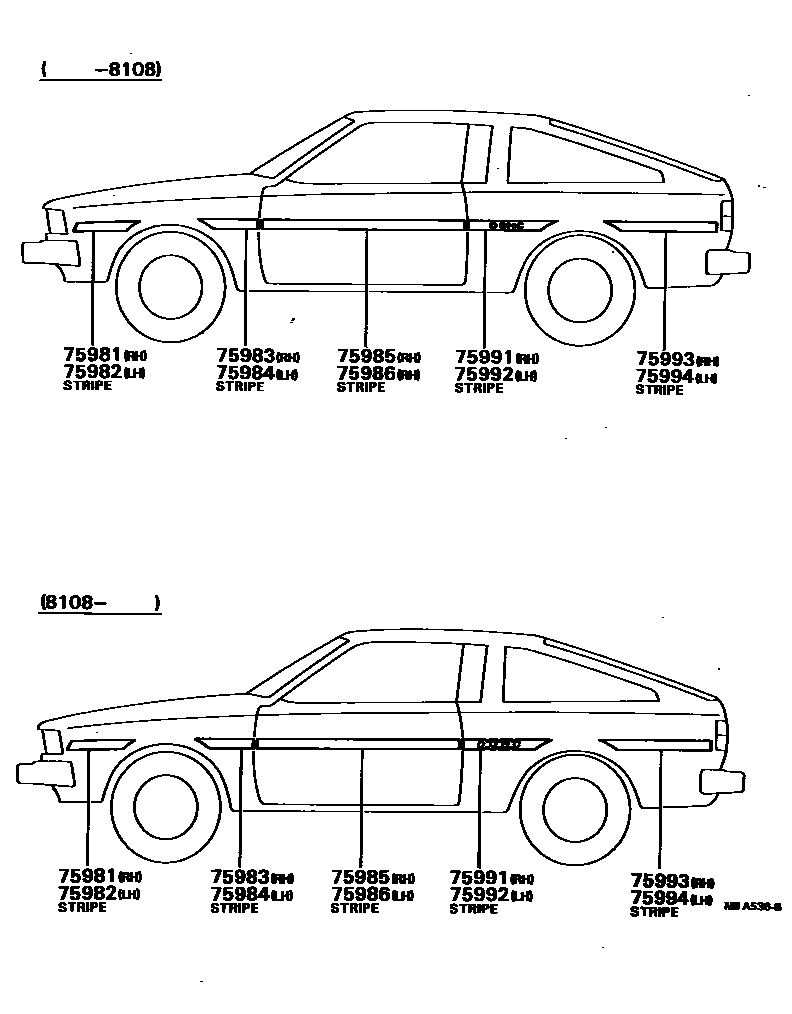

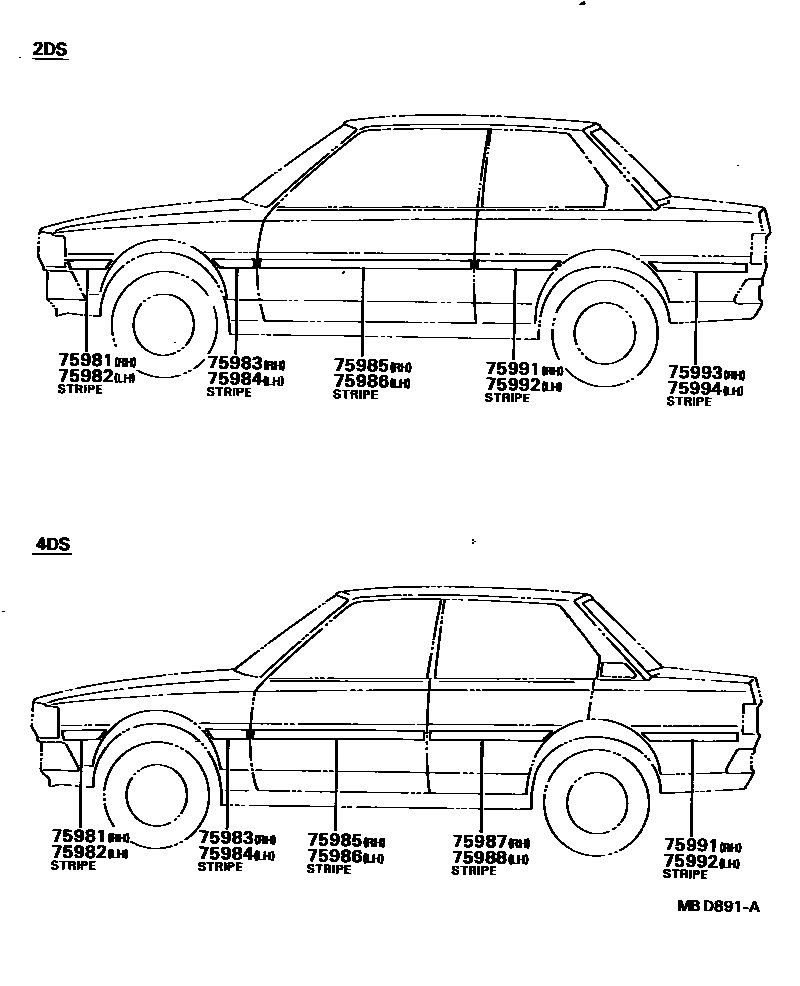

Toyota COROLLA EPC diagram 7507, 车身镶条, with 2 images and 10 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 75981 | No. 1 right front fender panel | 75981-12240 · 75981-12340 · 75981-12946 |
| 75982 | No. 1 left front fender panel | 75982-12240 · 75982-12340 · 75982-12901 |
| 75983 | No. 2 right front fender trim | 75983-12150 · 75983-12240 · 75983-12900 |
| 75984 | No. 2 left front fender trim | 75984-12150 · 75984-12240 · 75984-12900 |
| 75985 | Right front door trim | 75985-12140 · 75985-12240 · 75985-12300 · 75985-12900 |
| 75986 | Left front door trim | 75986-12130 · 75986-12230 · 75986-12290 · 75986-12900 |
| 75991 | No. 1 right side surround strip | 75991-12190 · 75991-12191 · 75991-12220 · 75991-12221 · 75991-12300 · 75991-12390 |
| 75992 | No. 1 left side surround strip | 75992-12180 · 75992-12181 · 75992-12210 · 75992-12211 · 75992-12290 · 75992-12380 |
| 75993 | No. 2 right side surround strip | 75993-12080 · 75993-12160 · 75993-12900 |
| 75994 | No. 2 left side surround strip | 75994-12080 · 75994-12160 · 75994-12900 |
