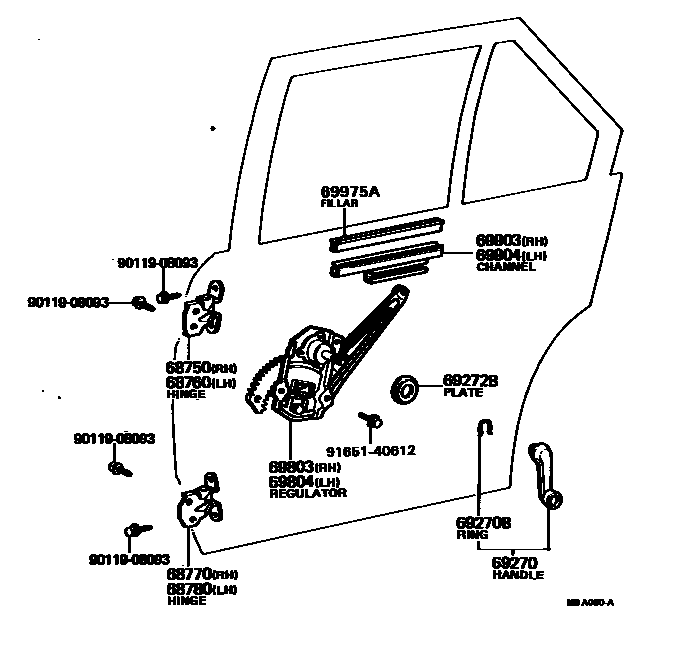

Toyota COROLLA 后门车窗升降器和合页 — Figure 6707
Toyota COROLLA EPC diagram 6707, 后门车窗升降器和合页, with 1 images and 11 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 68750 | Right rear door upper hinge assembly | 68750-12030 |
| 68760 | Left rear door upper hinge assembly | 68760-12030 |
| 68770 | Right rear door lower hinge assembly | 68770-12020 |
| 68780 | Left rear door lower hinge assembly | 68780-12010 |
| 69270B | Shaft snap ring (for rear door window regulator handle) | 90520-01002 · 90520-01274 |
| 69272B | Rear door window regulator inner handle plate | 69268-16010 · 69285-22010 |
| 69803 | Right rear door window lifter sub-assembly | 69830-12080 |
| 69804 | Left rear door window lifter sub-assembly | 69840-12080 |
| 69903 | Right rear door glass groove sub-assembly | 69905-12050 · 69905-12070 |
| 69904 | Left rear door glass groove sub-assembly | 69906-12040 · 69906-12060 |
| 69975A | Rear door glass channel filler | 69975-22020 |
