Toyota COROLLA 后门板和后门玻璃 — Figure 6705

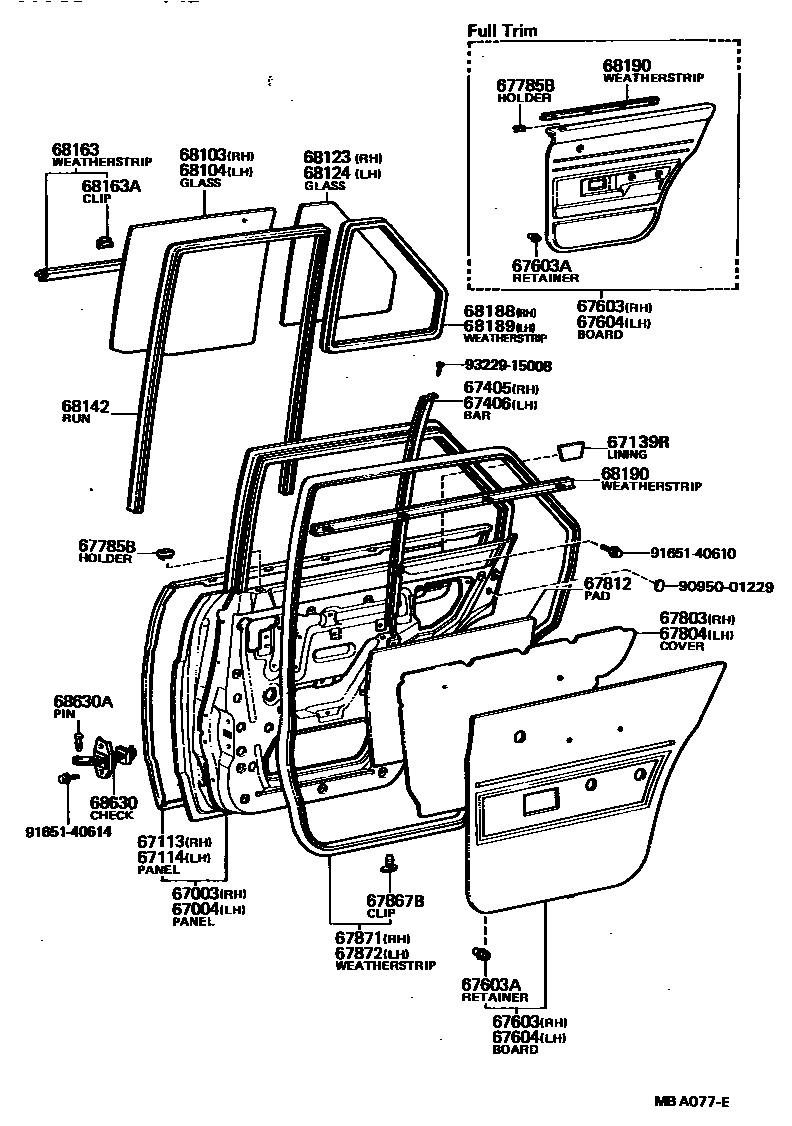

Toyota COROLLA EPC diagram 6705, 后门板和后门玻璃, with 1 images and 27 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 67003 | Right rear door panel sub-assembly | 67003-12180 · 67003-12200 · 67003-12250 · 67003-13120 · 67003-13130 · 67003-13190 |
| 67004 | Left rear door panel sub-assembly | 67004-12180 · 67004-12200 · 67004-12250 · 67004-13120 · 67004-13130 · 67004-13190 |
| 67113 | Right rear door outer panel | 67113-12080 · 67113-12090 |
| 67114 | Left rear door outer panel | 67114-12080 · 67114-12090 |
| 67139R | Door outer panel reinforcement lining | 67139-12010 · 67139-12020 |
| 67405 | Right rear door window divider sub-assembly | 67407-12080 |
| 67406 | Left rear door window divider sub-assembly | 67408-12080 |
| 67603A | Fixings (for rear door trim) | 67771-12010 |
| 67785B | Door lock button collar fastener (for rear doors) | 69751-20040 |
| 67803 | Right rear door access hole cover sub-assembly | 67841-12080 · 67841-12120 |
| 67804 | Left rear door access hole cover sub-assembly | 67841-12080 · 67841-12120 |
| 67812 | Rear door silencer pad | 67812-20050 |
| 67867B | Door seal strip clip (for rear door) | 67868-30040 |
| 67871 | Right rear door sealing strip | 67871-12110 · 67871-13080 |
| 67872 | Left rear door sealing strip | 67872-12110 · 67872-13070 |
| 68103 | Right rear door glass sub-assembly | 68113-12080 · 68113-12090 · 68113-12100 · 68113-12110 · 68113-13030 · 68113-13060 · 68113-13070 · 68113-13080 |
| 68104 | Left rear door glass sub-assembly | 68114-12080 · 68114-12090 · 68114-12100 · 68114-12110 · 68114-13030 · 68114-13060 · 68114-13070 · 68114-13080 |
| 68123 | Right rear door window glass | 68123-12100 · 68123-12110 · 68123-12140 · 68123-12150 · 68123-13060 · 68123-13070 · 68123-13080 · 68123-13090 |
| 68124 | Left rear door window glass | 68124-12100 · 68124-12110 · 68124-12140 · 68124-12150 · 68124-13030 · 68124-13060 · 68124-13070 · 68124-13080 |
| 68142 | Rear door glass lift chute | 68142-12040 · 68142-13040 |
| 68163 | Rear door glass outer seal strip | 68180-12040 · 68180-12060 |
| 68163A | Catch (for rear door glass outer sealing strip) | 68211-10030 · 68211-12080 |
| 68188 | Right rear door corner window seal | 68188-12070 · 68188-13020 |
| 68189 | Left rear door corner window seal | 68189-12070 · 68189-13020 |
| 68190 | Rear door glass inner sealing strip assembly | 68190-12060 · 68190-12070 |
| 68630 | Rear door opening limiter assembly | 68630-12010 · 68630-12011 |
| 68630A | Pin (for rear door opening limiter) | 68617-12010 · 68617-22010 · 68617-90A00 |
