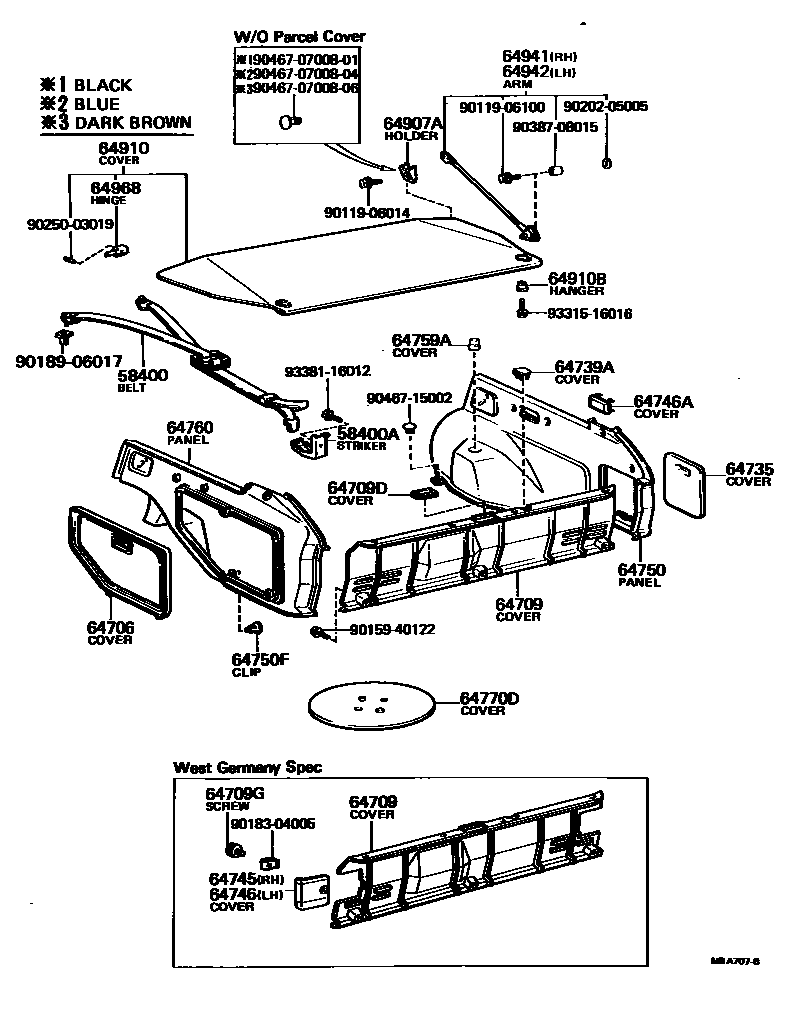

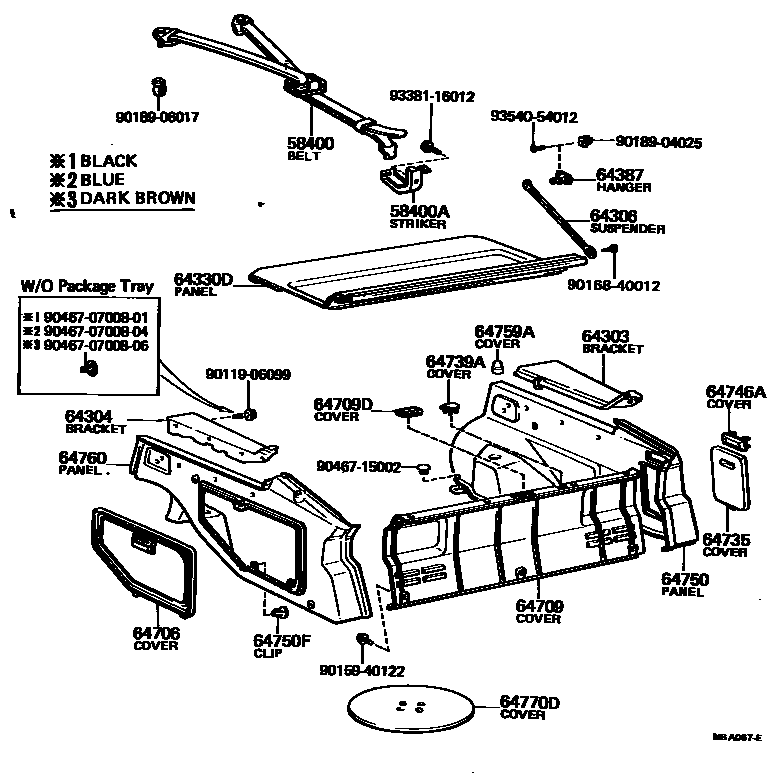

Toyota COROLLA 底板和底板装饰罩 — Figure 6404
Toyota COROLLA EPC diagram 6404, 底板和底板装饰罩, with 3 images and 10 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 58400 | No. 1 suitcase fixing strap assembly | 58400-12020 · 58400-12021 |
| 58400A | Suitcase fixing strap lock | 58461-12010 |
| 64306 | Glove box decorative panel fixed rod sub-assembly | 64367-12010 |
| 64387 | Glove box decorative panel hanger | 64381-12010 |
| 64709G | Rear lower access hole cover screws | 64719-20020 |
| 64770D | Spare tire cover assembly | 64770-20030 |
| 64931A | Trunk cover hanger | 64381-10010 · 64903-96440 |
| 64941 | Right trunk trim cover lift arm sub-assembly | 64905-12020 · 64905-12030 |
| 64942 | Left trunk trim cover lift arm sub-assembly | 64906-12030 · 64906-12040 |
| 64968 | No. 4 trunk lid hinge | 64968-12010 |
