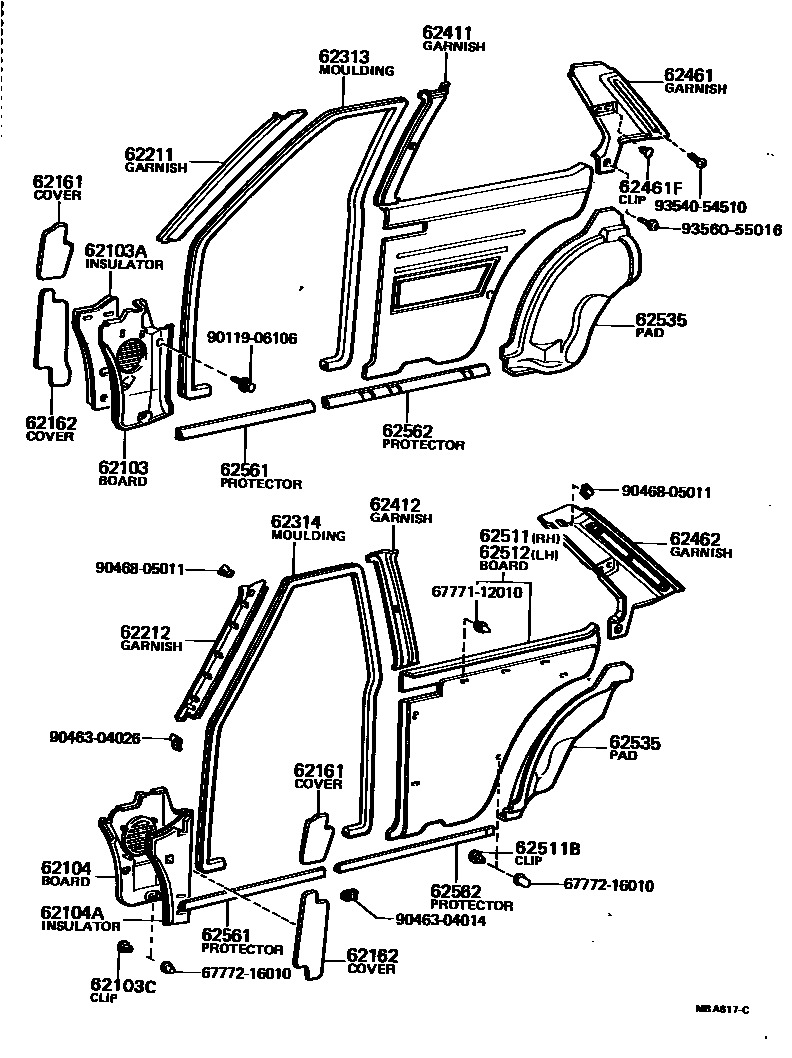

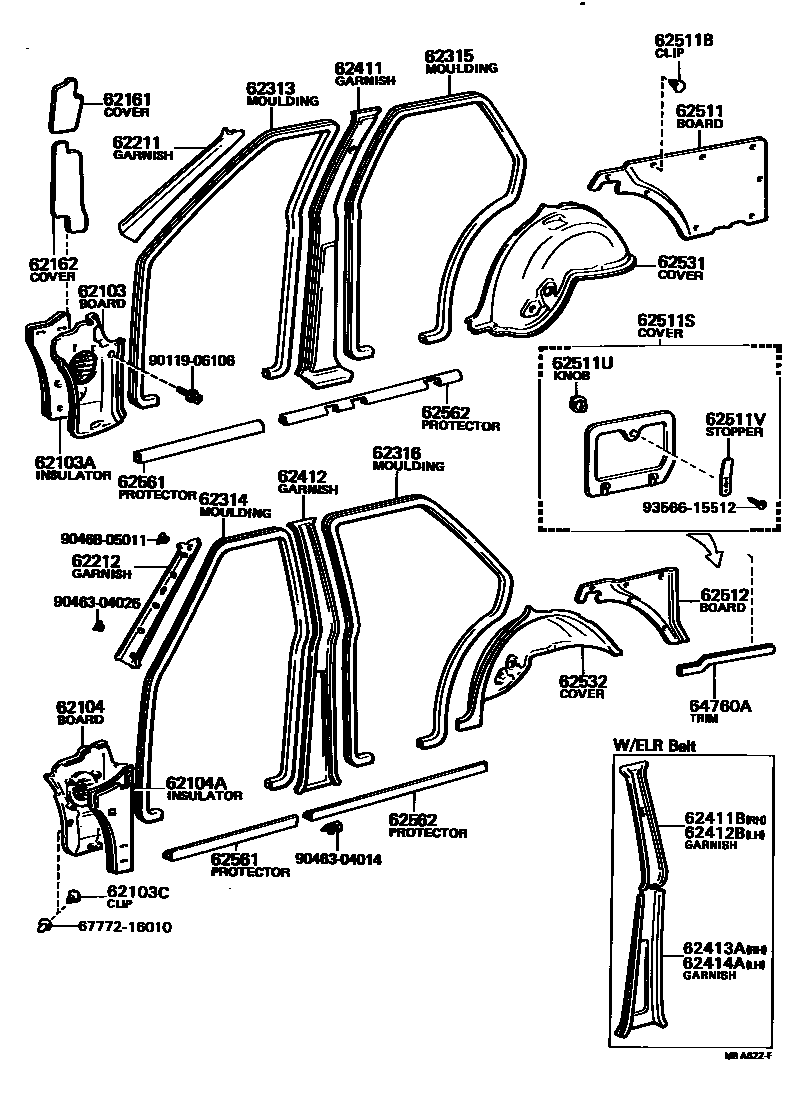

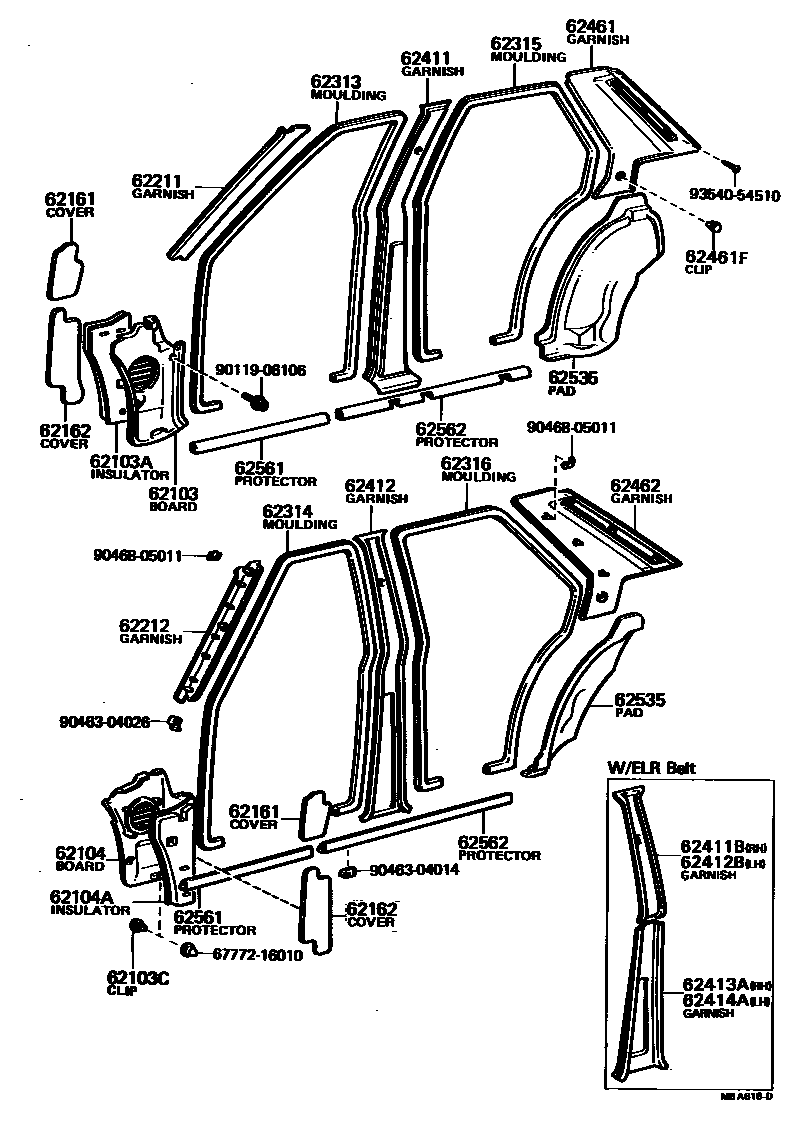

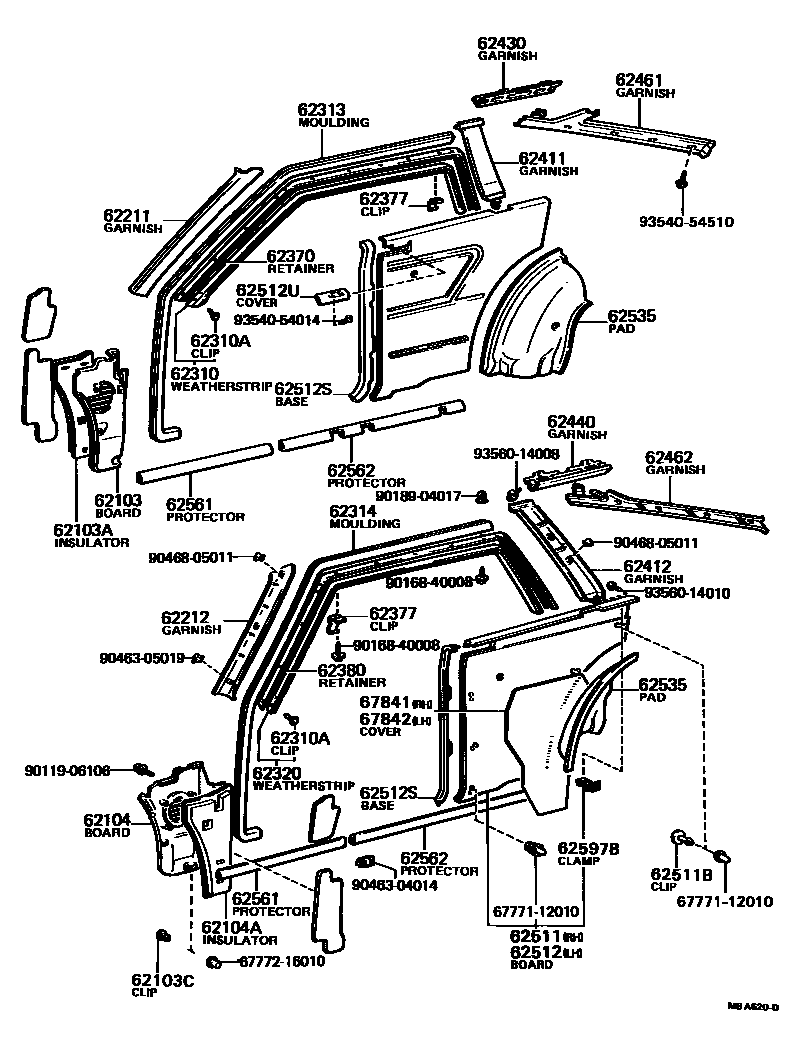

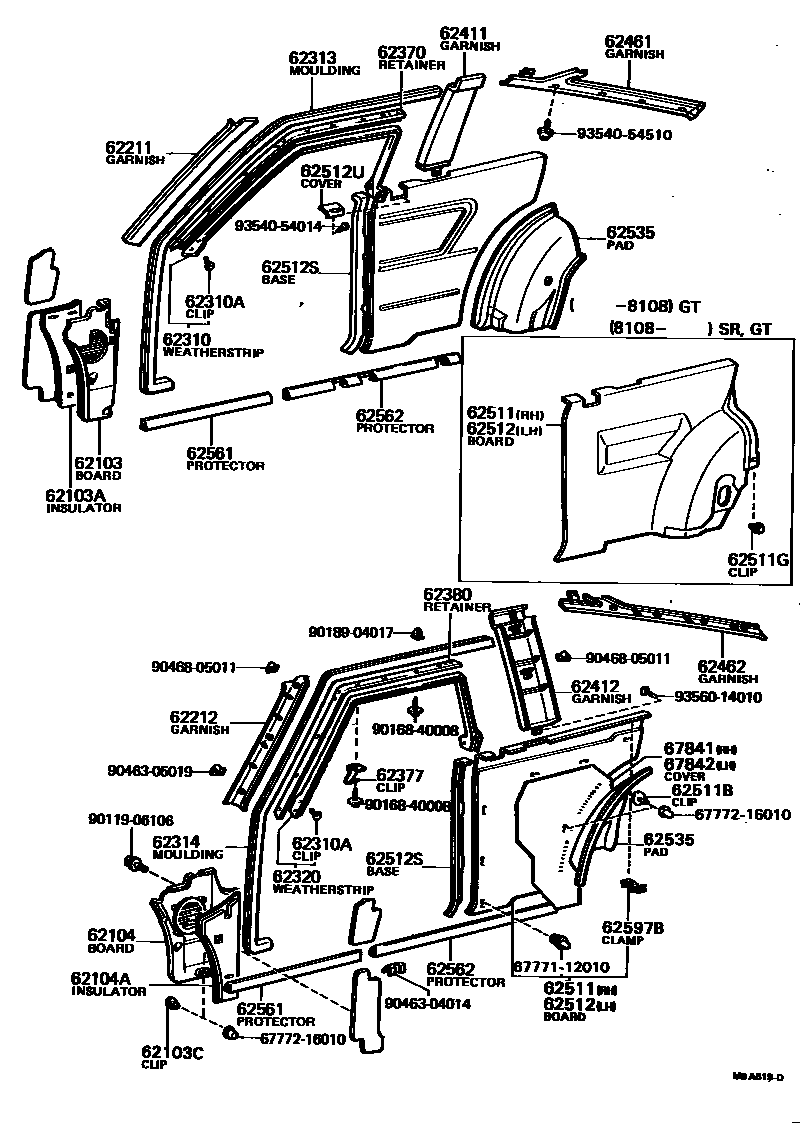

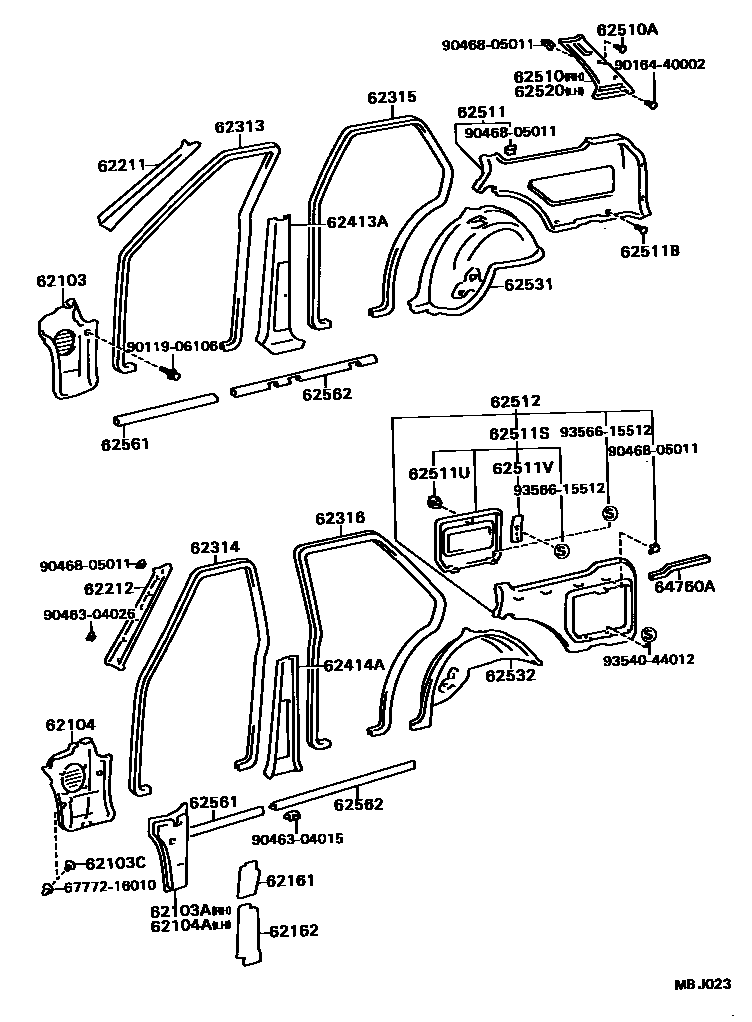

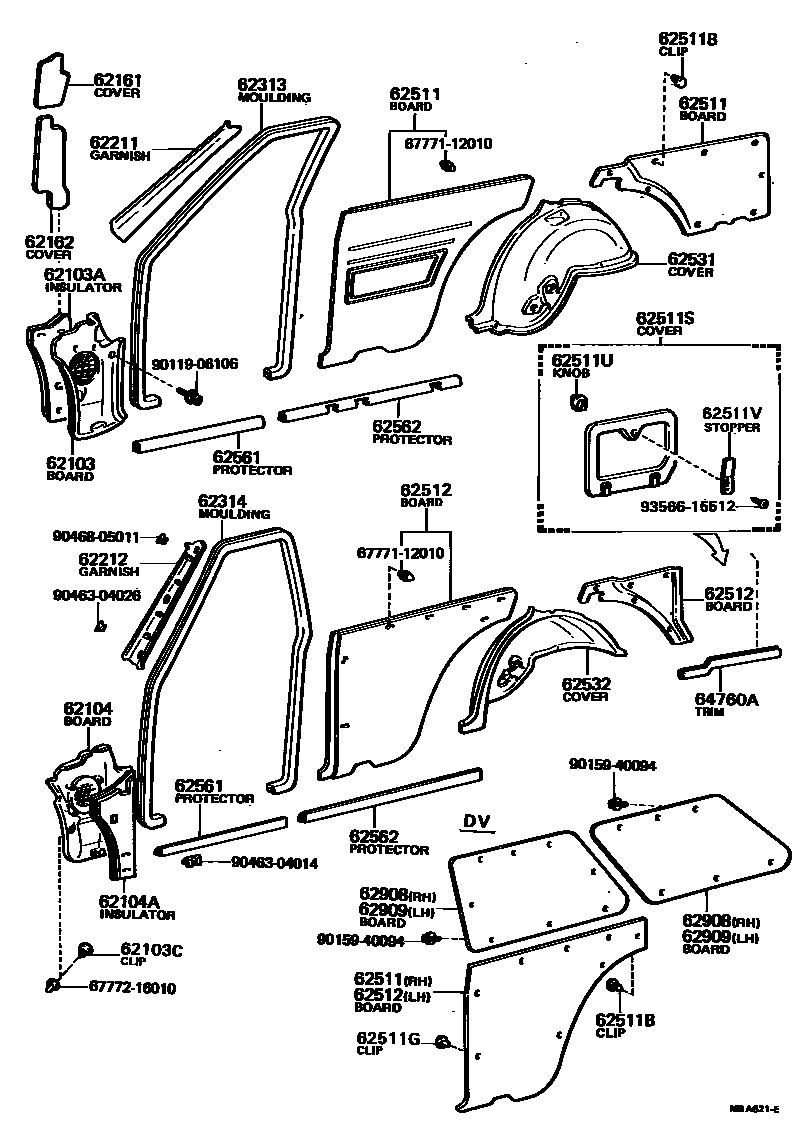

Toyota COROLLA 内饰板和车门防水胶条 — Figure 6401
Toyota COROLLA EPC diagram 6401, 内饰板和车门防水胶条, with 7 images and 21 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 62103A | Right front wall side heat insulation pad sub-assembly | 62105-12030 |
| 62104A | Left front wall side heat insulation pad sub-assembly | 62106-12020 · 62106-12030 |
| 62161 | Upper cowl side trim panel access hole cover | 61197-12010 · 61198-12010 |
| 62162 | Lower cowl side trim panel access hole cover | 62161-12030 · 62162-12030 |
| 62310 | Roof right side rail seal strip | 62381-12080 · 62381-12100 · 62381-12130 |
| 62310A | Roof rail sealing strip clip | 67869-12010 |
| 62320 | Roof left side rail seal strip | 62382-12100 · 62382-12110 · 62382-12140 |
| 62370 | Roof right side rail seal strip fixing assembly | 62361-12050 · 62361-12060 |
| 62377 | Car door window glass clip | 62367-12040 · 62368-12030 |
| 62380 | Roof left side rail seal strip fixing assembly | 62362-12050 · 62362-12060 |
| 62430 | Roof right side rail decorative strip assembly | 62431-12030 |
| 62440 | Roof left side rail decorative strip assembly | 62431-12030 |
| 62511S | Side decorative panel jack cover | 64707-13030 |
| 62511V | Jack cover stop | 64768-13010 |
| 62535 | Side wheel arch decorative linings | 62610-12050 · 62620-12040 |
| 62561 | Front door inner sill protection strip | 62561-12020 |
| 62562 | Rear door inner sill protection strip | 62561-12020 · 62563-12010 · 62564-12010 |
| 62597B | Side decorative panel clip | 62597-12020 |
| 64760A | No. 1 jack cover opening trim strip | 58795-13021 |
| 67841 | No. 1 right side manhole cover | 67841-12090 · 67841-12150 |
| 67842 | No. 1 left side manhole cover | 67841-12090 · 67841-12150 |
