Toyota COROLLA 角窗 — Figure 6103

Toyota COROLLA EPC diagram 6103, 角窗, with 4 images and 50 PNC and OE references.

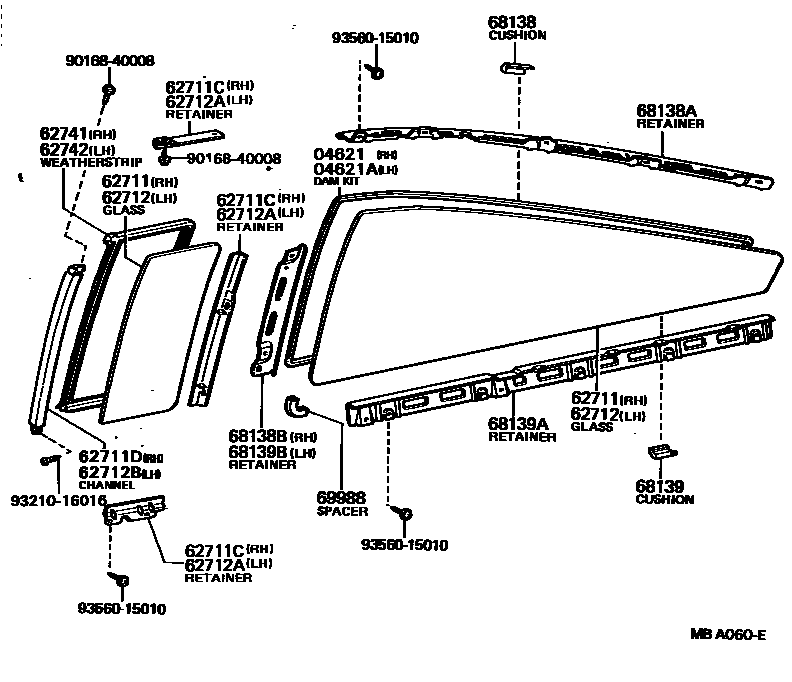

Toyota COROLLA 角窗 EPC diagram — MBA060E
角窗 — MBA060E (197908 – 198305)

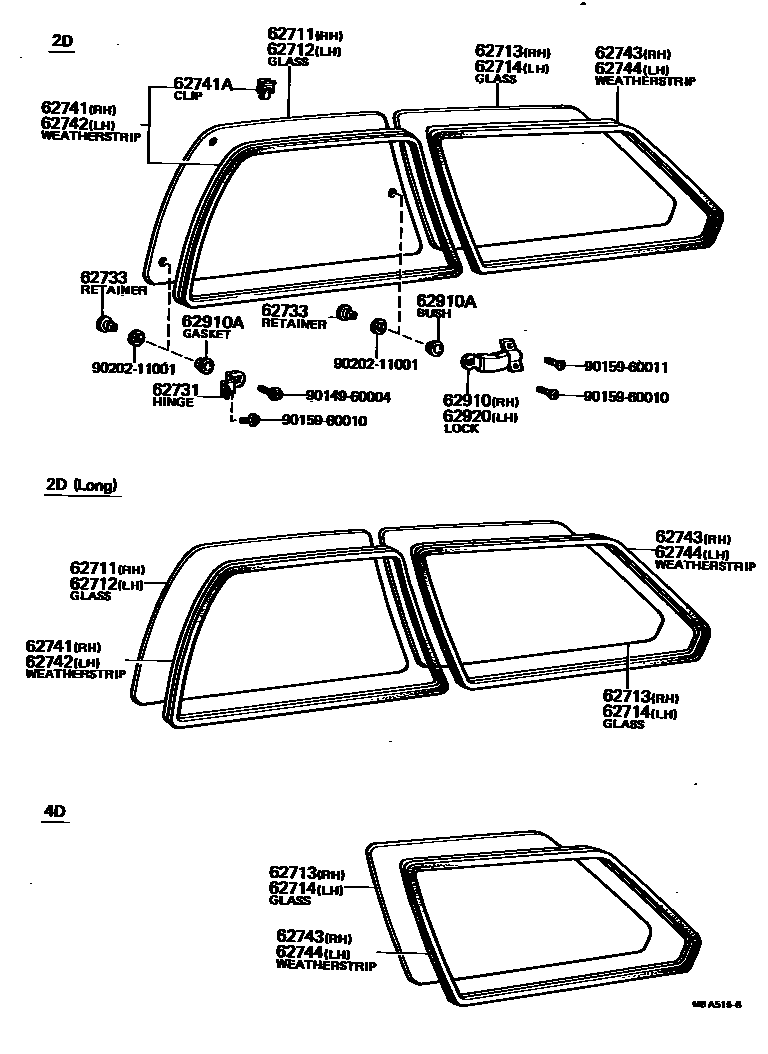

Toyota COROLLA 角窗 EPC diagram — MBA515B
角窗 — MBA515B (197908 – 999999)

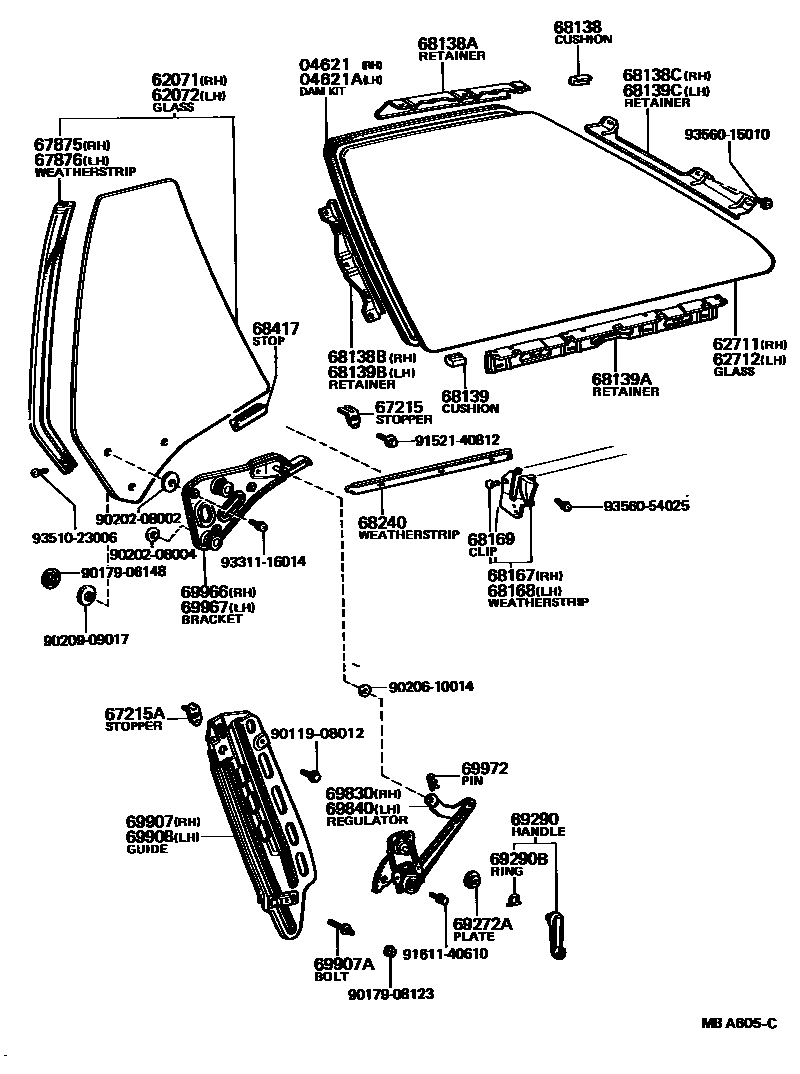

Toyota COROLLA 角窗 EPC diagram — MBA605C
角窗 — MBA605C (197908 – 198406)

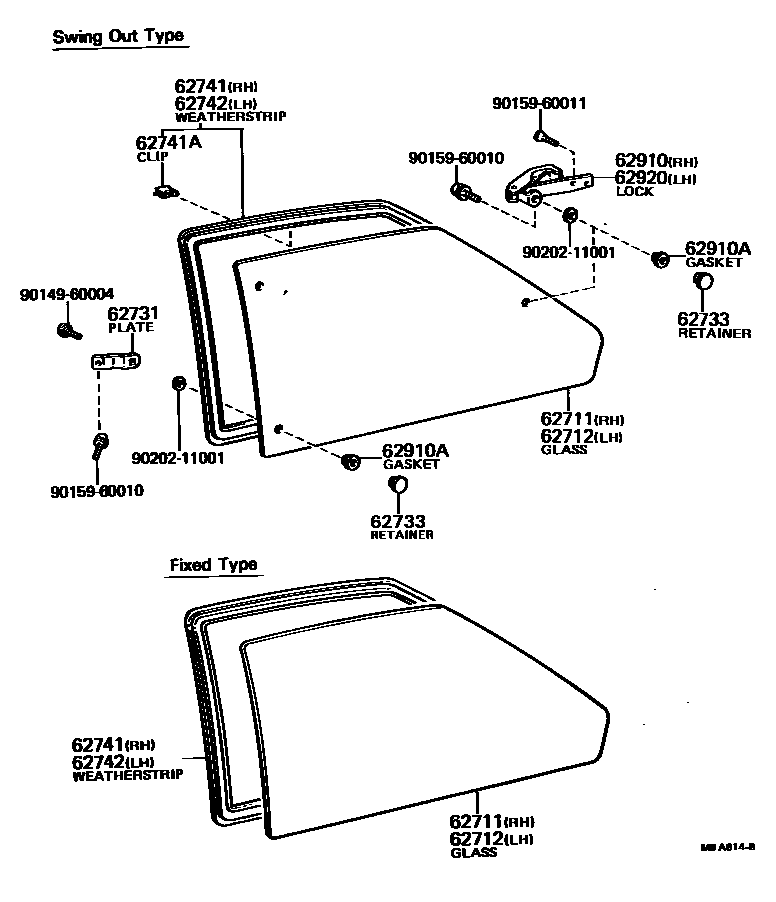

Toyota COROLLA 角窗 EPC diagram — MBA614B
角窗 — MBA614B (197908 – 198305)

PNC and OE references

PNCPart nameOE numbers
04621Right corner window glass sealing strip assembly04681-12010
04621ALeft corner window glass sealing strip assembly04681-12010
62071Right corner window glass sub-assembly62071-12130 · 62071-12150
62072Left corner window glass sub-assembly62072-12130 · 62072-12150
62711Right corner window glass62711-12260 · 62711-12270 · 62711-12280 · 62711-12281 · 62711-12290 · 62711-12300 · 62711-13070 · 62711-13080 · 68133-12030 · 68133-12031 · 68133-12040 · 68133-12070
62711CRight corner window glass fixing62763-12010 · 62765-12010 · 62767-12010
62711DRight corner window slot67405-12040
62712Left corner window glass62712-12260 · 62712-12270 · 62712-12280 · 62712-12281 · 62712-12290 · 62712-12300 · 62712-13070 · 62712-13080 · 68134-12030 · 68134-12031 · 68134-12040 · 68134-12070
62712ALeft corner window glass fixing62764-12010 · 62766-12010 · 62768-12010
62712Bleft corner window slot67406-12040
62713Right rear corner window glass62713-13090 · 62713-13100
62714left rear corner window glass62714-13090 · 62714-13100
62731Corner or side window hinge panels62731-12070
62733Corner or side window hinge fixings62735-12010
62741Right corner window sealing strip62741-12090 · 62741-12100 · 62741-12110 · 62741-13050 · 62741-13060
62741ACorner window sealing strip clip62742-12110 · 62759-12010
62742Left corner window sealing strip62742-12090 · 62742-12100 · 62742-12110 · 62742-13050 · 62742-13060
62743Right rear corner window sealing strip62743-13050
62744Left rear corner window sealing strip62744-13050
62910Right corner window or side window lock assembly62910-13040 · 62910-16010
62910APads (for corner or side window locks or hinges)90385-11001
62920Left corner window lock assembly62920-13040 · 62920-16010
67215Front corner window upper stop67215-95500
67215ACorner window upper block67215-12030
67875Right rear corner window glass seal strip67081-12020
67876Left rear corner window glass sealing strip67082-12020
68138Corner window No. 2 upper cushion68138-12020
68138ACorner window No. 2 upper fixing parts68144-12030 · 68144-12040 · 68184-12030
68138BRight front corner window fixing piece No. 262761-12010 · 68146-12020
68138CRight rear corner window fixing piece No. 262767-12020
68139Corner window No. 2 lower cushion68139-12030
68139ACorner window No. 2 lower fixing piece68145-12020 · 68145-12040 · 68185-12010 · 68185-12020
68139BLeft front corner window fixing piece No. 262761-12010 · 68186-12010
68139CLeft rear corner window fixing piece No. 262768-12020
68167Right rear corner window front corner sealing strip67941-12021
68168Left rear corner window front corner sealing strip67942-12021
68169Corner sealing strip clip67869-30020
68240Corner window glass inner sealing strip assembly68190-12090 · 68240-12040
68417Rear corner window glass lower stop67218-12010
69272ADoor window lift handle plate69285-22010
69290BSnap ring (for corner window lift handle)90520-01002 · 90520-01274
69830Right rear corner window lift assembly69803-12040
69840Left rear corner window lift assembly69804-12040
69907Right corner window lifter roller guide sub-assembly67405-12030
69907ANo. 1 studs (for corner window lift roller guide)90116-08076
69908Left corner window lifter roller guide sub-assembly67406-12030
69966Right rear corner window glass bracket69905-12060
69967Left rear corner window glass bracket69906-12050
69972Corner window glass channel fixing pin69972-30010
69988Corner window glass spacer69988-12010 · 69989-12010
