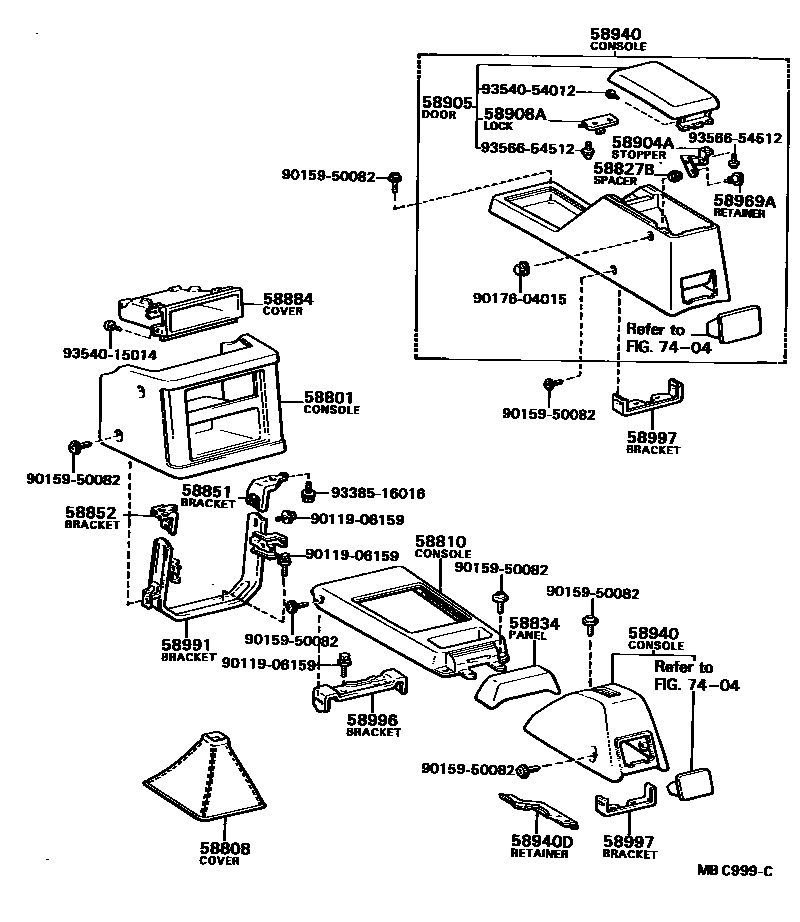

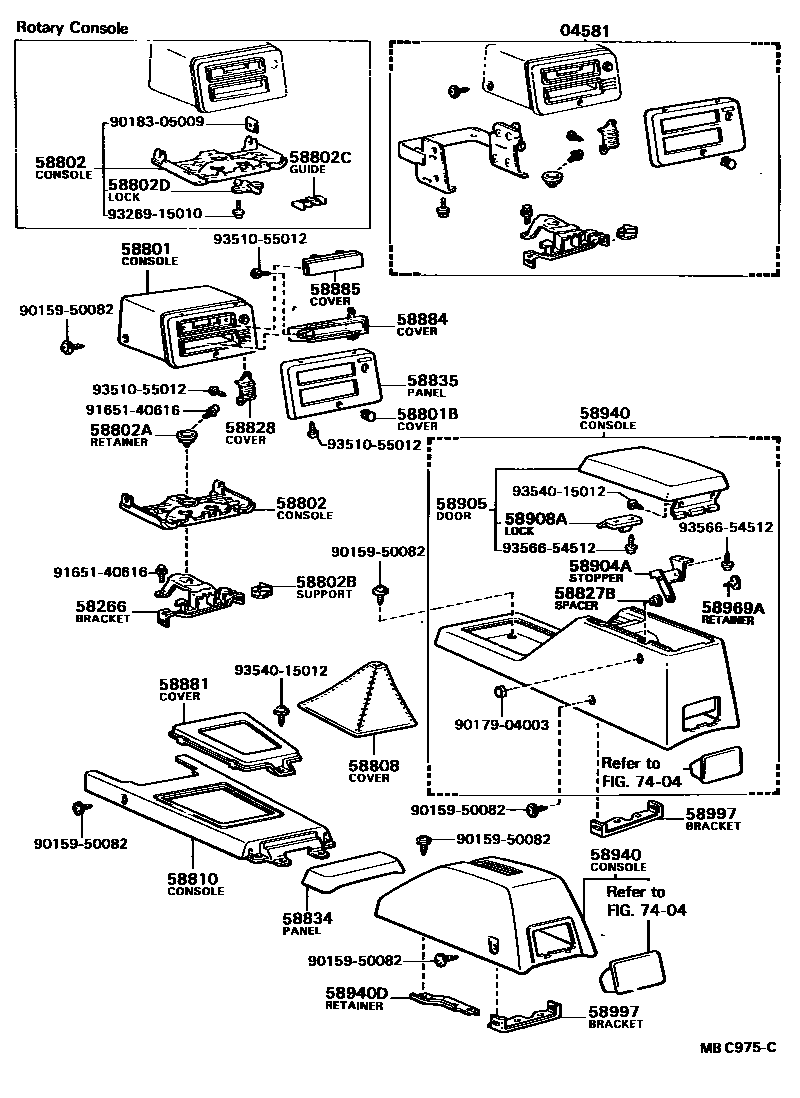

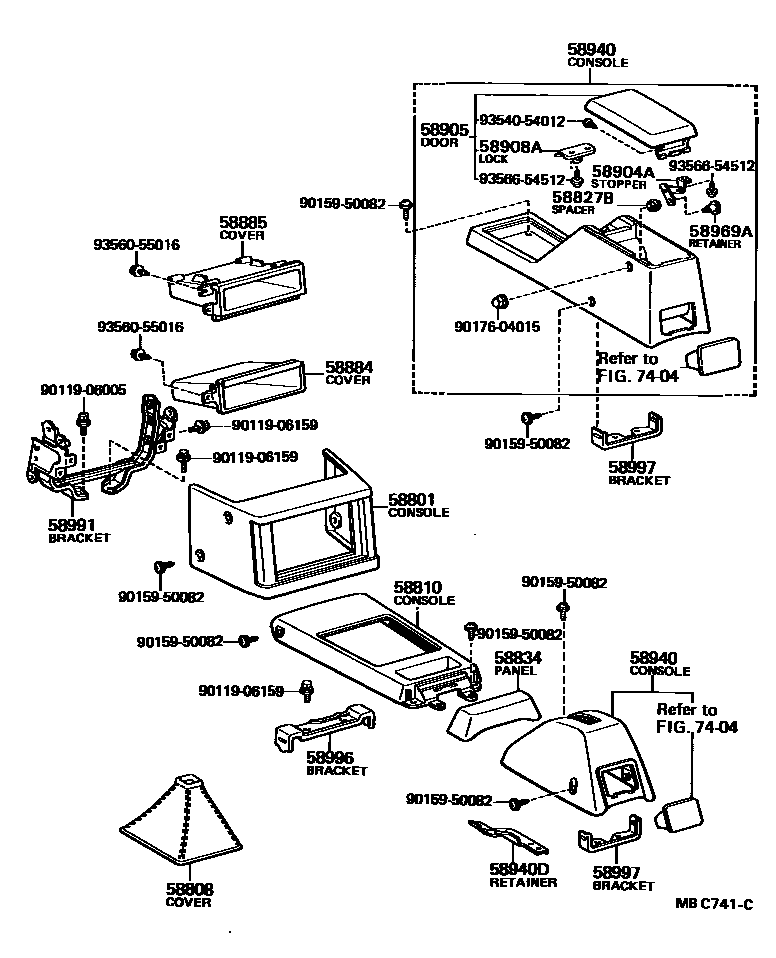

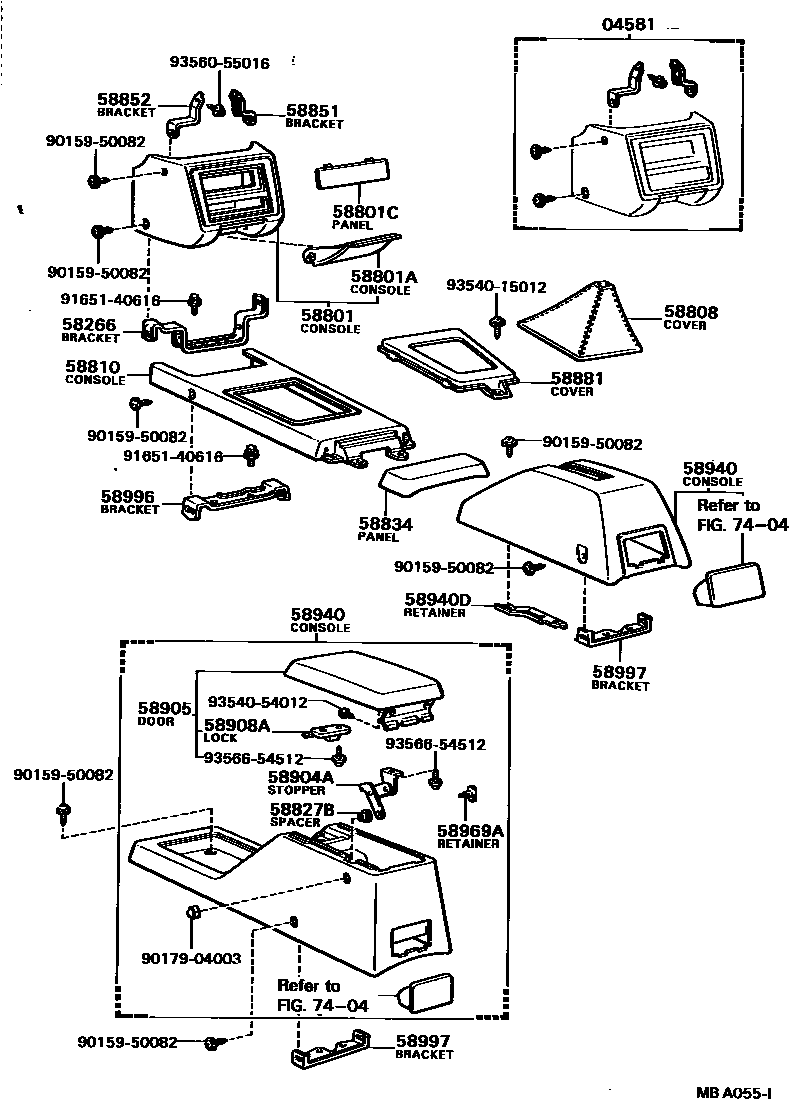

Toyota COROLLA 中央扶手箱和支架 — Figure 5806
Toyota COROLLA EPC diagram 5806, 中央扶手箱和支架, with 4 images and 22 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 04581 | Console installation components | 04581-12020 · 04581-12030 |
| 58266 | Armrest box front bracket | 58902-12010 · 58902-12020 · 58991-12020 |
| 58801B | Armrest box hole cover | 58839-12020 |
| 58801C | Stereo player decorative panel | 55423-12040 |
| 58802A | Rotating armrest box fixings | 58851-12050 |
| 58802B | Rotating armrest box bracket | 58852-12050 |
| 58802C | Rotating armrest box lock guide | 58864-12010 |
| 58802D | Rotary armrest box lock sub-assembly | 58806-12010 |
| 58827B | Armrest box lid stopper spacer | 58827-20021 |
| 58828 | Vehicle condition monitor opening cover | 55529-12020 |
| 58835 | Armrest box upper panel | 58821-12020 |
| 58851 | Console upper right bracket | 58857-12010 · 58857-12030 · 58857-12040 |
| 58852 | Console upper left bracket | 58858-12010 · 58858-12030 · 58858-12040 |
| 58884 | stereo system hole cover | 55521-12070 · 55521-12080 · 55521-12090 · 55521-22020 |
| 58885 | Armrest box opening cover | 55521-22020 · 55522-12080 |
| 58904A | Armrest box lid stopper sub-assembly | 58904-22020 |
| 58908A | Armrest box lid lock assembly | 58908-12010 |
| 58940D | Parking brake hole cover fixing | 58943-10010 · 58943-12020 |
| 58969A | Armrest box lid stopper fixing | 58969-20010 |
| 58991 | Mounting bracket on armrest box | 58902-12030 · 58902-12040 |
| 58996 | Armrest box No. 1 mounting bracket | 58995-12010 |
| 58997 | Armrest box No. 3 mounting bracket | 58997-10010 · 58997-12010 · 58997-12020 |
