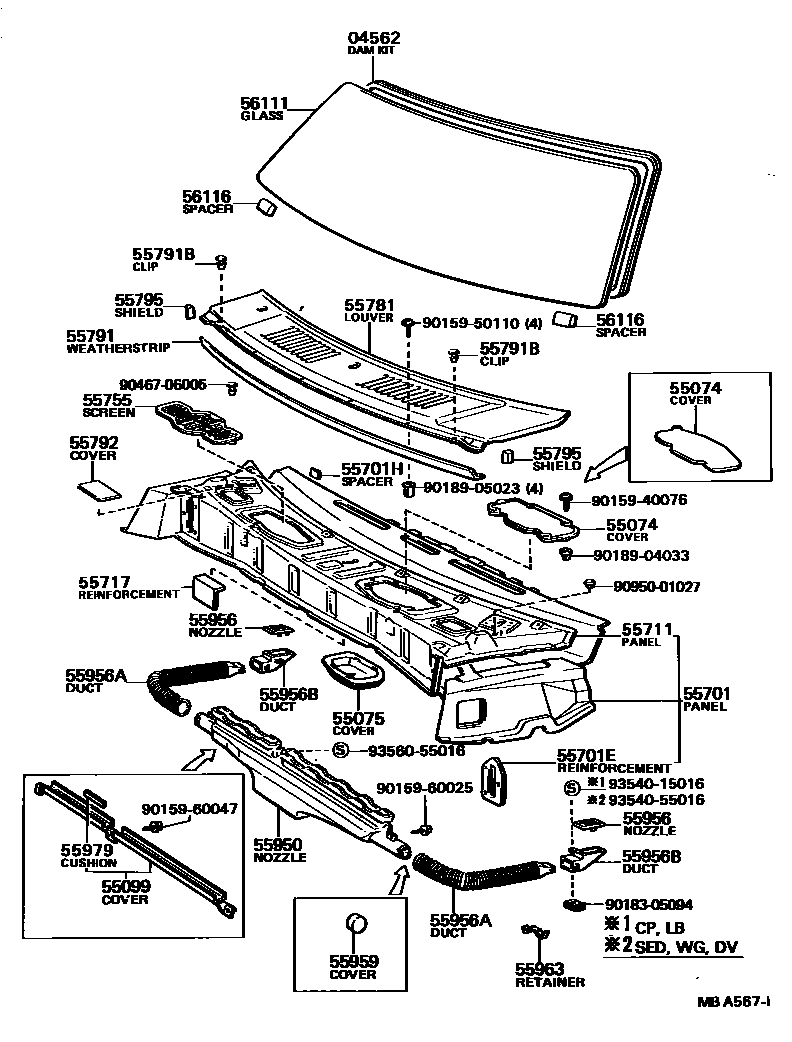

Toyota COROLLA 前围板和挡风玻璃 — Figure 5503
Toyota COROLLA EPC diagram 5503, 前围板和挡风玻璃, with 1 images and 23 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 04562 | Windshield sealing strip assembly | 04562-30020 |
| 55074 | Front wall inner air heater cover sub-assembly | 55074-12010 · 55074-12011 · 55074-12020 · 55791-12050 |
| 55075 | Heater air duct hole cover sub-assembly | 55077-12040 · 55077-12050 |
| 55099 | Defroster nozzle opening mask sub-assembly | 55099-12010 · 55099-12020 |
| 55701 | Front apron sub-assembly | 55700-12090 · 55700-12091 · 55700-12092 · 55700-12110 · 55700-12111 · 55700-12112 · 55700-12113 · 55700-12130 · 55700-12150 · 55700-12151 · 55700-12152 · 55700-12160 · 55700-12180 · 55700-12181 · 55700-12182 · 55700-12201 · 55700-12390 |
| 55701E | Engine cover hinge installation reinforcement | 55725-12070 · 55726-12070 |
| 55701H | Dashboard safety pad spacer | 55457-12010 · 55457-12020 |
| 55711 | Front outer panel | 55711-12090 · 55711-12091 · 55711-12092 · 55711-12110 · 55711-12111 · 55711-12112 · 55711-12113 · 55711-12120 · 55711-12130 · 55711-12131 · 55711-12132 · 55711-12150 · 55711-12151 · 55711-12152 |
| 55717 | External reinforcements for cowl upper cover | 55717-12050 |
| 55755 | heater duct partition | 55756-12040 |
| 55781 | Front apron ventilation grille | 55781-12020 · 55781-12030 · 55781-12060 · 55781-12070 · 55781-12080 · 55781-12090 · 55781-12100 · 55781-12110 |
| 55791 | Sealing strip from engine cover to cowl upper cover | 53383-12030 · 53383-12040 |
| 55791B | Clamp (for sealing strip from engine cover to cowl upper cover) | 90467-06005 |
| 55792 | Wiper motor access hole cover | 55793-12030 |
| 55795 | From the cowl upper cover to the grille side guards | 55751-12030 · 55751-12040 · 55751-14010 |
| 55950 | Defroster nozzle assembly | 55950-12020 · 55950-12030 · 55950-12040 · 55950-12050 |
| 55956A | Side defroster No. 1 nozzle air duct | 55973-12030 · 55973-12040 |
| 55956B | Side defroster No. 2 nozzle air duct | 55971-12050 · 55971-12060 · 55972-12030 · 55972-12040 |
| 55959 | Defroster No. 1 nozzle opening cover | 55959-14010 |
| 55963 | Side defroster fixings | 55963-12010 |
| 55979 | Defroster nozzle cushion | 55979-12010 |
| 56111 | windshield | 56111-12310 · 56111-12320 · 56111-12340 · 56111-12360 · 56111-12370 · 56111-12390 · 56111-12430 · 56111-12431 · 56111-12450 |
| 56116 | windshield spacer | 56116-30020 |
