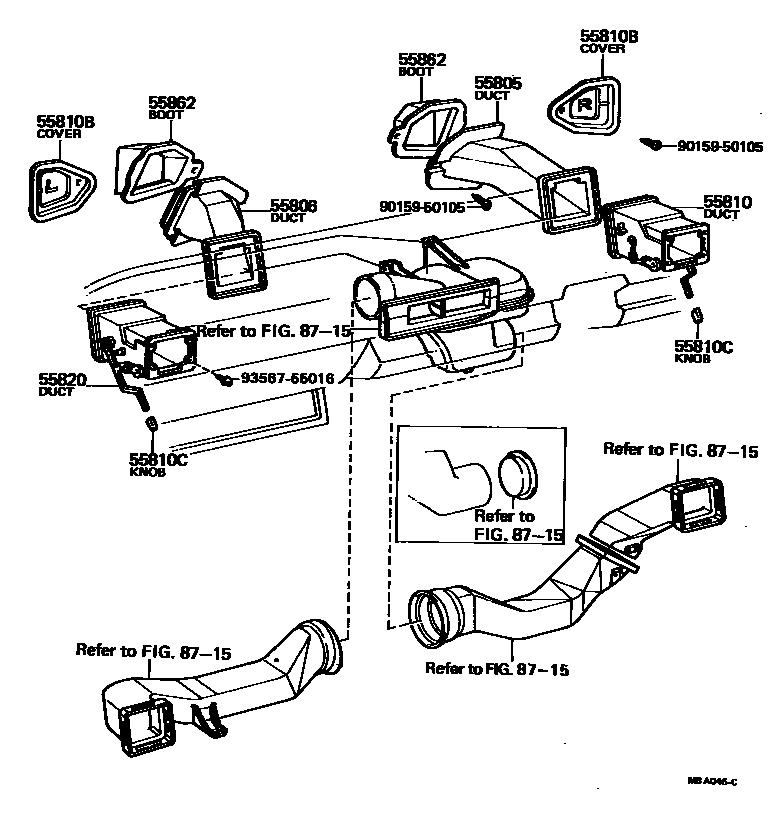

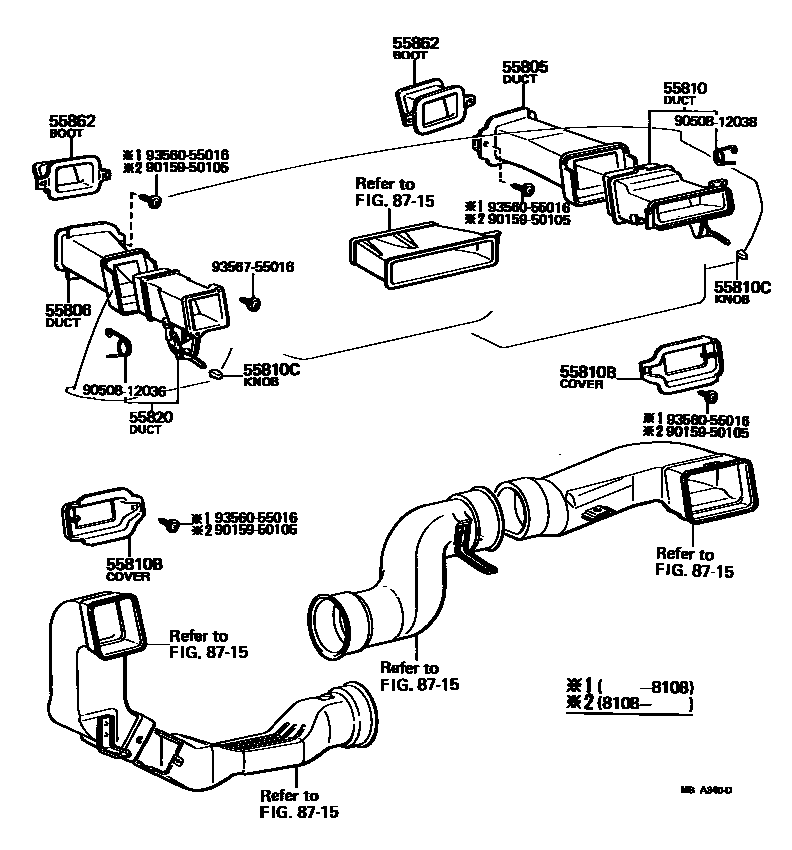

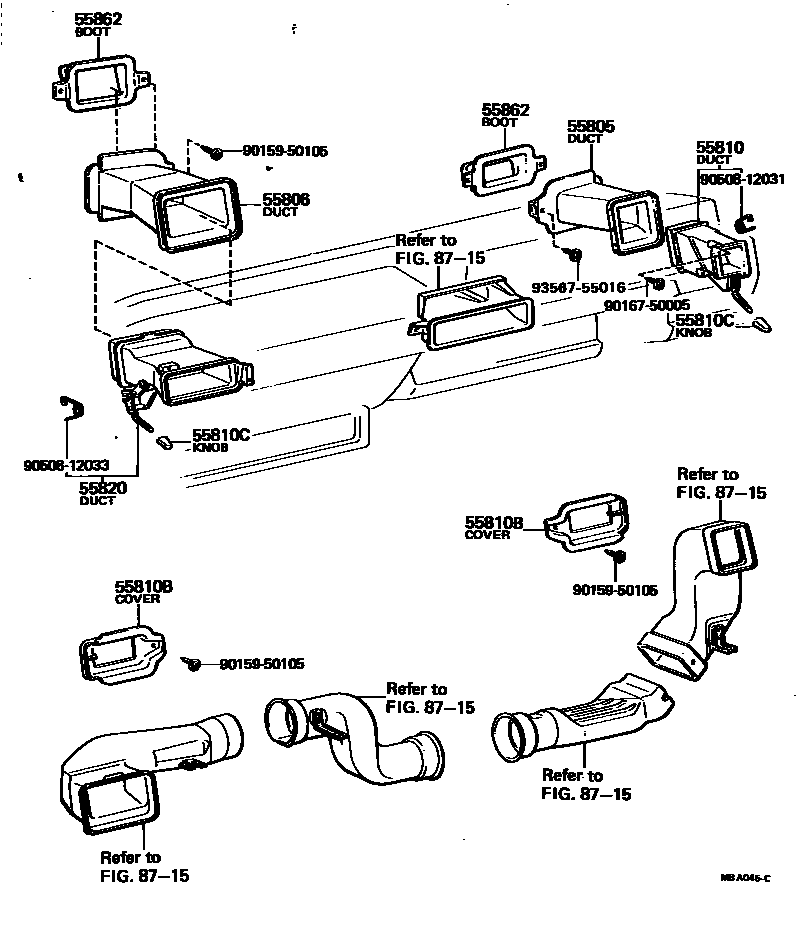

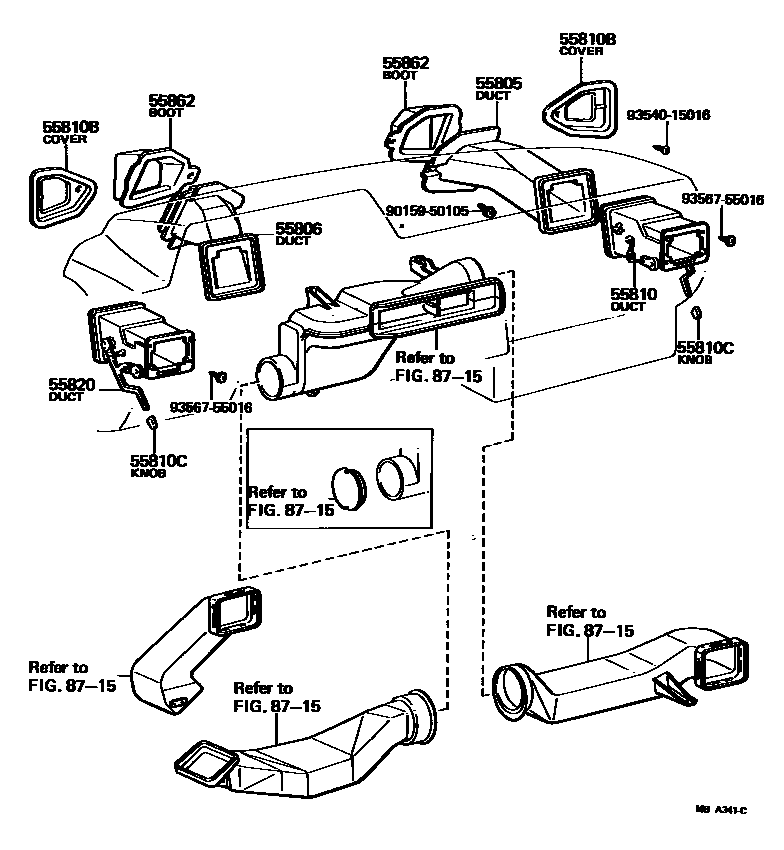

Toyota COROLLA 前围板通风装置 — Figure 5502
Toyota COROLLA EPC diagram 5502, 前围板通风装置, with 4 images and 6 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 55805 | No. 2 right ventilation duct sub-assembly | 55841-12090 · 55841-12100 · 55842-12110 |
| 55806 | No. 2 left ventilation duct sub-assembly | 55841-12110 · 55842-12090 · 55842-12100 |
| 55810 | Right ventilation duct assembly | 55830-12040 · 55830-12050 · 55840-12060 |
| 55810B | Side vent cover | 55877-12040 · 55877-12050 · 55878-12030 |
| 55820 | Left ventilation duct assembly | 55830-12060 · 55840-12040 · 55840-12050 |
| 55862 | Side ventilation dust cover | 55863-12020 · 55863-12030 · 55864-12020 · 55864-12030 |
