Toyota COROLLA 悬架横梁和发动机底罩 — Figure 5102

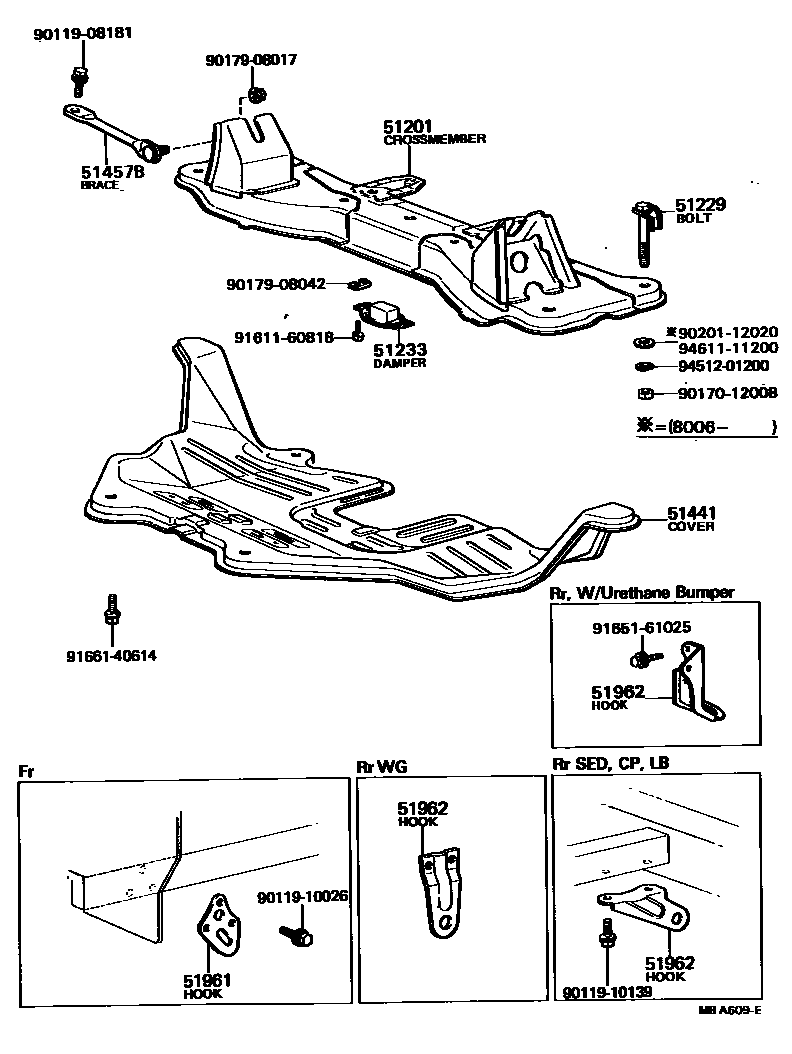

Toyota COROLLA EPC diagram 5102, 悬架横梁和发动机底罩, with 1 images and 7 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 51201 | Front suspension cross member sub-assembly | 51201-12070 · 51201-12080 · 51201-12081 · 51201-12100 · 51201-12101 · 51201-12102 · 51201-12110 · 51201-12120 · 51201-12130 · 51201-12140 · 51201-12141 · 51201-12150 · 51201-12151 · 51201-12152 · 51201-12160 · 51201-12180 · 51201-12190 · 51201-13010 |
| 51229 | Suspension cross member fixing bolts | 51296-12011 |
| 51233 | Front suspension cross member shock absorber | 51204-12010 |
| 51441 | No. 1 engine bottom cover | 51405-12010 · 51405-12020 · 51405-12030 · 51405-12040 · 51405-12050 · 51441-12100 · 51441-13010 |
| 51457B | Bracket from front longitudinal beam to front suspension cross member | 51457-12010 |
| 51961 | No. 1 hook | 51963-12050 |
| 51962 | Hook No. 2 | 51967-12010 · 51967-12020 · 51967-13030 · 51968-12010 |
