Toyota COROLLA 前盘式制动器卡钳和防尘罩 — Figure 4705

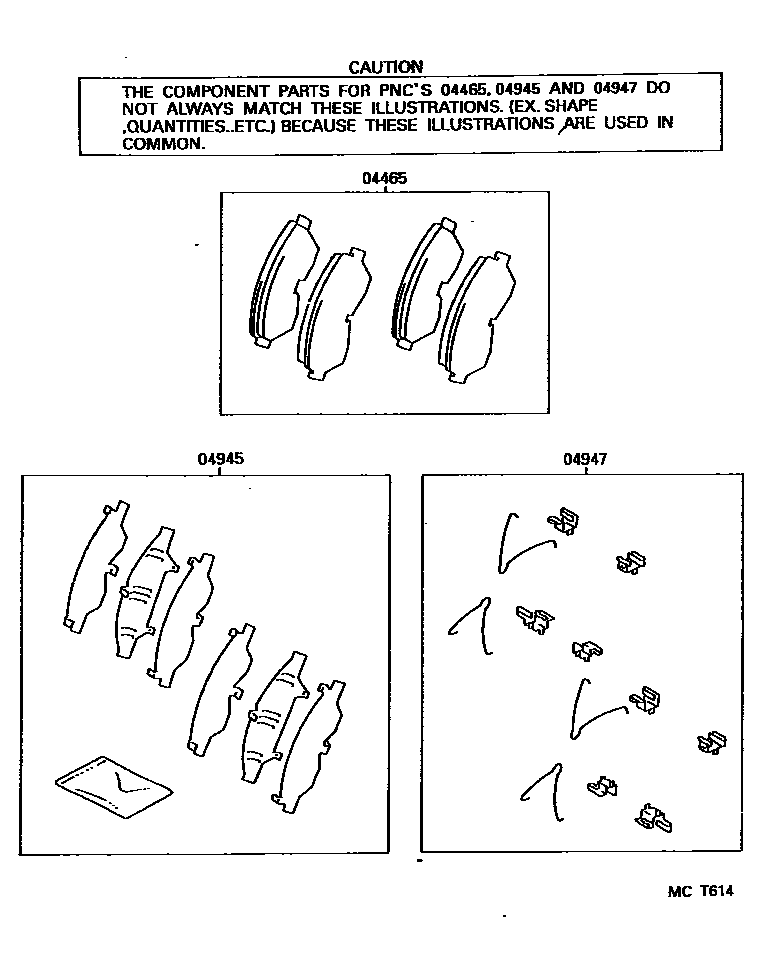

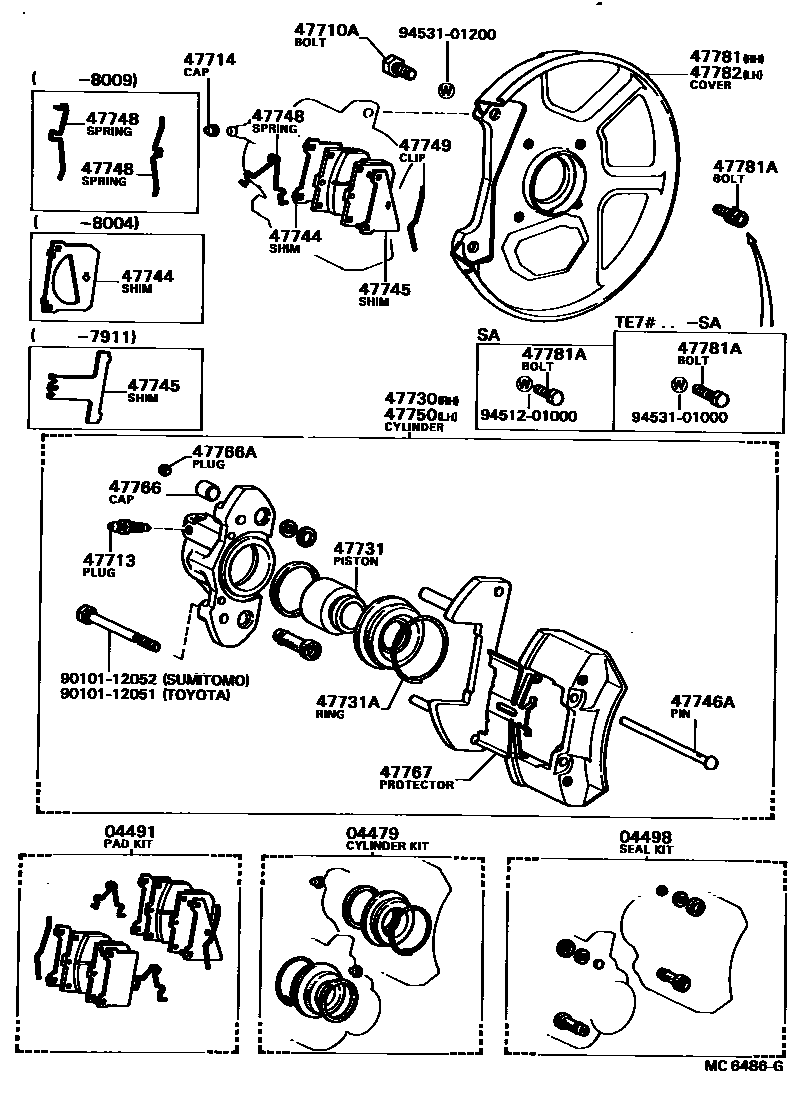

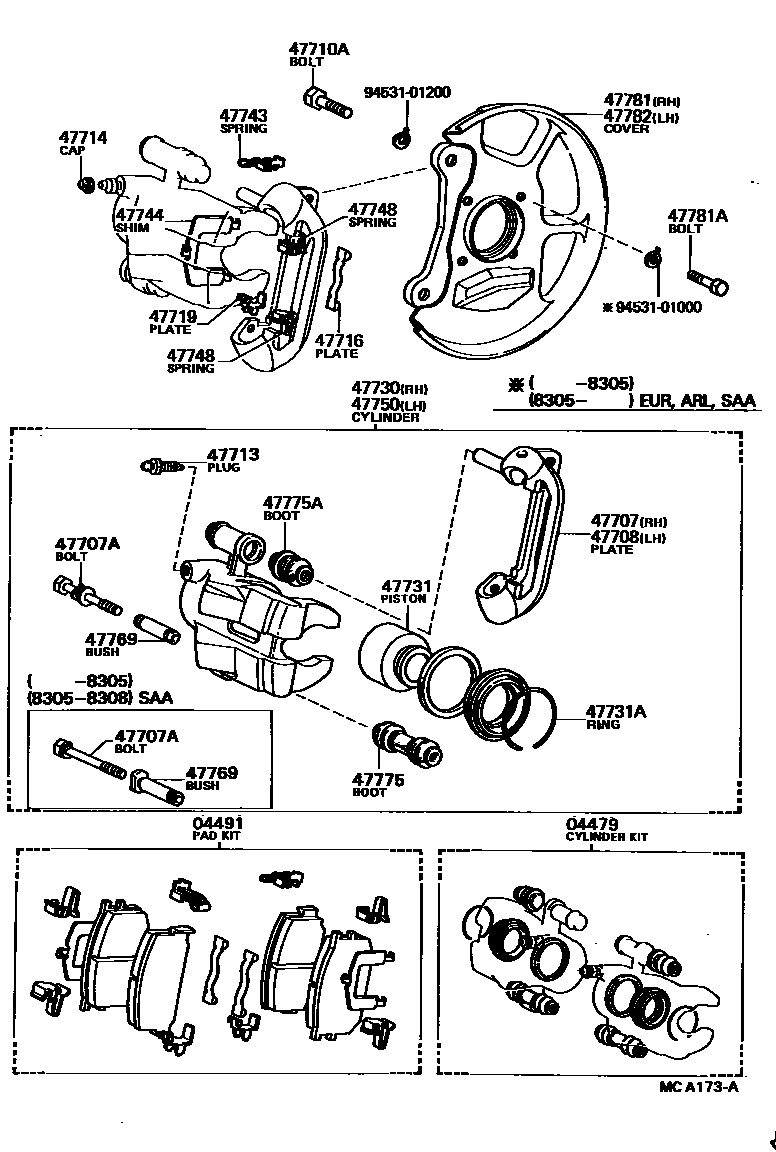

Toyota COROLLA EPC diagram 4705, 前盘式制动器卡钳和防尘罩, with 3 images and 33 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 04465 | Front disc brake pad assembly | 04465-12120 · 04465-12360 · 04465-12410 · 04465-14210 |
| 04479 | Front disc brake cylinder assembly | 04479-12060 · 04479-12070 · 04479-12080 · 04479-12100 · 04479-14060 |
| 04491 | Front disc brake pad assembly | 04491-12130 · 04491-12140 · 04491-12141 · 04491-12151 · 04491-12160 · 04491-12161 · 04491-14150 |
| 04498 | Front disc brake seal assembly | 04498-12010 · 04498-12020 |
| 04945 | Front silencer gasket assembly | 04945-12020 · 04945-12040 · 04945-14090 |
| 04947 | Front disc brake mounting kit | 04947-12020 · 04947-14160 · 04947-14230 |
| 47707 | Right front disc brake torque plate sub-assembly | 47707-12030 · 47707-14010 |
| 47707A | Hex bolt (for front disc brake torque plate) | 90119-08199 · 90119-08431 |
| 47708 | Left front disc brake torque plate sub-assembly | 47708-12020 · 47708-14010 |
| 47710A | Hexagonal bolt (for front disc brake caliper) | 90101-10020 · 90101-10089 · 90101-12064 · 90101-12332 · 91161-71220 |
| 47713 | Bleed plug (for front disc brake) | 47547-12040 · 47547-20010 |
| 47714 | Bleeder plug cap (for front disc brake) | 31478-30010 |
| 47716 | Pad support plate No. 1 (for front disc brake) | 47716-14020 · 47716-14080 |
| 47719 | Front disc brake pad guide | 47736-12010 · 47736-12040 |
| 47730 | Right front disc brake cylinder assembly | 47730-12100 · 47730-12110 · 47730-12111 · 47730-12140 · 47730-12141 · 47730-12240 · 47730-12250 |
| 47731 | Front disc brake piston | 47731-12050 · 47731-12060 · 47731-12070 · 47731-14070 |
| 47731A | retaining ring (for front disc brake piston) | 90522-54038 · 90522-58001 · 90522-60003 · 90522-60004 |
| 47743 | Anti-vibration spring No. 2 (for front disc brake) | 47743-12010 · 47748-12050 |
| 47744 | No. 1 silencer gasket (for front disc brake) | 47735-12010 · 47744-12020 · 47744-12030 · 47744-12040 · 47744-14050 |
| 47745 | No. 2 silencer gasket (for front disc brake) | 47742-12010 · 47745-12020 · 47745-12030 |
| 47746A | Holed pin (for front disc brake pad) | 90240-06133 · 90240-06161 |
| 47748 | Anti-vibration spring No. 1 (for front disc brake) | 47743-12020 · 47743-14040 · 47748-12010 · 47748-12020 · 47748-12030 · 47748-12040 · 47748-12060 · 47748-12070 · 47748-12080 · 47748-14050 |
| 47749 | pin fixing clip | 47749-12010 · 47749-12020 |
| 47750 | Left disc brake cylinder assembly | 47750-12100 · 47750-12110 · 47750-12111 · 47750-12140 · 47750-12141 · 47750-12240 · 47750-12250 |
| 47766 | Front torque plate pin cover (king pin) | 47766-12010 |
| 47766A | Hole plug (for front torque plate pin cover) | 90950-01121 · 90950-01186 |
| 47767 | Disc brake pad guard | 47767-12030 · 47767-12040 |
| 47769 | No. 1 brake cylinder sliding sleeve (for front disc brake) | 47769-12010 · 47769-14010 · 47769-28010 |
| 47775 | Bushing boot (for front disc brake) | 47775-12010 · 47775-14010 |
| 47775A | Pin dust boot | 47775-12020 · 47776-14010 |
| 47781 | Right front disc brake dust cover | 47703-12070 · 47703-12080 · 47703-12090 · 47703-12100 · 47703-12110 |
| 47781A | Bolt (used to secure dust cover to knuckle arm) | 90119-10082 · 90119-10157 · 91111-71020 · 91111-71025 |
| 47782 | Left front disc brake dust cover | 47704-12070 · 47704-12080 · 47704-12090 · 47704-12100 · 47704-12110 |
