Toyota COROLLA 制动总泵 — Figure 4702

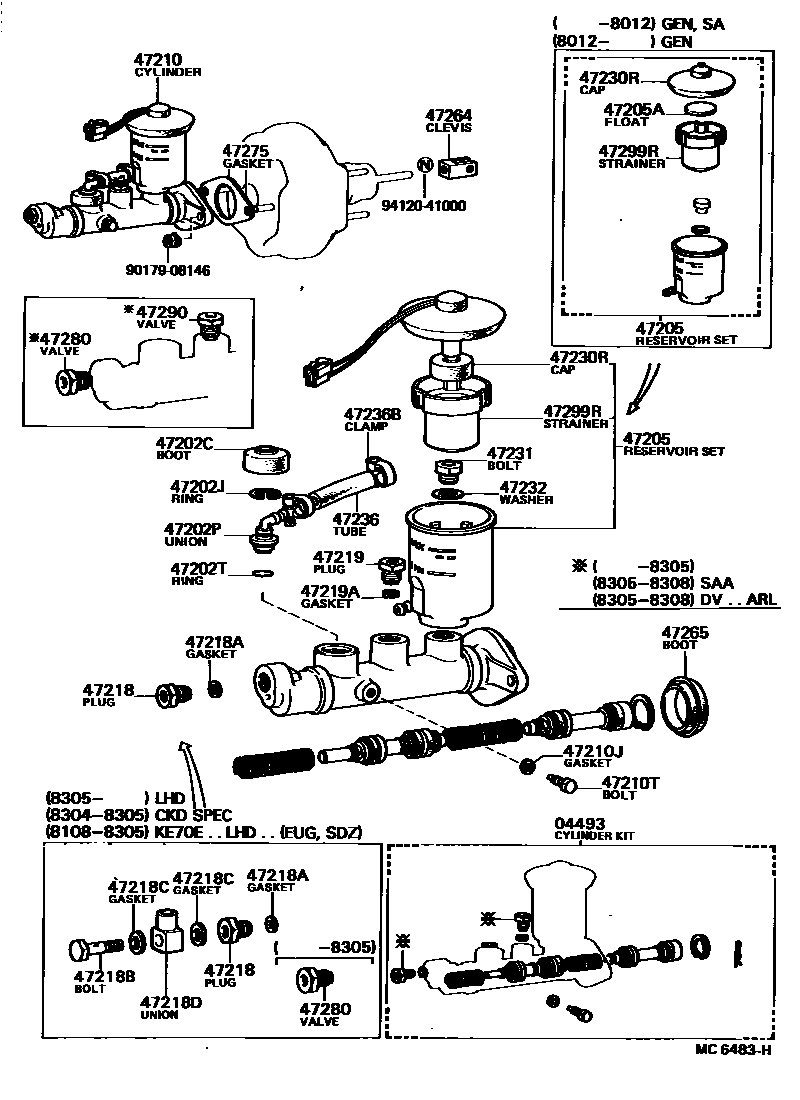

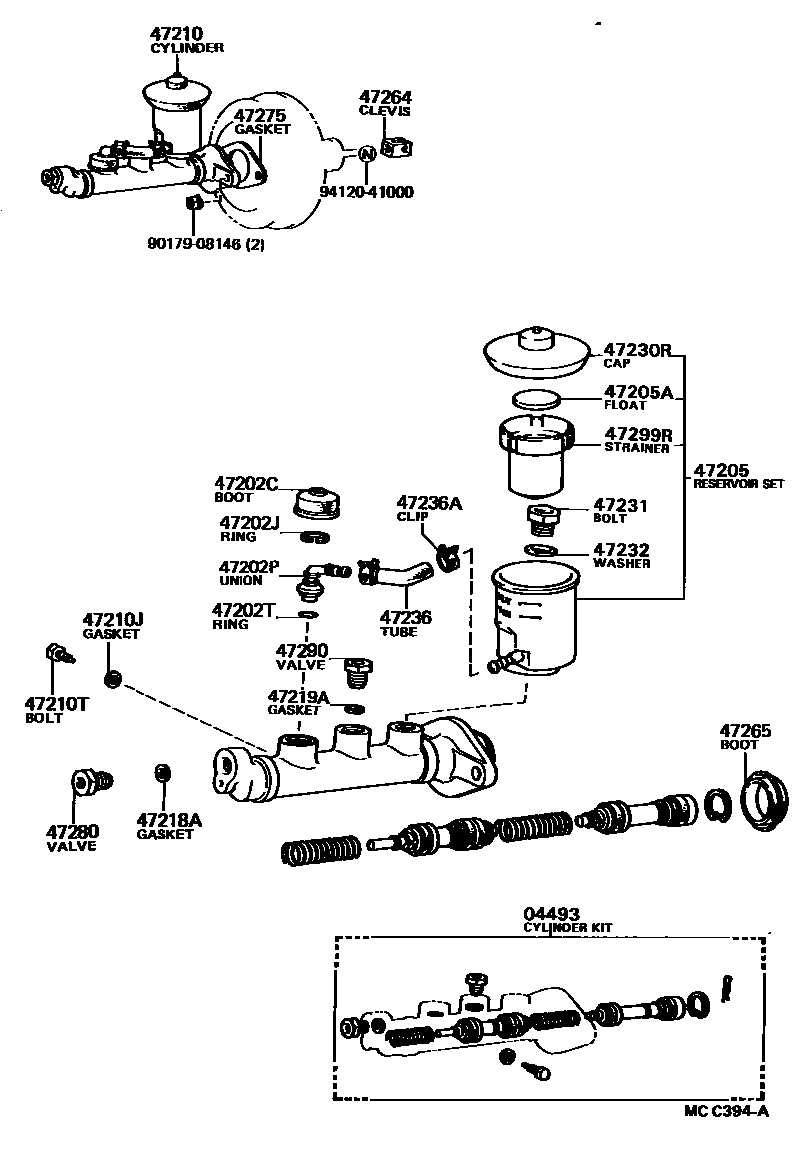

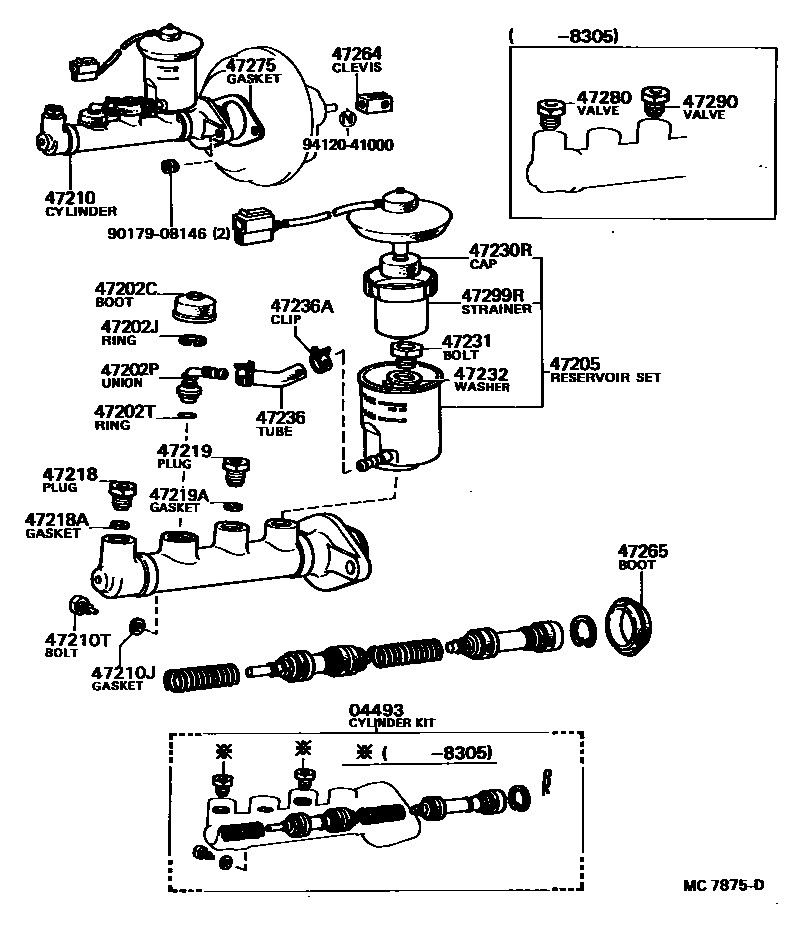

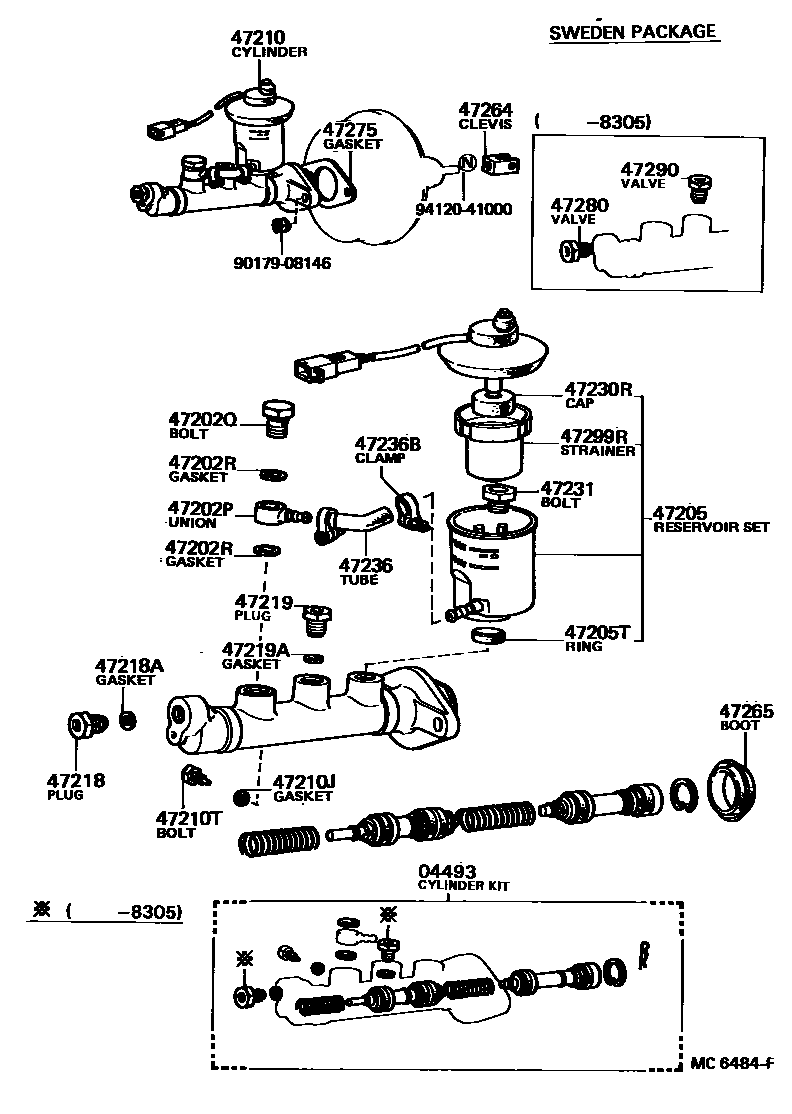

Toyota COROLLA EPC diagram 4702, 制动总泵, with 4 images and 32 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 04493 | Brake master cylinder assembly | 04493-12090 · 04493-12110 · 04493-12150 · 04493-20100 |
| 47202C | No. 1 fluid reservoir dust boot (for brake master cylinder side) | 47265-20060 |
| 47202J | Snap ring (for brake master cylinder side) | 96151-02000 |
| 47202P | Reservoir tank connector (for brake master cylinder side) | 90405-10125 · 90407-10003 |
| 47202Q | Reservoir tank joint bolt (for brake master cylinder side) | 90401-16078 |
| 47202R | Reservoir joint gasket (for brake master cylinder side) | 90430-16242 |
| 47202T | Ring (for No. 1 brake master cylinder reservoir) | 90301-14001 |
| 47205 | Brake master cylinder reservoir assembly (for rear side) | 47202-12240 · 47202-12250 · 47202-12260 · 47202-12280 · 47202-12290 · 47202-14260 |
| 47205A | Brake master cylinder reservoir float (for rear side) | 31426-20010 |
| 47205T | Ring (for No. 2 brake master cylinder reservoir) | 90562-18151 |
| 47210 | Brake master cylinder assembly without booster | 47201-12230 · 47201-12231 · 47201-12240 · 47201-12250 · 47201-12251 · 47201-12260 · 47201-12262 · 47201-12280 · 47201-12281 · 47201-12290 · 47201-12300 · 47201-12301 · 47201-12330 · 47201-12331 · 47201-12470 · 47201-12520 |
| 47210J | Gasket (for master cylinder) | 90430-06104 |
| 47210T | Bolt (for brake master cylinder) | 90109-06008 |
| 47218 | Brake master cylinder brake fluid outlet screw plug | 47218-12040 · 47218-12050 |
| 47218A | Gasket (for brake fluid outlet plug) | 90430-09253 |
| 47218B | Connector bolt (for brake master cylinder fluid outlet) | 90401-10037 |
| 47218C | Pad (for brake master cylinder outlet) | 90430-10074 |
| 47218D | Connector (for brake master cylinder outlet) | 90405-10073 |
| 47219 | Master cylinder brake fluid outlet screw plug (for rear side) | 47218-12040 |
| 47219A | Gasket (for rear master cylinder brake fluid outlet plug) | 90430-09253 |
| 47230R | No. 2 fluid reservoir cap assembly (for rear side) | 47230-20030 · 84460-12011 · 84460-12030 · 84460-20051 |
| 47231 | Brake master cylinder reservoir fixing bolt | 47231-20010 · 47231-30010 |
| 47232 | Brake fluid reservoir retaining bolt washer | 47232-30010 |
| 47236 | Brake fluid reservoir tube | 47234-14010 |
| 47236A | Clamp (for reservoir tube) | 90467-16001 |
| 47236B | Clamp (for reservoir tube) | 90460-16069 |
| 47264 | Master cylinder push rod U-shaped clamp | 47264-20020 · 47264-22010 |
| 47265 | Master pump dust jacket | 47265-20050 |
| 47275 | brake master cylinder gasket | 47275-14010 |
| 47280 | Brake master cylinder outlet check valve assembly | 47280-12030 · 47280-30030 |
| 47290 | Master pump outlet valve assembly (for rear side) | 47280-30030 |
| 47299R | Rear master cylinder reservoir filter | 47299-14010 · 47299-20010 |
