Toyota COROLLA Propeller Shaft & Universal Joint — Figure 3701

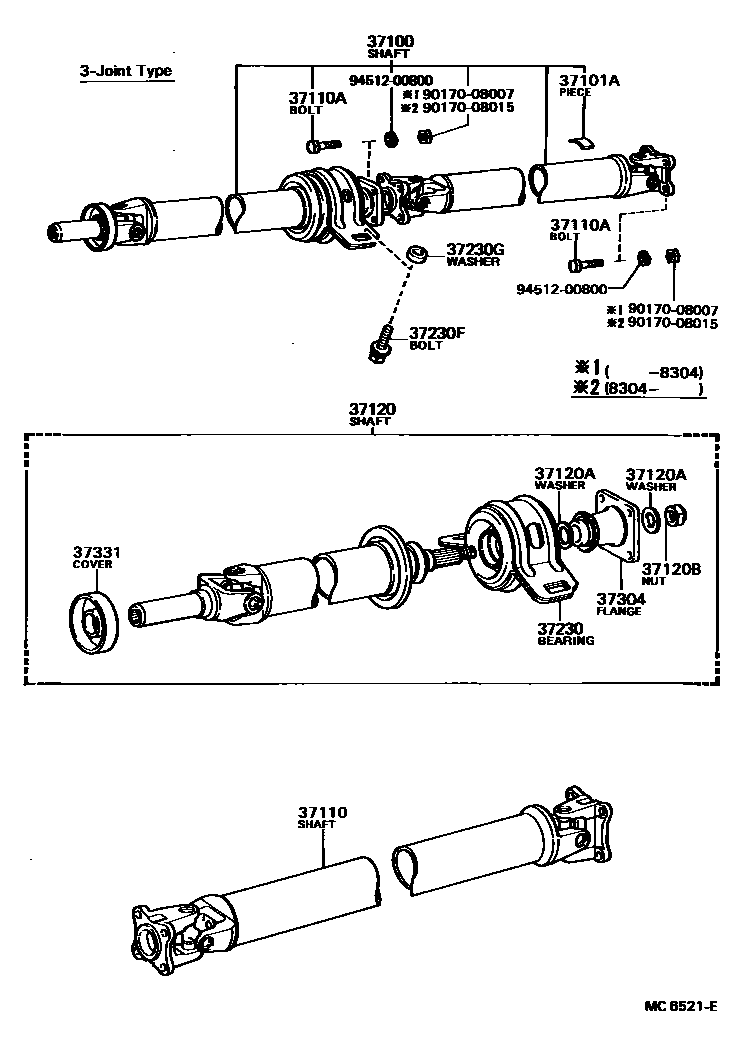

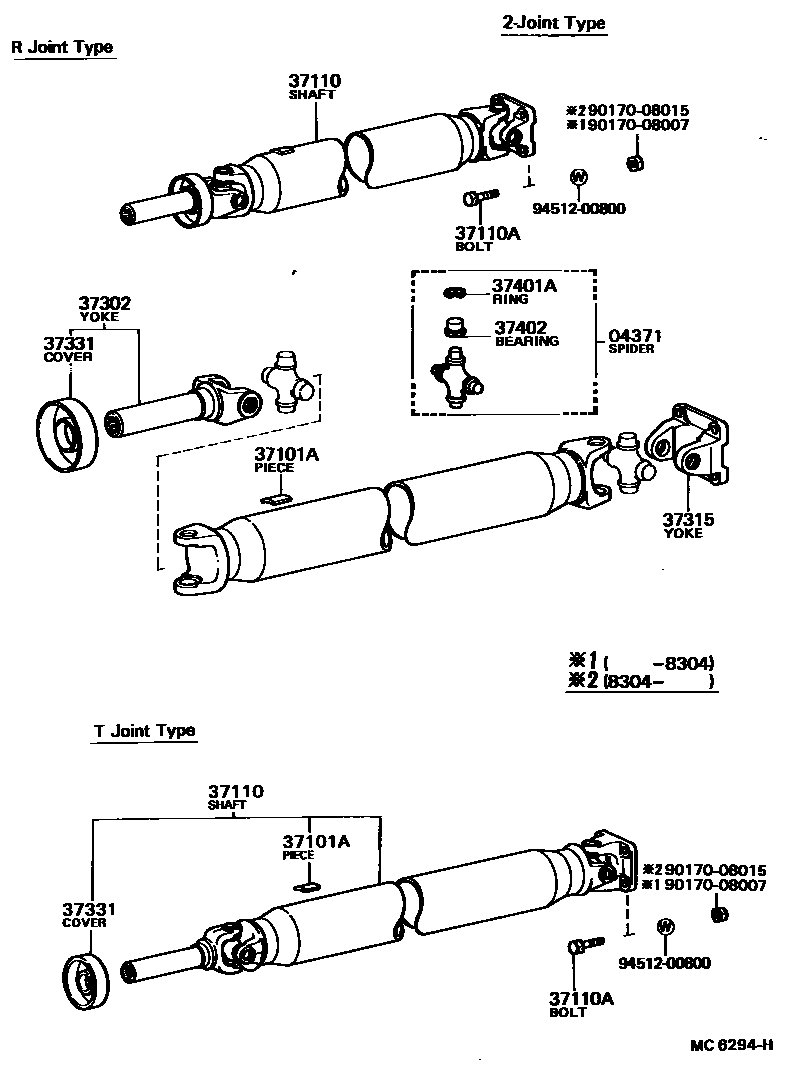

Toyota COROLLA EPC diagram 3701, Propeller Shaft & Universal Joint, with 2 images and 17 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 04371 | Universal joint cross shaft assembly (for drive shaft) | 04371-10011 · 04371-22010 |
| 37100 | Drive shaft assembly with central bearing | 37100-12120 · 37100-12130 · 37100-12140 · 37100-12160 · 37100-12180 · 37100-12190 · 37100-12200 · 37100-12210 · 37100-12240 · 37100-12250 · 37100-12270 · 37100-12280 · 37100-12290 · 37100-12310 |
| 37101A | Balance weight No. 1 (for drive shaft) | 90937-01132 · 90937-01136 · 90937-01140 · 90937-01147 · 90937-01148 · 90937-01149 · 90937-01150 · 90937-01151 · 90937-01152 · 90937-01153 · 90937-01154 · 90937-01155 · 90937-01156 · 90937-01157 · 90937-01158 |
| 37110 | Drive shaft assembly | 37110-12330 · 37110-12340 · 37110-12350 · 37110-12370 · 37110-12380 · 37110-12390 · 37110-12400 · 37110-12410 · 37110-12420 · 37110-12460 · 37110-12470 · 37110-12520 · 37110-13010 · 37110-13060 · 37110-13070 · 37110-21010 · 37110-21020 · 37110-21030 |
| 37110A | Bolt (for drive shaft) | 90101-08018 · 90101-08062 · 90101-08082 · 90101-08085 · 90101-08086 · 90101-08087 · 90101-08088 · 90101-08090 · 90101-08091 · 90101-08214 |
| 37120 | Intermediate drive shaft assembly | 37120-12070 · 37120-12080 · 37120-12120 · 37120-12130 |
| 37120A | Flat Washer (for intermediate drive shaft assembly) | 90201-18182 · 90201-26005 |
| 37120B | Nut (for fixing the intermediate drive shaft) | 90179-18009 · 90179-18060 |
| 37230 | No. 1 intermediate support bearing assembly | 37230-12040 |
| 37230F | No. 1 bolt (for intermediate support bearing) | 90119-10049 |
| 37230G | No. 2 washer (for intermediate support bearing) | 90201-10008 |
| 37302 | Universal joint fork assembly | 37302-12011 · 37302-14010 · 37302-14030 · 37302-20040 |
| 37304 | Universal joint flange sub-assembly | 37304-22012 · 37304-22013 |
| 37315 | Universal joint flange fork | 37315-12010 · 37315-12040 · 37315-20020 |
| 37331 | Sliding shaft dust cover | 37331-12010 · 37331-22010 · 37331-30010 |
| 37401A | Hole snap ring (for cross shaft bearings) | 90521-22011 · 90521-22012 · 90521-22013 · 90521-29070 · 90521-29071 · 90521-29072 · 90521-29073 |
| 37402 | Universal joint cross shaft bearing sub-assembly | 37402-10020 · 37402-22020 |
