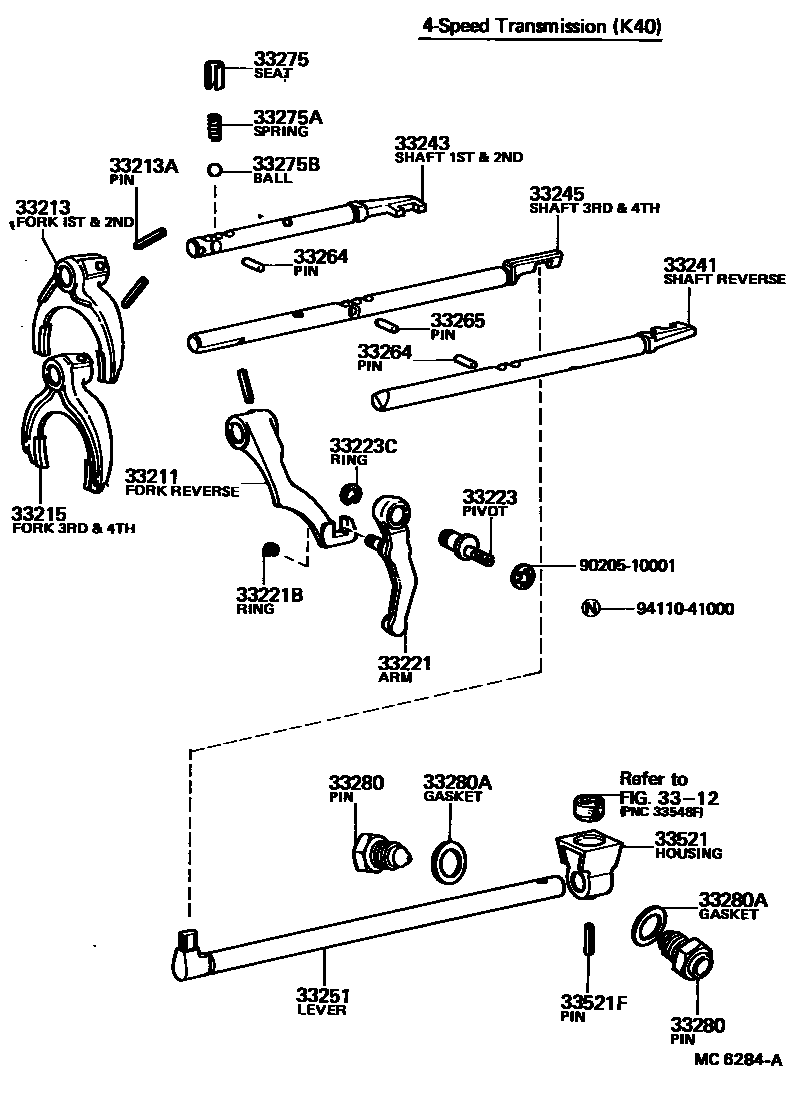

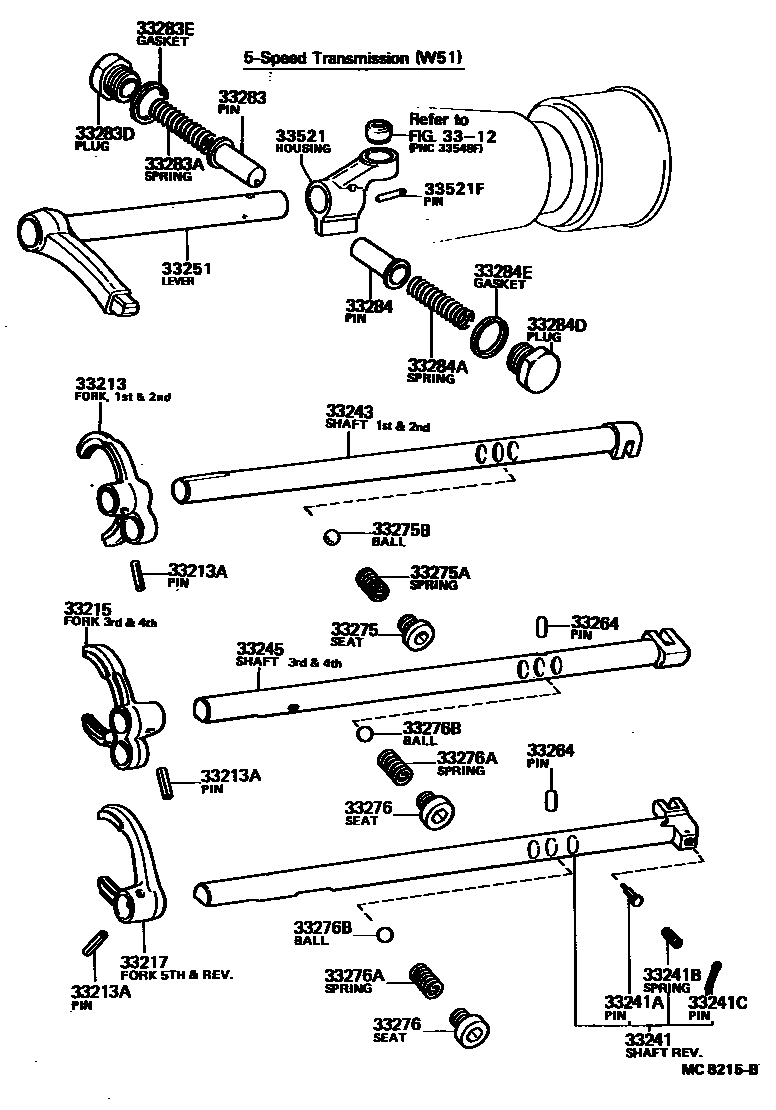

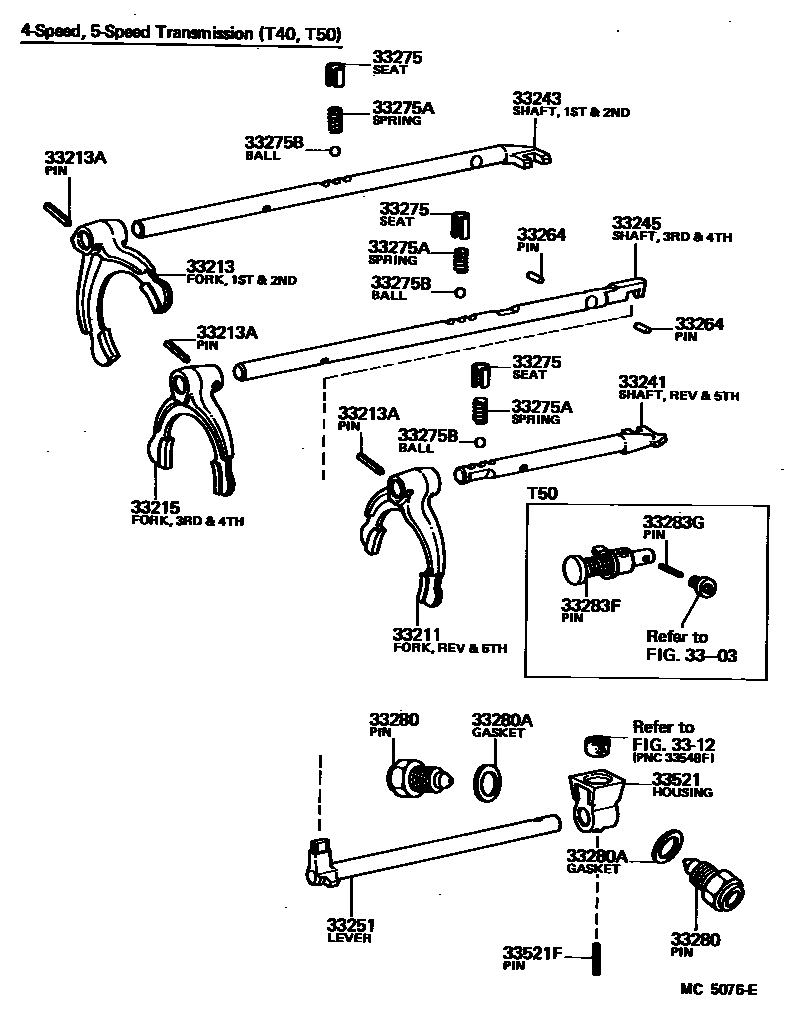

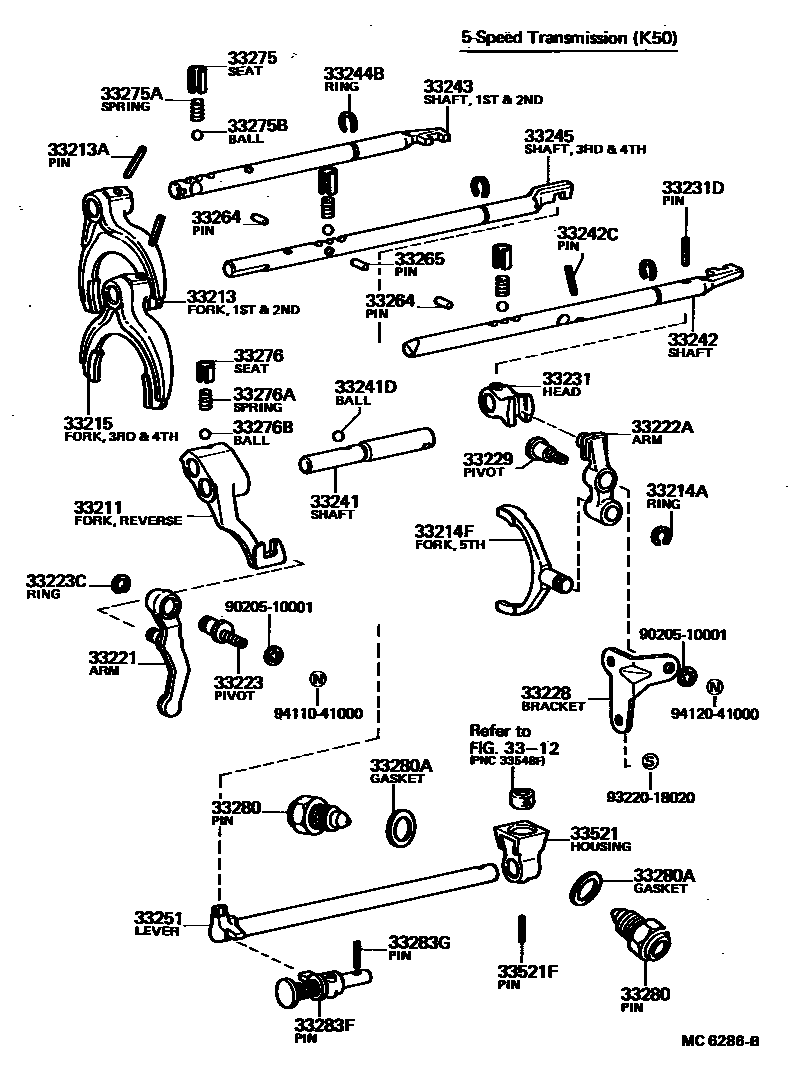

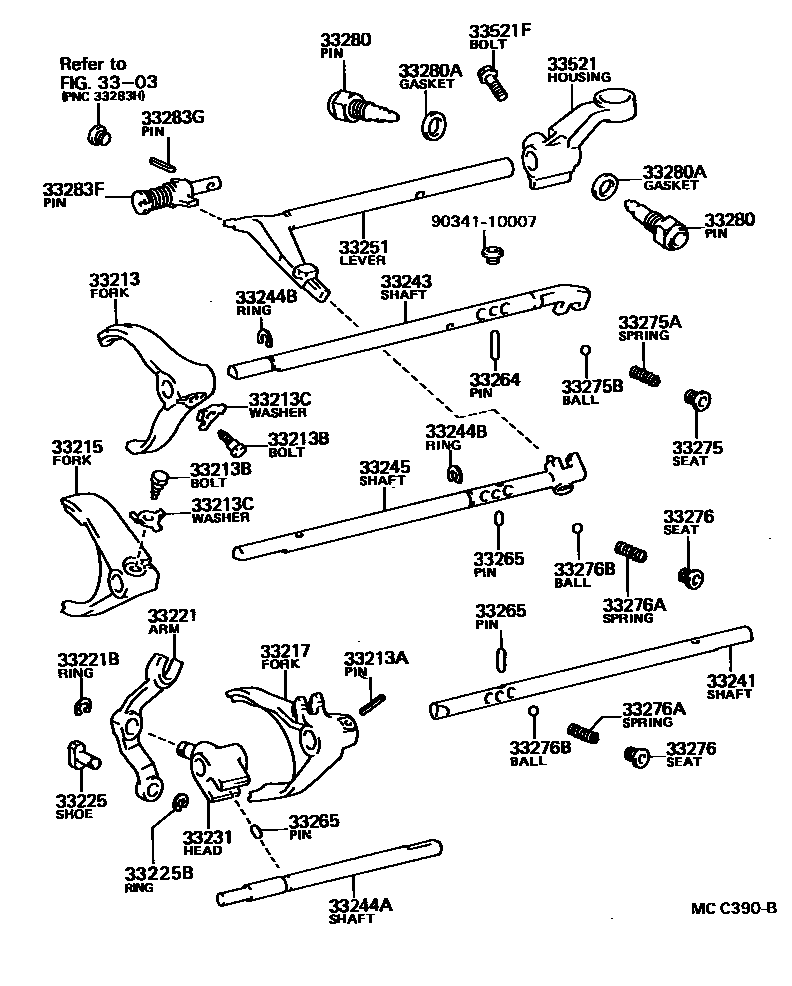

Toyota COROLLA 换档拨叉和换档杆轴(MTM) — Figure 3307
Toyota COROLLA EPC diagram 3307, 换档拨叉和换档杆轴(MTM), with 5 images and 54 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 33211 | Reverse Shift Fork | 33211-10020 · 33211-12010 · 33214-14010 |
| 33213 | First and second gear shift forks | 33212-14010 · 33212-20050 · 33212-22020 · 33213-12010 |
| 33213A | Slotted spring pin (for securing shift fork) | 90254-05001 · 90254-05016 |
| 33213B | Bolt (for securing shift fork) | 90113-06005 |
| 33213C | Locking washer (for securing shift fork) | 90215-09002 |
| 33214A | Shaft snap ring (for fifth-speed shift fork) | 90520-12001 |
| 33214F | Five-speed shift fork | 33214-10011 |
| 33215 | Third and fourth gear shift forks | 33213-14010 · 33213-22030 · 33213-31010 · 33215-12011 |
| 33217 | Fifth gear and reverse gear shift fork | 33214-20011 · 33214-22030 |
| 33221 | Reverse shift arm | 33221-12010 · 33221-22010 · 33221-22011 |
| 33221B | E-ring (for reverse shift arm) | 96160-00800 · 96160-01000 |
| 33222A | fifth gear shift arm | 33222-10011 |
| 33223 | shift arm pivot | 33223-12010 · 33223-12060 |
| 33223C | Shaft snap ring (for shift arm pivot) | 96150-01300 |
| 33225 | shift arm shoe | 33225-22010 · 33225-22011 |
| 33225B | E-ring (for shift arm shoe) | 96160-00600 · 96160-00800 |
| 33228 | Reverse shift arm bracket | 33228-10011 · 33228-12010 |
| 33229 | Fifth gear shift arm pivot | 33229-10011 |
| 33231 | Reverse gear shift guide block | 33231-22010 · 33231-22011 · 33232-10011 |
| 33231D | Pin (for reverse shift guide) | 90254-05001 |
| 33241 | Reverse shift fork shaft | 33241-10020 · 33244-12010 · 33244-14050 · 33244-14060 · 33244-20902 · 33244-22020 |
| 33241A | Reverse gear shaft positioning pin | 33284-22010 |
| 33241B | Compression spring (for reverse shaft locating pin) | 90501-12017 |
| 33241C | Cotter pin (for reverse gear shaft positioning pin) | 95381-03020 |
| 33241D | Interlocking steel balls (for reverse shift fork) | 90360-10003 |
| 33242 | No. 1 shift fork shaft | 33244-12020 · 33244-12040 |
| 33242C | Direct pin (for shift fork shaft) | 90254-05001 |
| 33243 | First and second gear shift fork shaft | 33242-12010 · 33242-12011 · 33242-12020 · 33242-12021 · 33242-14030 · 33242-20060 · 33242-22020 |
| 33244A | Fifth gear shift fork shaft | 33245-22010 |
| 33244B | Shaft snap ring (for shift fork shaft) | 90520-12001 · 90520-12003 |
| 33245 | Third and fourth gear shift fork shaft | 33240-22020 · 33243-12040 · 33243-12050 · 33243-12060 · 33243-12070 · 33243-14030 · 33243-14040 · 33243-20031 |
| 33251 | shift lever | 33251-12040 · 33251-12050 · 33251-14010 · 33251-20040 · 33251-22050 |
| 33264 | No. 1 shift interlock pin or steel ball | 33264-22010 · 33264-31010 · 90250-05197 · 90250-06188 |
| 33265 | No. 2 shift interlock pin | 33265-22010 · 33266-22010 · 90250-05197 · 90250-06007 |
| 33275 | No. 1 shift lock steel ball spring seat | 33275-12010 · 90341-10004 · 90341-12004 |
| 33275A | Compression spring (for the lower side of the shift lock steel ball) | 90501-13001 · 90501-13004 · 90501-14237 · 90501-16031 |
| 33275B | Gear shift lock steel ball | 90360-08009 · 90360-10003 |
| 33276 | No. 2 shift lock steel ball spring seat | 33275-10020 · 33275-10021 · 90341-10064 · 90341-12005 |
| 33276A | No. 2 compression spring (for shift lock steel ball) | 90501-13001 · 90501-13004 · 90501-14237 |
| 33276B | No. 2 shift lock steel ball | 90360-08009 · 90360-10003 |
| 33280 | Reverse gear positioning pin assembly | 33280-12020 · 33280-12030 · 33280-12040 · 33280-12050 · 33280-20010 · 33280-20020 · 33280-22020 · 33280-22030 |
| 33280A | Reverse gear positioning pin gasket | 90430-18008 · 90430-22002 |
| 33283 | No. 1 reverse gear positioning pin | 33283-22010 |
| 33283A | Compression spring (for reverse gear pin) | 90501-16002 |
| 33283D | Screw plug (for reverse gear positioning pin) | 90341-20086 |
| 33283E | Pad (for reverse gear pin) | 90430-21224 |
| 33283F | Reverse gear positioning pin | 33280-12011 · 33280-20030 · 33280-22010 |
| 33283G | Slotted spring pin (for reverse gear locating pin) | 90254-05001 · 90254-05016 |
| 33284 | Low grade positioning pin | 33283-22010 |
| 33284A | Compression spring (for low range locating pins) | 90501-16001 |
| 33284D | Screw plug (for low-end positioning pin) | 90341-20086 |
| 33284E | Pad (for low profile dowels) | 90430-21224 |
| 33521 | shift lever housing | 33502-12250 · 33521-12100 · 33521-12110 · 33521-12111 · 33521-14060 |
| 33521F | Pin or bolt (for shifter housing) | 90105-08079 · 90254-05001 · 90254-05016 |
