Toyota COROLLA 离合器壳和变速器壳(MTM) — Figure 3302

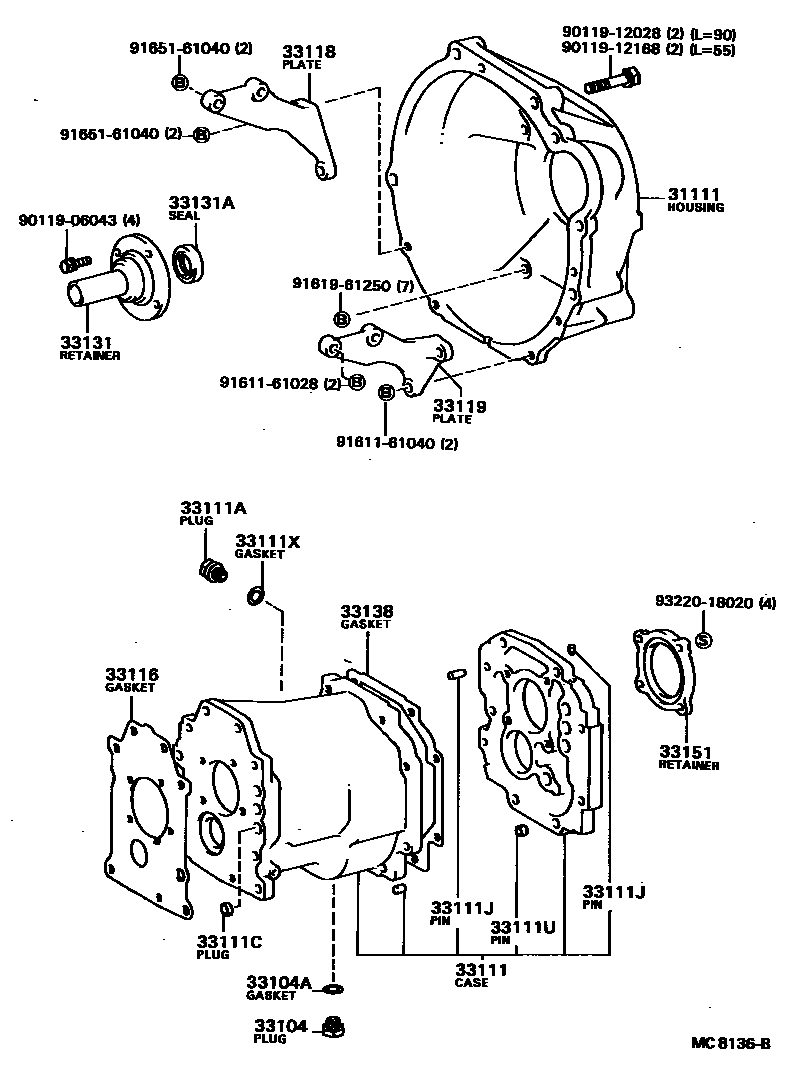

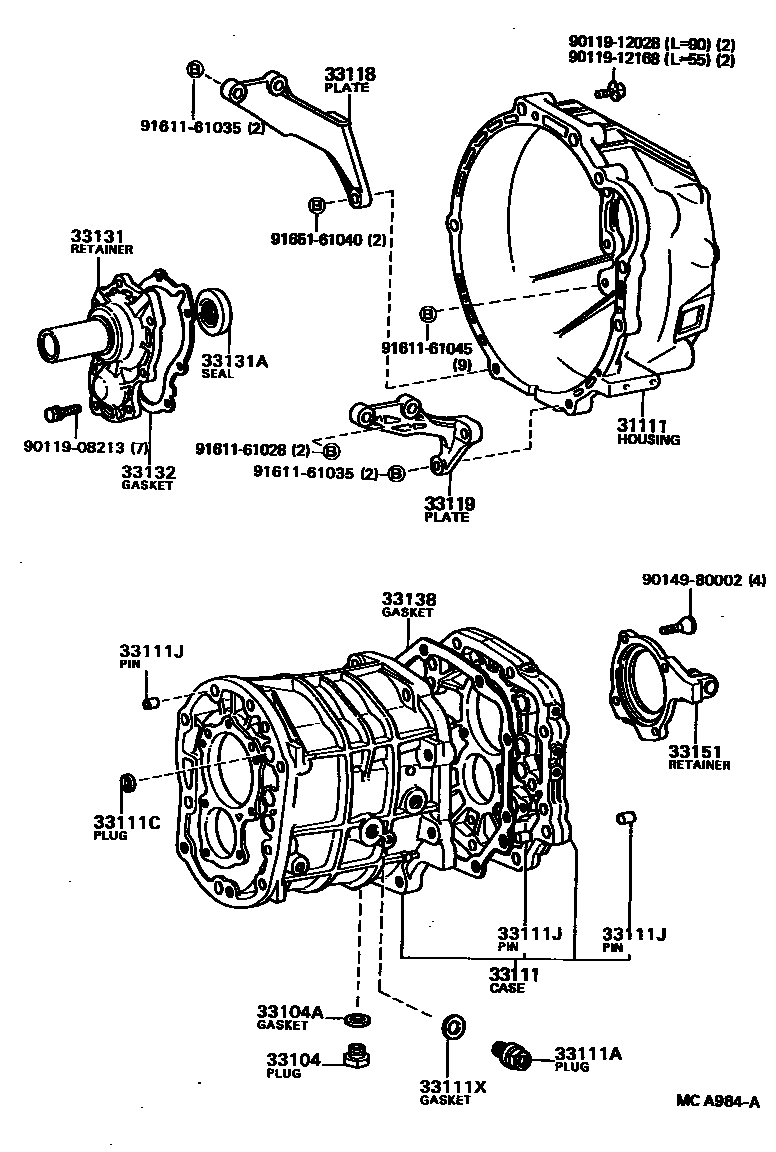

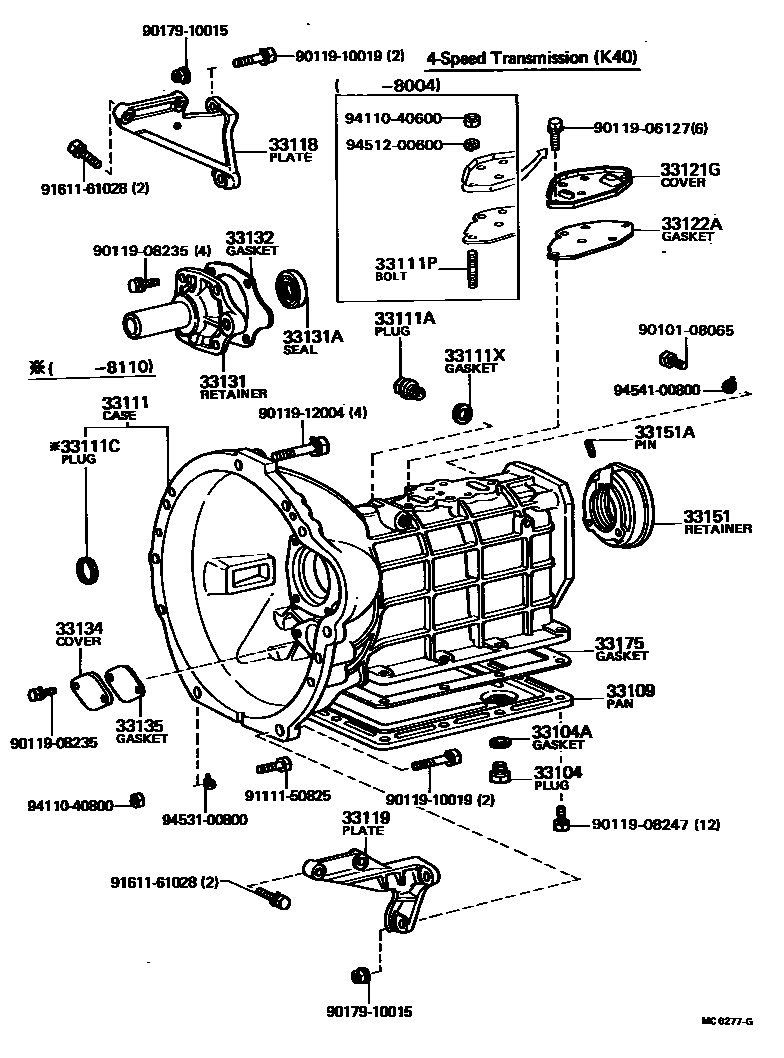

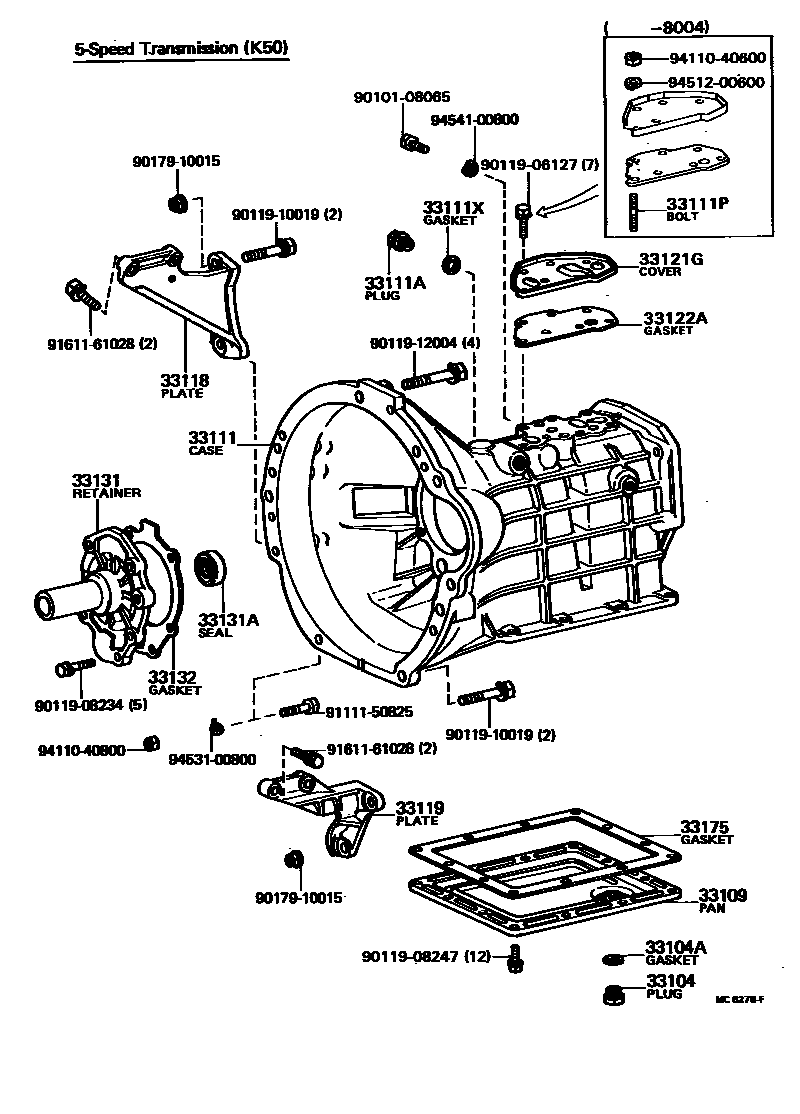

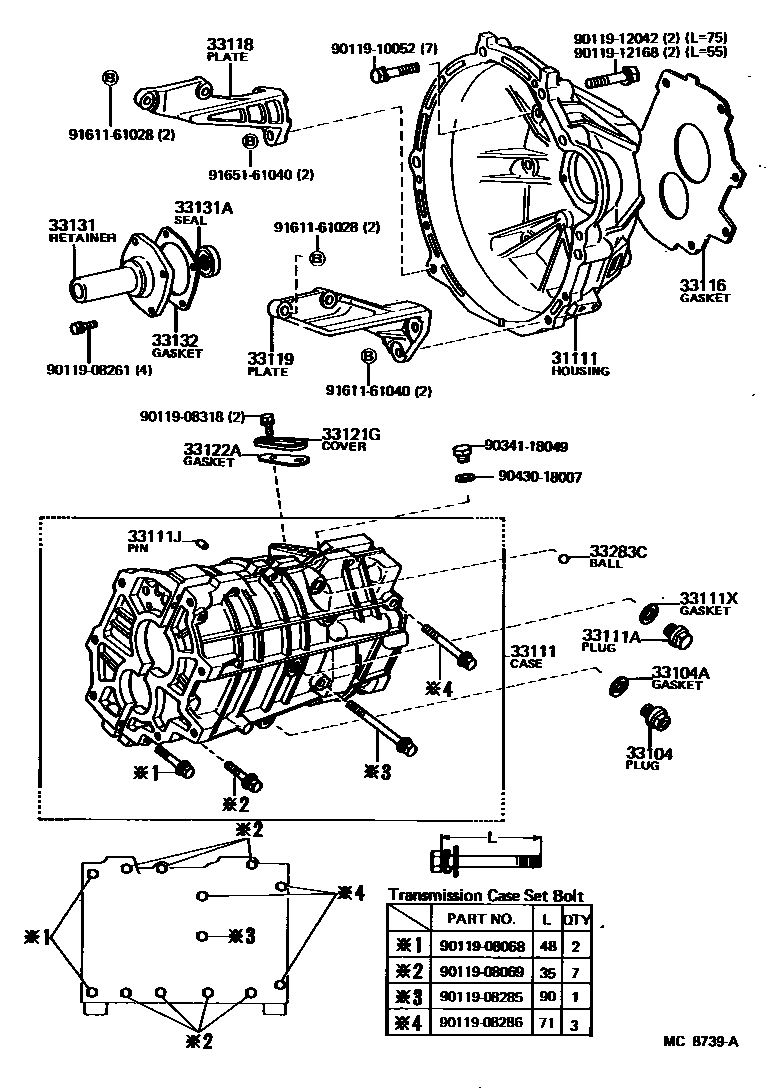

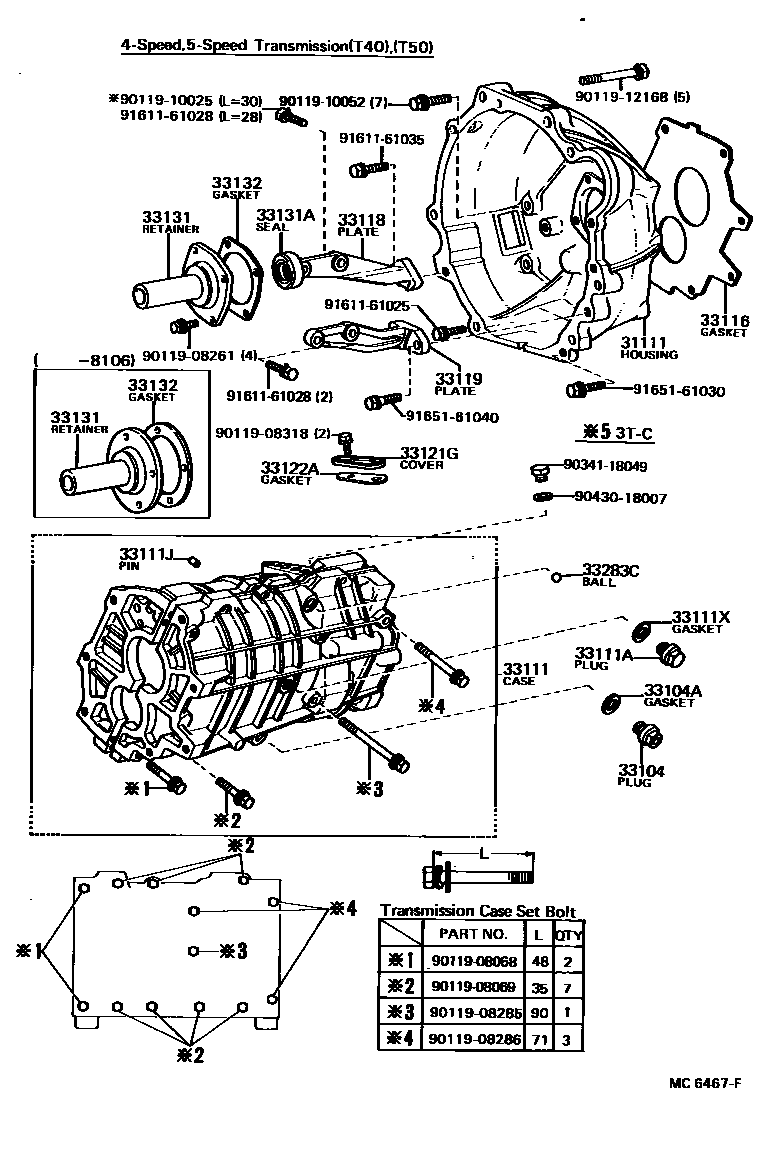

Toyota COROLLA EPC diagram 3302, 离合器壳和变速器壳(MTM), with 6 images and 26 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 31111 | clutch housing | 31111-12040 · 31111-14040 · 31111-14050 · 31111-14070 · 31111-20180 · 31111-20200 · 31111-22120 |
| 33104 | Drain plug sub-assembly (MTM) | 90341-18057 · 90341-18081 |
| 33104A | Drain plug gasket (MTM) | 12157-10010 · 90430-18007 · 90430-18008 |
| 33109 | Transmission oil pan sub-assembly (MTM) | 33109-12011 |
| 33111 | Manual transmission housing | 33101-12080 · 33101-12100 · 33101-14030 · 33101-14040 · 33101-14051 · 33101-22030 · 33101-30021 · 33111-10050 · 33111-10060 · 33111-12110 · 33111-12111 |
| 33111A | Manual transmission plug | 90341-18002 · 90341-18006 |
| 33111C | Screw plug (for gearbox) | 90331-14004 · 90331-20044 · 96411-11400 |
| 33111J | Direct sales (for manual transmission) | 90250-08030 · 90250-12002 · 90250-12195 · 90334-06017 |
| 33111P | Stud bolts (for securing transmission cover) | 90116-06200 |
| 33111U | Ring pin (for manual transmission) | 90253-13017 |
| 33111X | Gearbox plug gasket | 12157-10010 · 90430-18007 · 90430-18008 |
| 33116 | manual transmission gasket | 33116-14010 · 33116-14020 · 33132-20040 |
| 33118 | Right reinforcement plate (MTM) | 33118-12020 · 33118-12080 · 33118-14030 · 33118-14031 · 33118-14032 · 33118-14033 · 33118-14040 |
| 33119 | Left reinforcement plate (MTM) | 33119-12011 · 33119-12050 · 33119-12081 · 33119-14050 |
| 33121G | manual gearbox cover | 33121-12010 · 33121-12020 · 33121-12031 · 33121-14010 |
| 33122A | Manual transmission cover gasket | 33122-12010 · 33122-12020 · 33122-12031 · 33122-14010 |
| 33131 | Front bearing retainer (MTM) | 33131-12031 · 33131-12040 · 33131-12050 · 33131-14010 · 33131-14020 · 33131-22020 · 33131-31010 |
| 33131A | Oil seal (for transmission front bearing retainer) | 90311-25003 · 90311-30115 |
| 33132 | Front bearing retainer pad (MTM) | 33132-12030 · 33132-12050 · 33132-14010 · 33132-14020 · 33132-22010 · 33133-12030 |
| 33134 | Gearbox intermediate shaft cover | 33134-12010 |
| 33135 | Intermediate shaft cover gasket (MTM) | 33135-12010 |
| 33138 | Center panel gasket | 33142-20020 · 33142-22010 |
| 33151 | Output shaft rear bearing retainer (MTM) | 33107-22010 · 33151-12010 · 33151-20010 |
| 33151A | Slotted spring pin (for output shaft rear bearing retainer) | 90254-05005 |
| 33175 | Manual transmission oil pan gasket | 33175-12010 |
| 33283C | Reverse gear positioning steel ball | 90360-10003 |
