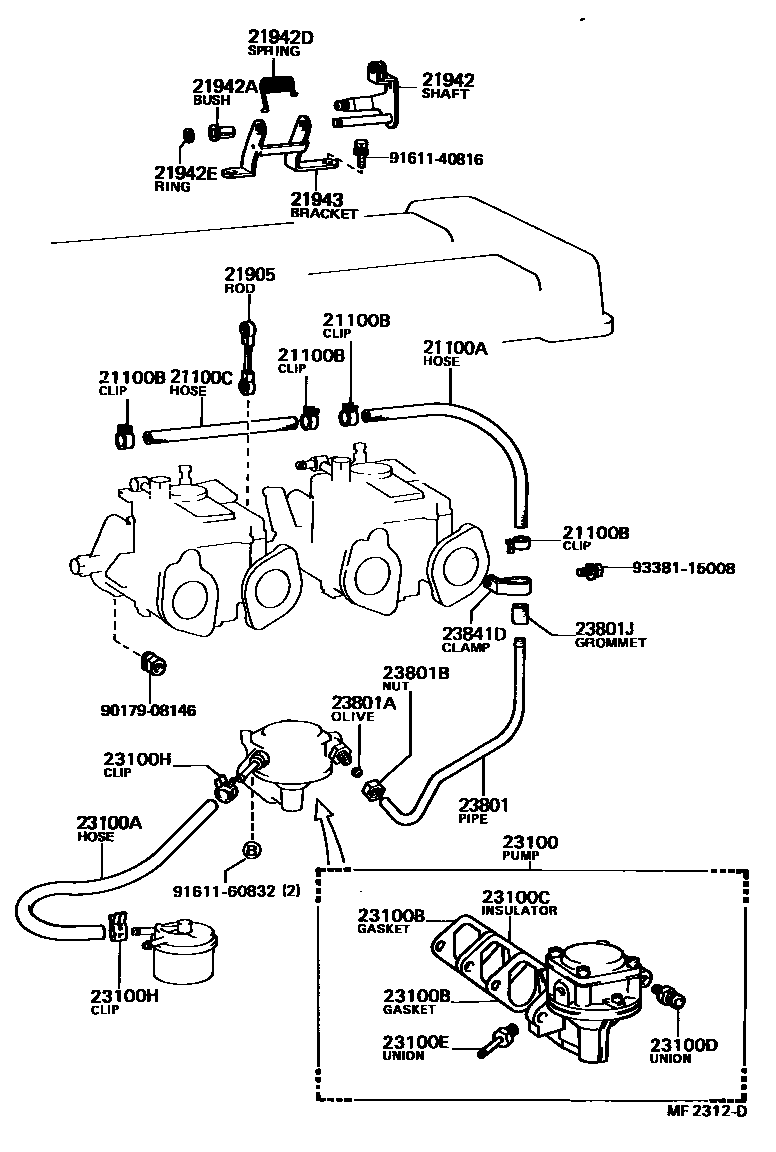

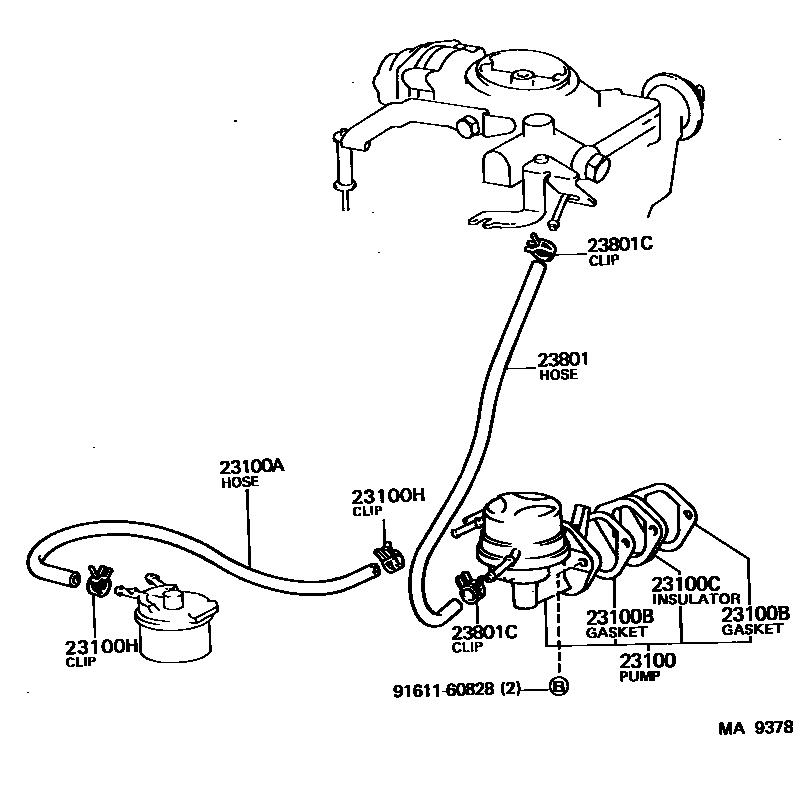

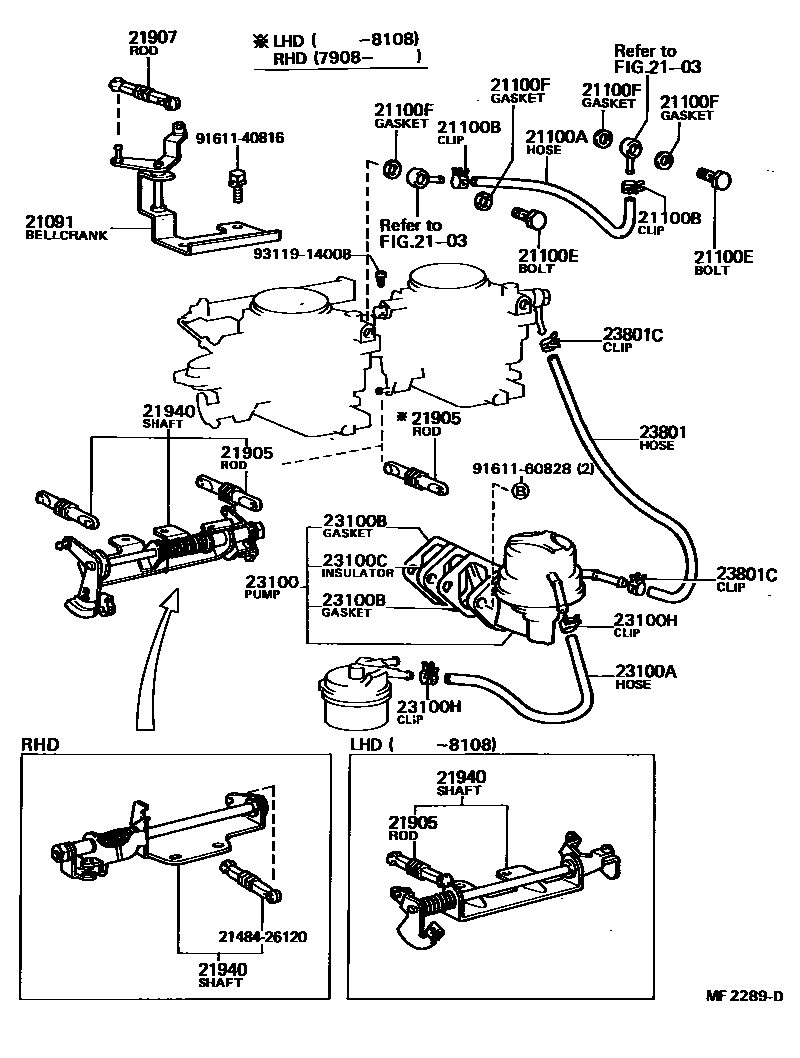

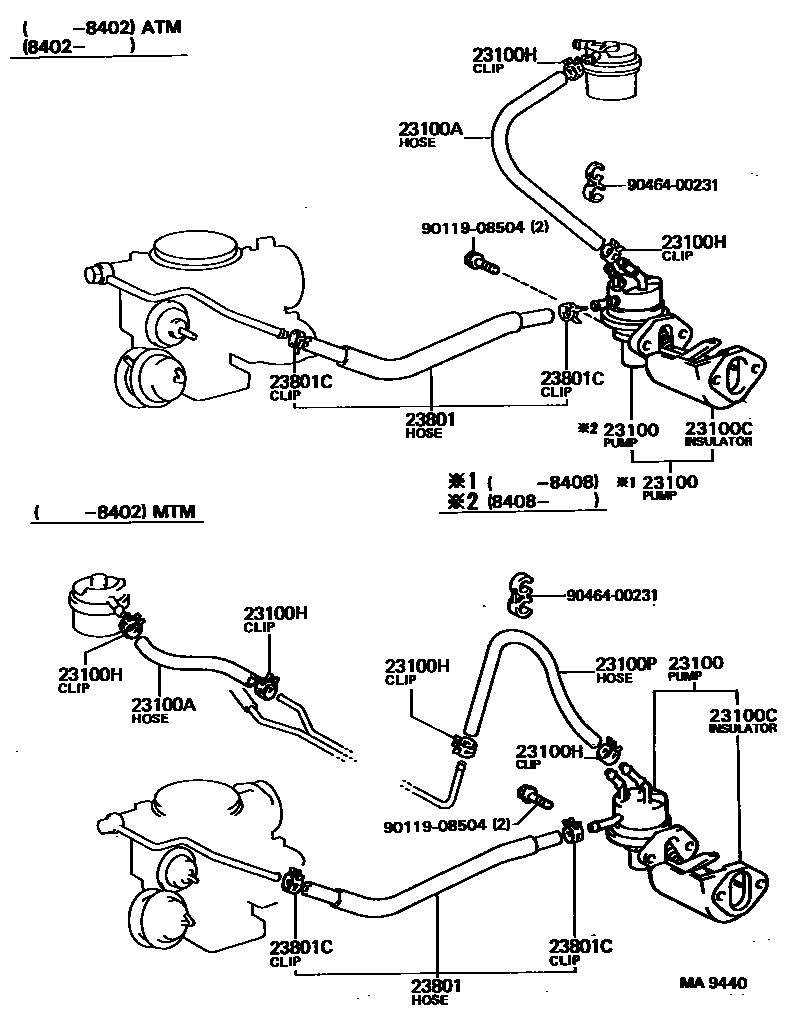

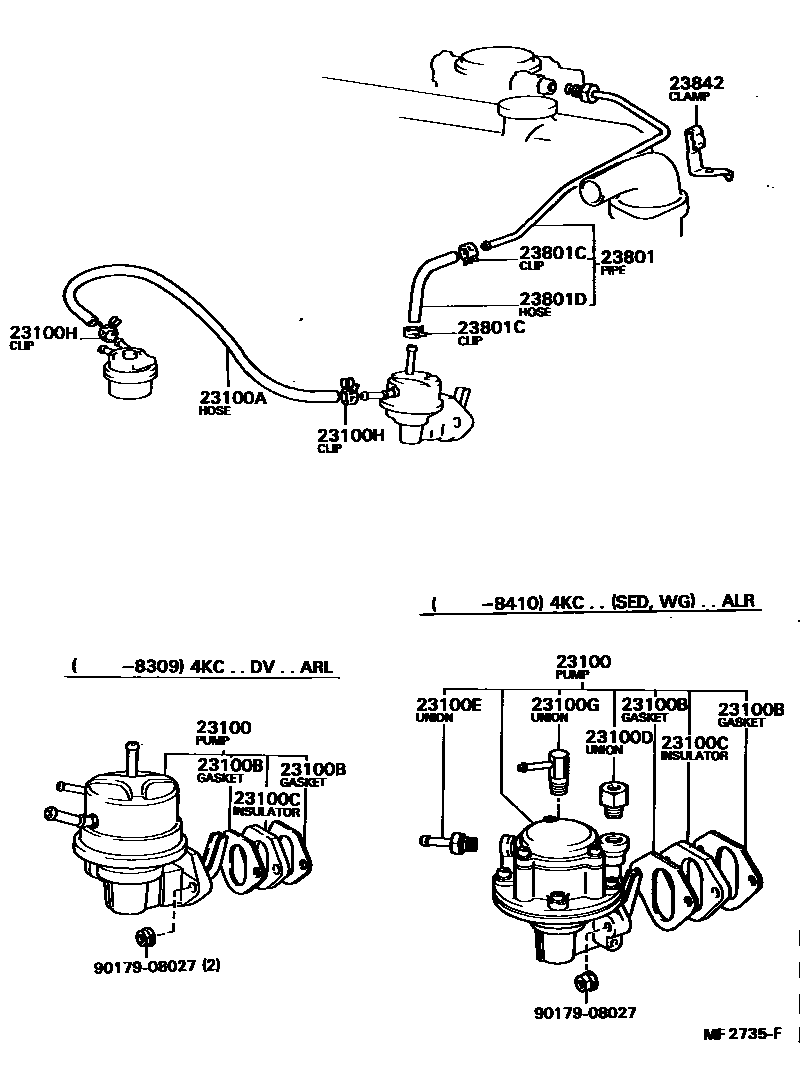

Toyota COROLLA 燃油泵和燃油管 — Figure 2301
Toyota COROLLA EPC diagram 2301, 燃油泵和燃油管, with 5 images and 31 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 21091 | Accelerator pedal right-angle lever sub-assembly | 21091-26030 |
| 21100A | hose (for carburetor) | 90072-44559 · 95332-06030 · 95332-08020 |
| 21100B | Clamp (for carburetor) | 96132-30600 · 96132-30800 |
| 21100C | Hose (for carburetor to carburetor) | 90072-44559 · 95332-08020 |
| 21100E | Carburetor to carburetor hose connector bolts | 21811-30010 |
| 21100F | Carburetor to carburetor hose joint bolt gasket | 21621-30010 |
| 21905 | Accelerator pedal connecting rod sub-assembly | 21483-26010 · 21483-26120 · 21905-88223 |
| 21907 | Choke connecting rod sub-assembly | 21907-26010 |
| 21940 | Accelerator pedal connecting rod shaft assembly | 21940-26031 · 21940-26041 · 21940-26050 |
| 21942 | accelerator pedal connecting rod shaft | 21903-88223 |
| 21942A | Bushing (for accelerator pedal connecting rod shaft) | 90072-38607 |
| 21942D | Spring (for accelerator pedal connecting rod shaft) | 90072-50818 |
| 21942E | Snap ring (for accelerator pedal connecting rod shaft) | 96160-00600 |
| 21943 | Bracket (for accelerator pedal connecting rod shaft) | 21943-88224 |
| 23100 | fuel pump assembly | 23100-15042 · 23100-19086 · 23100-19087 · 23100-19106 · 23100-19125 · 23100-19126 · 23100-19145 · 23100-19146 · 23100-19215 · 23100-29096 · 23100-29097 · 23100-29195 · 23100-29196 · 23100-29295 · 23100-29296 · 23100-29305 · 23100-29306 |
| 23100A | fuel hose | 23271-28040 · 95332-06020 · 95332-06030 · 95332-06040 · 95333-06030 · 95333-06040 |
| 23100B | fuel pump gasket | 90923-05005 · 90923-05006 |
| 23100C | Fuel pump vibration isolation pad | 23915-15010 · 23915-15011 · 90923-06001 · 90923-06003 |
| 23100D | Oil pipe joint (for fuel outlet pipe) | 23116-24010 · 90404-51244 |
| 23100E | Fuel pipe joint (for fuel inlet pipe) | 90404-13105 · 90404-51244 |
| 23100G | Fuel pipe connector (for fuel return hose) | 23116-24050 |
| 23100H | Clamp (for fuel hose) | 96132-30600 |
| 23100P | Hose (for fuel pump to fuel line) | 95332-06030 |
| 23801 | No. 1 carburetor fuel pipe or hose sub-assembly | 23271-15010 · 23801-13030 · 23801-13050 · 23801-13051 · 23801-13120 · 23801-24061 · 23811-88220 · 95332-06030 |
| 23801A | Olive nut (for fuel pipe) | 96395-71400 |
| 23801B | Connecting nut (for fuel pipe) | 90402-13041 |
| 23801C | Clamp (for carburetor fuel hose) | 96132-30600 |
| 23801D | No. 1 fuel line hose | 95333-06006 · 95333-06007 · 95333-06010 |
| 23801J | Fuel pipe clamp seal | 90072-48006 |
| 23841D | card holder | 90072-46137 |
| 23842 | No. 2 fuel pipe (hose) clamp | 23841-13020 · 90461-08528 · 90461-08532 |
