Toyota COROLLA Exhaust Pipe — Figure 1702

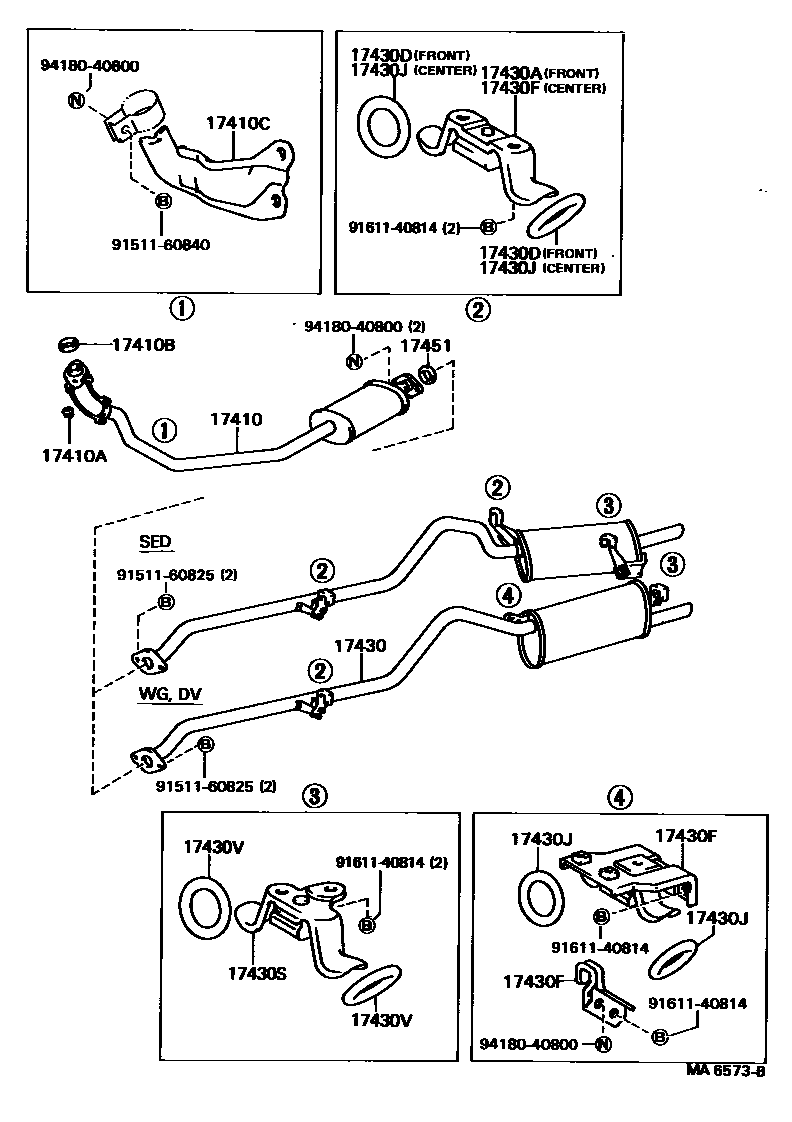

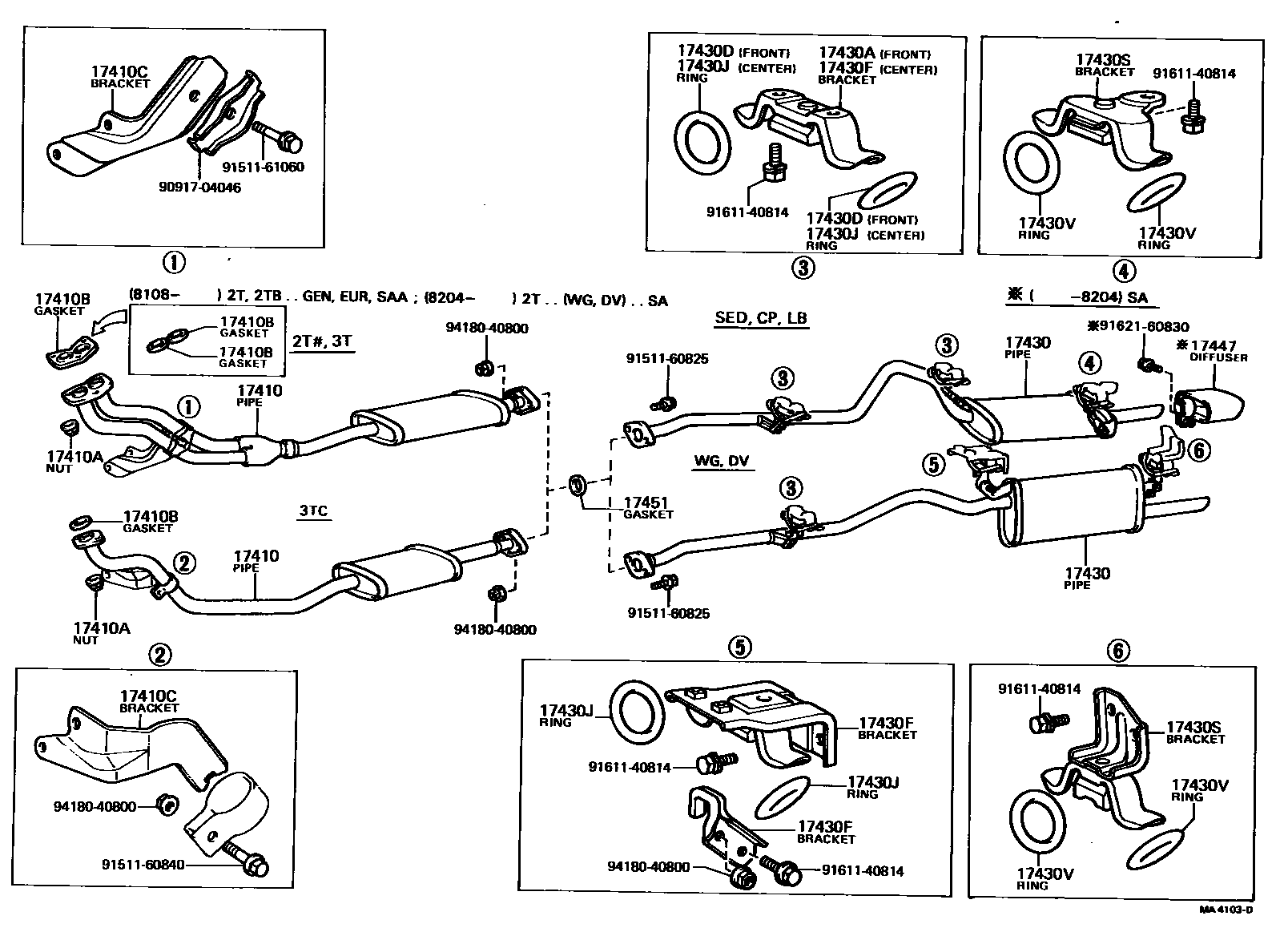

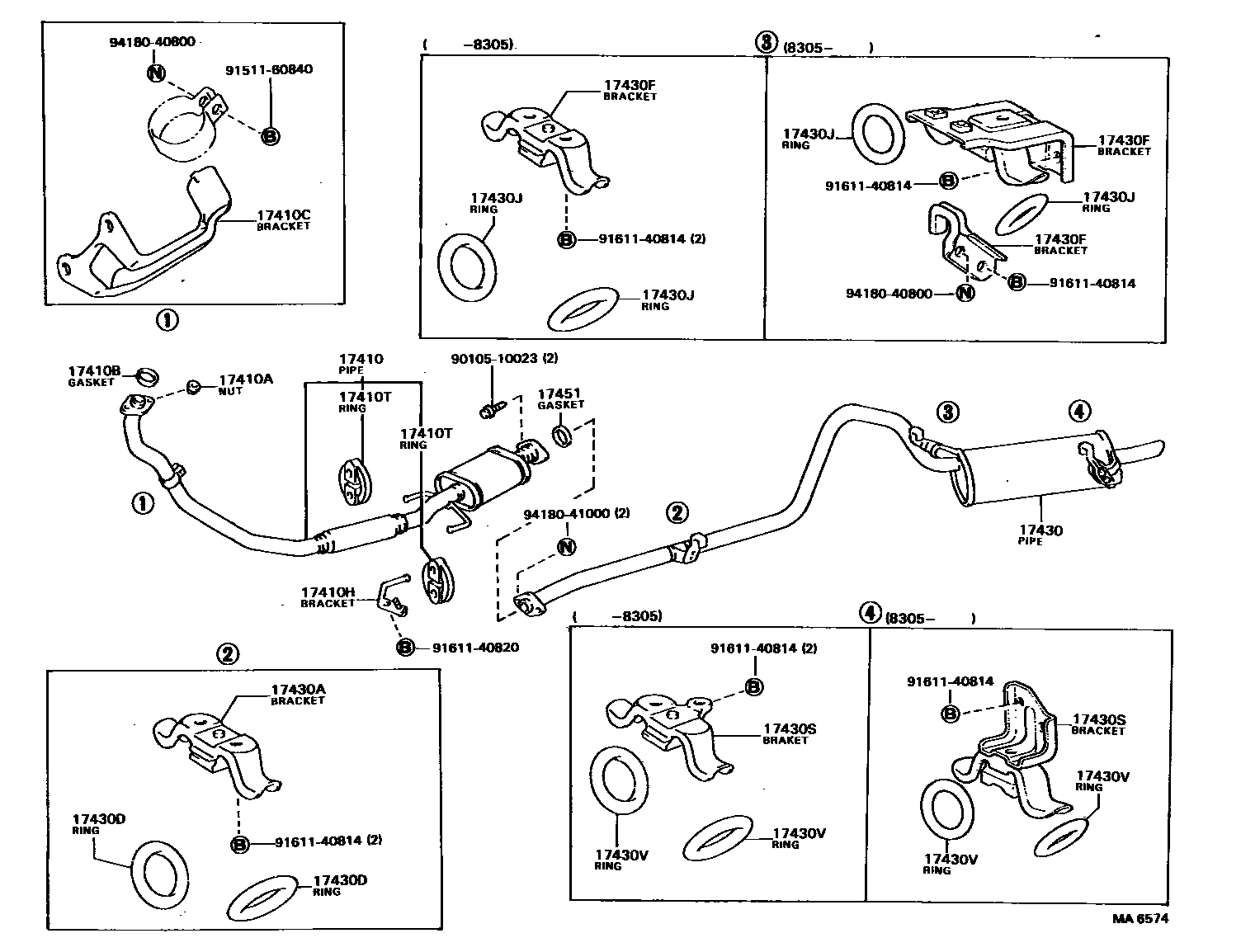

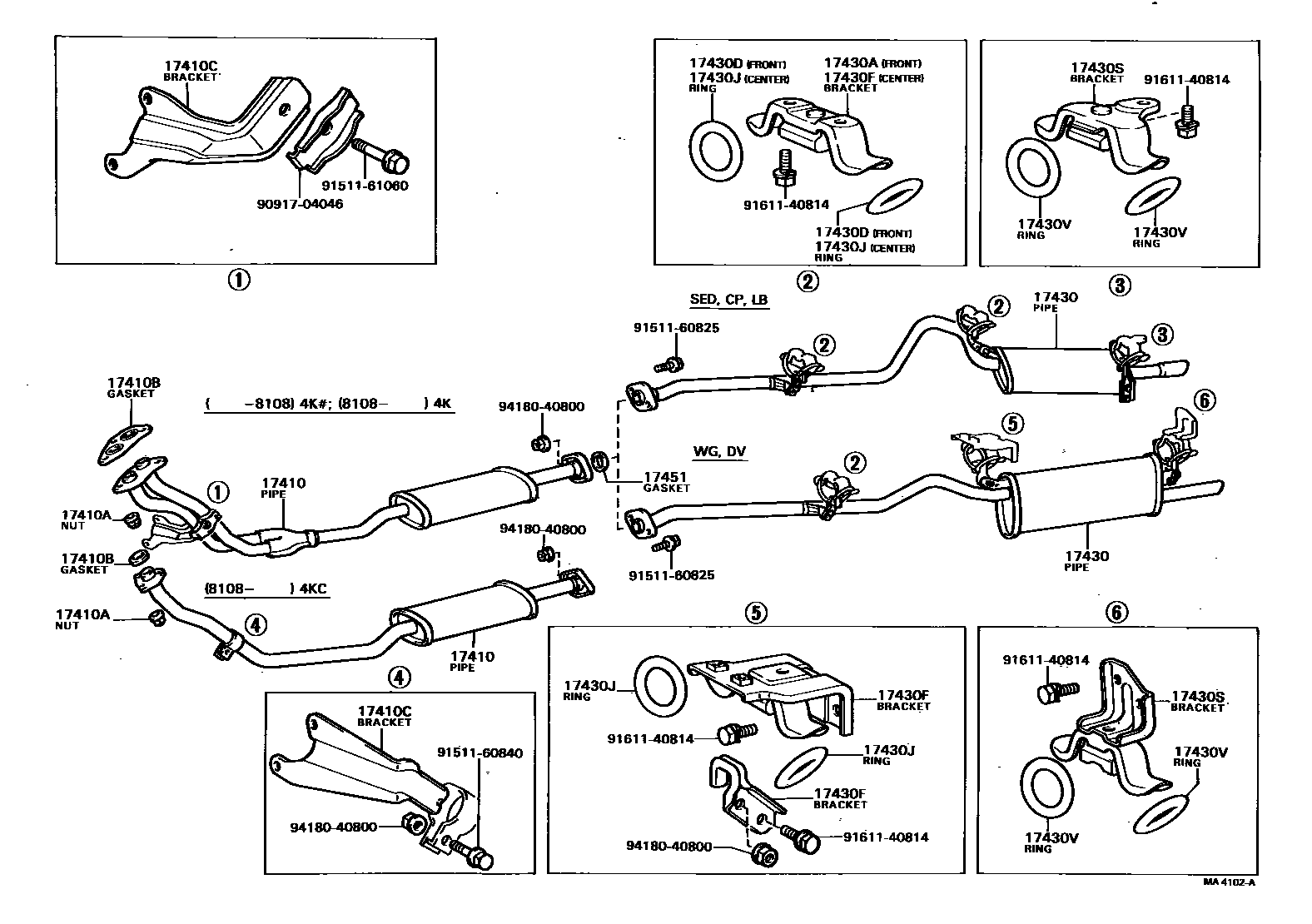

Toyota COROLLA EPC diagram 1702, Exhaust Pipe, with 4 images and 15 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 17410 | Front exhaust pipe assembly | 17410-13070 · 17410-13080 · 17410-13140 · 17410-13150 · 17410-16110 · 17410-26270 · 17410-26340 · 17410-28040 · 17410-64030 · 17410-64031 |
| 17410A | Exhaust pipe fixing studs and nuts | 90179-10010 · 90179-10070 |
| 17410B | Exhaust pipe gasket | 17451-22010 · 17451-41020 · 90917-06001 · 90917-06004 · 90917-06020 |
| 17410C | Front exhaust pipe bracket (for front) | 17571-13050 · 17571-13060 · 17571-13110 · 17571-16060 · 17571-16070 · 17571-16080 · 17571-26150 · 17571-26160 · 17571-64030 |
| 17410H | Front exhaust pipe bracket (for center) | 17588-64010 |
| 17410T | Front exhaust pipe bolt or ring (for center) | 17505-64011 |
| 17430 | Exhaust tailpipe assembly | 17430-13050 · 17430-13060 · 17430-13061 · 17430-13070 · 17430-13080 · 17430-13110 · 17430-16120 · 17430-26470 · 17430-26480 · 17430-64040 · 17430-64130 |
| 17430A | Exhaust tailpipe bracket (for front) | 17506-13020 |
| 17430D | Exhaust tailpipe bolts or rings (for front) | 90301-34207 |
| 17430F | Exhaust tailpipe bracket (for center) | 17506-13020 · 17507-24020 · 17507-64010 · 17562-13030 · 17562-64050 |
| 17430J | Exhaust tailpipe bolt or ring (for center) | 90301-34207 |
| 17430S | Exhaust tailpipe bracket (for rear) | 17508-13010 · 17508-24040 |
| 17430V | Exhaust tailpipe bolts or rings (for rear) | 90301-34207 |
| 17447 | exhaust diffuser | 17406-26010 |
| 17451 | Exhaust pipe gasket | 90917-06004 · 90917-06026 |
