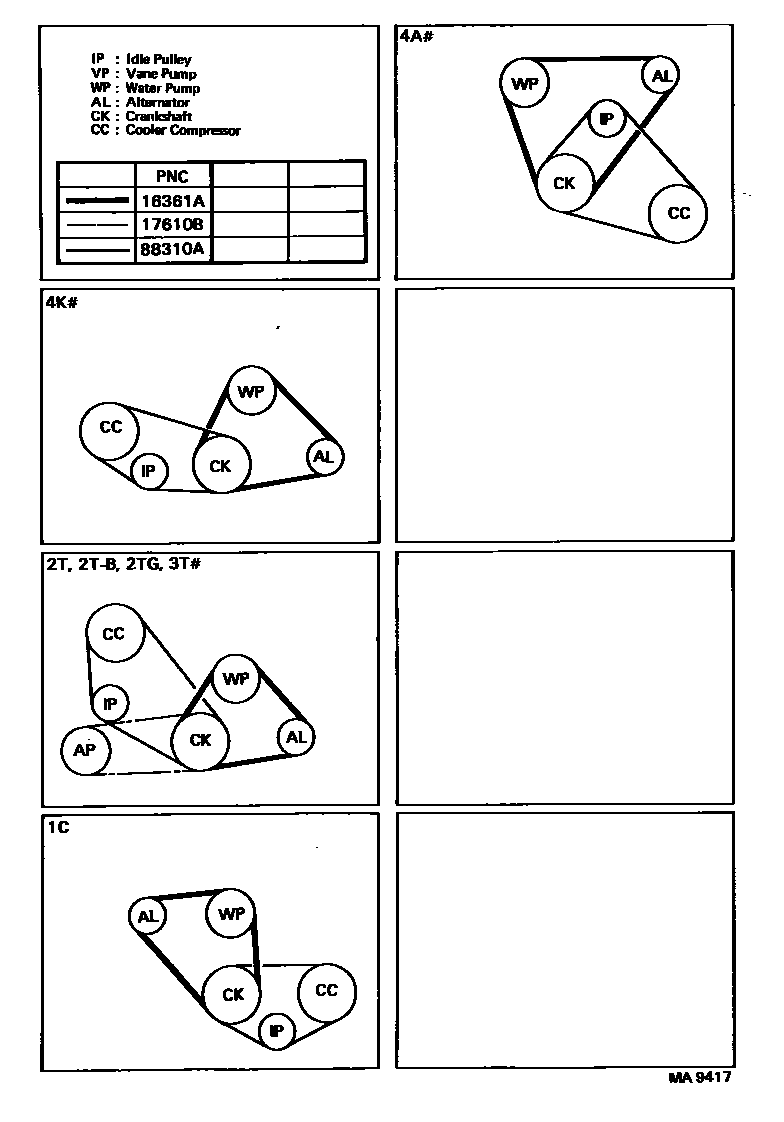

Toyota COROLLA V-Belt — Figure 1605
Toyota COROLLA EPC diagram 1605, V-Belt, with 1 images and 3 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 16361A | V-belts (for fans and generators) | 90916-02123 · 99321-00840 · 99321-00850 · 99321-00870 · 99321-00885 · 99321-50975 · 99331-10885 · 99521-10860 |
| 17610B | V-belt (for air pump) | 99332-10815 |
| 88310A | No. 1 V-belt (cooler compressor to crankshaft pulley) | 99321-51000 · 99322-00890 · 99322-00930 · 99322-00940 · 99322-00950 · 99322-00970 · 99332-10860 |
