Toyota COROLLA Water Pump — Figure 1601

Toyota COROLLA EPC diagram 1601, Water Pump, with 7 images and 20 PNC and OE references.

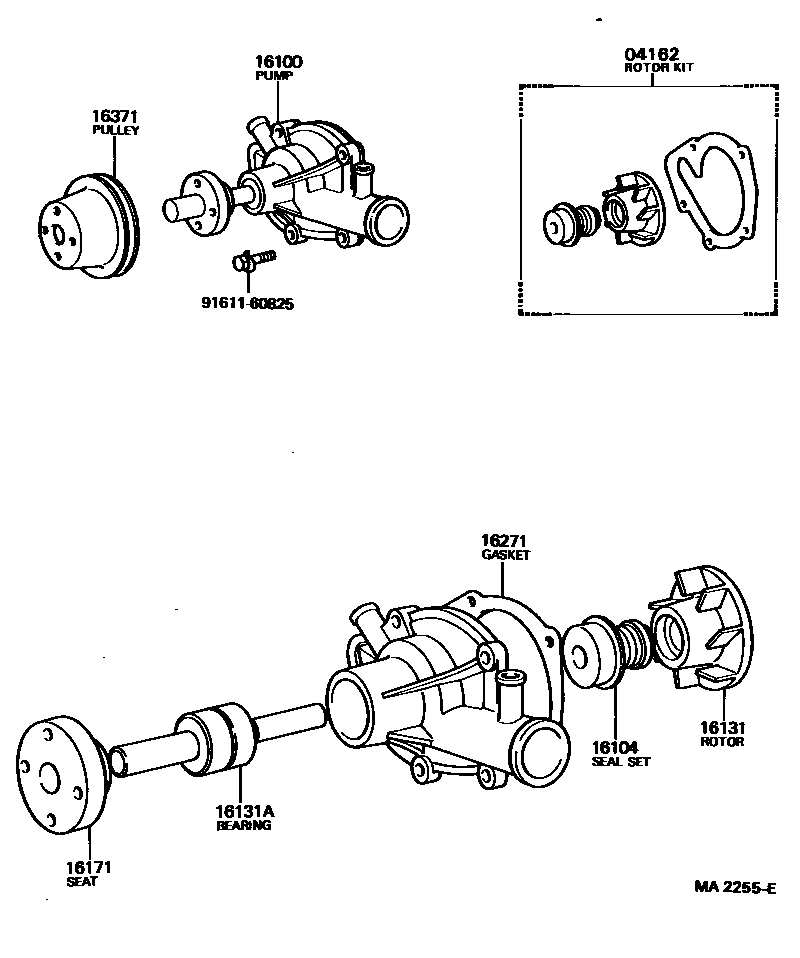

Toyota COROLLA Water Pump EPC diagram — MA2255E
Water Pump — MA2255E (198007 – 198012)

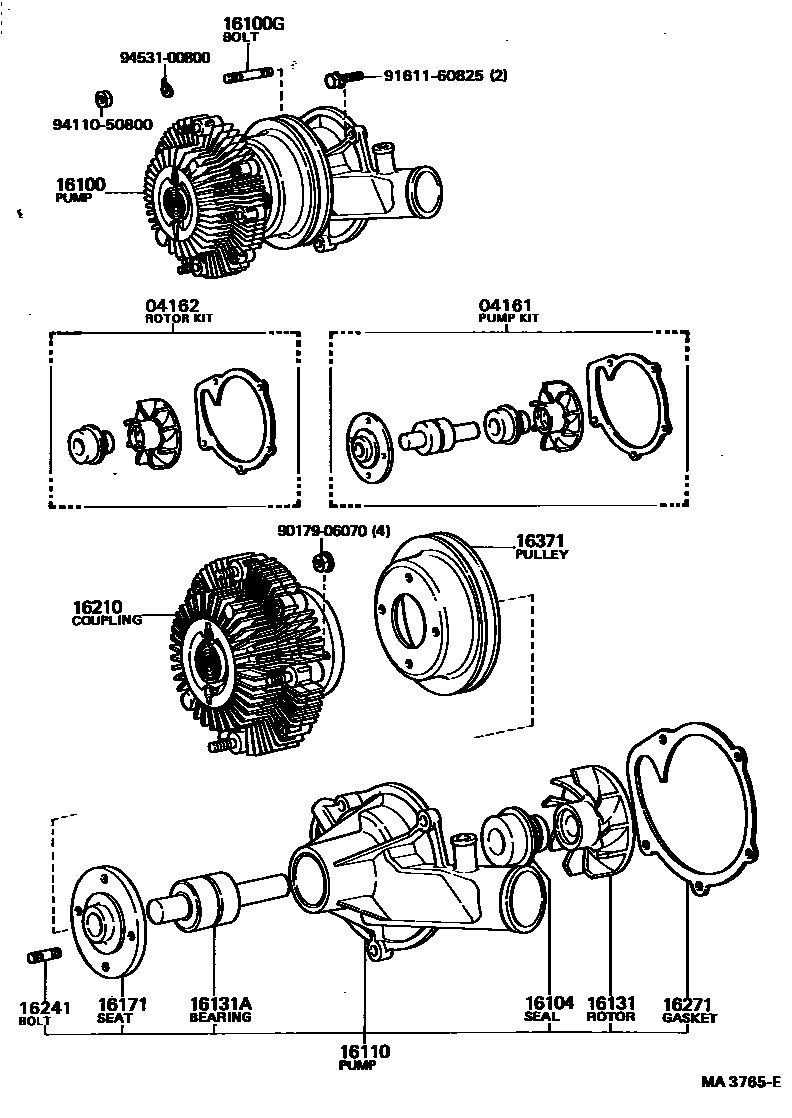

Toyota COROLLA Water Pump EPC diagram — MA3765E
Water Pump — MA3765E (197908 – 198305)

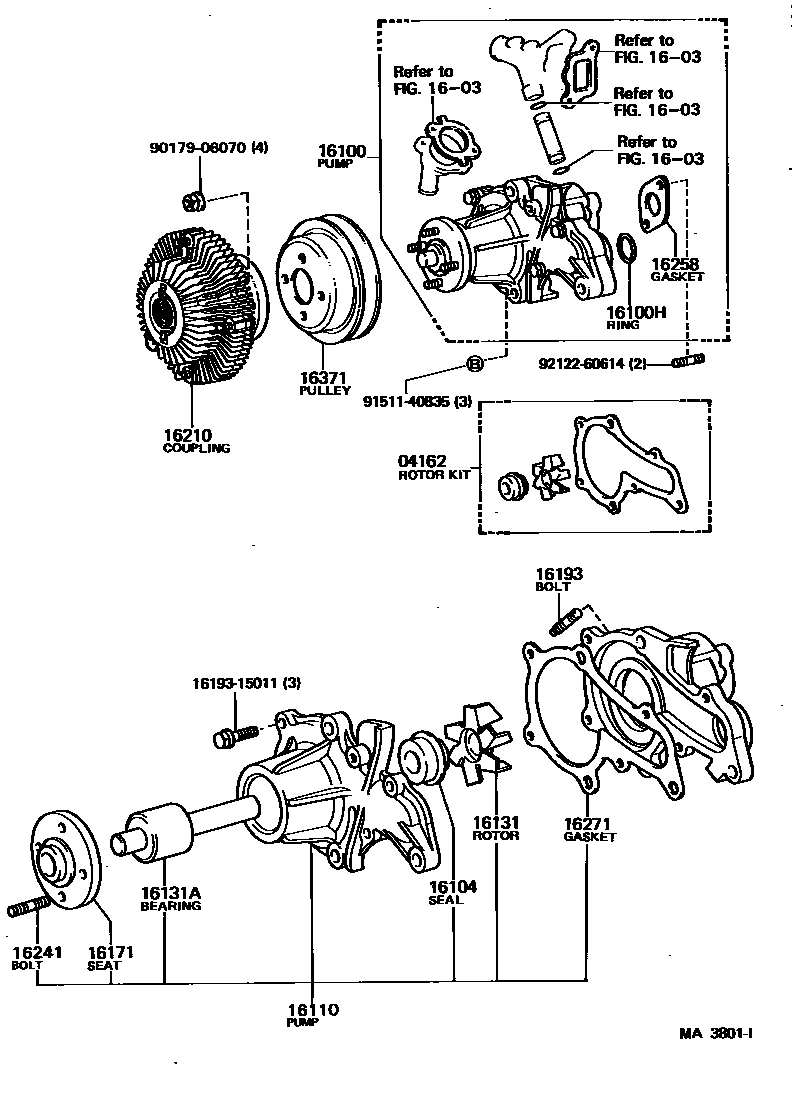

Toyota COROLLA Water Pump EPC diagram — MA3801I
Water Pump — MA3801I (198305 – 999999)

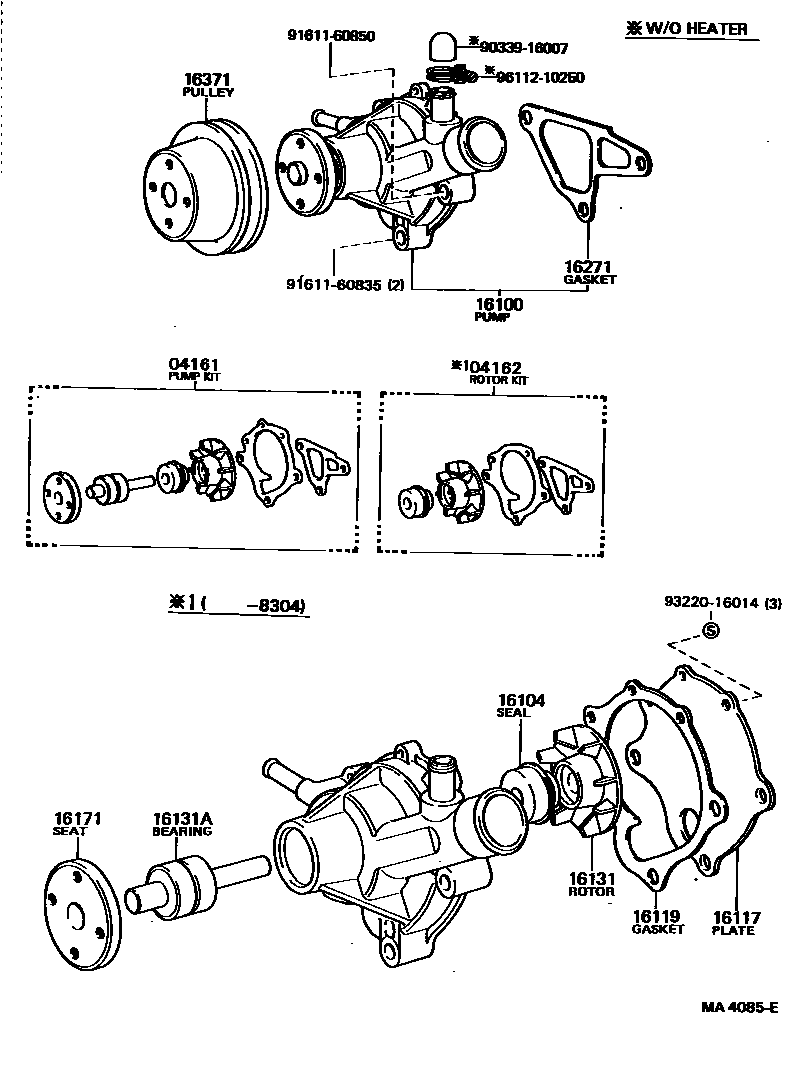

Toyota COROLLA Water Pump EPC diagram — MA4085E
Water Pump — MA4085E (197908 – 999999)

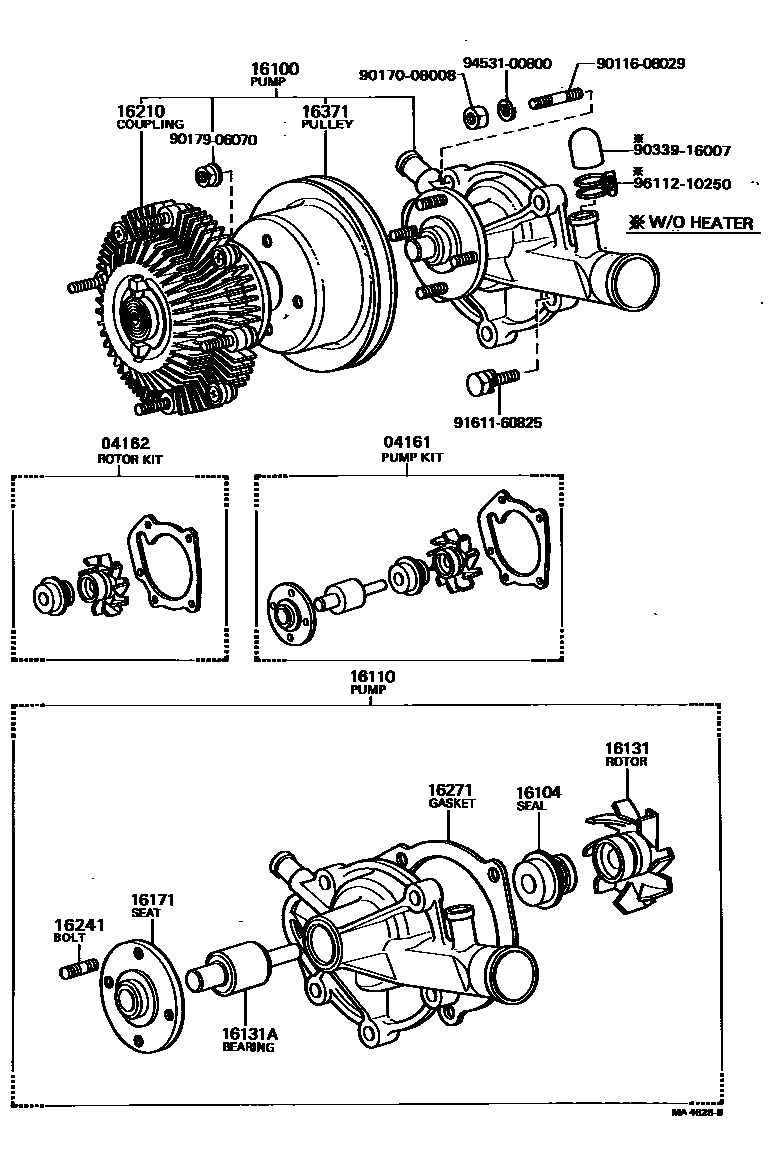

Toyota COROLLA Water Pump EPC diagram — MA4628E
Water Pump — MA4628E (197908 – 198502)

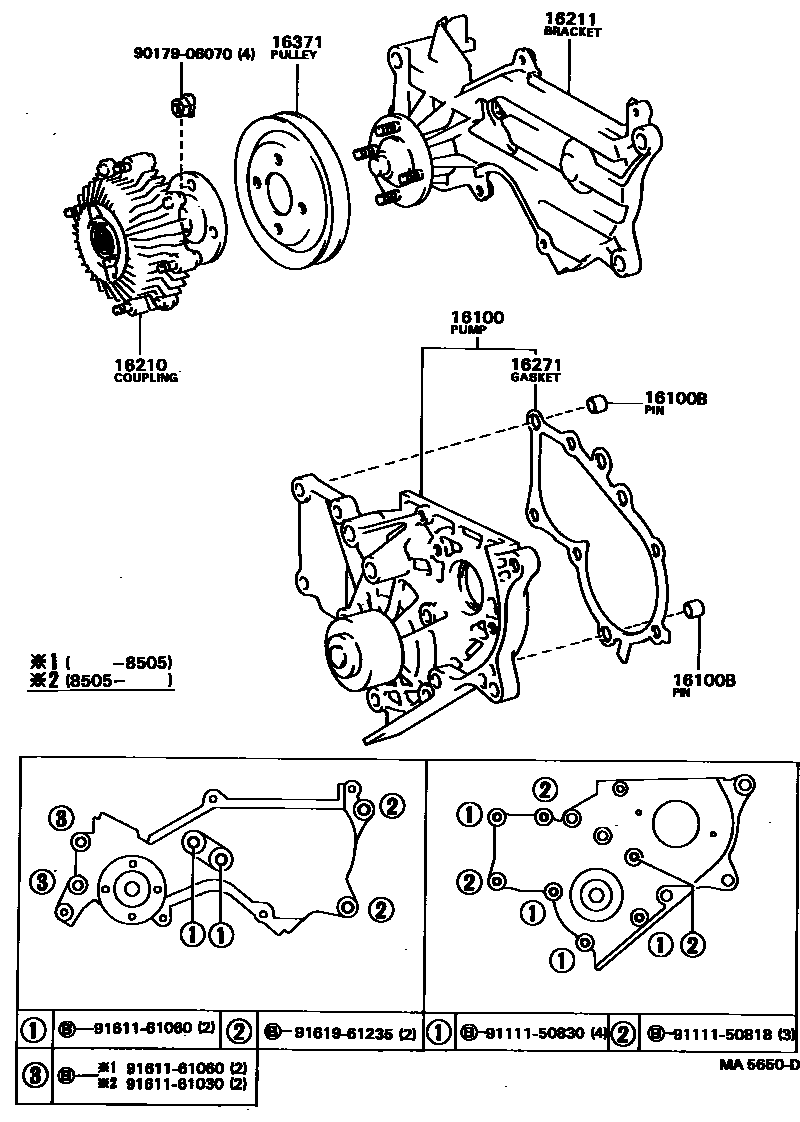

Toyota COROLLA Water Pump EPC diagram — MA5650D
Water Pump — MA5650D (198210 – 999999)

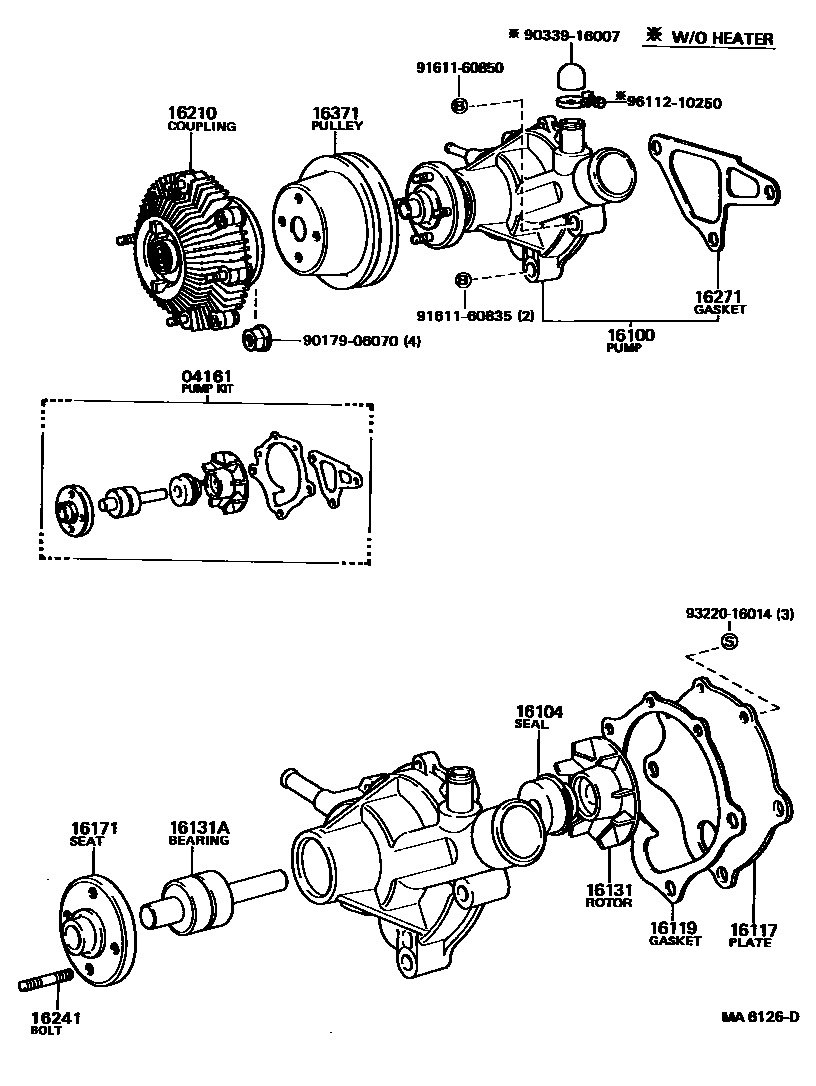

Toyota COROLLA Water Pump EPC diagram — MA6126D
Water Pump — MA6126D (198205 – 999999)

PNC and OE references

PNCPart nameOE numbers
04161Water pump components04161-13010 · 04161-13011 · 04161-13012 · 04161-13031 · 04161-13032 · 04161-28010 · 04161-28011 · 04161-28012
04162Water pump rotor assembly04162-13010 · 04162-13011 · 04162-13012 · 04162-15010 · 04162-28010 · 04162-28020 · 04162-28021
16100Engine water pump assembly16100-19015 · 16100-19016 · 16100-19036 · 16100-19075 · 16100-19076 · 16100-25012 · 16100-28020 · 16100-69085 · 16100-88260
16100BRing pin (for water pump assembly)90253-11021
16100GStuds (for water pump assembly)90072-11622
16100HO-ring (for water pump)96711-24035
16104Water pump seal components16104-15020 · 16104-22010 · 16104-41110 · 16104-41111 · 16104-41112
16110Water pump assembly without coupling16110-15020 · 16110-28010 · 16110-88260
16117water pump plate16117-13010 · 16117-13011
16119Water pump body gasket16124-22010 · 16124-22011 · 16124-22012
16131water pump rotor16131-13010 · 16131-15010 · 16131-25011 · 16131-26010
16131Awater pump bearings16140-38011 · 90369-30014 · 90369-30028 · 90369-30035 · 90369-30063
16171water pump pulley seat16171-15020 · 16171-24031 · 16171-26021 · 16171-31030
16193Studs (for water pump cover)16193-15010
16210Hydraulic coupler assembly16210-13020 · 16210-18010 · 16210-28020 · 16210-64010
16211Fluid coupler bracket16307-64010 · 16307-64011 · 16307-64012
16241Stud bolts (for water pump coupling)16193-13020 · 16241-15020 · 16241-28020 · 90116-06008
16258Pad (for heater return)16258-15011
16271water pump gasket16124-15010 · 16129-25010 · 16129-25011 · 16129-25012 · 16271-13020 · 16271-13021 · 16271-64010
16371fan pulley16173-26021 · 16173-28010 · 16371-13030 · 16371-24040 · 16371-24050 · 16371-25010 · 16371-64011
