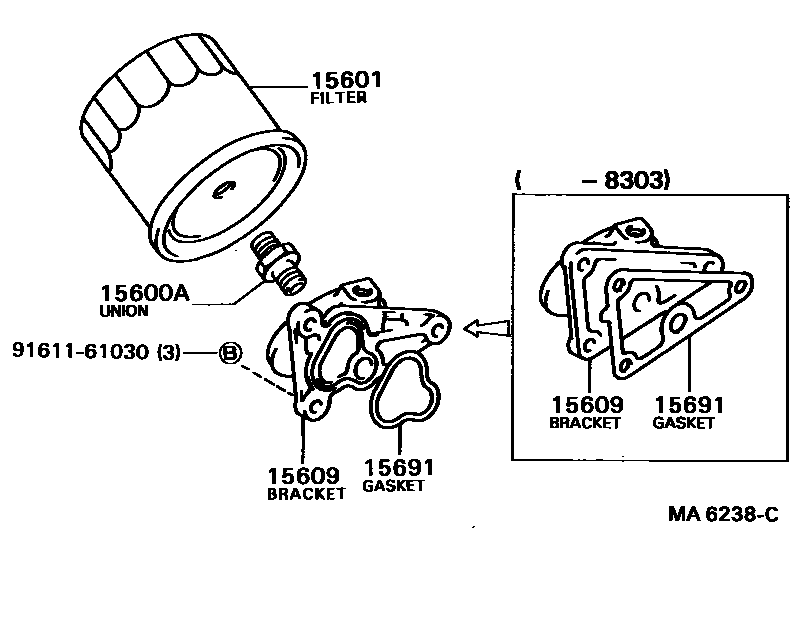

Toyota COROLLA Oil Filter — Figure 1502
Toyota COROLLA EPC diagram 1502, Oil Filter, with 3 images and 5 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 15600A | Connector (for oil filter) | 90404-19001 · 90404-19003 · 90404-19004 · 90404-20173 |
| 15601 | Oil filter sub-assembly | 15600-13050 · 15600-25010 · 15601-13010 · 15601-13011 · 15601-33020 · 90915-03001 |
| 15609 | Oil filter bracket sub-assembly | 15609-22012 · 15677-64010 · 15677-64030 · 15677-64031 |
| 15621 | Oil filter body gasket | 15621-22010 · 15621-41010 |
| 15691 | oil filter gasket | 15691-22010 · 15691-22011 · 15691-64011 · 15691-64020 · 15691-64030 |
