Toyota COROLLA Cylinder Block — Figure 1105

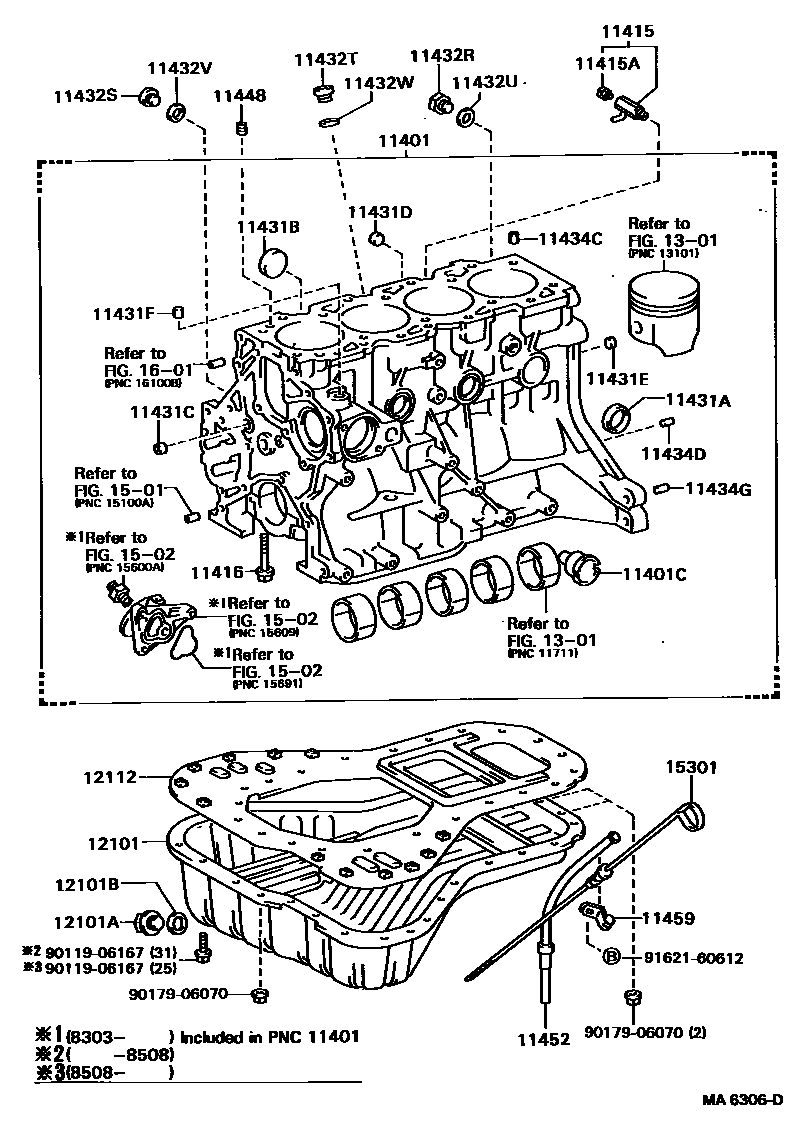

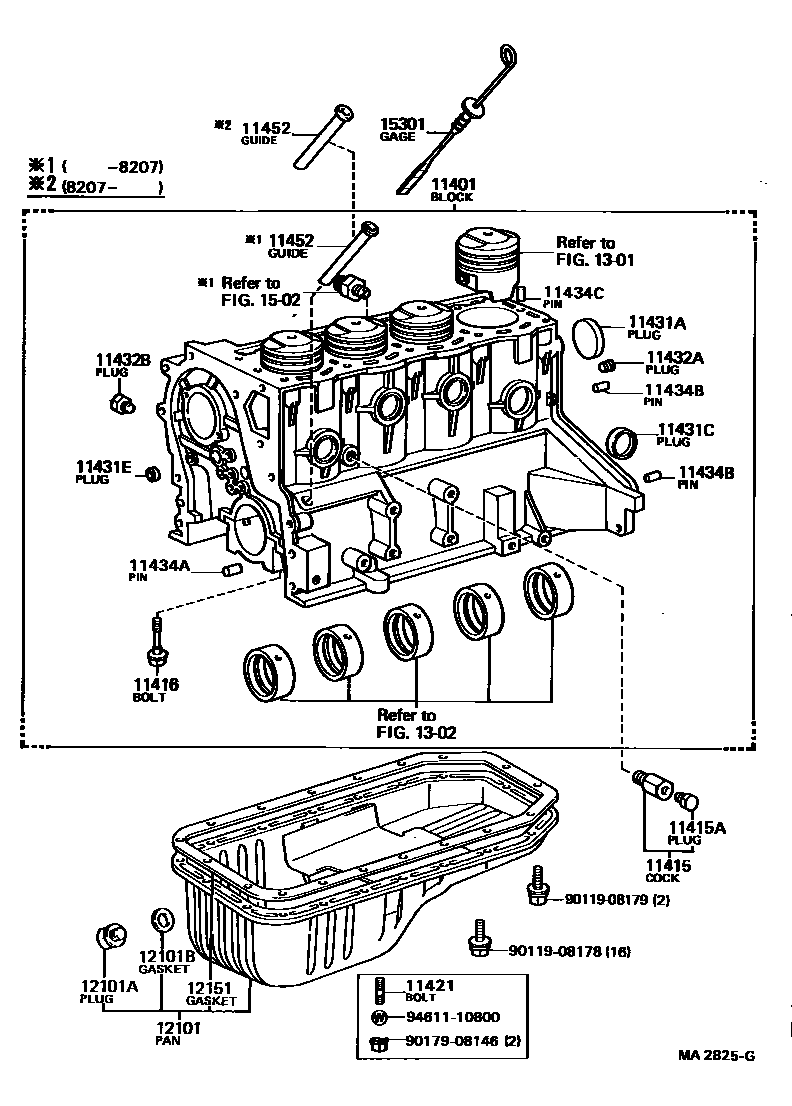

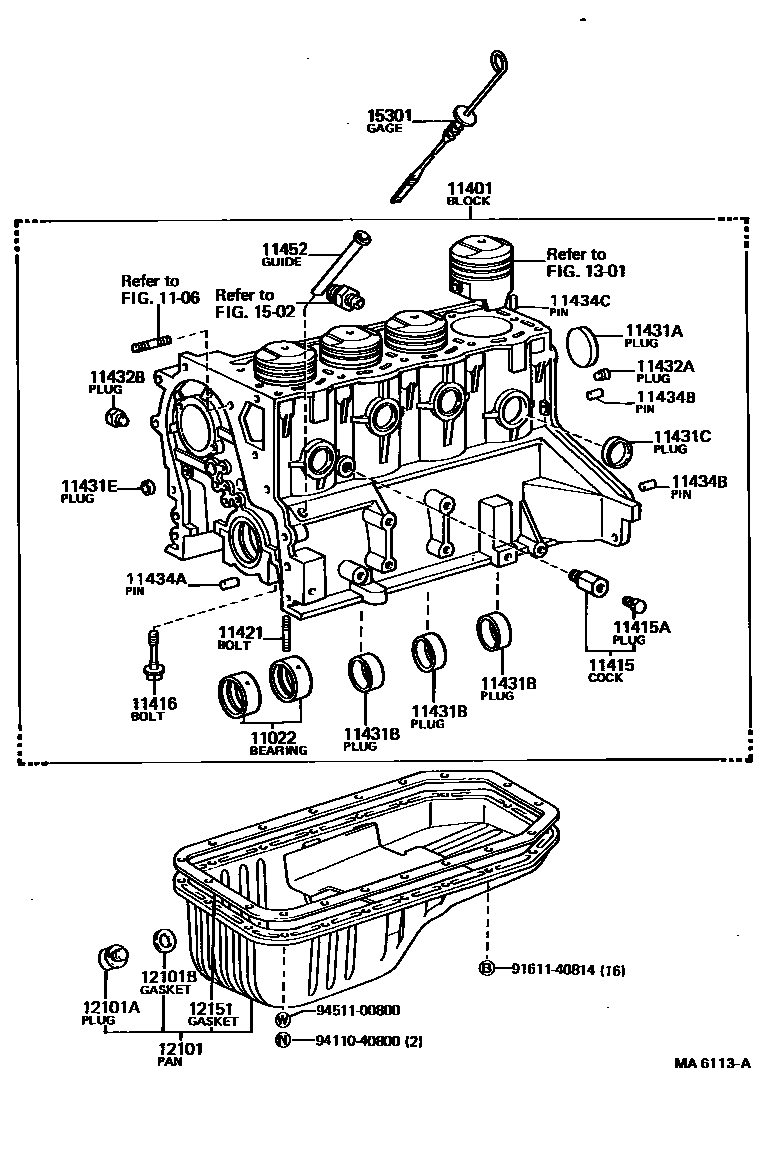

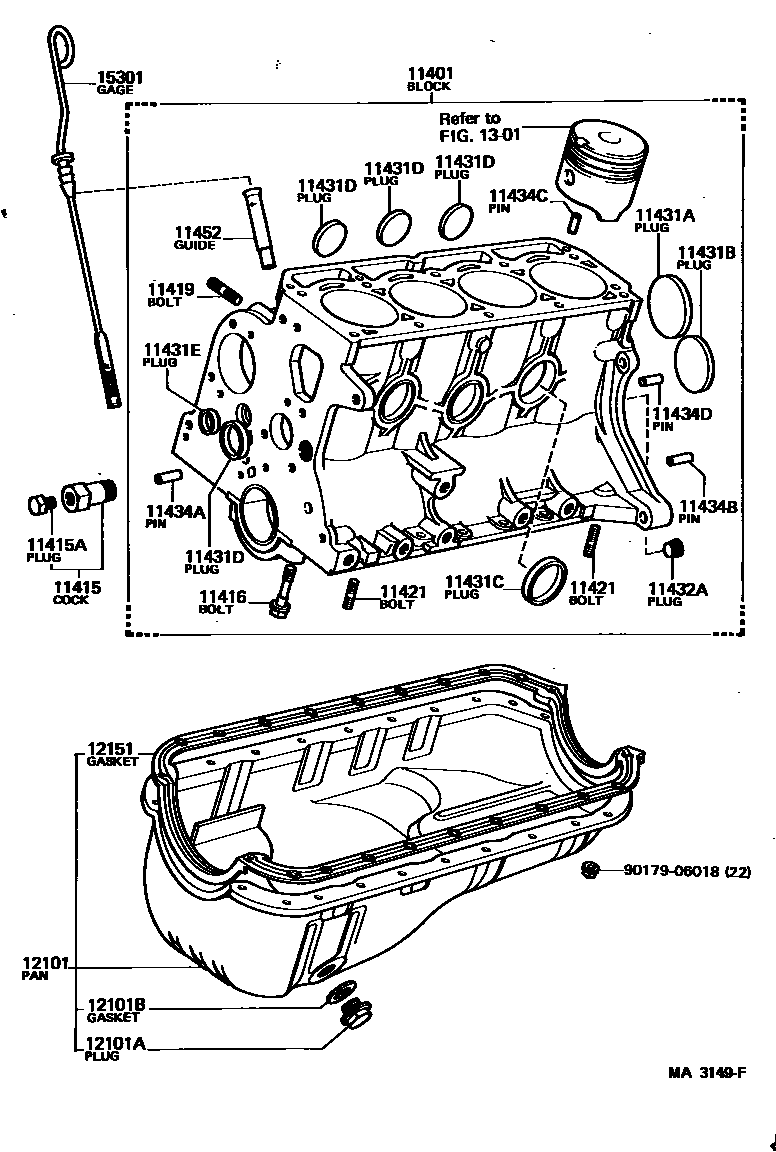

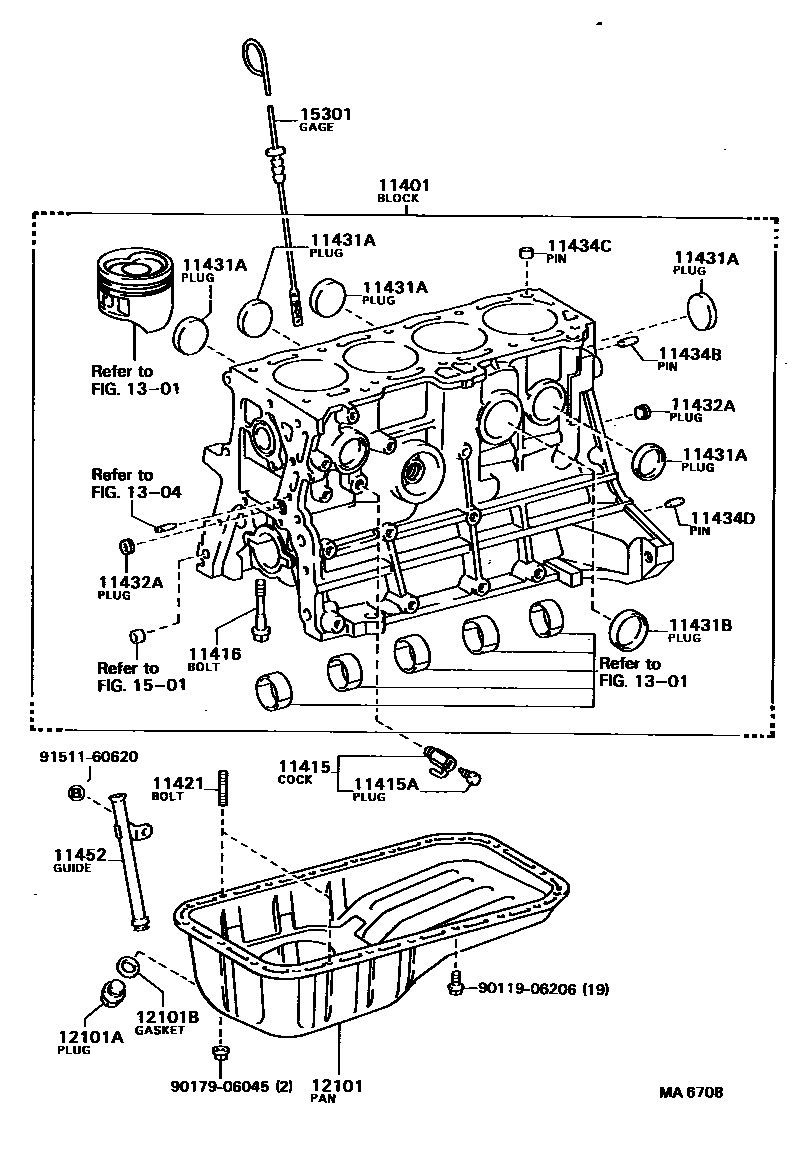

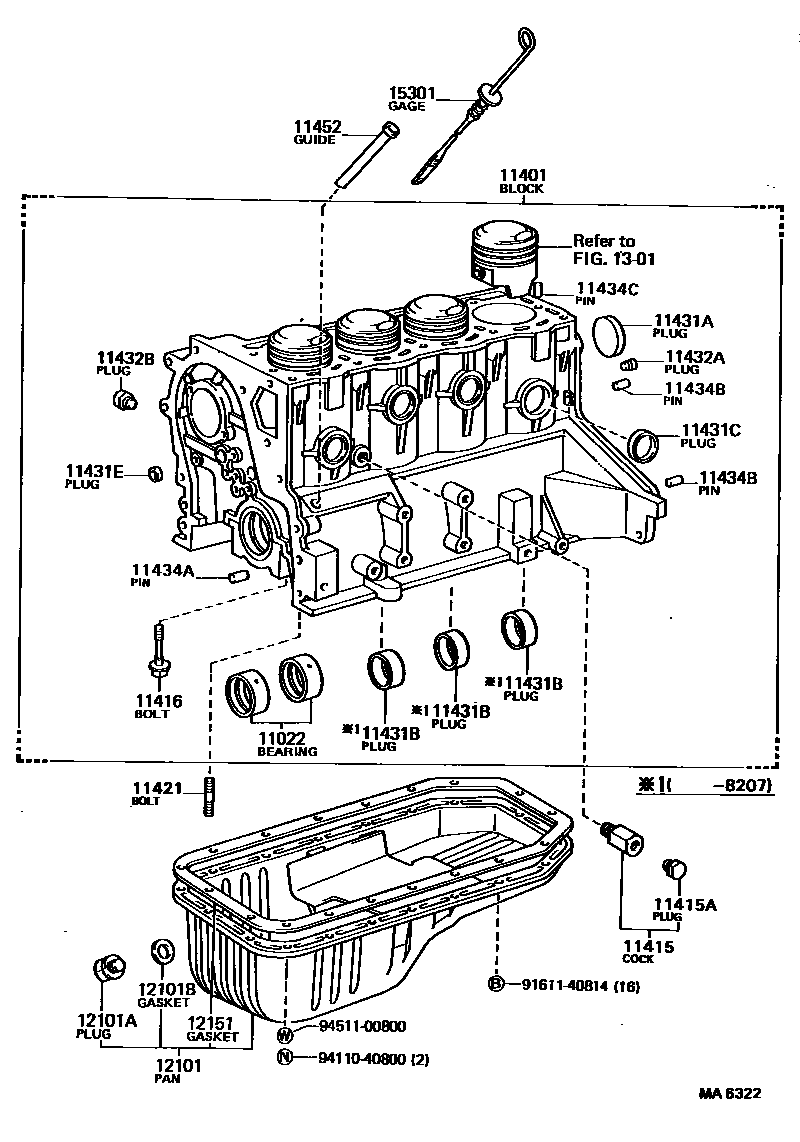

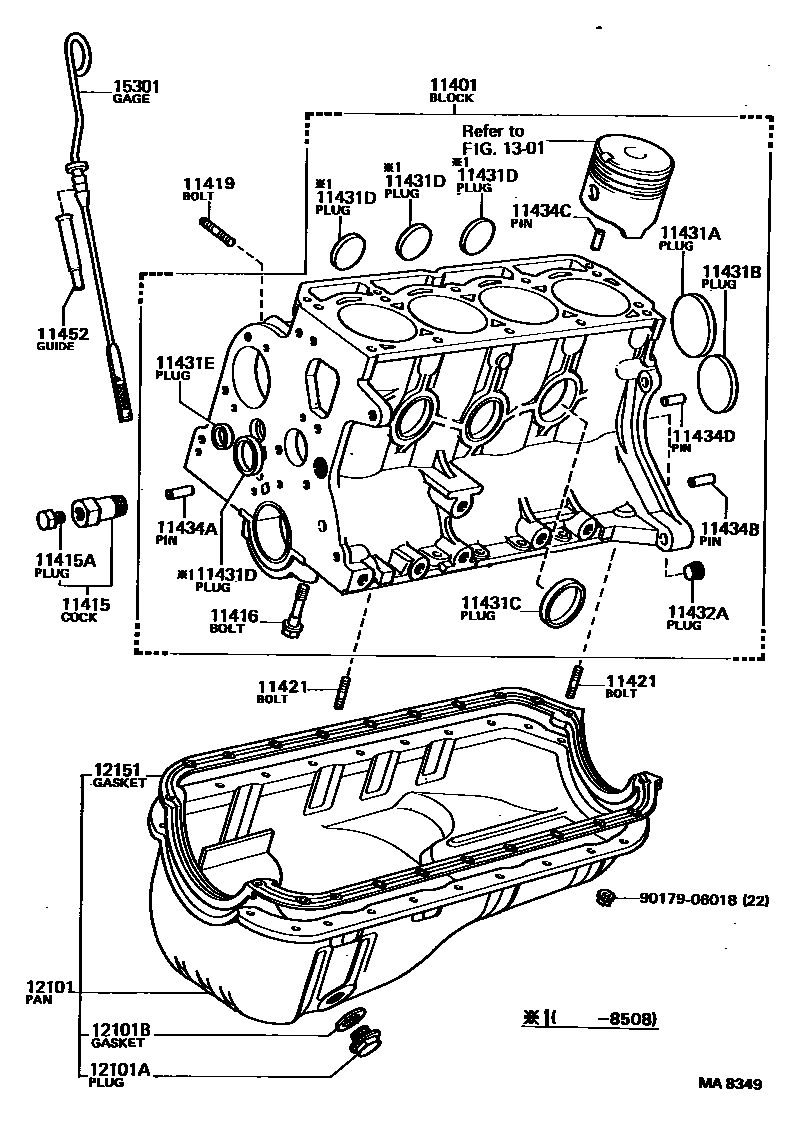

Toyota COROLLA EPC diagram 1105, Cylinder Block, with 7 images and 36 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 11022 | Pump drive shaft bearing assembly | 11022-27010 · 11022-27011 |
| 11401 | Cylinder block sub-assembly | 11401-19035 · 11401-19036 · 11401-19037 · 11401-19038 · 11401-19105 · 11401-19106 · 11401-19107 · 11401-19165 · 11401-19166 · 11401-19195 · 11401-29059 · 11401-29218 · 11401-29236 · 11401-29237 · 11401-29295 · 11401-29305 · 11401-29306 · 11401-69096 · 11401-69125 · 11401-69126 · 11401-69127 · 11401-69129 · 11401-69295 |
| 11401C | Flange (for water bypass pipe) | 16353-64010 |
| 11415 | Water release switch sub-assembly (for cylinder block) | 90910-09075 · 90910-09079 · 90910-09088 · 96431-03833 · 96431-03850 · 96431-53828 · 96431-53850 |
| 11415A | Water drain switch screw plug (for cylinder block) | 90109-10023 · 90910-09087 · 96431-23814 · 96432-23814 |
| 11416 | Bolts (for crankshaft bearing cap assembly) | 90105-10007 · 90910-02019 · 90910-02032 · 90910-02061 |
| 11419 | Studs (for fuel pump) | 90116-08102 · 90116-08288 |
| 11421 | Stud bolts (for oil pan) | 90116-06006 · 90116-06012 · 90116-06022 · 90116-06049 · 90116-08057 · 92122-40818 |
| 11431A | No. 1 sealing plug (for cylinder block) | 90331-47025 · 96411-43500 · 96411-45000 |
| 11431B | No. 2 sealing plug (for cylinder block) | 90072-33901 · 90072-33902 · 90072-33903 · 90339-41001 · 90339-41002 · 90339-42001 · 96411-43000 · 96411-44000 · 96411-44500 |
| 11431C | No. 3 sealing plug (for cylinder block) | 96411-11800 · 96411-41800 · 96411-43500 |
| 11431D | No. 4 sealing plug (for cylinder block) | 96411-11800 · 96411-41800 · 96411-42500 |
| 11431E | No. 5 sealing plug (for cylinder block) | 96411-01800 · 96411-11800 · 96411-41800 · 96412-01800 |
| 11431F | No. 6 sealing plug (for cylinder block) | 90249-17002 · 90331-17001 |
| 11432A | No. 1 headed tapered thread plug | 90344-53002 · 90344-53008 · 90344-53011 · 90344-53015 |
| 11432B | No. 2 headed tapered thread plug | 90072-34107 · 90345-51006 · 90345-51025 |
| 11432R | No. 1 headed straight thread plug (for cylinder block) | 90341-18006 |
| 11432S | No. 2 headed straight thread plug (for cylinder block) | 90341-20002 |
| 11432T | No. 3 headed straight thread plug (for cylinder block) | 90341-22001 |
| 11432U | No. 1 straight thread plug gasket (for cylinder block) | 90430-18001 |
| 11432V | No. 2 straight thread plug gasket (for cylinder block) | 90430-20004 |
| 11432W | No. 3 straight thread plug gasket (for cylinder block) | 90430-22003 |
| 11434A | Direct sales (for timing gear cover assembly) | 90250-08003 · 90250-08120 |
| 11434B | Direct sales (for clutch housing assembly) | 90250-08120 · 90250-10113 |
| 11434C | Direct sales (for cylinder head components) | 90250-08120 · 90253-13017 · 90253-14001 |
| 11434D | Direct sales (for engine rear oil seal) | 90250-06003 · 90250-06068 · 90250-08120 |
| 11434G | Direct sales (for end plates) | 90250-10113 |
| 11448 | Cylinder block oil orifice | 11448-54010 |
| 11452 | Engine oil level gauge guide | 11452-13010 · 11452-15010 · 11452-18010 · 11452-40010 · 11452-64010 |
| 11459 | Oil level gauge guide bracket | 90929-01009 |
| 12101 | Oil pan sub-assembly | 12101-15040 · 12101-15090 · 12101-19015 · 12101-19016 · 12101-19017 · 12101-29075 · 12101-64010 · 12101-64060 |
| 12101A | Screw plug (for draining oil from the oil pan) | 90341-12012 · 90341-18089 |
| 12101B | Gasket (for oil pan drain plug) | 90430-12011 · 90430-12019 · 90430-18013 · 90430-18244 |
| 12112 | No. 2 oil pan | 12112-64010 · 12112-64030 |
| 12151 | oil pan gasket | 12151-13010 · 12151-13011 · 12151-25010 |
| 15301 | Engine oil level scoring assembly | 15301-13010 · 15301-15020 · 15301-18010 · 15301-64010 · 15301-88260 |
