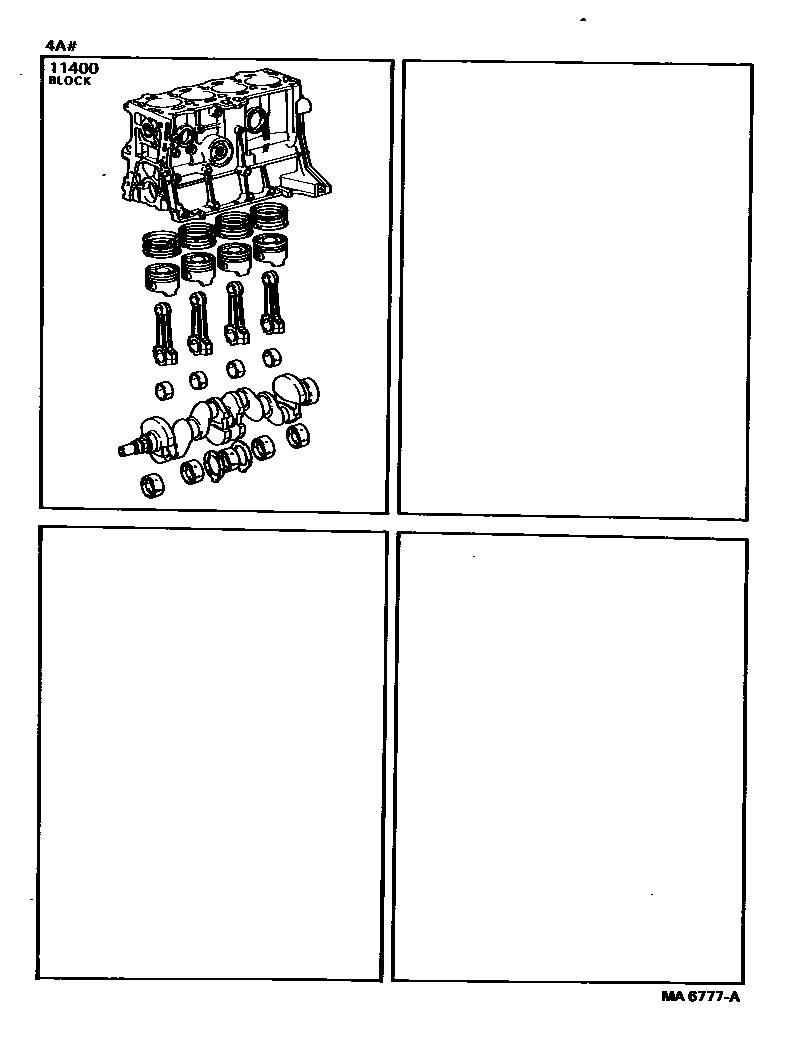

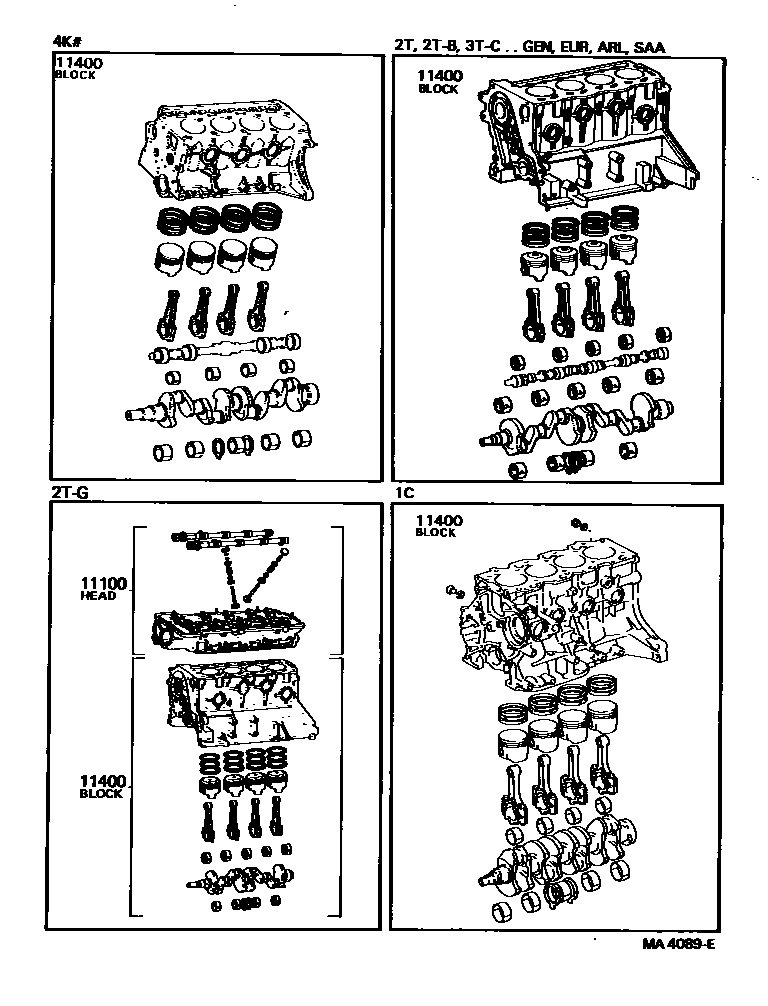

Toyota COROLLA Short Block Assembly — Figure 1102
Toyota COROLLA EPC diagram 1102, Short Block Assembly, with 2 images and 2 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 11100 | Short Block Assembly | 11100-27021 |
| 11400 | Short Block Assembly | 11400-13010 · 11400-13011 · 11400-13020 · 11400-13030 · 11400-13031 · 11400-16030 · 11400-26052 · 11400-26053 · 11400-27013 · 11400-27014 · 11400-28011 · 11400-28012 · 11400-64020 · 11400-64021 · 11400-64022 · 11400-64120 · 11400-64121 |
