Toyota COROLLA Standard Tools — Figure 0901

Toyota COROLLA EPC diagram 0901, Standard Tools, with 1 images and 12 PNC and OE references.

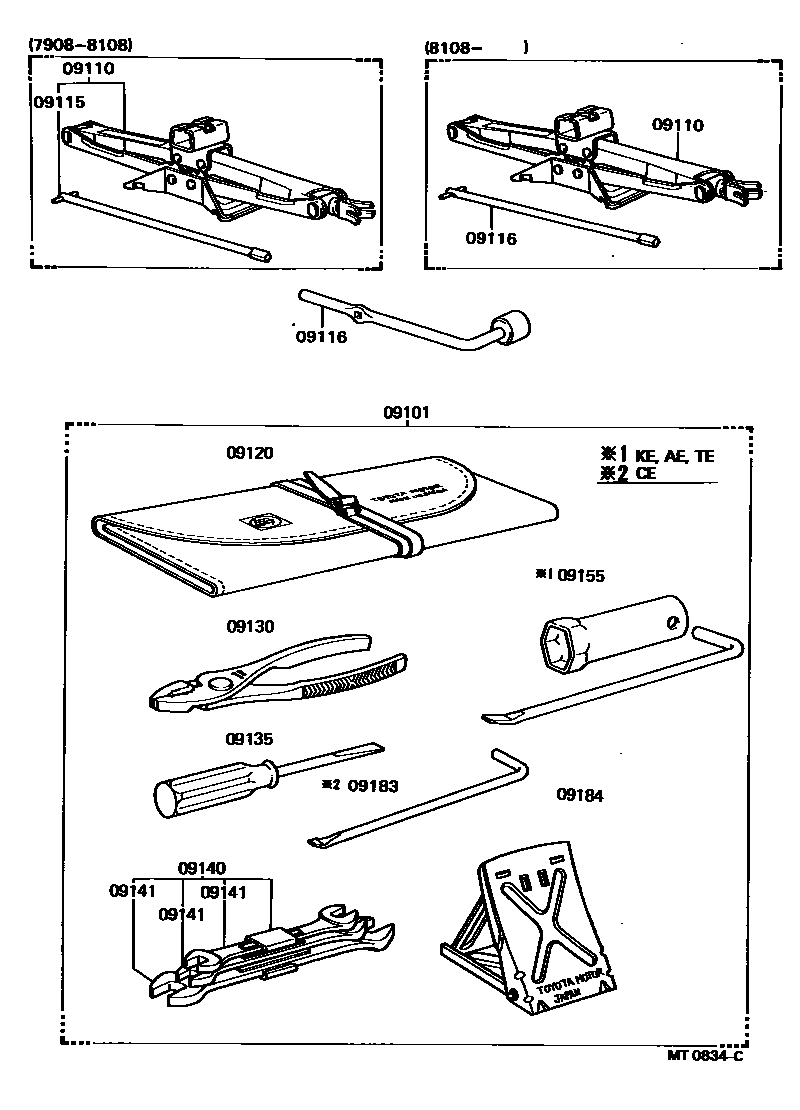

Toyota COROLLA Standard Tools EPC diagram — MT0834C
Standard Tools — MT0834C (197908 – 999999)

PNC and OE references

PNCPart nameOE numbers
09101Standard kit without jack09102-10020 · 09102-10022 · 09102-10024 · 09102-12030 · 09102-16020
09110Jack Assembly09111-13040 · 09118-10010 · 09118-13011
09115Jack Handle Rod Sub-Assembly09115-13010 · 09115-16010 · 09115-16020
09116Jack Handle Rod09116-16010
09120Tool Bag09120-12011
09130Pliers09130-00010 · 99913-11500
09135Screwdriver99915-10700
09140Wrench assembly09140-12011
09141Wrench99914-10810 · 99914-11012 · 99914-11417
09155Spark Plug Wrench09155-24010 · 09155-26020 · 09155-44020
09183Wheel Cap Remover09183-00010
09184Wheel Chock09184-00010
