Toyota COROLLA Heating & Air Conditioning - Compressor — Figure 8719
Toyota COROLLA EPC diagram 8719, Heating & Air Conditioning - Compressor, with 3 images and 2 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|

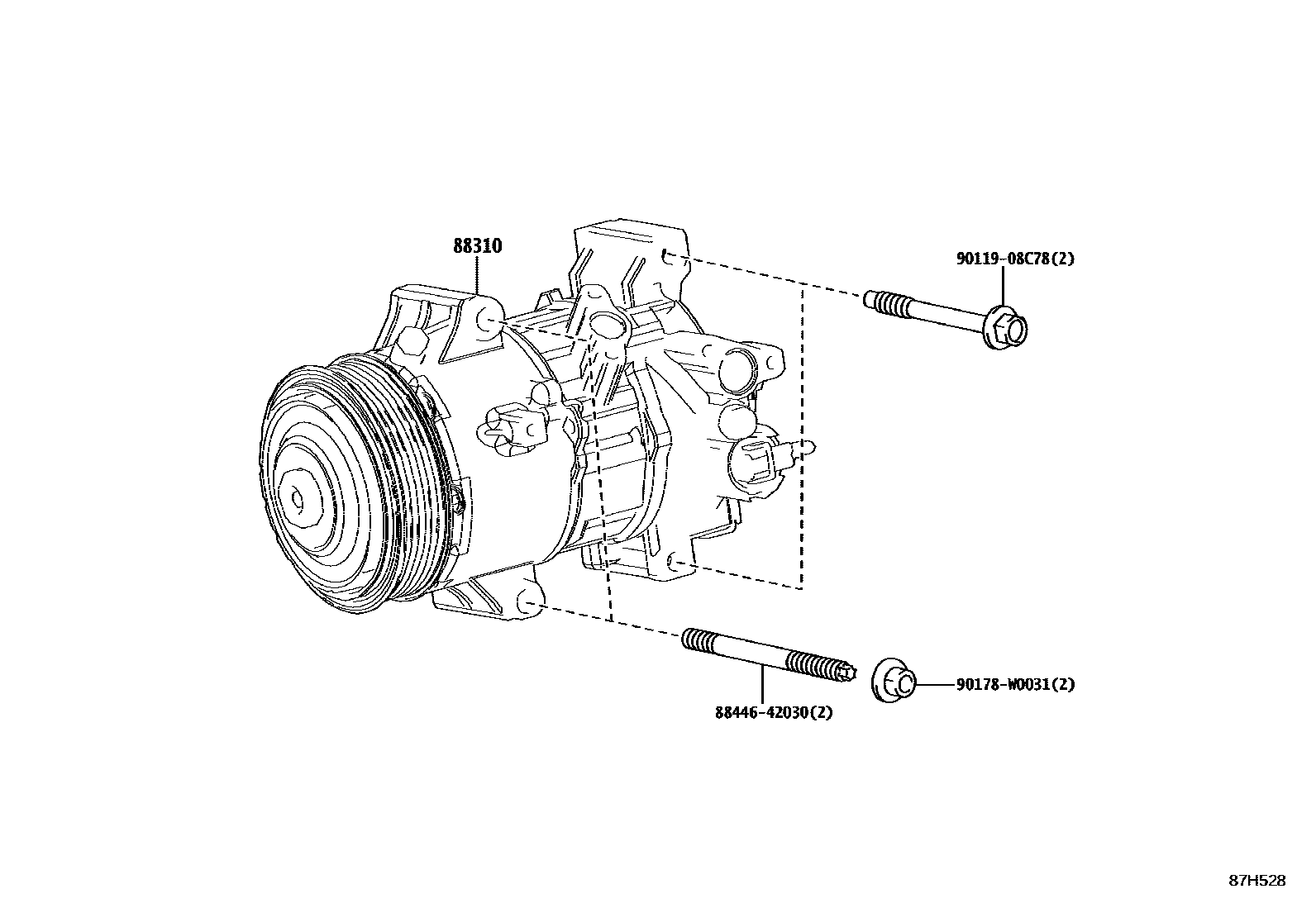

| 88310 | Compressor assembly with pulley | 88310-02C00 · 88310-02C10 |

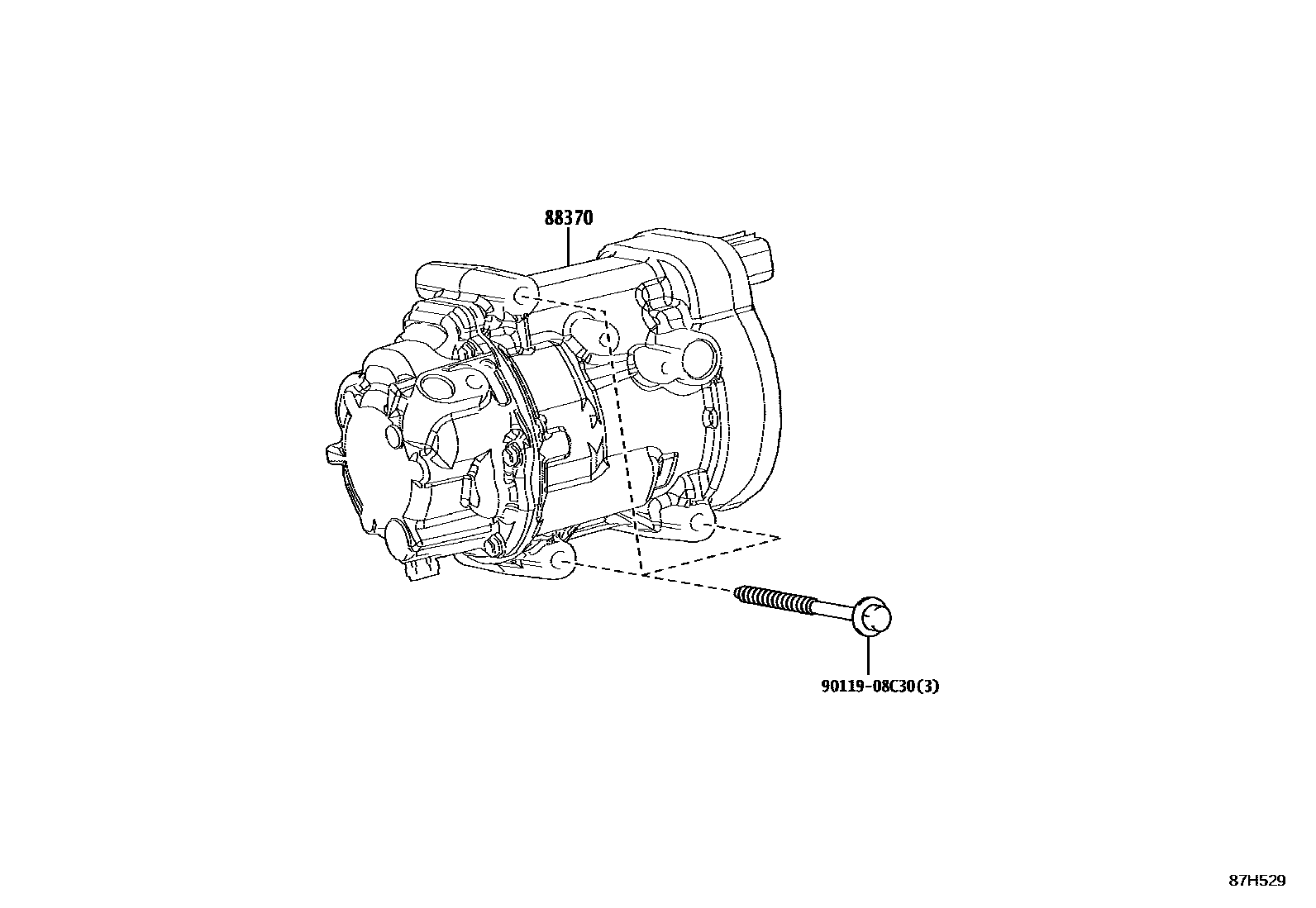

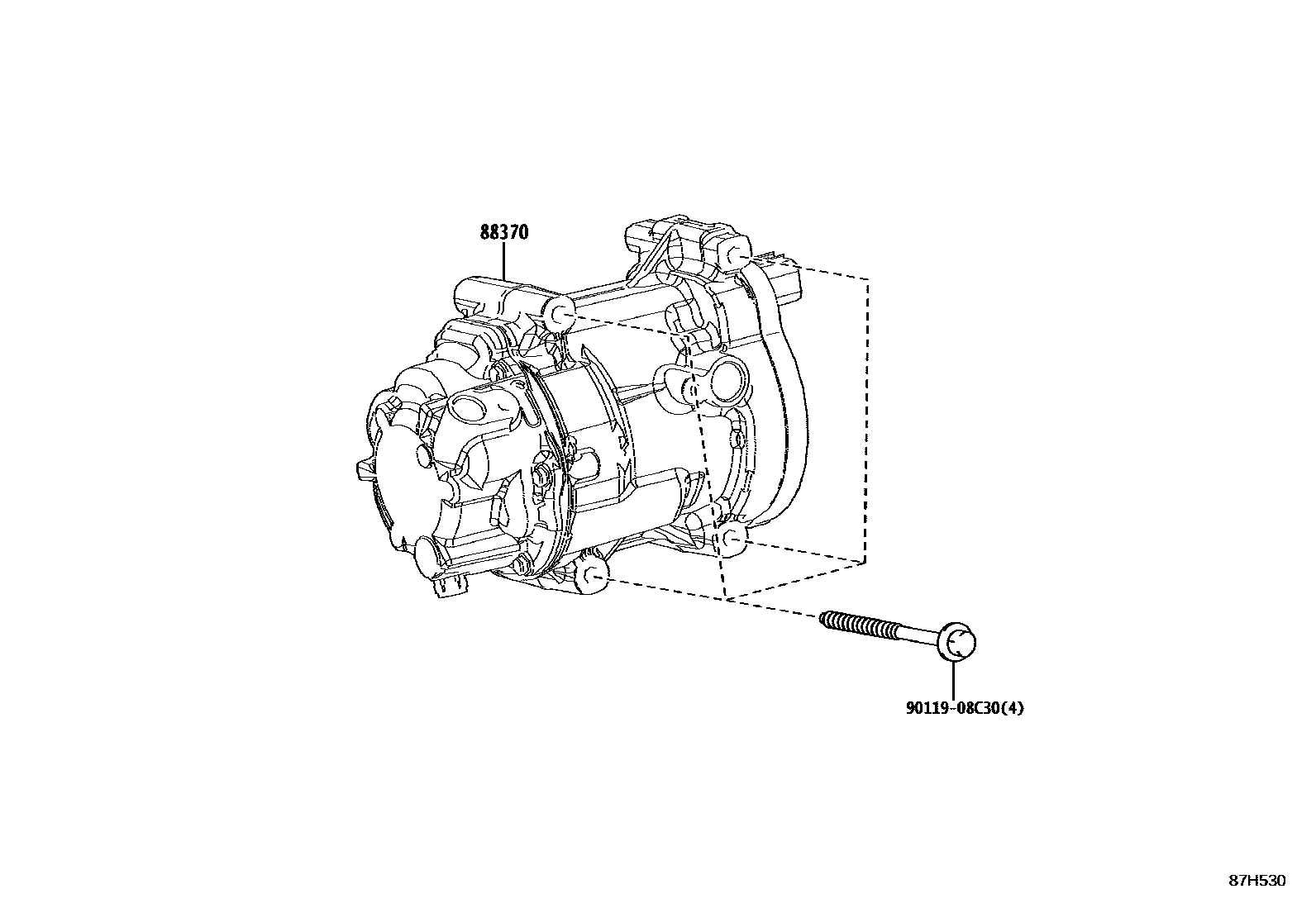

| 88370 | Compressor assembly with motor | 88370-12030 · 88370-12070 · 88370-12080 · 88370-47092 |
