Toyota COROLLA 后视镜 — Figure 8701

Toyota COROLLA EPC diagram 8701, 后视镜, with 1 images and 10 PNC and OE references.

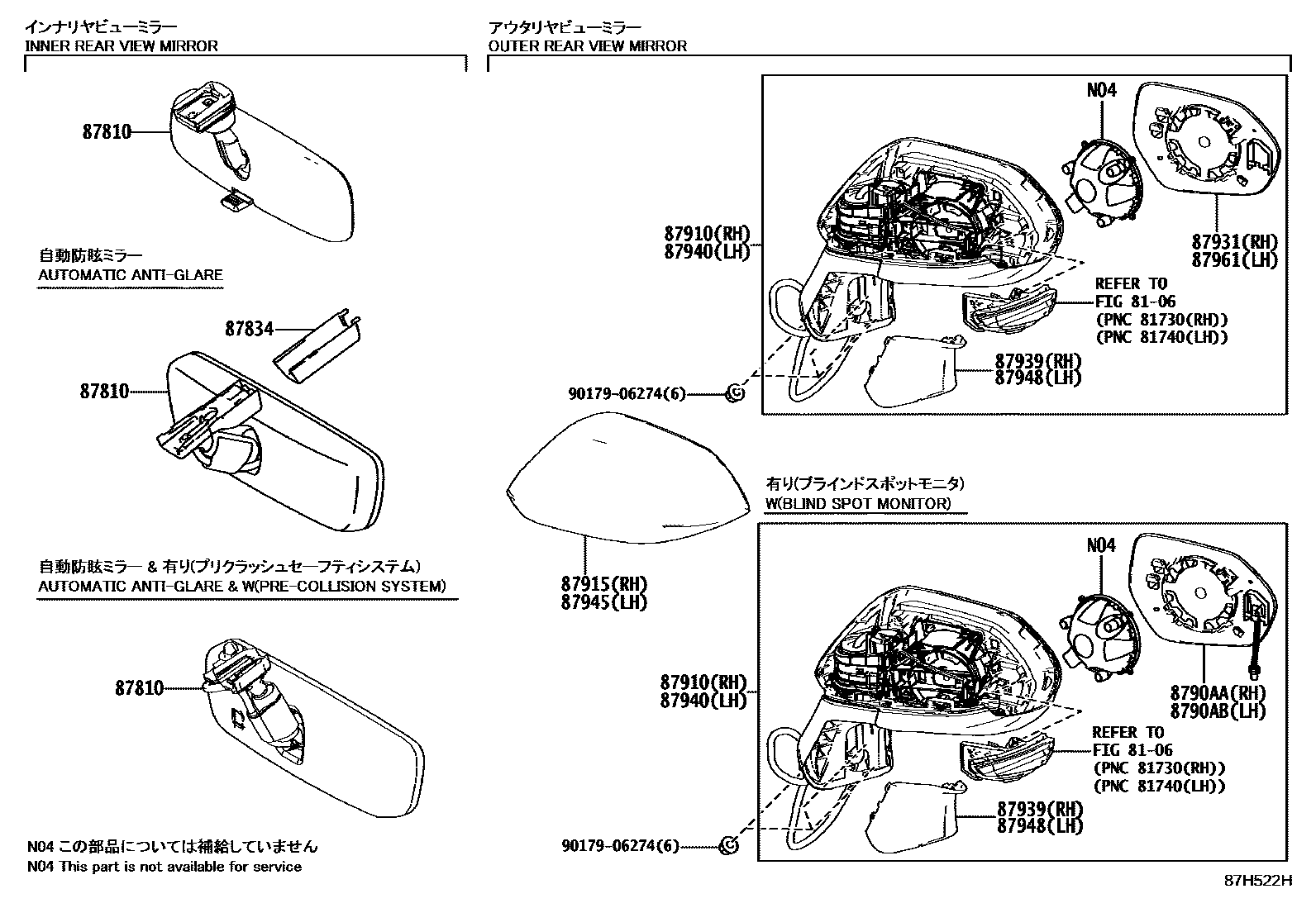

Toyota COROLLA 后视镜 EPC diagram — 87H522H
后视镜 — 87H522H (201901 – 999999)

PNC and OE references

PNCPart nameOE numbers
87810Interior rearview mirror assembly87810-0WK10 · 87810-0WS30 · 87810-28140 · 87840-0W460
87834Interior rearview mirror stay fixing cover87818-24010
8790AARight exterior rearview mirror indicator light8790A-02010
8790ABLeft exterior rearview mirror indicator light8790A-02020
87910Right exterior rearview mirror assembly87910-02L40 · 87910-02L41 · 87910-02L50 · 87910-02L51 · 87910-02L60 · 87910-02L61 · 87910-02L70 · 87910-02L71 · 87910-02L80 · 87910-02L81 · 87910-02L90 · 87910-02L91
87931Right exterior rearview mirror87931-02L40
87939Right exterior rearview mirror hole cover87939-02L40 · 87939-02L70
87940Left exterior rearview mirror assembly87940-02L30 · 87940-02L31 · 87940-02L40 · 87940-02L41 · 87940-02L50 · 87940-02L51 · 87940-02L60 · 87940-02L61 · 87940-02L70 · 87940-02L71 · 87940-02L80 · 87940-02L81
87948Left exterior rearview mirror hole cover87948-02L30 · 87948-02L60
87961Left exterior rearview mirror87961-02L30
