Toyota COROLLA 扬声器 — Figure 8602

Toyota COROLLA EPC diagram 8602, 扬声器, with 12 images and 5 PNC and OE references.

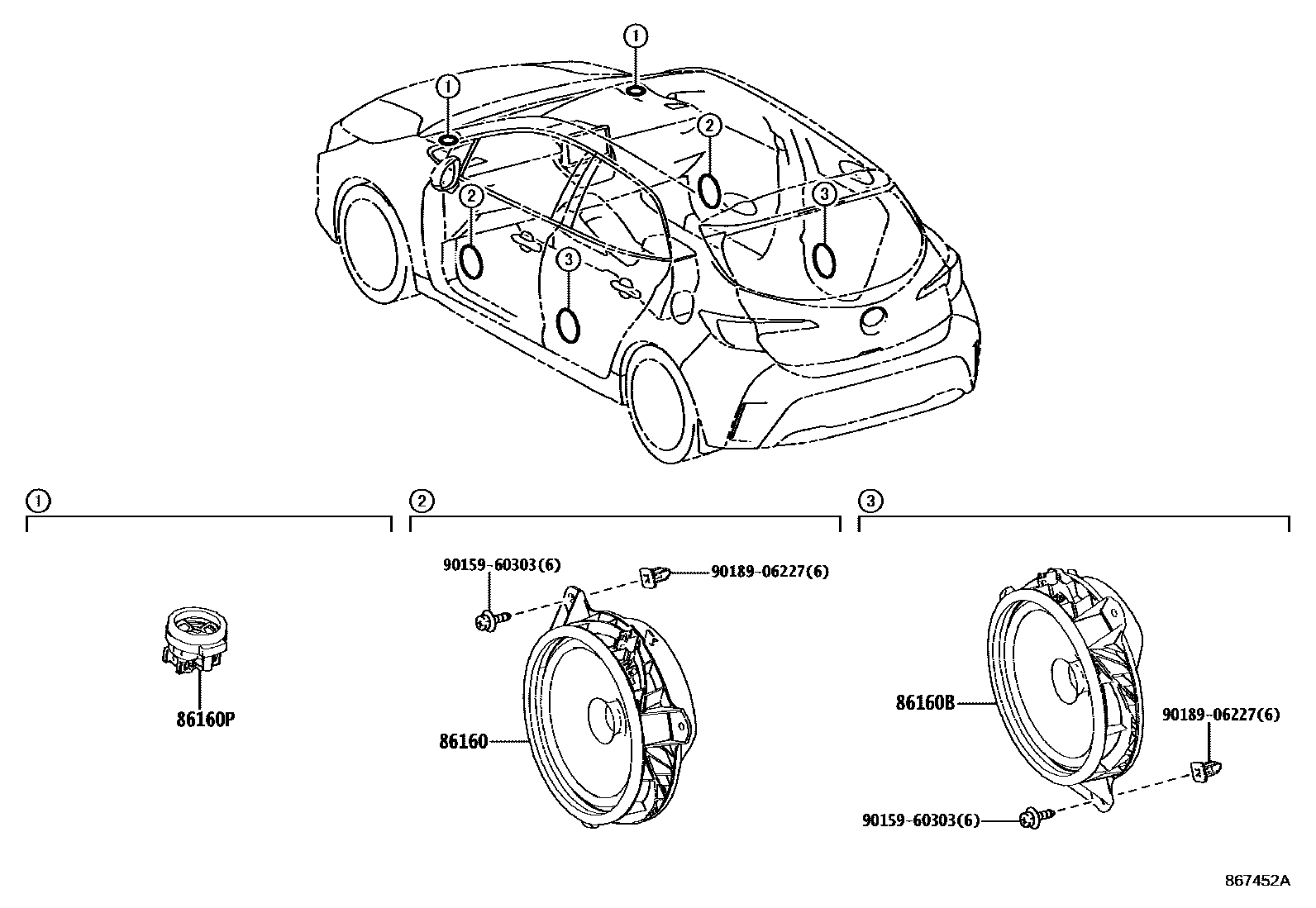

Toyota COROLLA 扬声器 EPC diagram — 867452A — 扬声器 — 867452A (201901 – 202204)

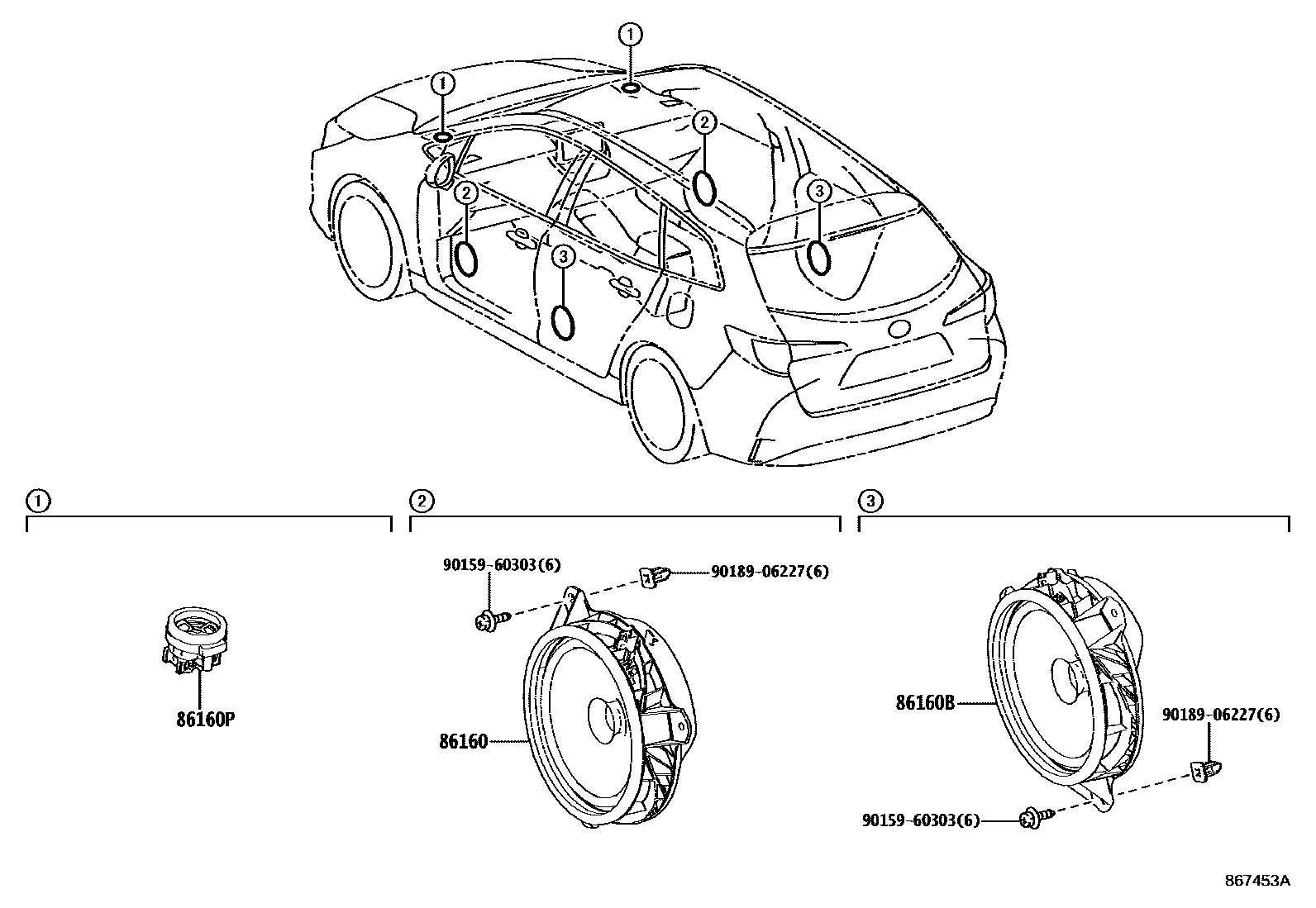

Toyota COROLLA 扬声器 EPC diagram — 867453A — 扬声器 — 867453A (201901 – 202204)

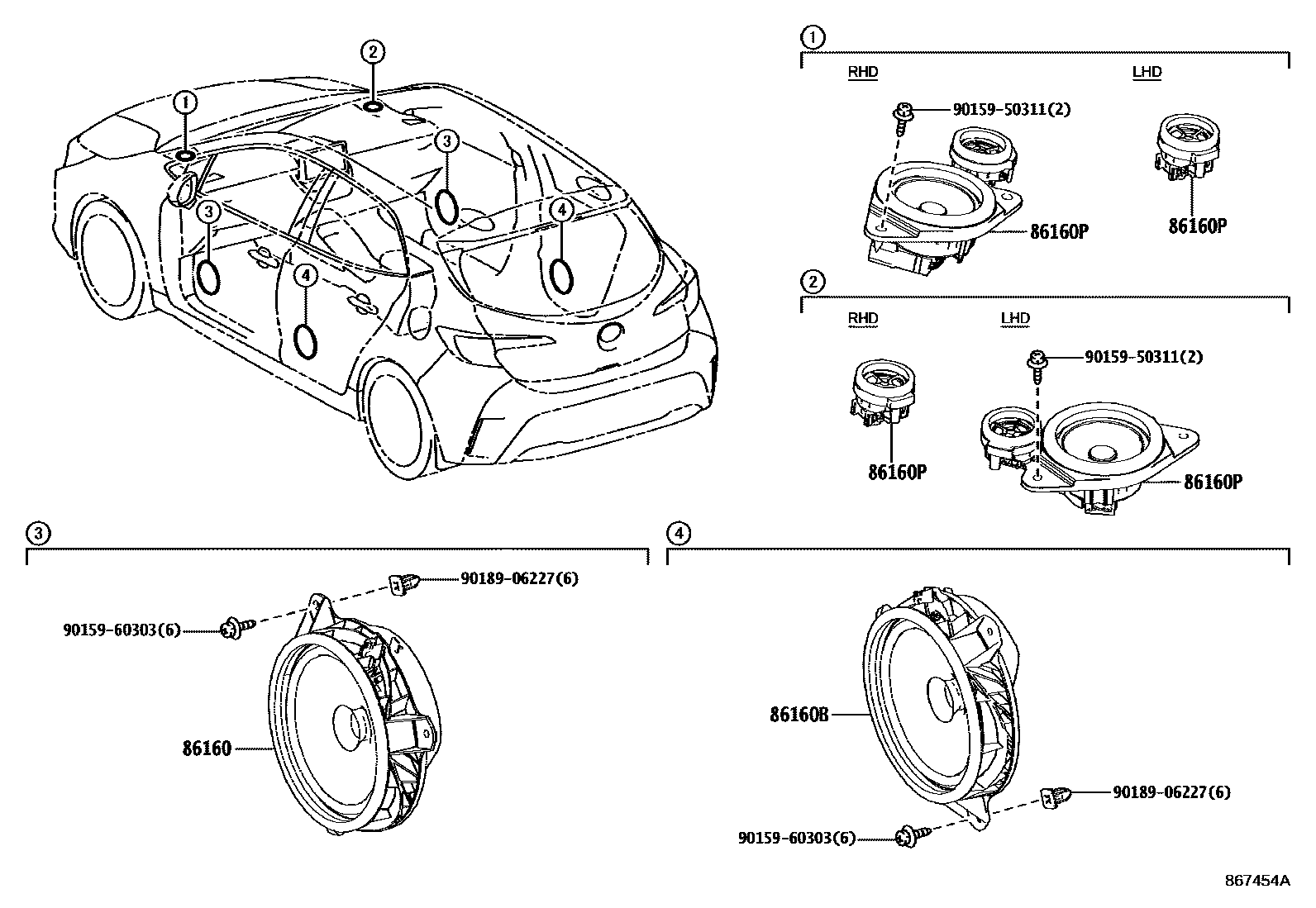

Toyota COROLLA 扬声器 EPC diagram — 867454A — 扬声器 — 867454A (201901 – 202204)

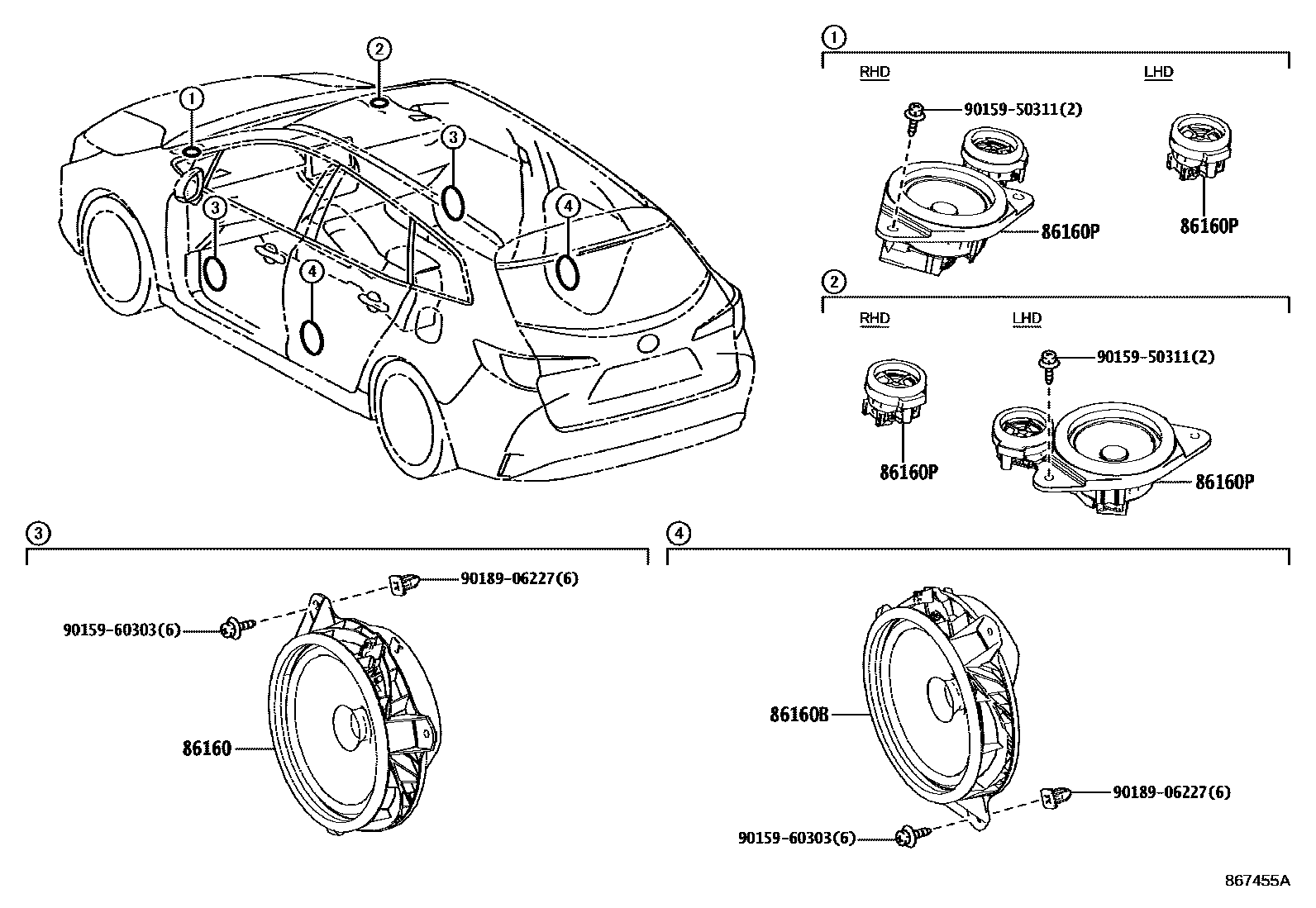

Toyota COROLLA 扬声器 EPC diagram — 867455A — 扬声器 — 867455A (201901 – 202204)

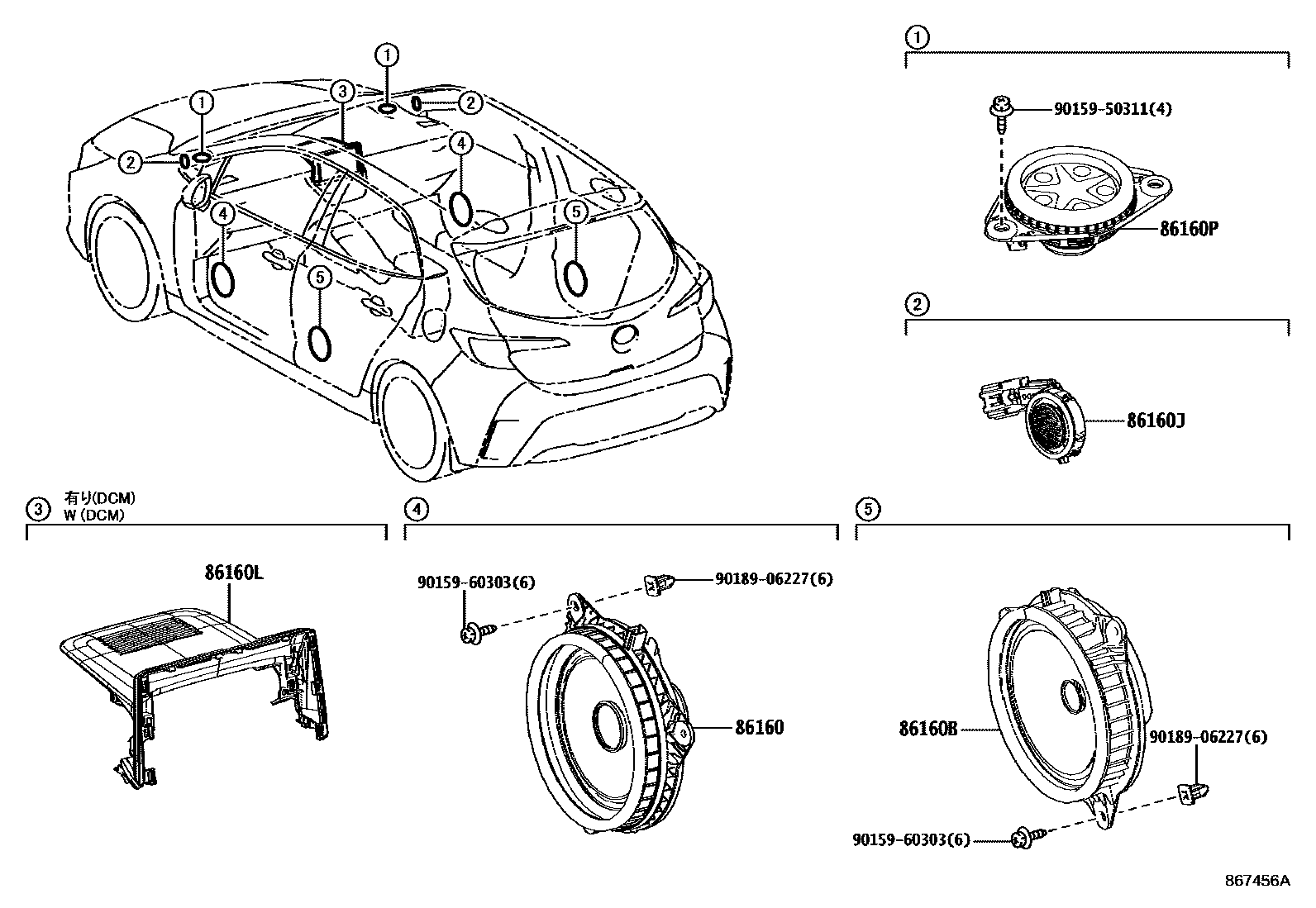

Toyota COROLLA 扬声器 EPC diagram — 867456A — 扬声器 — 867456A (201901 – 999999)

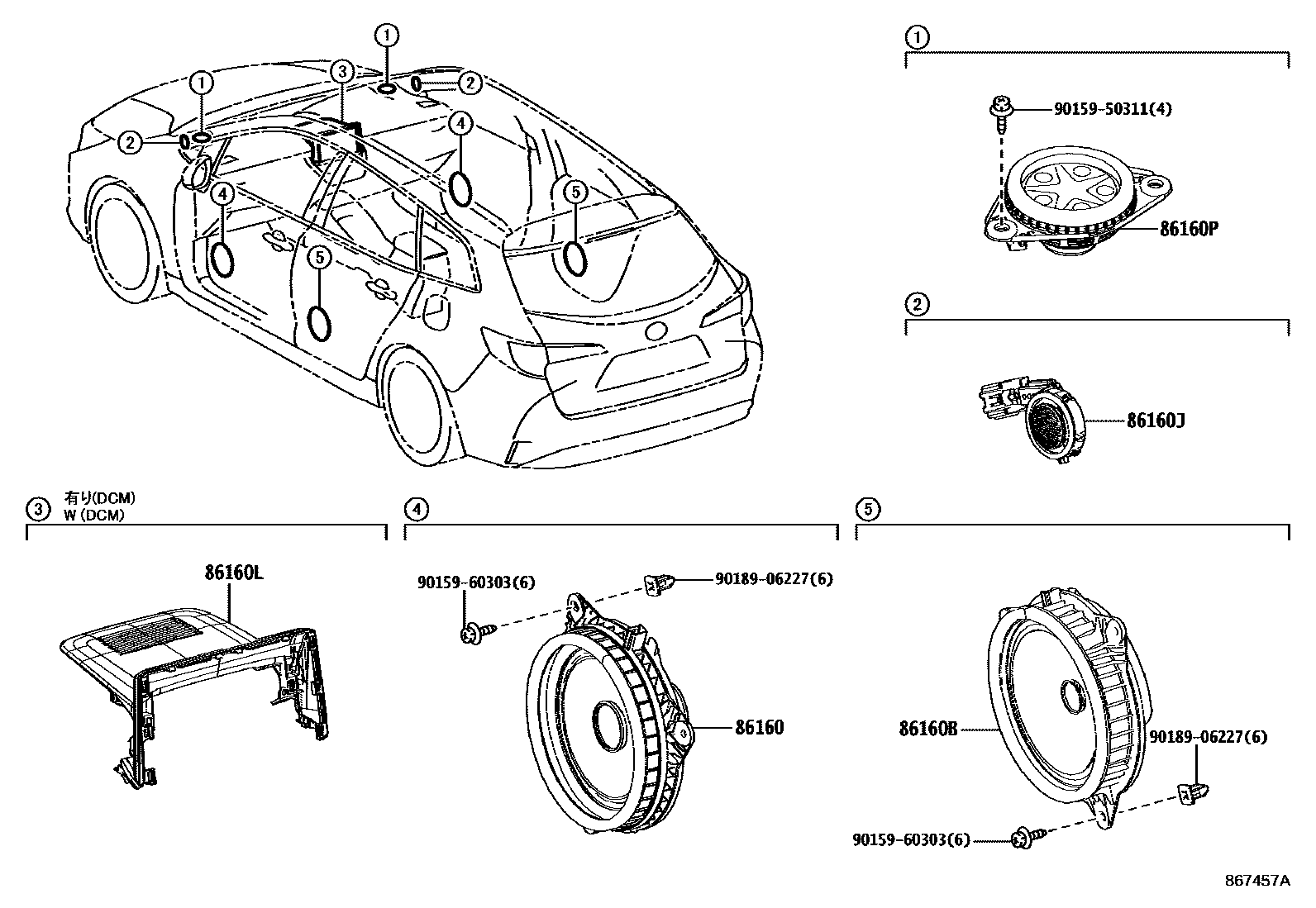

Toyota COROLLA 扬声器 EPC diagram — 867457A — 扬声器 — 867457A (201901 – 999999)

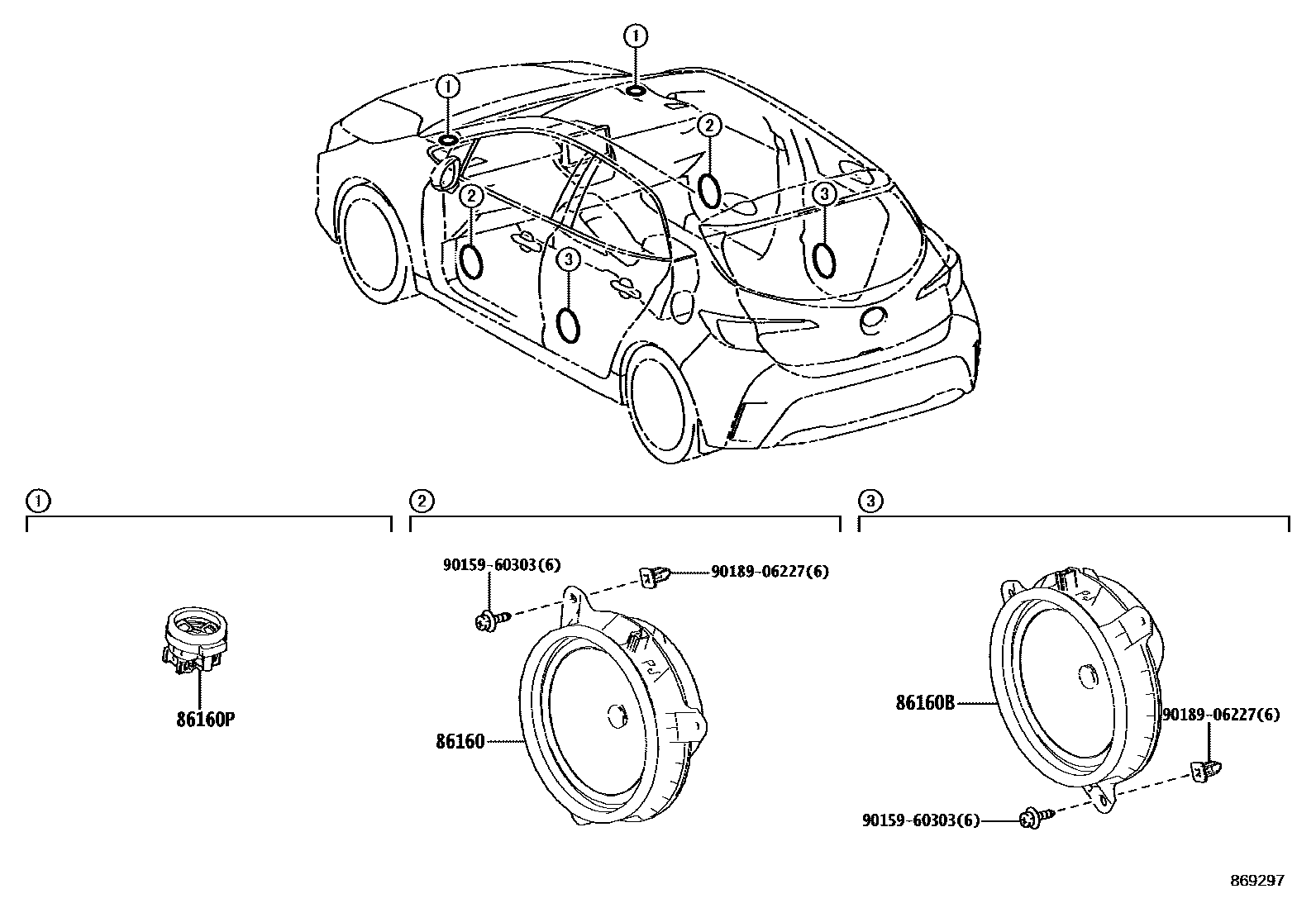

Toyota COROLLA 扬声器 EPC diagram — 869297 — 扬声器 — 869297 (202204 – 999999)

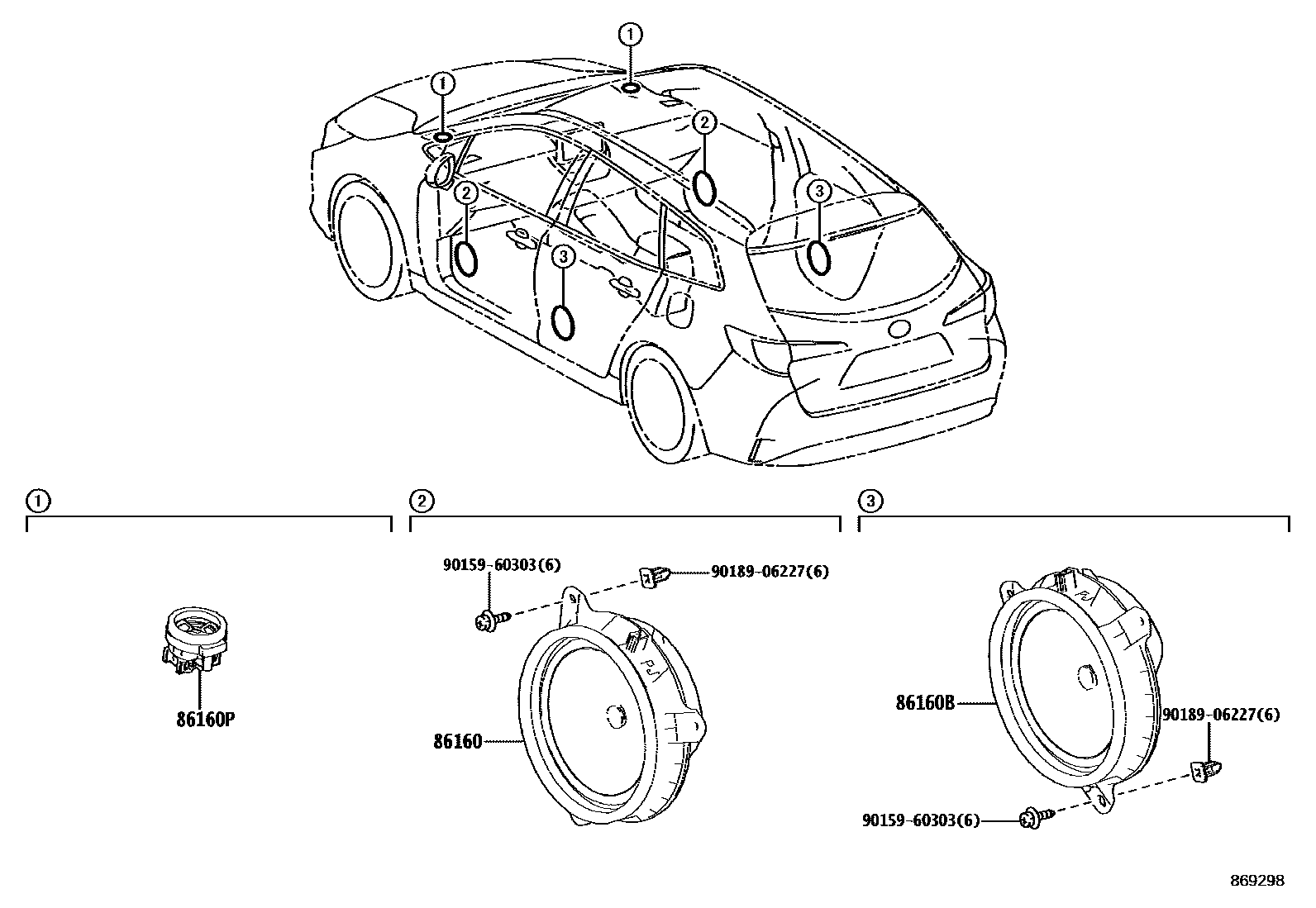

Toyota COROLLA 扬声器 EPC diagram — 869298 — 扬声器 — 869298 (202204 – 999999)

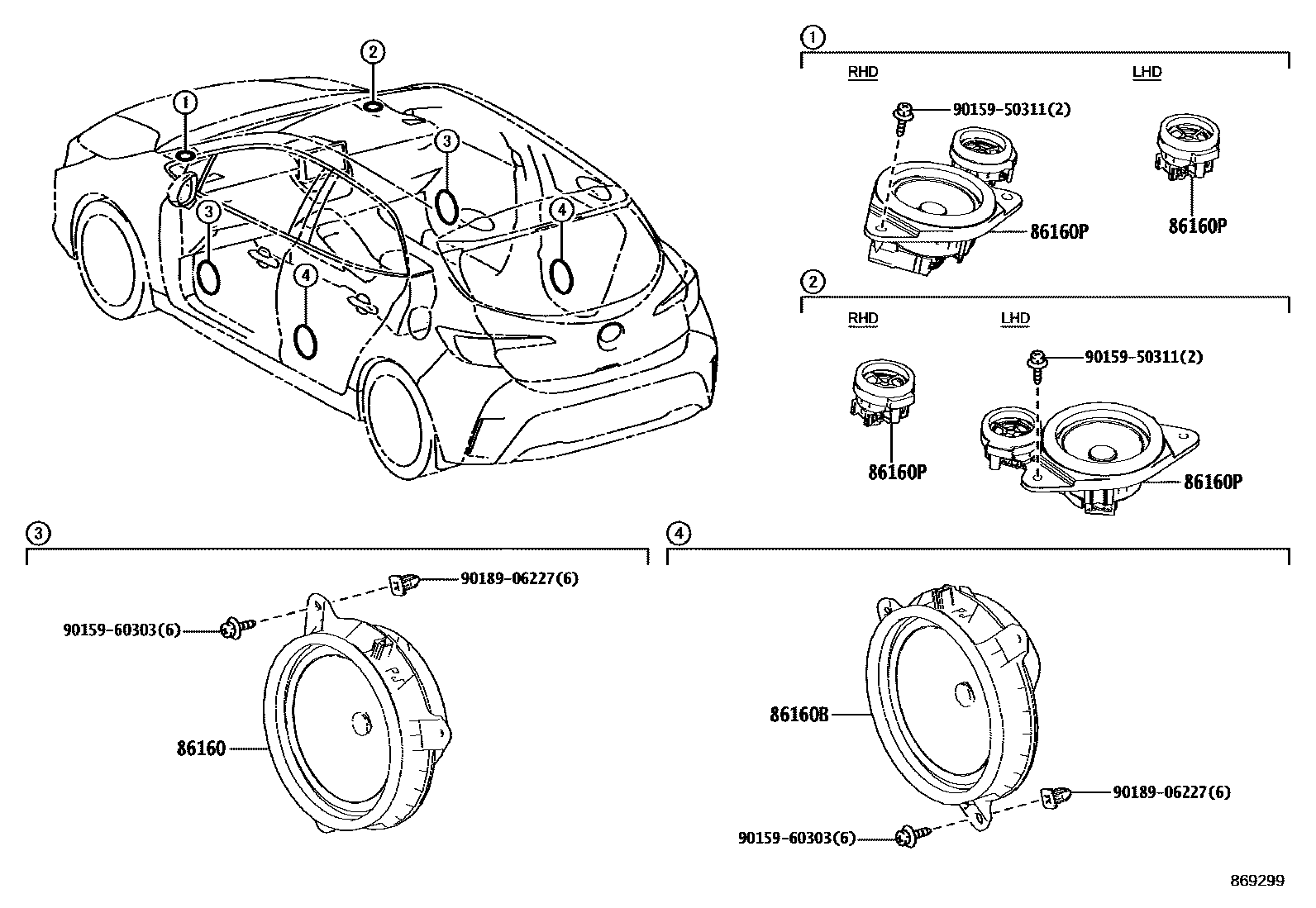

Toyota COROLLA 扬声器 EPC diagram — 869299 — 扬声器 — 869299 (202204 – 999999)

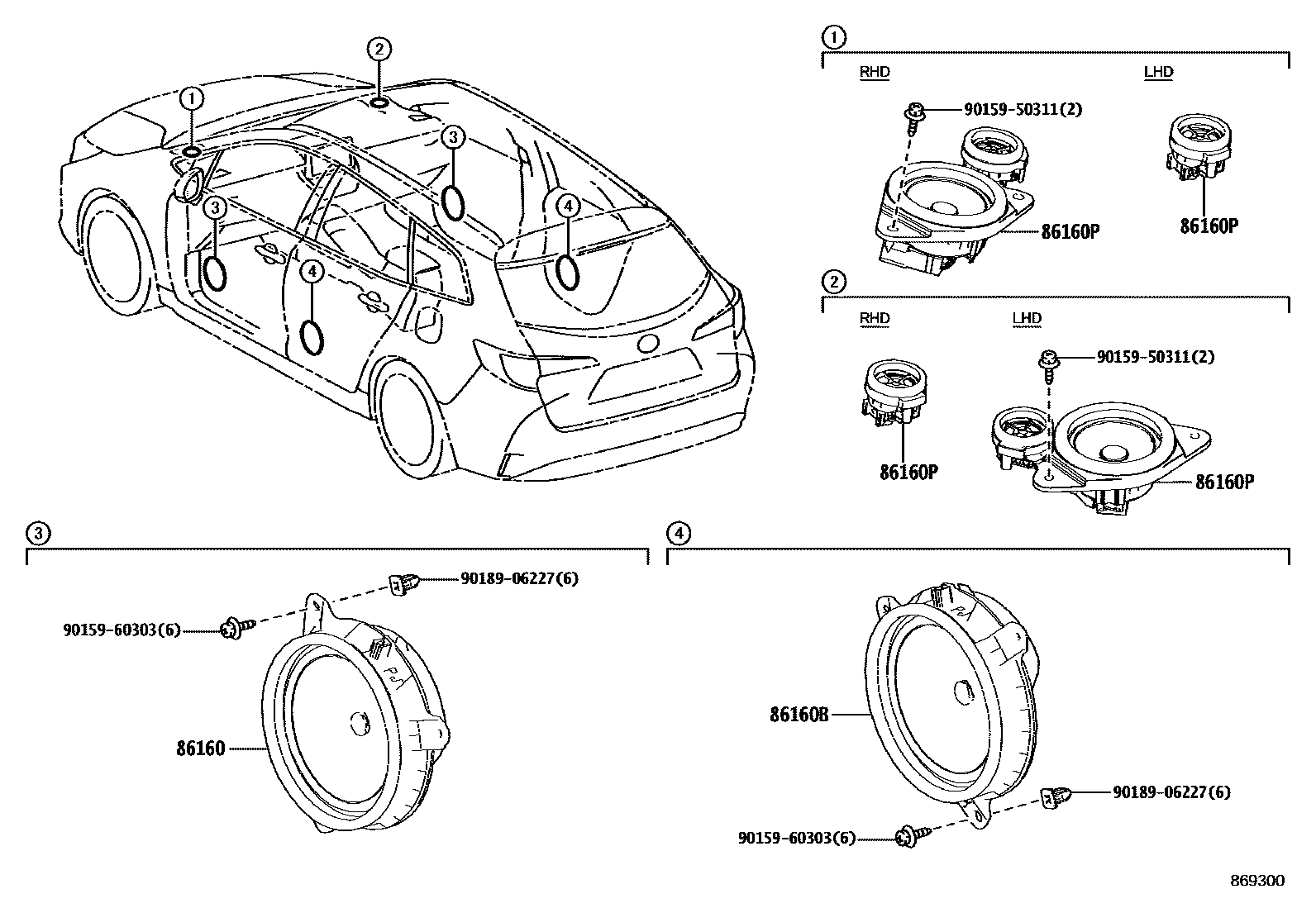

Toyota COROLLA 扬声器 EPC diagram — 869300 — 扬声器 — 869300 (202204 – 999999)

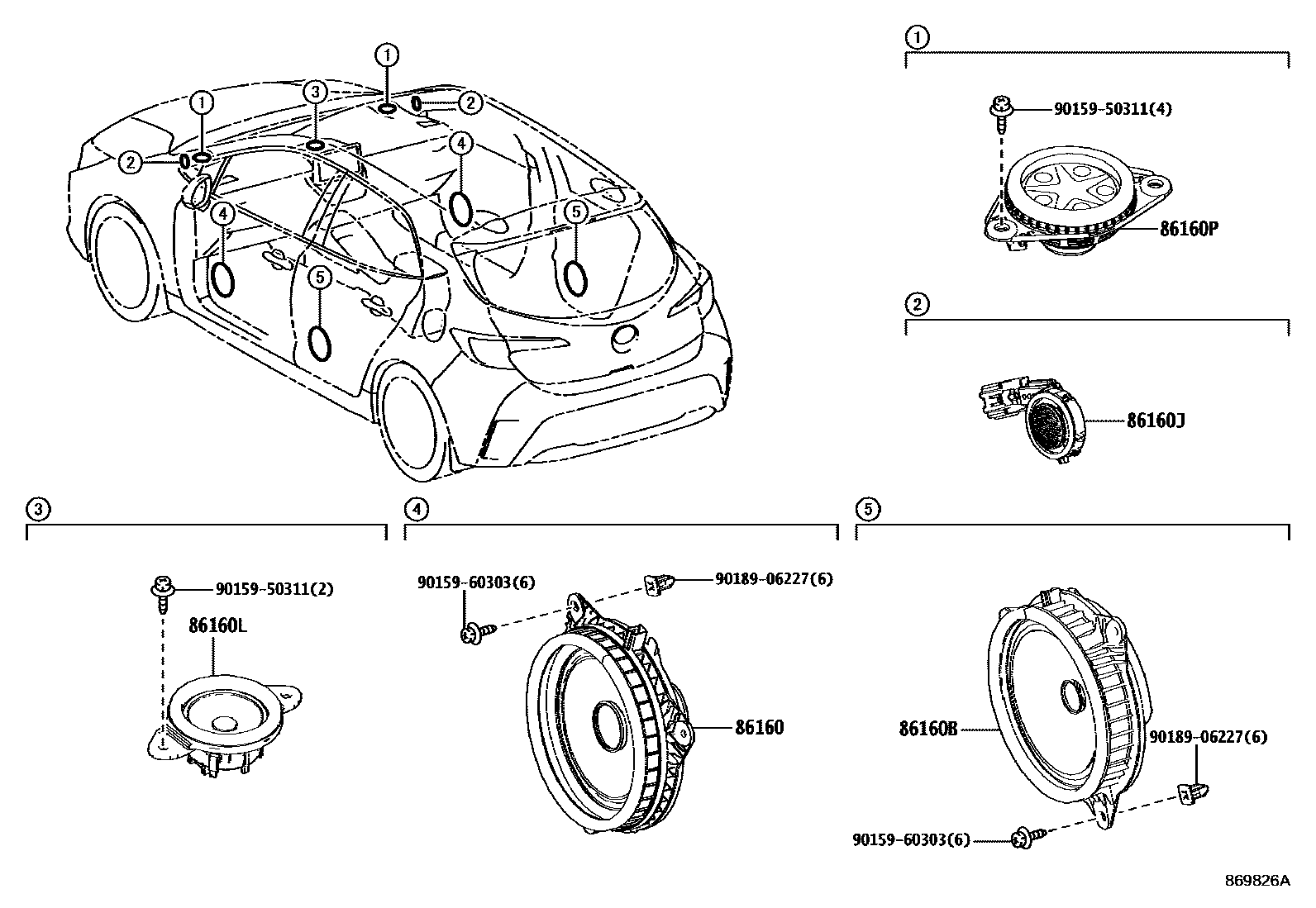

Toyota COROLLA 扬声器 EPC diagram — 869826A — 扬声器 — 869826A (202301 – 999999)

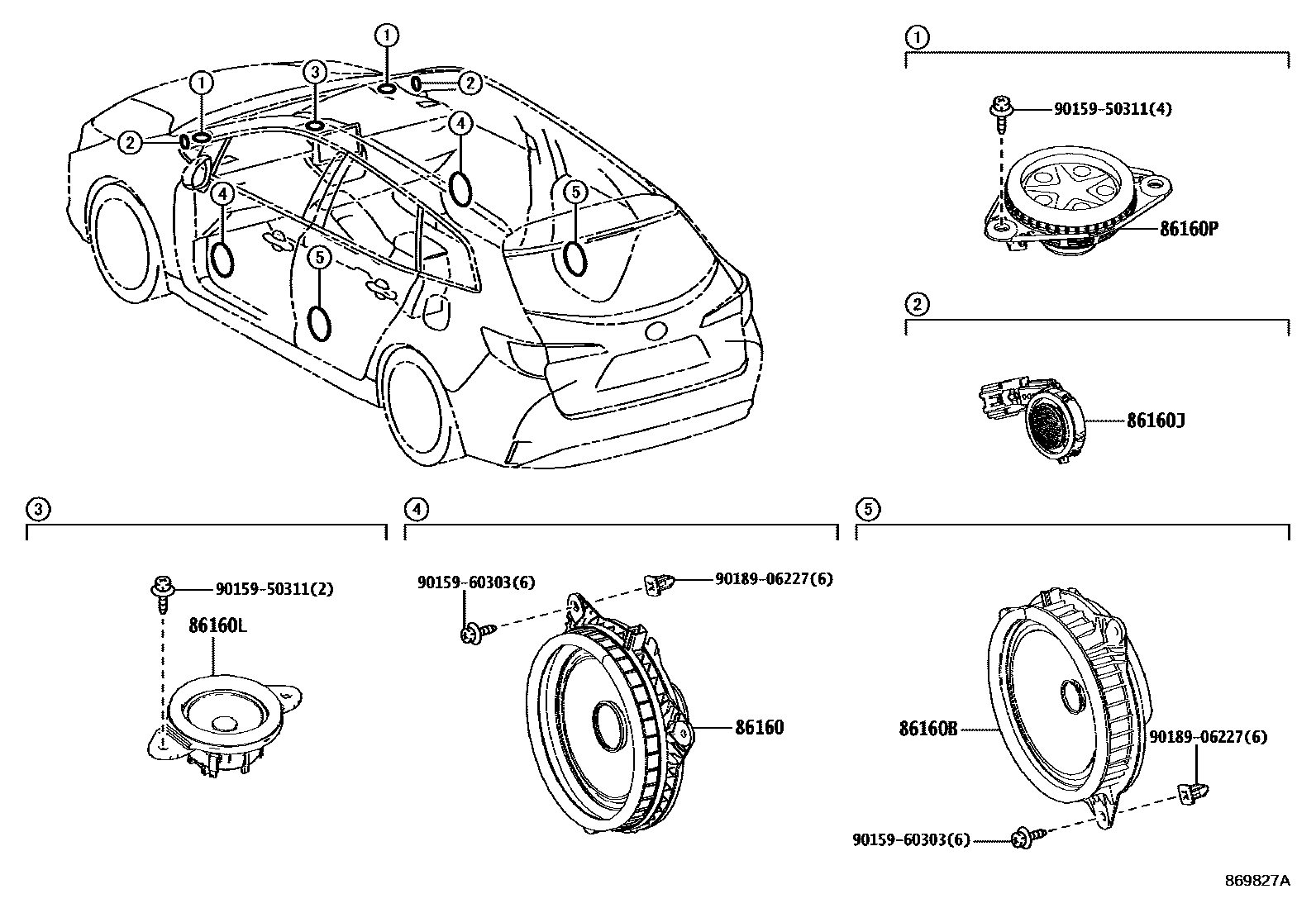

Toyota COROLLA 扬声器 EPC diagram — 869827A — 扬声器 — 869827A (202301 – 999999)

PNC and OE references

PNC	Part name	OE numbers
86160	No. 1 front speaker assembly	86160-02B80 · 86160-02D10 · 86160-0D450
86160B	Rear speaker assembly	86160-02B70 · 86160-02B80 · 86160-0D450
86160J	No. 3 front speaker assembly	86150-02110 · 86150-02140
86160L	No. 4 front speaker assembly	86150-02220 · 86150-0H010
86160P	No. 2 front speaker assembly	86150-02160 · 86150-02170 · 86150-02180 · 86150-02210
