Toyota COROLLA 后牌照灯 — Figure 8113

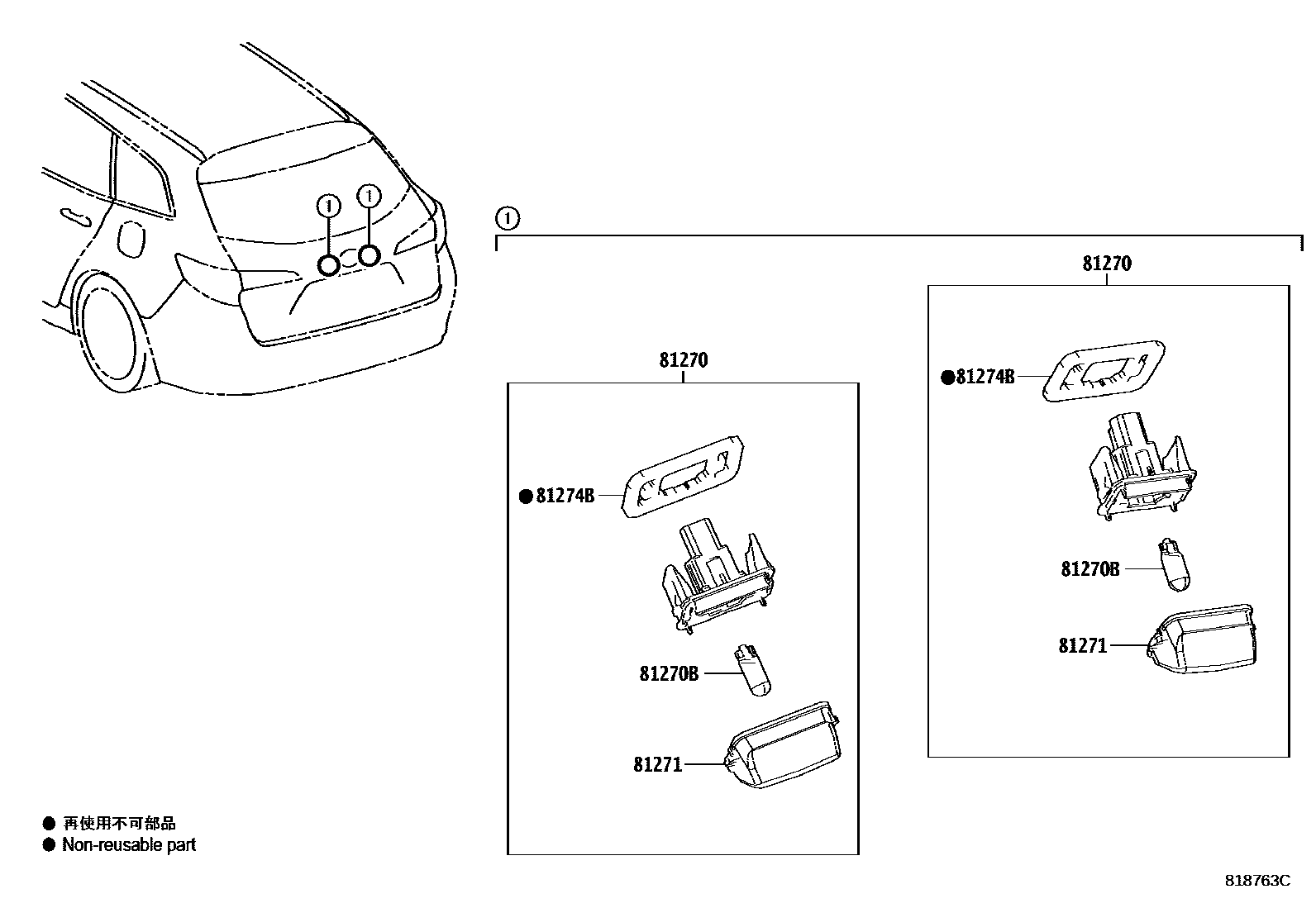

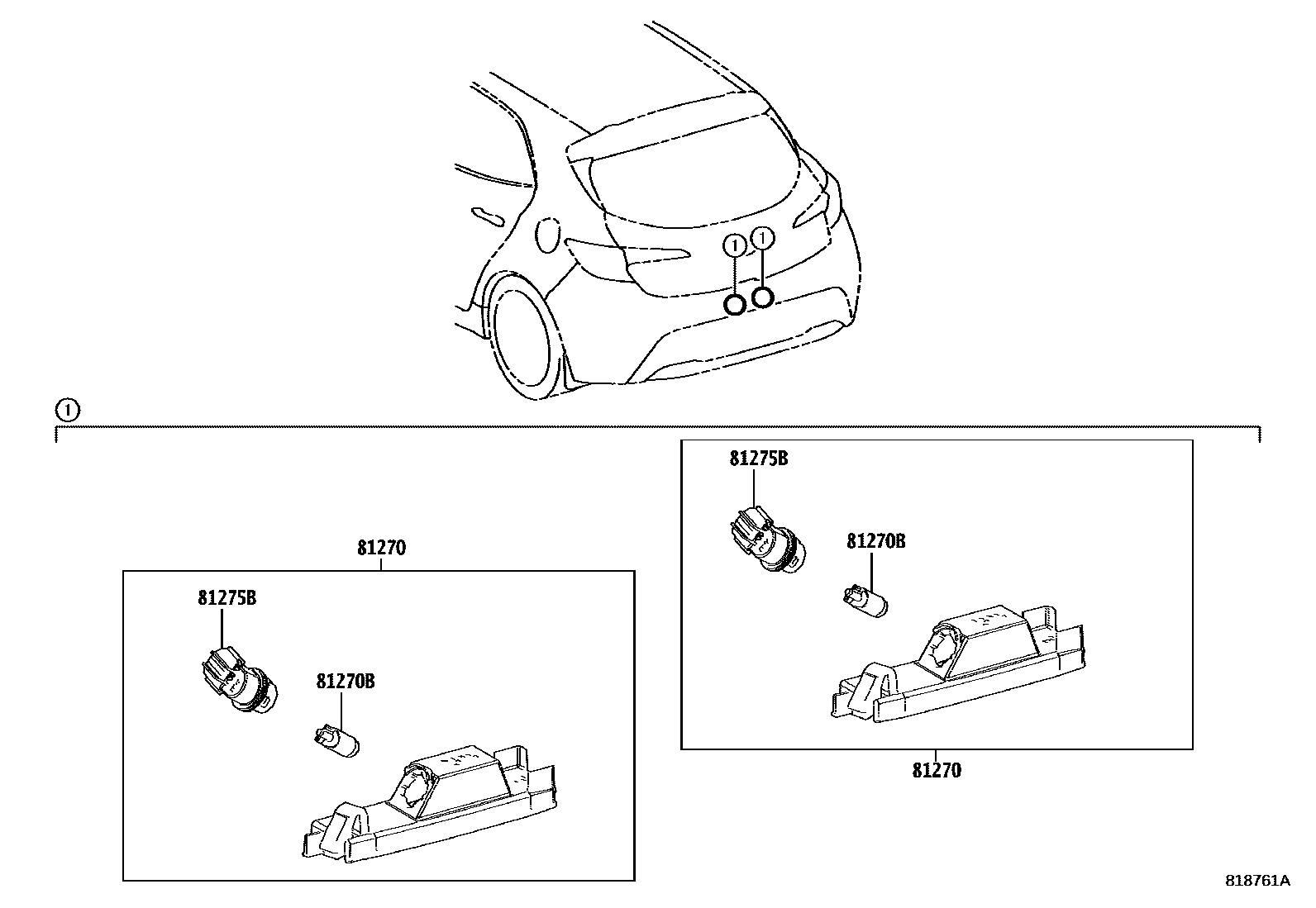

Toyota COROLLA EPC diagram 8113, 后牌照灯, with 2 images and 5 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 81270 | License plate light assembly | 81270-02230 · 81270-0D120 |
| 81270B | Bulb (for license plate light) | 90981-WB021 · 99132-12050 |
| 81271 | license plate lamp shade | 81271-0D120 |
| 81274B | license plate light seal | 81274-02130 |
| 81275B | License plate light lamp holder plug | 81278-02230 |
