Toyota COROLLA 后组合灯 — Figure 8111

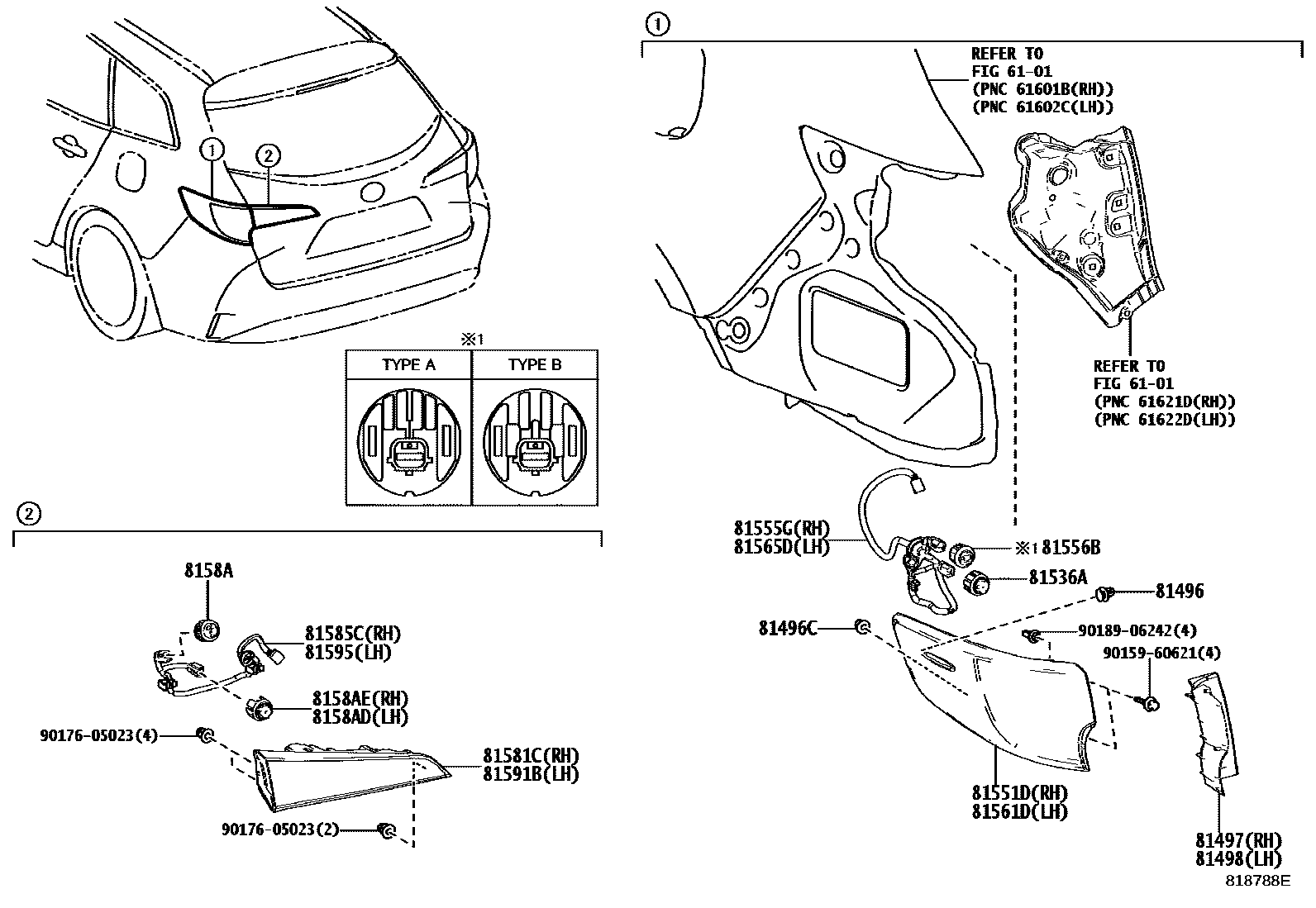

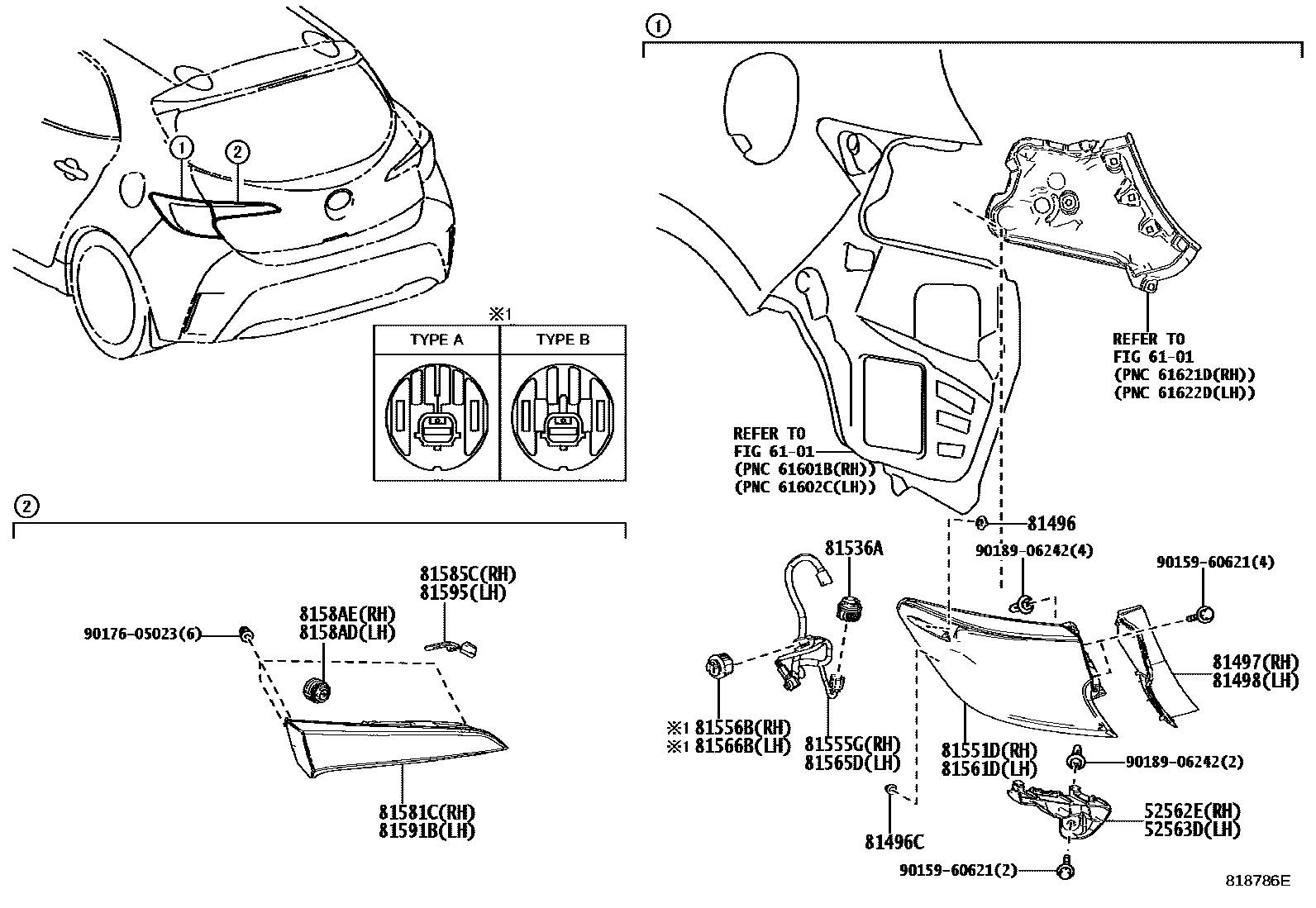

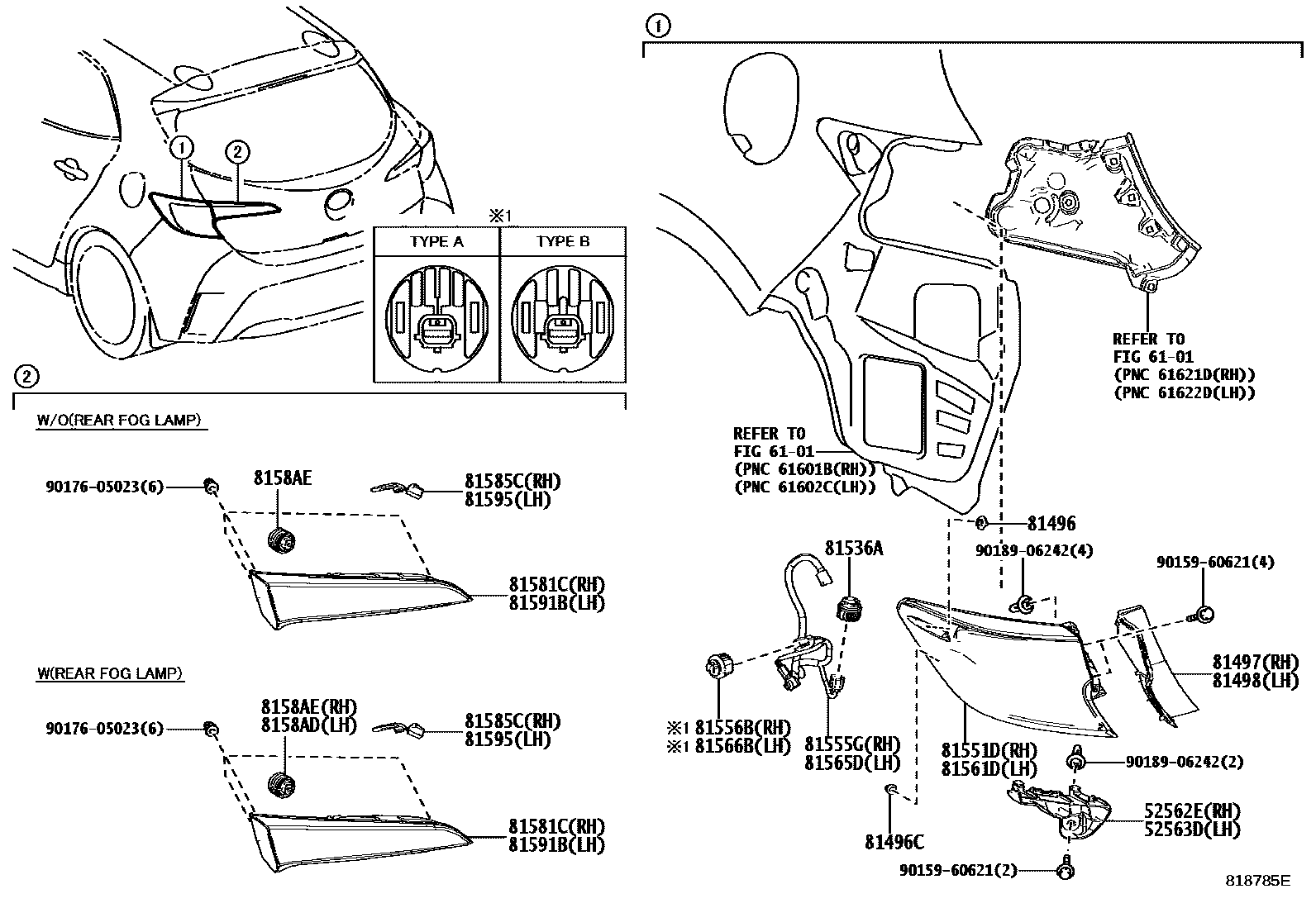

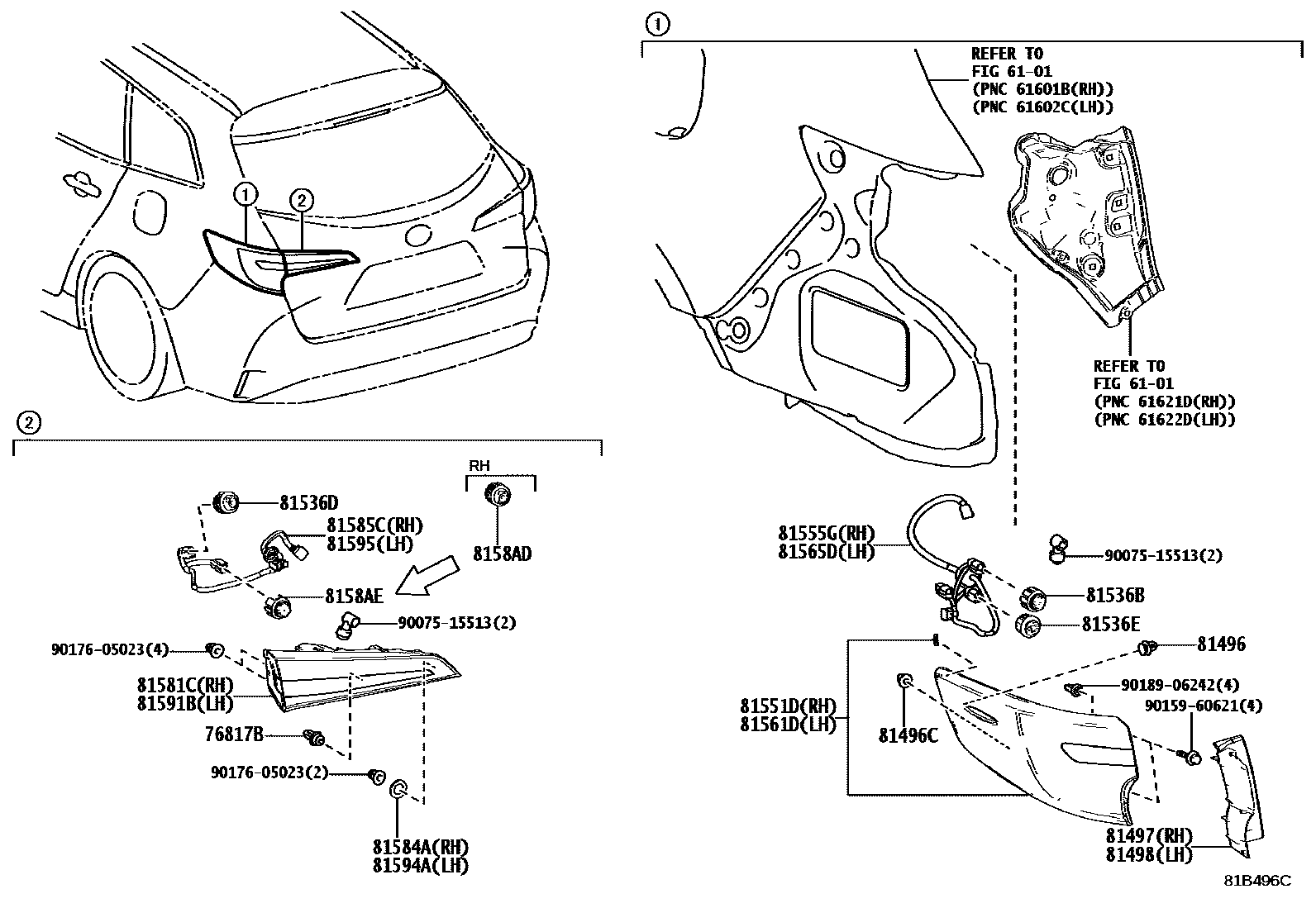

Toyota COROLLA EPC diagram 8111, 后组合灯, with 6 images and 26 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 52562E | Rear bumper upper right fixing bracket | 52562-02350 |
| 52563D | Rear bumper upper left fixing bracket | 52563-02320 |
| 76817B | ATTACHE, FEU ARR | 90467-09224 |
| 81496 | Rear combination light guide block | 81496-50010 |
| 81496C | No. 2 rear combination light guide block | 81496-52020 |
| 81497 | Right rear combination lamp cover | 81497-02040 · 81497-02050 · 81497-02130 |
| 81498 | Left rear combination lamp cover | 81498-02040 · 81498-02050 · 81498-02130 |
| 81536A | Rear LED combination light | 81536-12D30 |
| 81536B | LED, CLIGNOTANT ARRIERE | 81536-12D30 |
| 81536D | LED, FEU ARR | 8158A-0D610 |
| 81536E | LED, FEU STOP | 81965-70010 |
| 81551D | Right rear combination lamp shade and lamp body | 81551-02C80 · 81551-02D30 · 81551-02F10 · 81551-02F40 |
| 81555G | CABLE, BLOC OPTIQUE ARRIERE, MD | 81555-02C80 · 81555-02D30 · 81555-02F40 |
| 81556B | Right rear combination light LED | 81536-15120 · 81965-70010 |
| 81561D | Left rear combination lamp lampshade and lamp body | 81561-02C40 · 81561-02D30 · 81561-02F10 · 81561-02F40 |
| 81565D | CABLE, BLOC OPTIQUE ARRIERE, MG | 81565-02C40 · 81565-02D30 · 81565-02F40 |
| 81566B | Left rear combination light LED | 81536-15120 |
| 81581C | Right rear light lampshade and lamp body | 81581-02B80 · 81581-02B90 · 81581-02C60 · 81581-02C70 · 81581-02E50 · 81581-02E60 · 81581-02E80 · 81581-02E90 |
| 81584A | Right rear light gasket | 81584-12190 |
| 81585C | Right rear light lamp holder and wiring harness | 81585-02B80 · 81585-02B90 · 81585-02C60 · 81585-02C70 · 81585-02E80 · 81585-02E90 |
| 8158A | LED, FEU ARRIERE | 8158A-0D610 |
| 8158AD | LED, FEU ANTIBROUILLARD ARR | 8158A-0D610 |
| 8158AE | LED, FEU RECUL | 8158A-12260 · 81965-02080 |
| 81591B | Left rear light shade and body | 81591-02770 · 81591-02B10 · 81591-02C60 · 81591-02C70 · 81591-02E50 · 81591-02E60 · 81591-02E80 · 81591-02E90 |
| 81594A | Left rear light gasket | 81584-12190 |
| 81595 | Left rear light lamp holder and wiring harness | 81585-02B80 · 81585-02B90 · 81595-02C60 · 81595-02C70 · 81595-02E80 · 81595-02E90 |
