Toyota COROLLA Fog Lamp — Figure 8102

Toyota COROLLA EPC diagram 8102, Fog Lamp, with 2 images and 5 PNC and OE references.

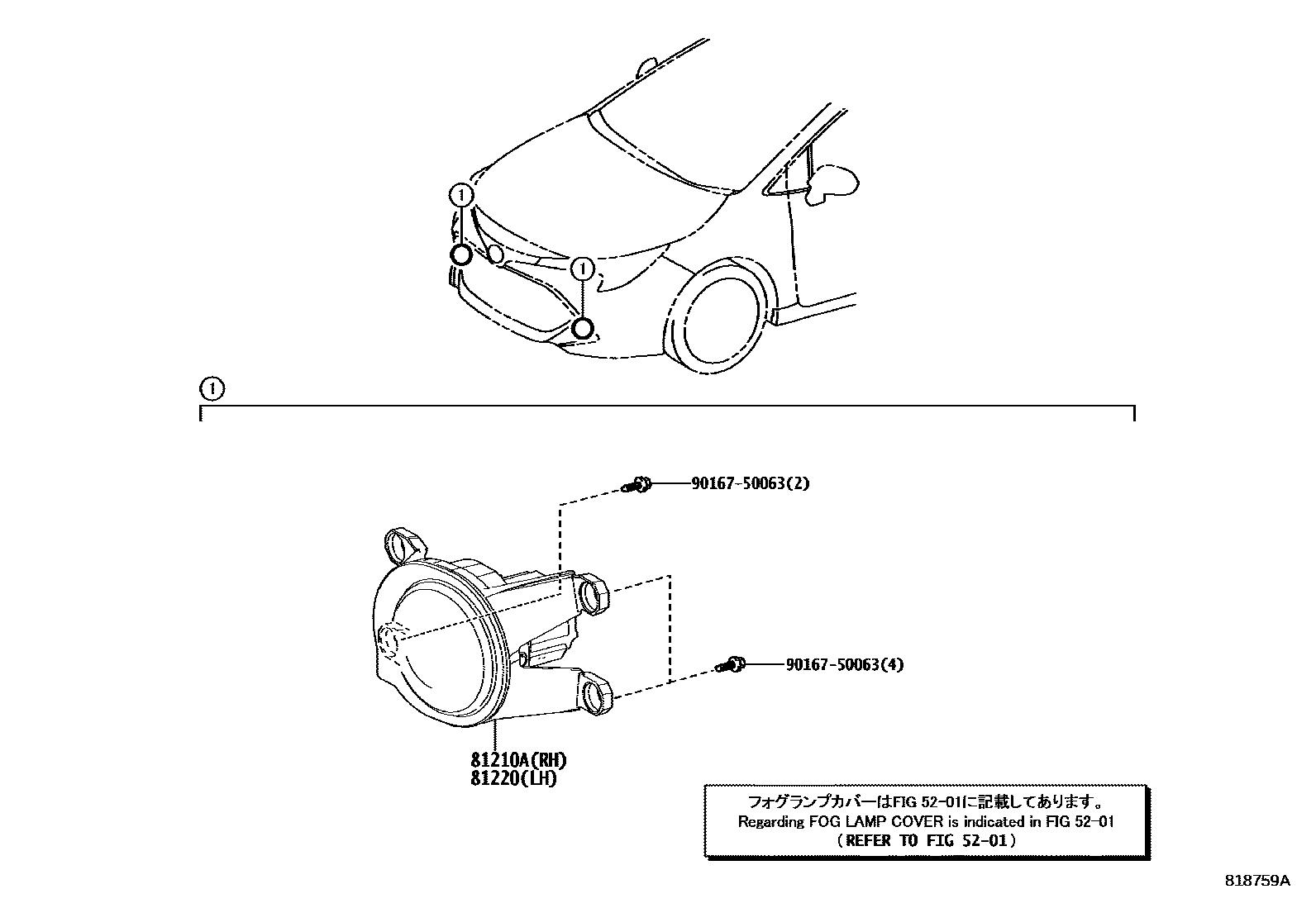

Toyota COROLLA Fog Lamp EPC diagram — 818759A
Fog Lamp — 818759A (201901 – 999999)

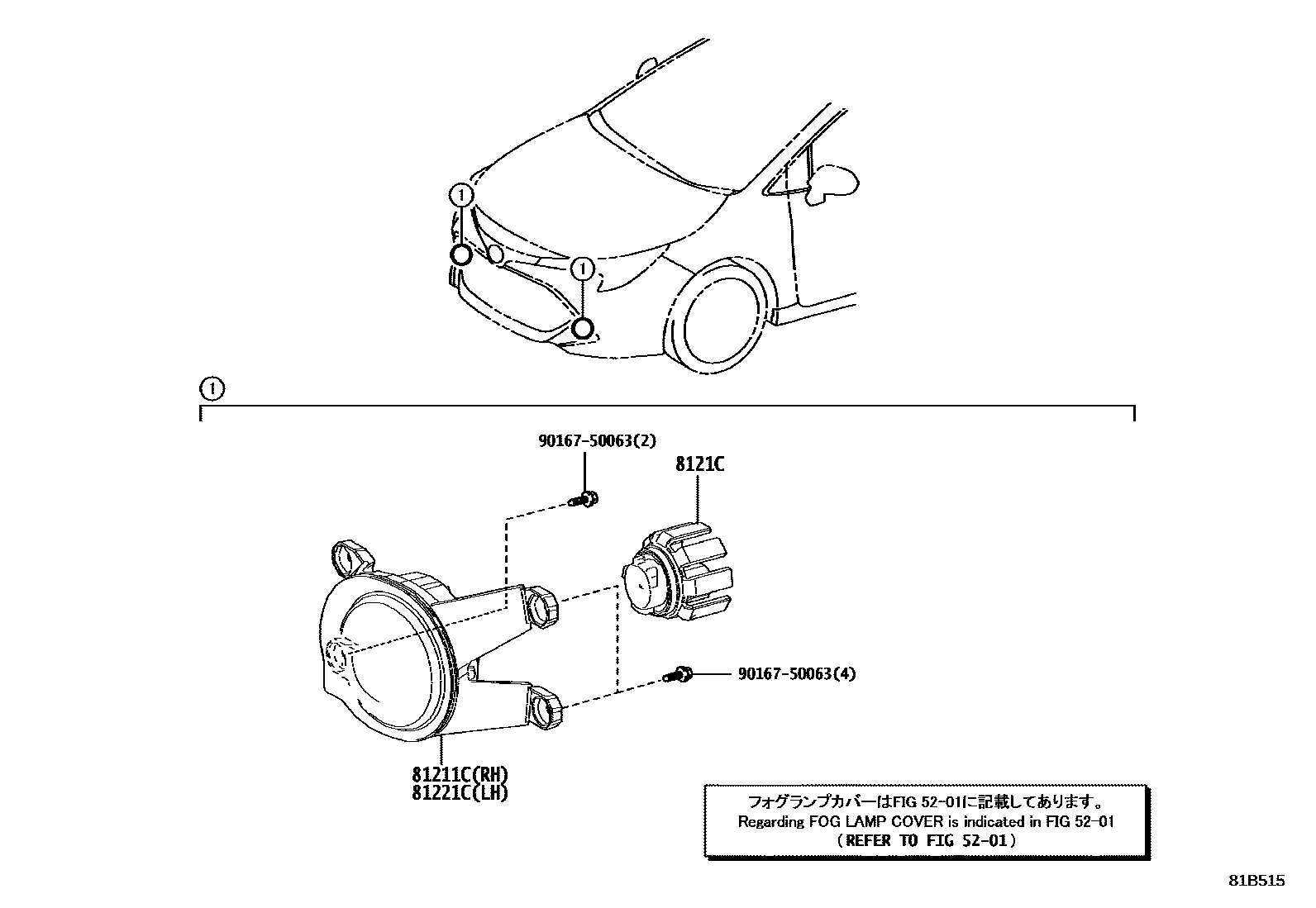

Toyota COROLLA Fog Lamp EPC diagram — 81B515
Fog Lamp — 81B515 (202301 – 999999)

PNC and OE references

PNCPart nameOE numbers
81210ARight fog light assembly81210-02190
81211CRight fog light assembly81211-02190
8121CDMY8121C-02190
81220Left fog light assembly81220-02190
81221CLeft fog light assembly81221-02190
