Toyota COROLLA Headlamp — Figure 8101

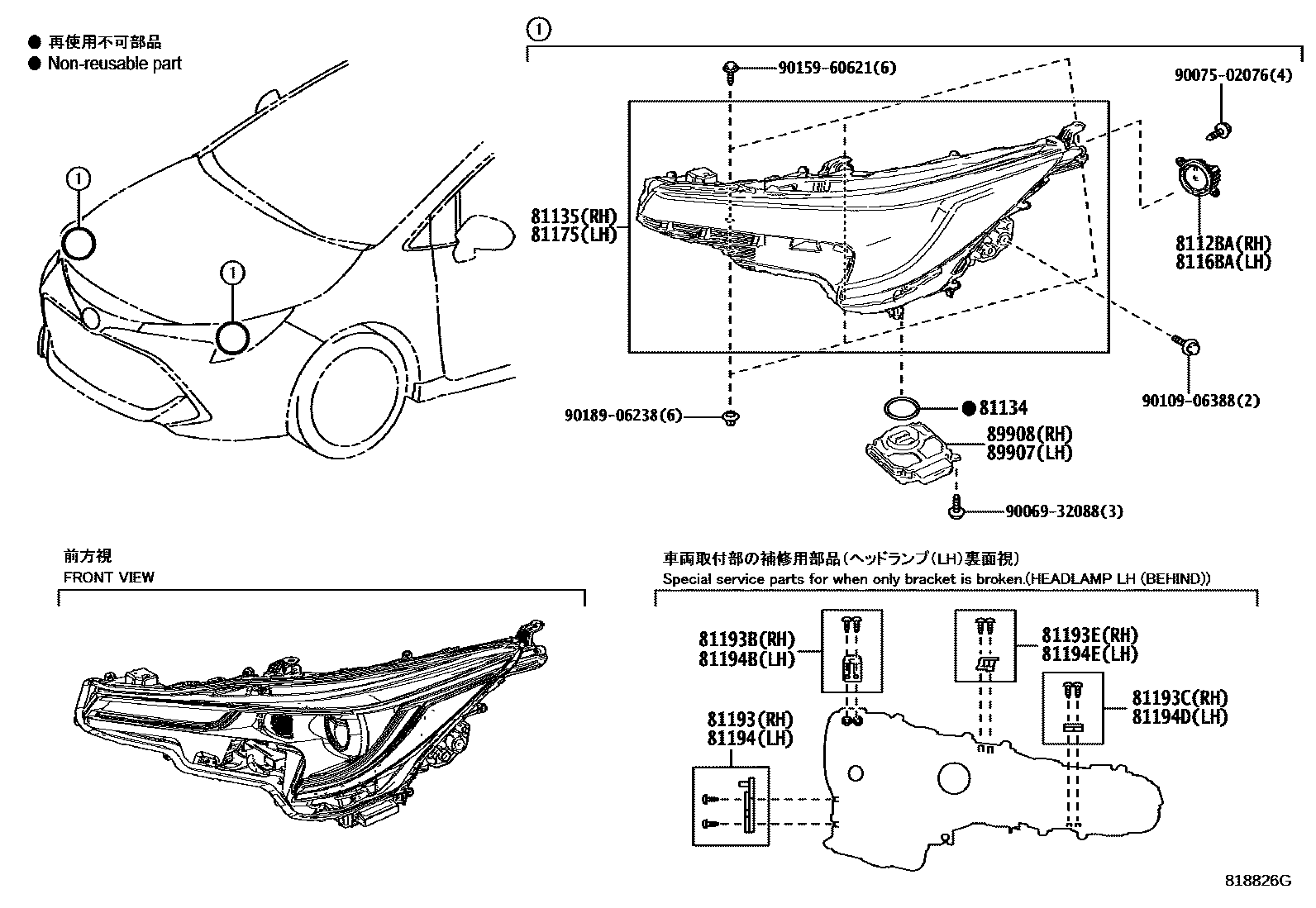

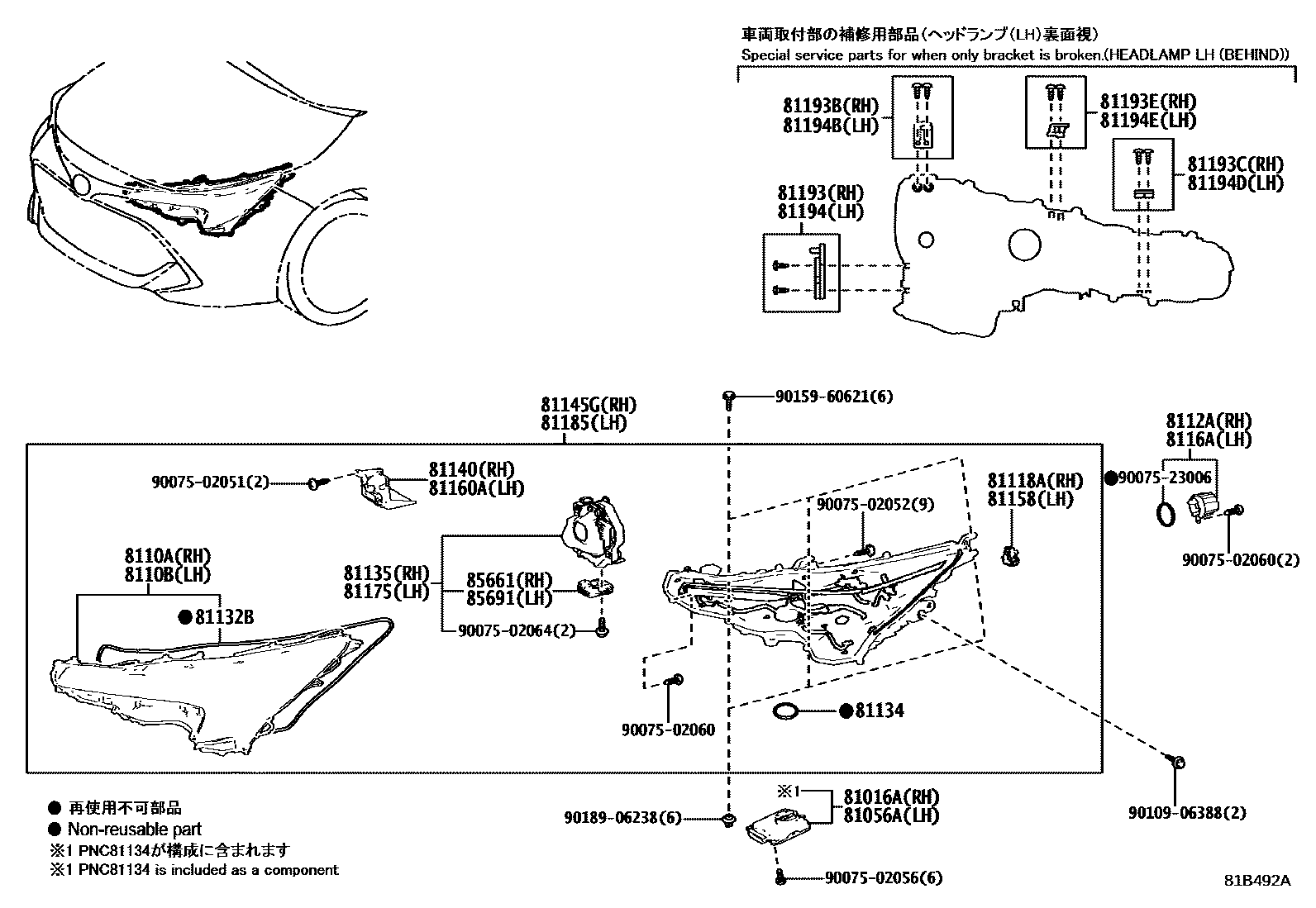

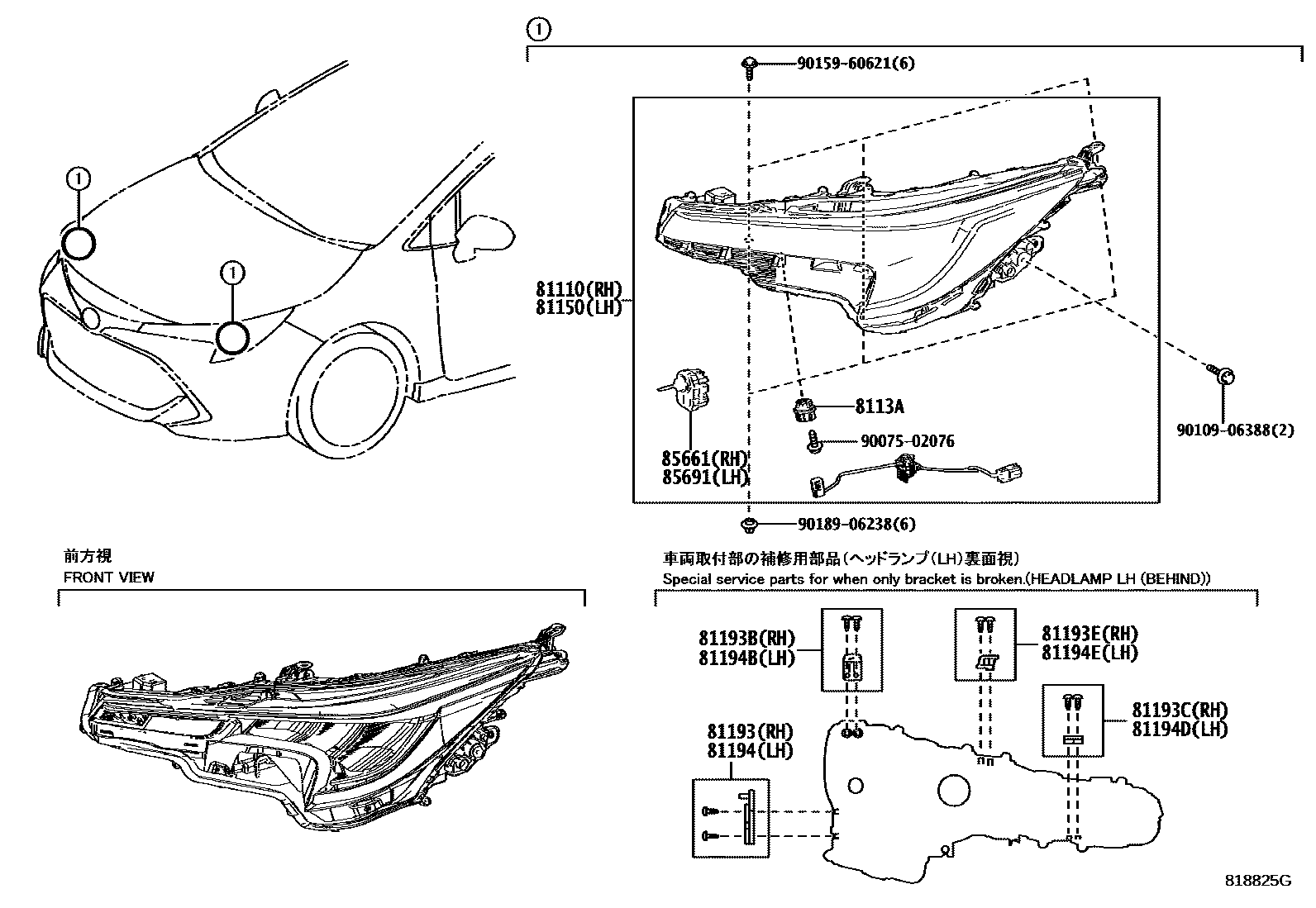

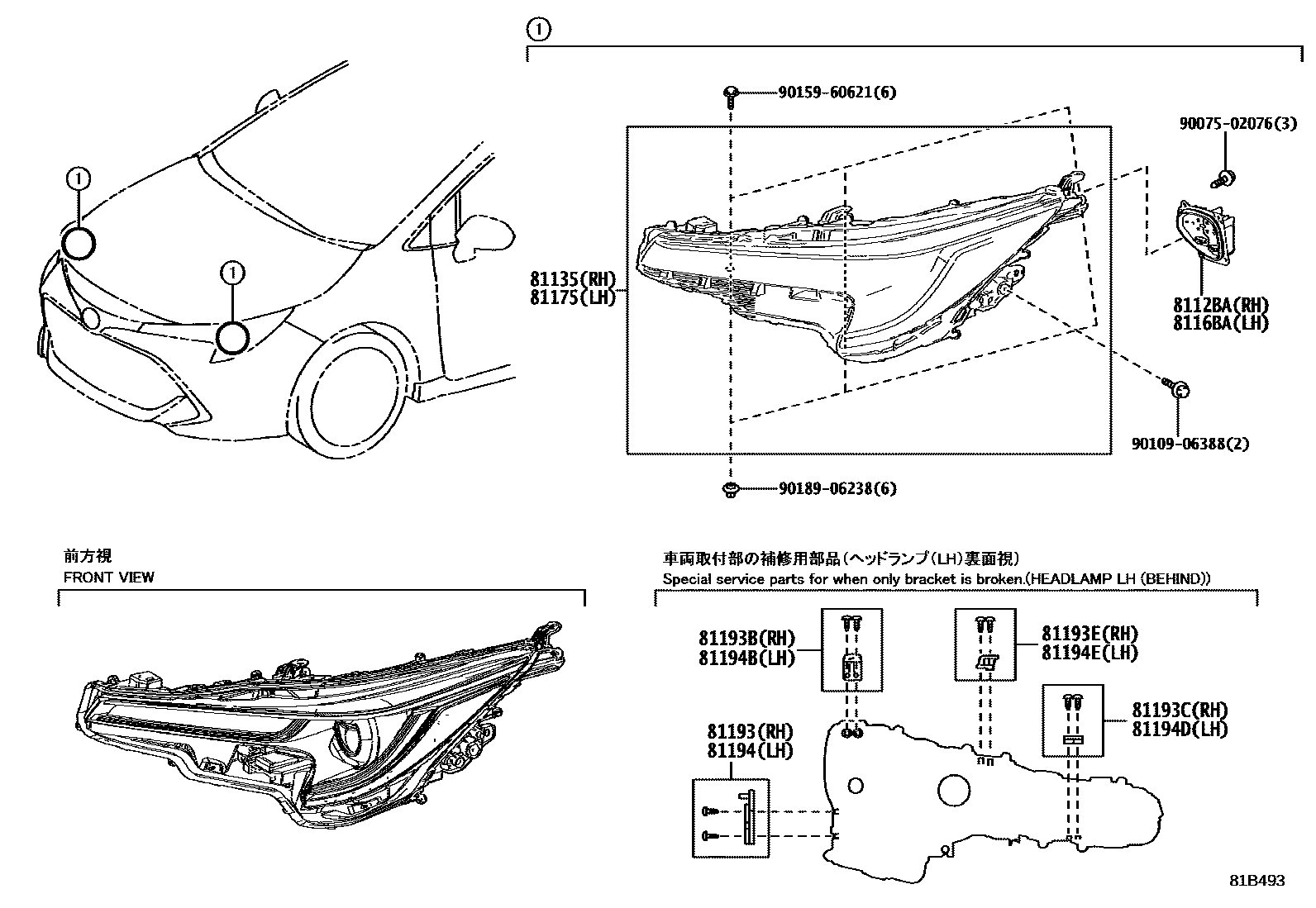

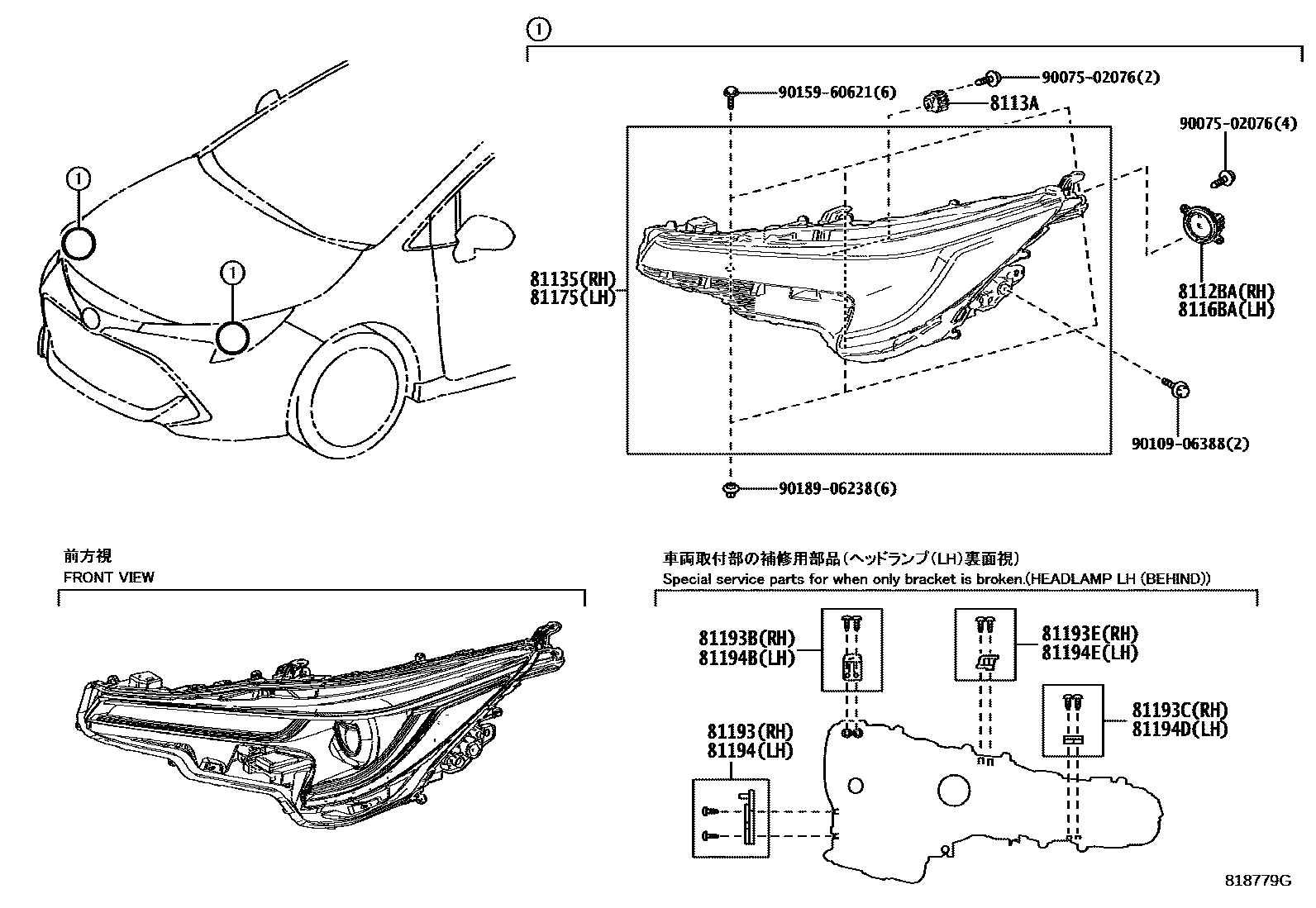

Toyota COROLLA EPC diagram 8101, Headlamp, with 5 images and 33 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 81016A | SOUS-ENS.ORDINATEUR, PROJECTEUR AVANT, DROIT | 81016-12N80 |
| 81056A | SOUS-ENS.ORDINATEUR, PROJECTEUR AVANT, GAUCHE | 81056-12N80 |
| 8110A | SOUS-ENS. OPTIQUE, PHARE, MD | 8110A-12N80 |
| 8110B | SOUS-ENS. OPTIQUE, PHARE, MG | 8110B-12N80 |
| 81110 | Right headlight assembly | 00000-00000 · 81110-02S60 · 81110-02T00 |
| 81118A | Right headlight bracket | 81118-76310 |
| 8112A | BOITIER, LED FEUX DE GABARIT, NO.1 MD | 8112A-12N30 |
| 8112BA | AMPOULE, ECLAIRAGE DE JOUR LED, MD | 8112B-02S70 · 8112B-02X10 |
| 81132B | Headlight cover gasket | 81132-48C30 |
| 81134 | headlight gasket | 90075-23003 · 90075-23004 |
| 81135 | Right headlight assembly | 81130-02S70 · 81130-02S80 · 81130-02T10 · 81130-02T20 · 81130-02X10 · 81130-02X20 · 81130-12N70 · 81130-12N80 |
| 8113A | LED, CLIGNOTANT AV PHARE | 8113A-02S60 |
| 81140 | Right headlight LED assembly assembly | 81140-12N80 |
| 81145G | BOITIER, PHARE AVEC JOINT ETANCHEITE, MD | 81145-12N70 · 81145-12N80 |
| 81150 | Left headlight assembly | 00000-00000 · 81150-02S60 · 81150-02T00 |
| 81158 | Left headlight bracket | 81158-76310 |
| 81160A | Left headlight LED assembly assembly | 81160-12N80 |
| 8116A | BOITIER, LED FEUX DE GABARIT, NO.1 MG | 8116A-12N30 |
| 8116BA | AMPOULE, ECLAIRAGE DE JOUR LED, MG | 8116B-02S70 · 8116B-02X10 |
| 81175 | Left headlight assembly | 81170-02S70 · 81170-02S80 · 81170-02T10 · 81170-02T20 · 81170-02X10 · 81170-02X20 · 81170-12N70 · 81170-12N80 |
| 81185 | BOITIER, PHARE AVEC JOINT ETANCHEITE, MG | 81185-12N70 · 81185-12N80 |
| 81193 | Right headlight upper protective ring | 81193-12250 |
| 81193B | No. 2 headlight upper protection ring on the right | 81193-12260 |
| 81193C | Right headlight upper right protection ring | 81193-12270 |
| 81193E | RETENUE, PROTECTEUR PHARE, SUP. DR. NO.3 | 81193-12280 |
| 81194 | Left headlight upper protective ring | 81194-12250 |
| 81194B | No. 2 headlight upper protective ring on the left | 81194-12260 |
| 81194D | Left headlight upper left protective ring | 81194-12270 |
| 81194E | RETENUE, PROTECTEUR PHARE, SUP. GAUCHE NO.3 | 81194-12280 |
| 85661 | Right headlight beam height adjustment motor | 85661-45010 · 85661-68011 |
| 85691 | Left headlight beam height adjustment motor | 85661-68011 · 85691-45010 |
| 89907 | SOUS-ENS. ORDINATEUR, PHARE, MG | 89907-12050 |
| 89908 | SOUS-ENS. ORDINATEUR, PHARE, MD | 89908-12050 |
