Toyota COROLLA accelerator pedal connecting rod — Figure 7801

Toyota COROLLA EPC diagram 7801, accelerator pedal connecting rod, with 2 images and 1 PNC and OE references.

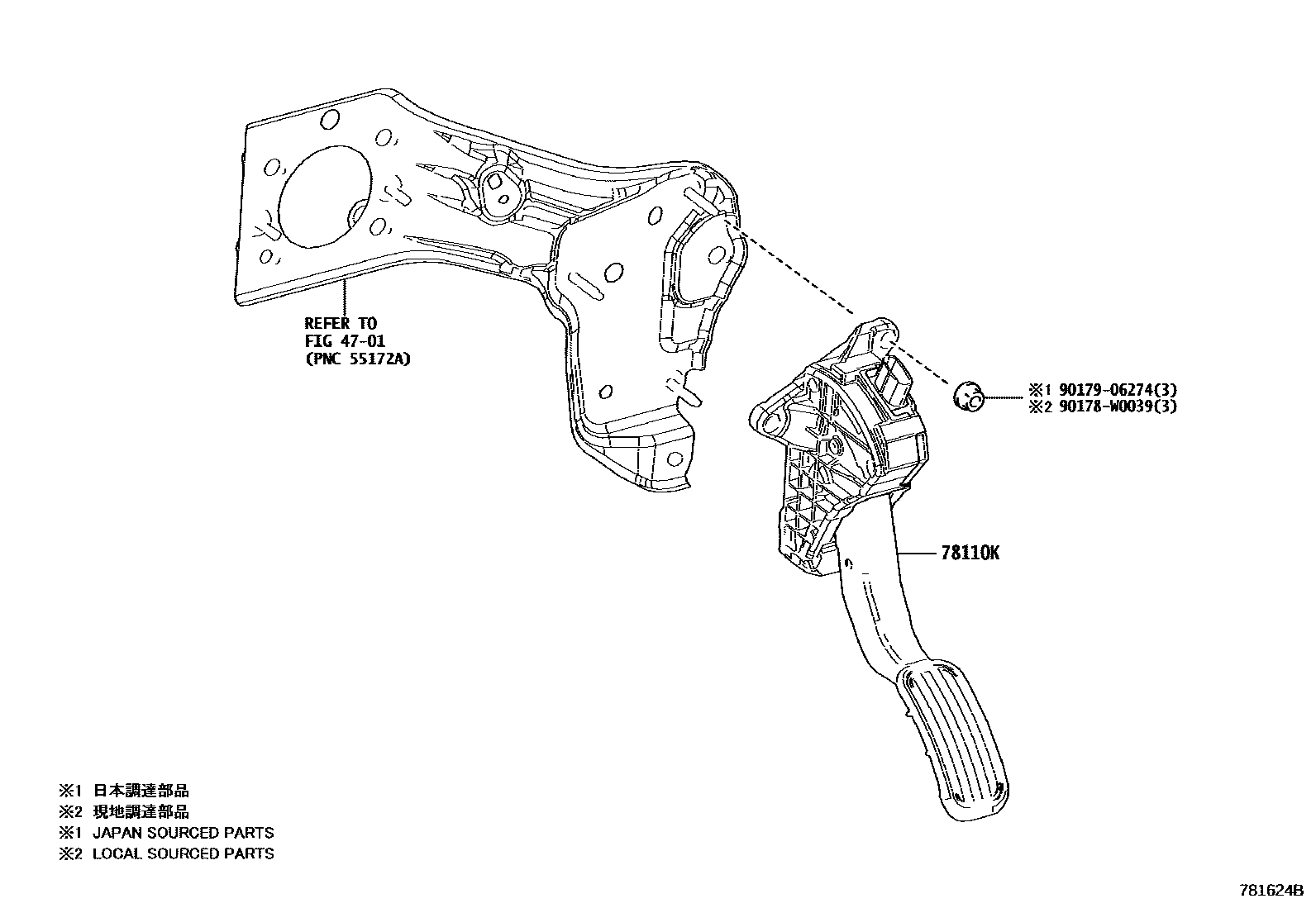

Toyota COROLLA accelerator pedal connecting rod EPC diagram — 781624B
accelerator pedal connecting rod — 781624B (201901 – 999999)

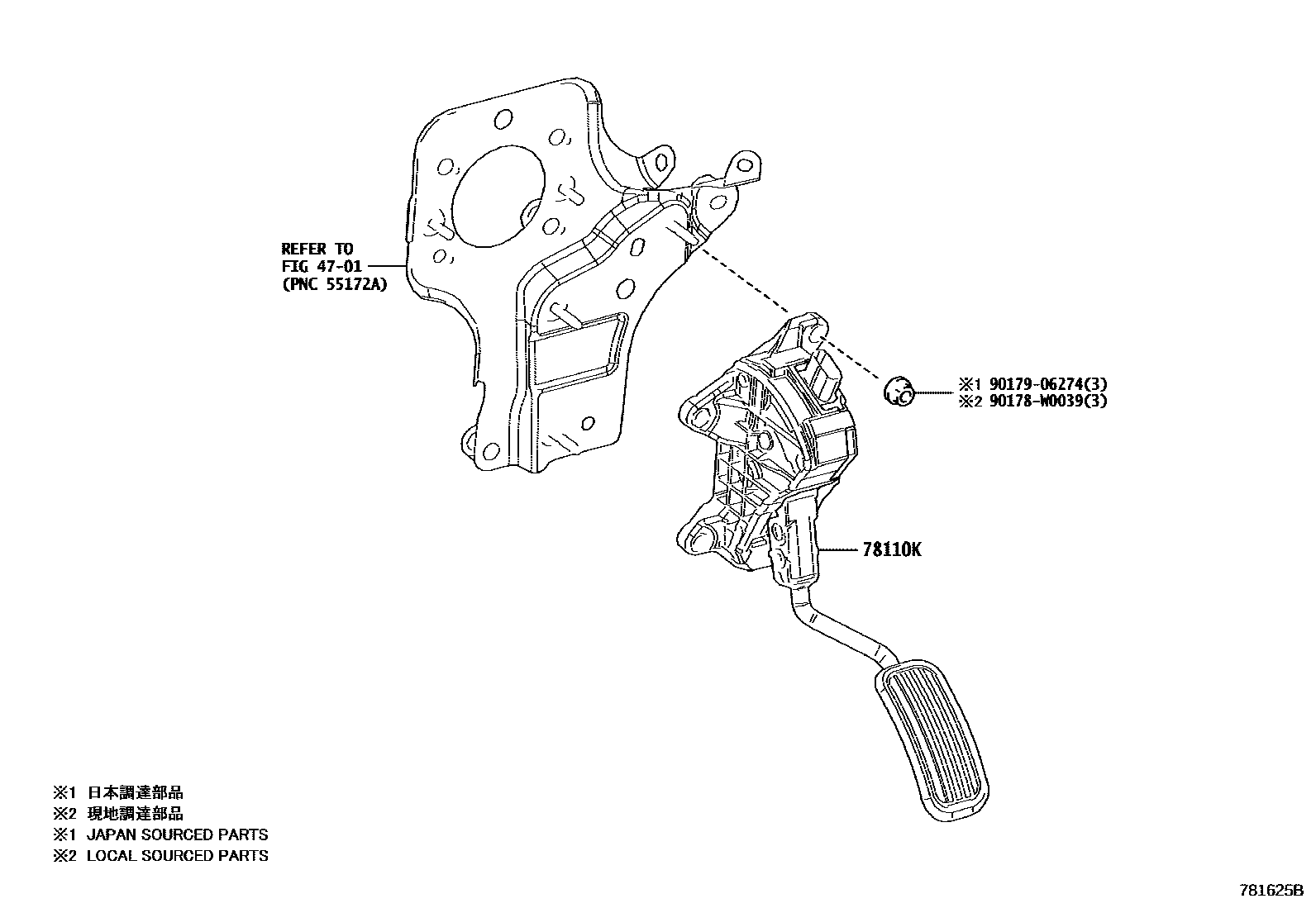

Toyota COROLLA accelerator pedal connecting rod EPC diagram — 781625B
accelerator pedal connecting rod — 781625B (201901 – 999999)

PNC and OE references

PNCPart nameOE numbers
78110KAccelerator pedal sensor assembly78110-02190 · 78110-02191 · 78110-02200 · 78110-02201 · 78110-02210 · 78110-02211
