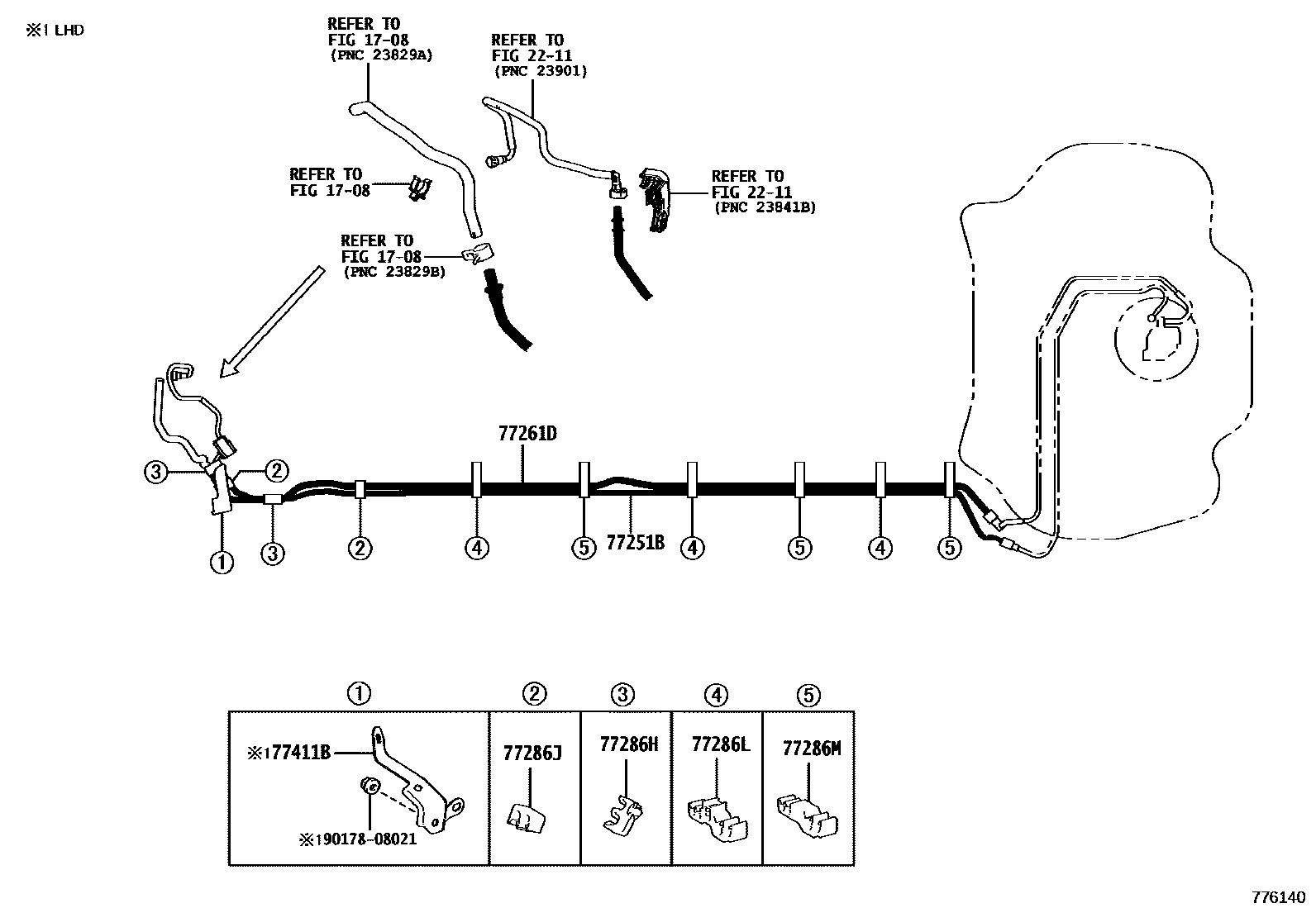

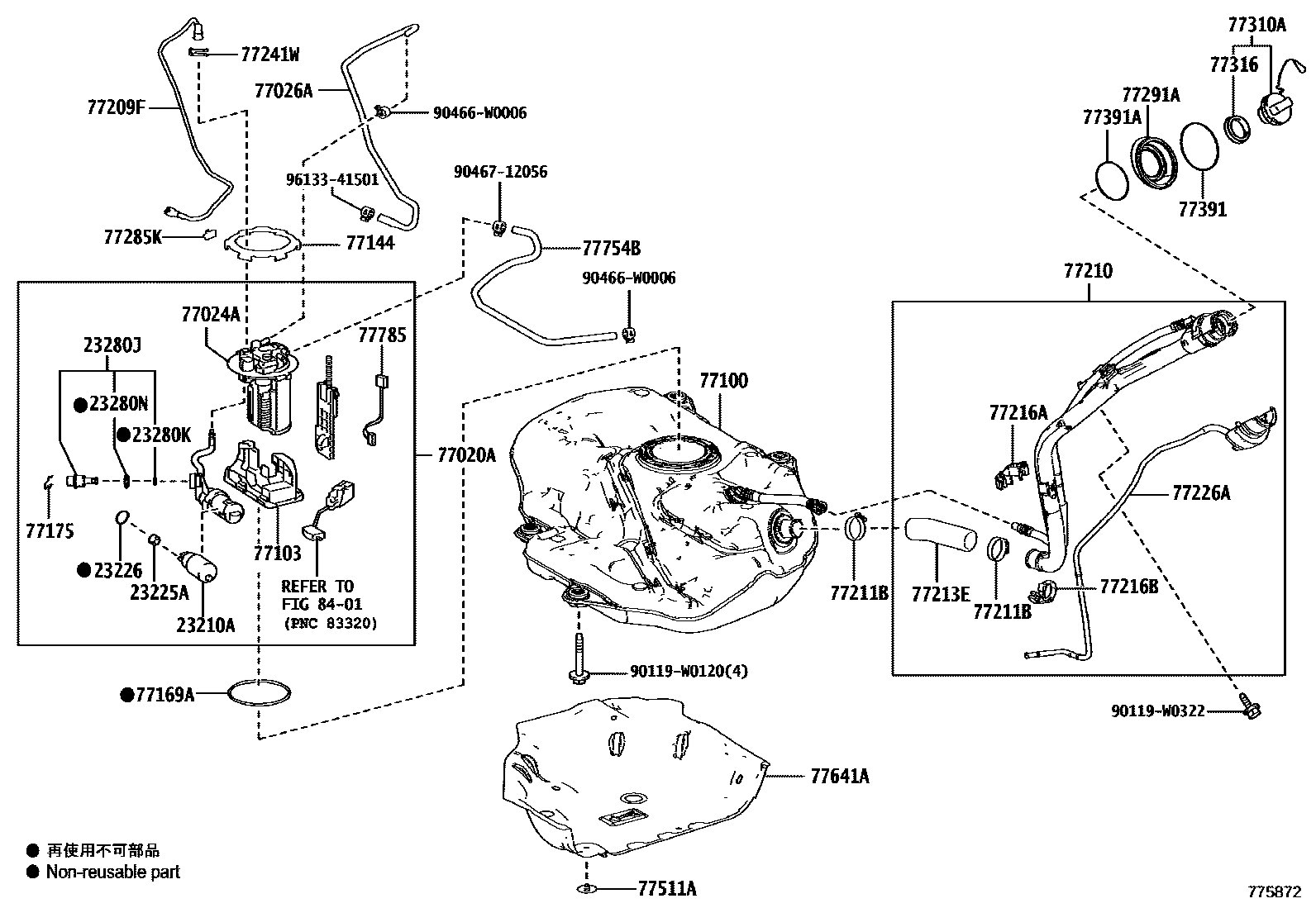

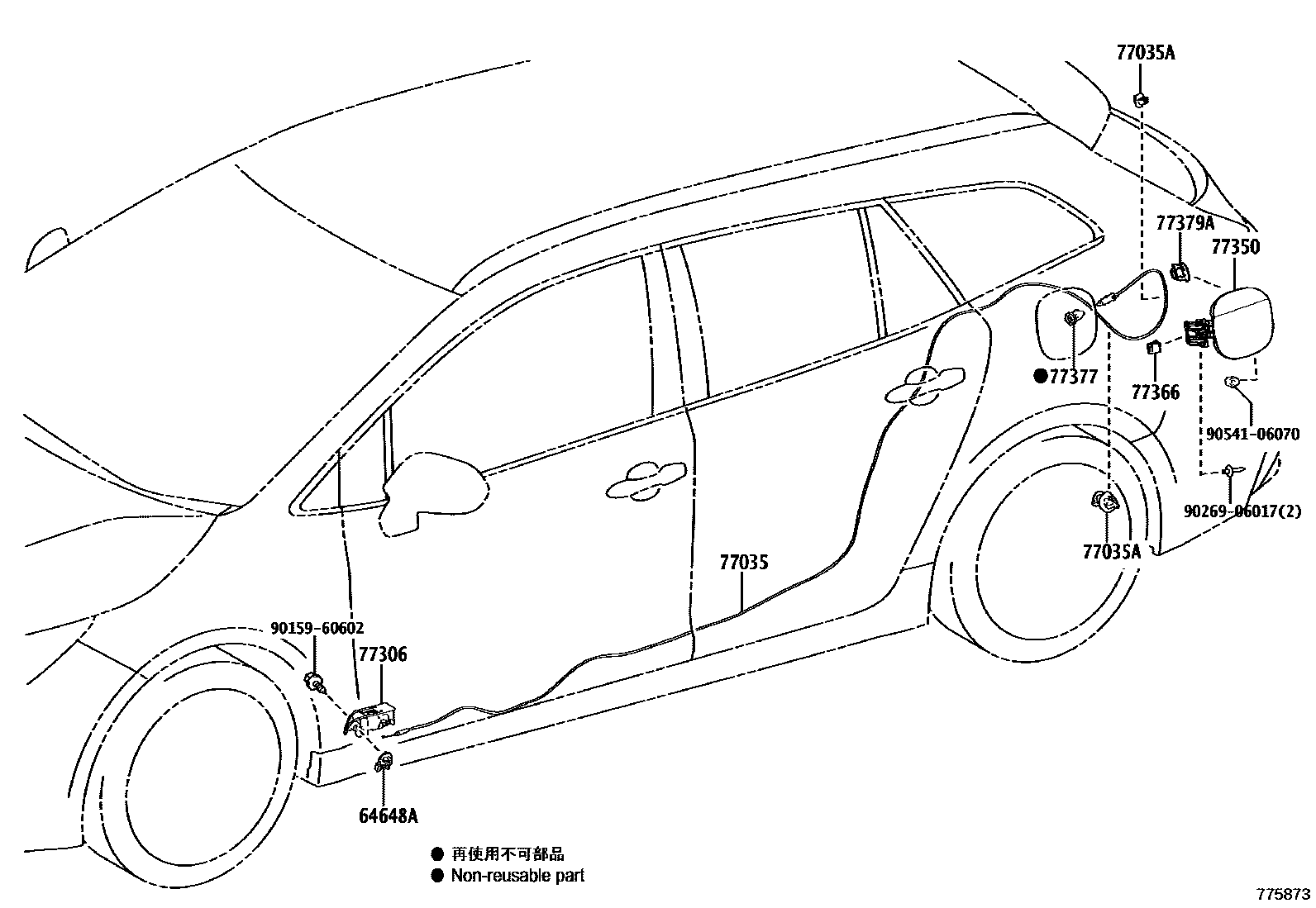

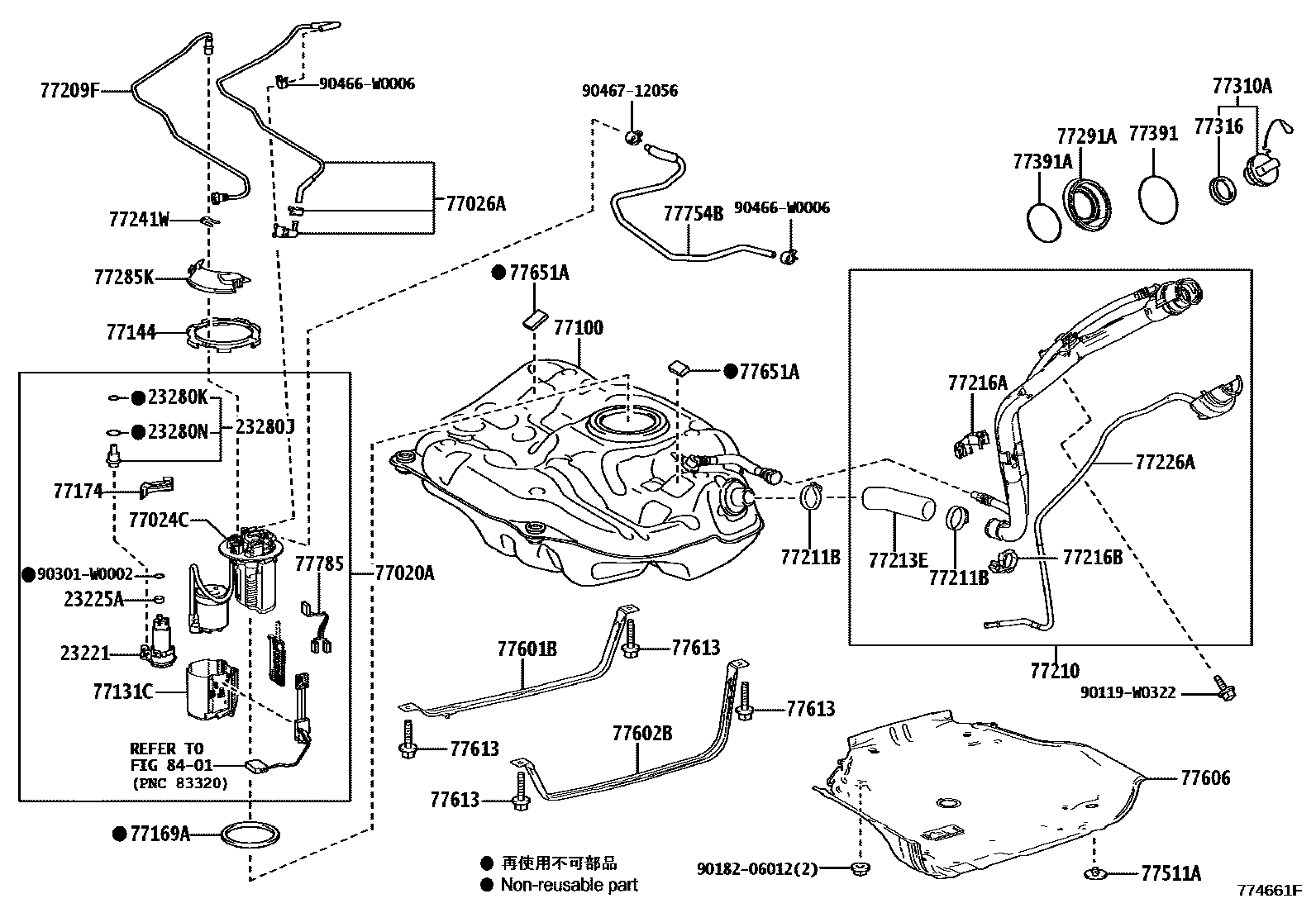

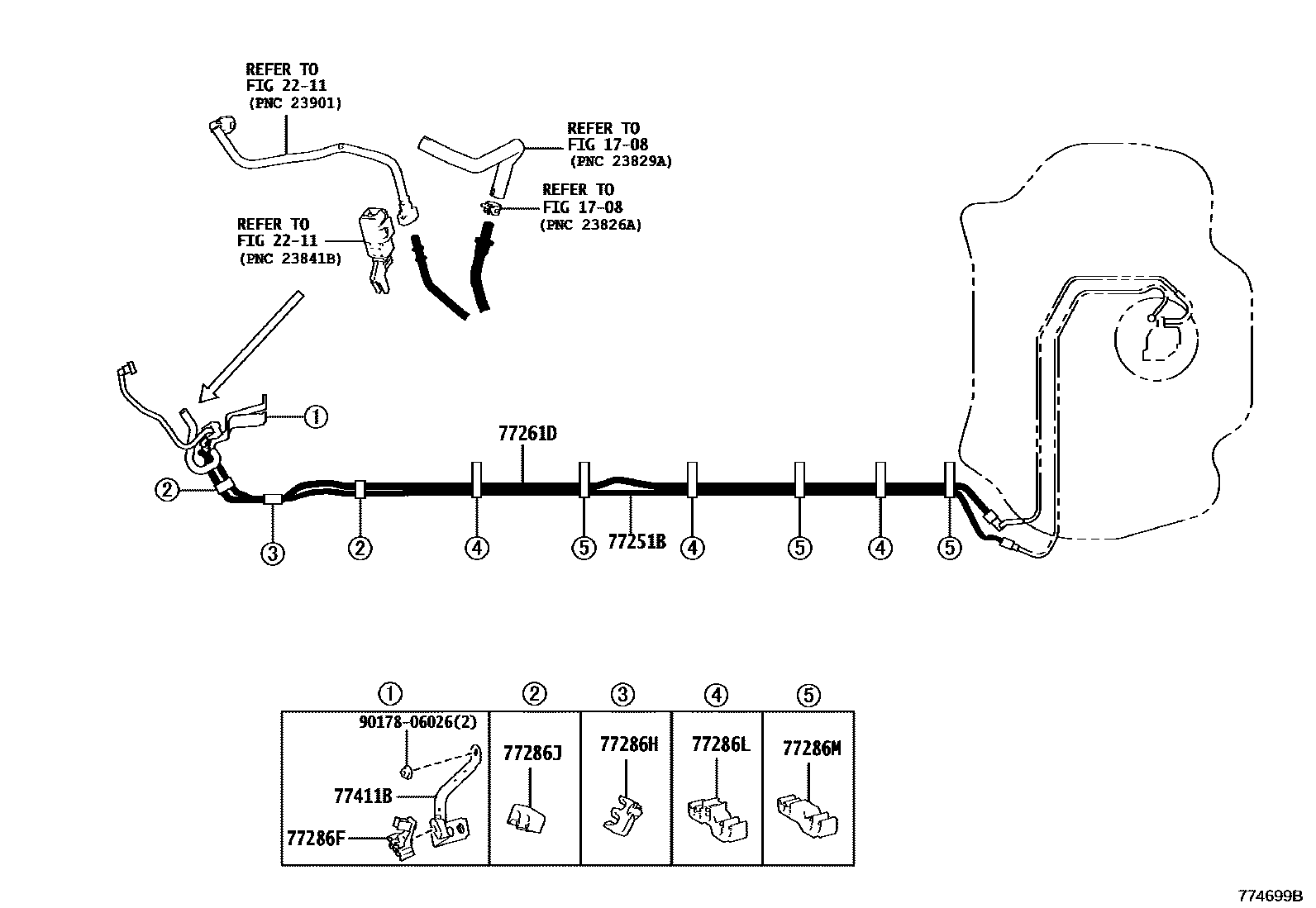

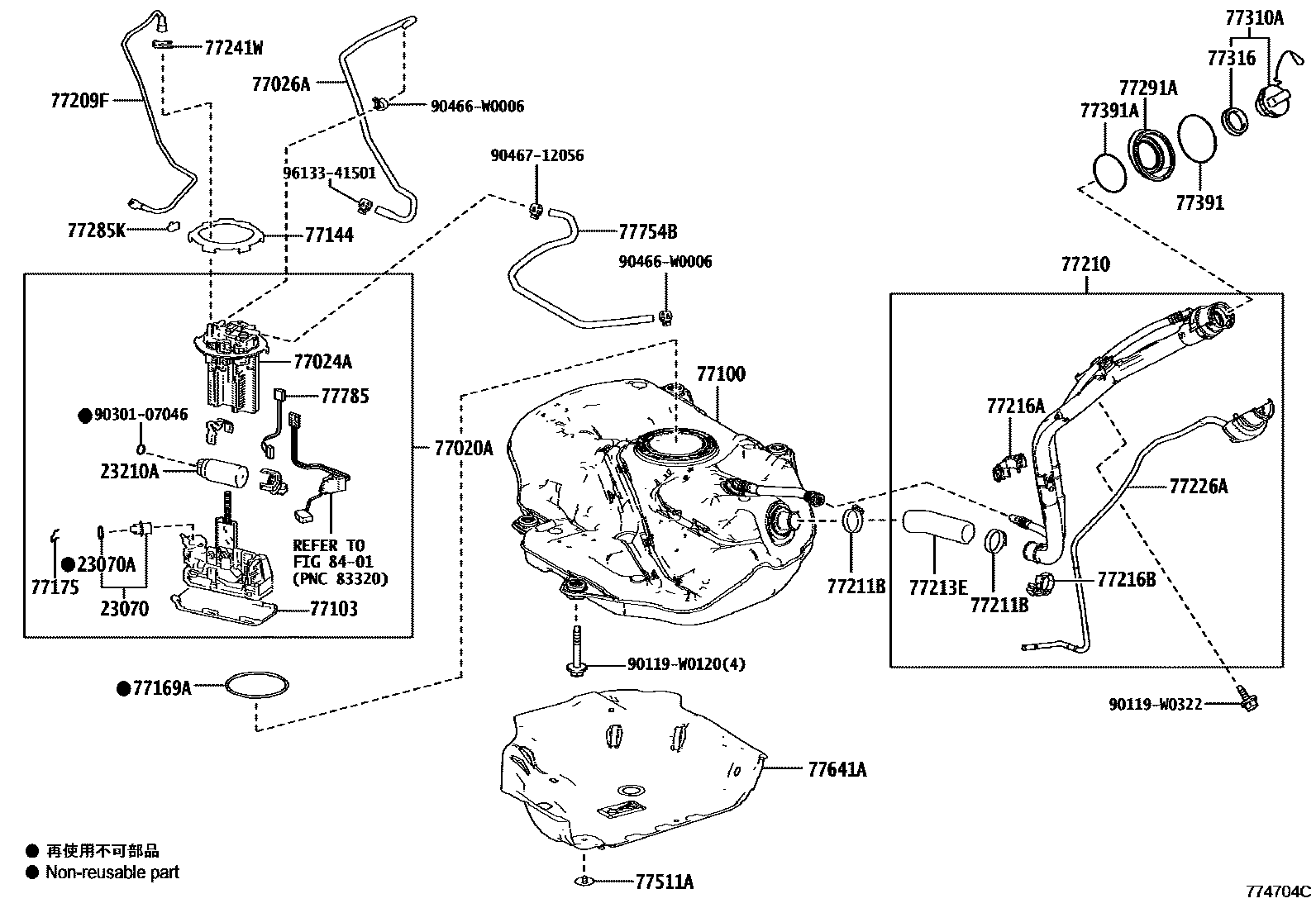

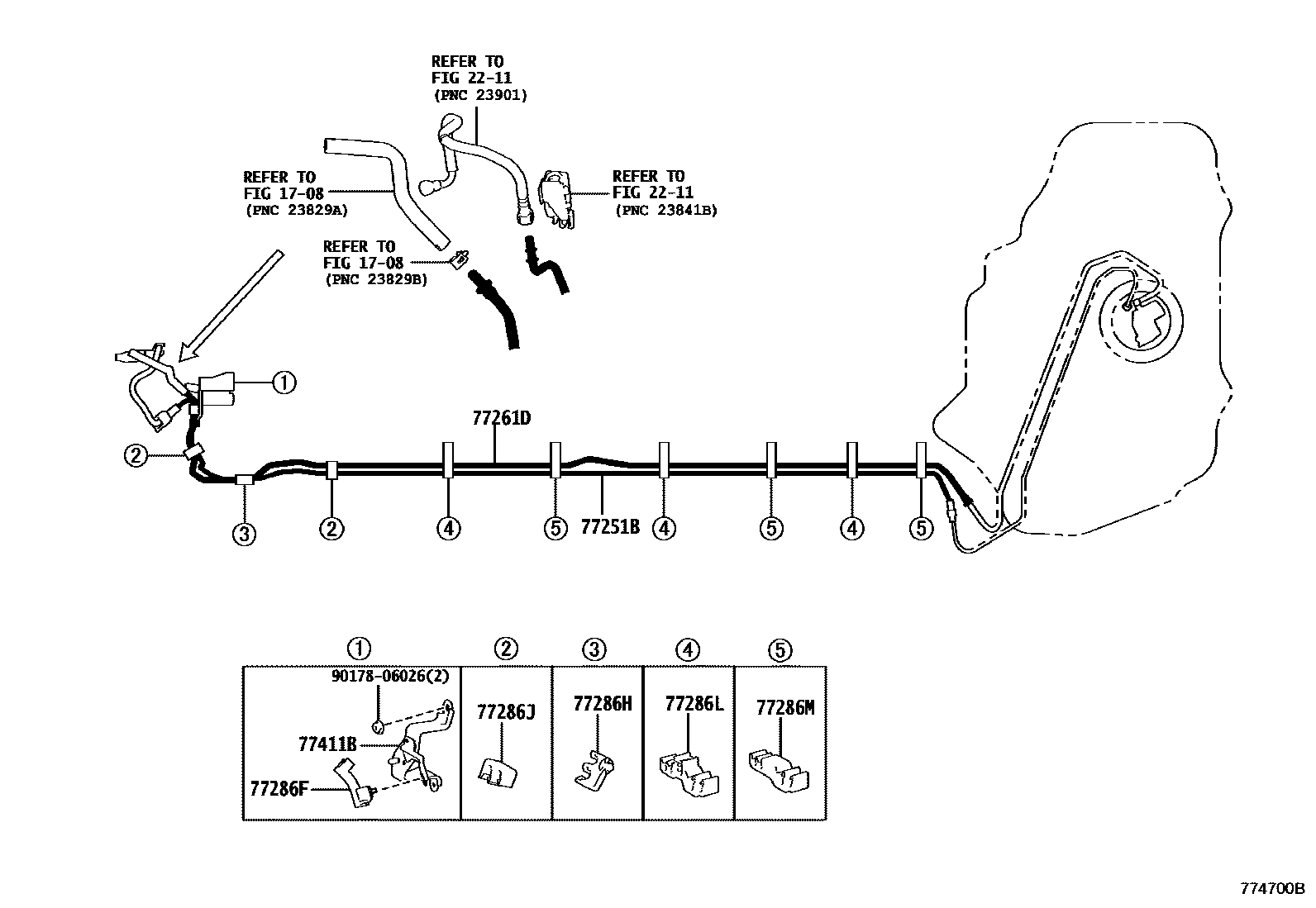

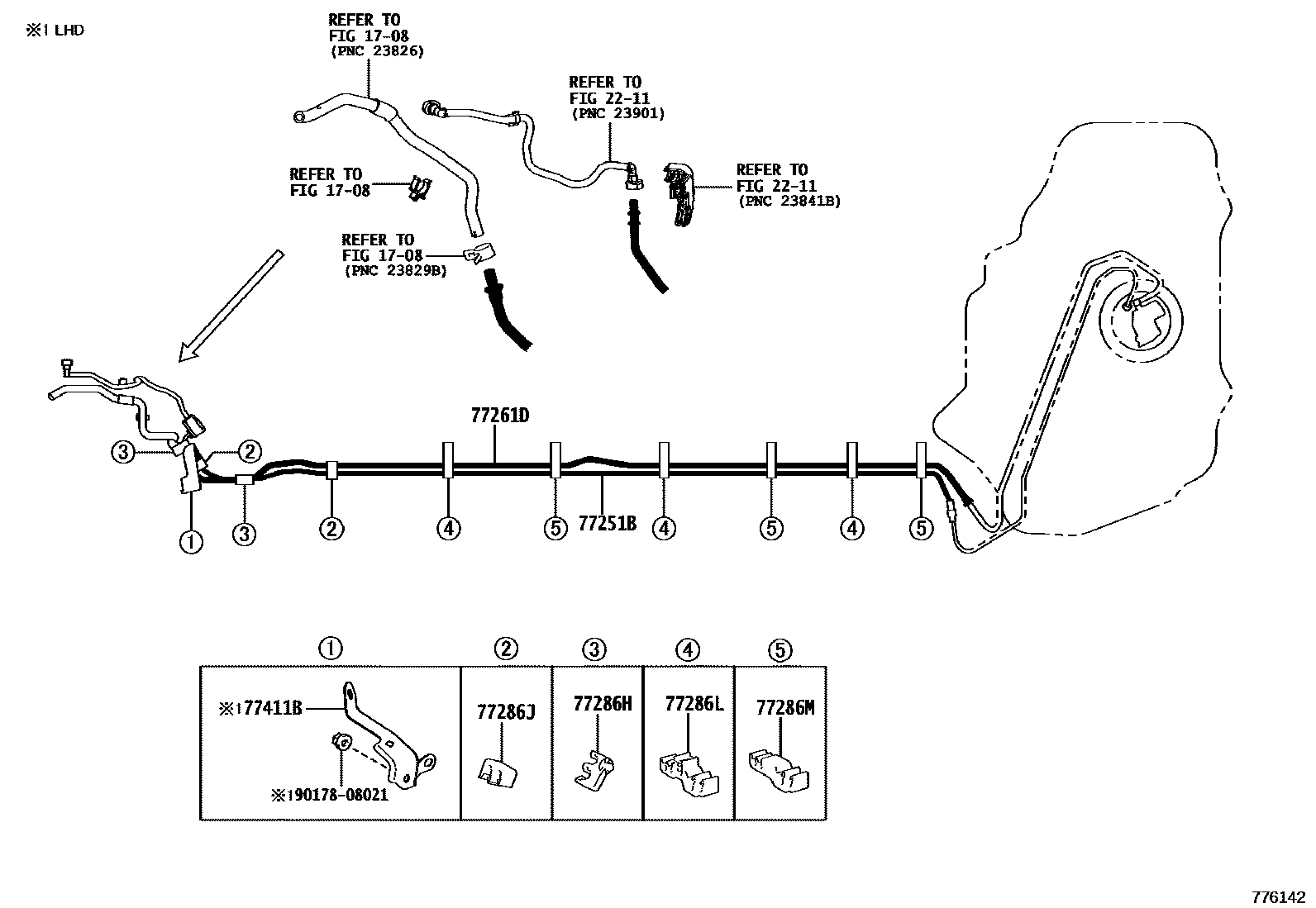

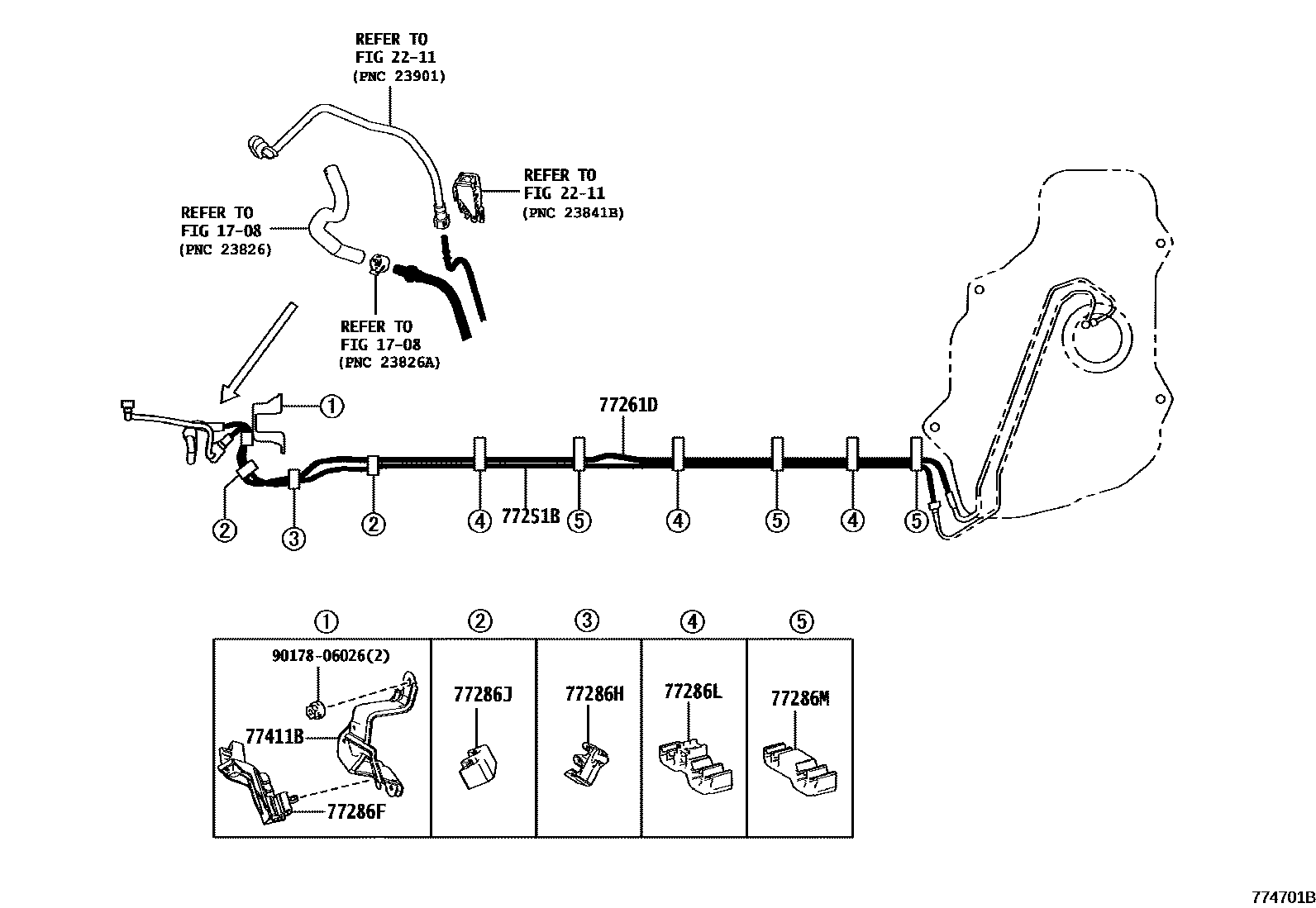

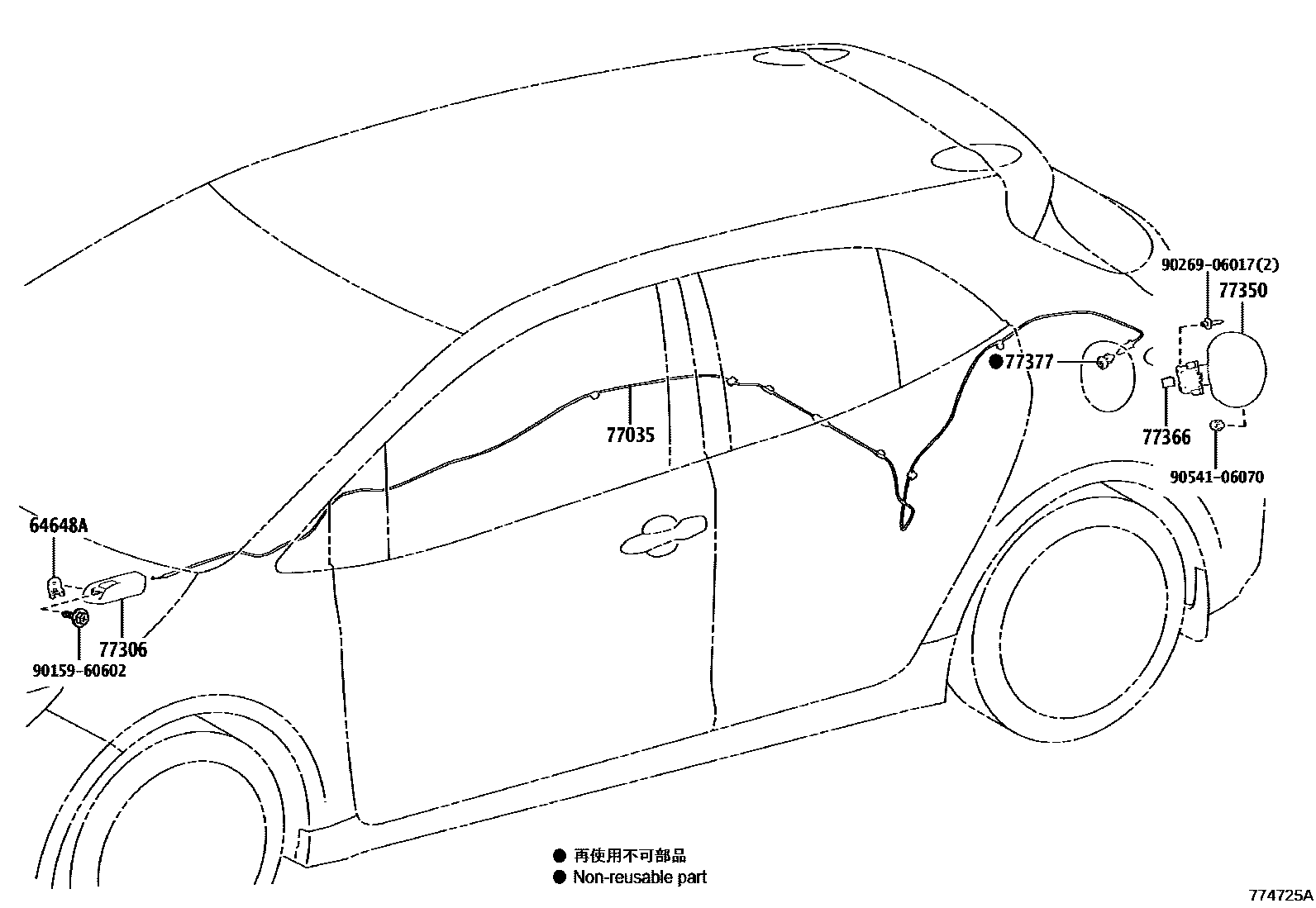

Toyota COROLLA 燃油箱和燃油管 — Figure 7701
Toyota COROLLA EPC diagram 7701, 燃油箱和燃油管, with 10 images and 59 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 23070 | Main fuel valve assembly | 23070-24010 |
| 23070A | JOINT, TORIQUE, NO.1(POUR SOUP PRINC CARB) | 90301-15024 |
| 23210A | Water pump assembly with motor and bracket | 23210-0T010 · 23210-0T040 |
| 23221 | fuel pump | 23220-0Y090 |
| 23225A | fuel pump septum | 23225-0T010 |
| 23226 | O-ring (for fuel pump) | 90301-W0002 |
| 23280J | Fuel pressure regulator assembly | 23280-21010 · 23280-36020 |
| 23280K | O-ring (for fuel pressure regulator) | 90301-04013 |
| 23280N | JOINT TORIQUE (DE REGULATEUR PRESSION ESSENCE), NO.2 | 90301-15024 |
| 64648A | Trunk door lock opener seal | 64648-12020 |
| 77020A | Fuel suction pipe assembly with fuel pump and oil level gauge | 77020-02C21 · 77020-02C50 · 77020-F4020 |
| 77024A | Fuel absorber sub-assembly | 77024-02540 · 77024-02570 |
| 77024C | SOUS-ENS PLAQUE, ASPI CARBURANT AVEC FILTRE A CARB | 77024-F4050 |
| 77026A | No. 1 fuel evaporation pipe sub-assembly | 77026-02150 · 77026-F4010 |
| 77035 | Fuel filler cap lock control cable sub-assembly | 77035-02520 · 77035-02530 · 77035-02540 · 77035-02560 |
| 77035A | Clip (for fuel filler cap lock control cable) | 90469-06005 |
| 77100 | fuel tank assembly | 77001-02A20 · 77001-F4100 · 77001-F4101 |
| 77103 | SOUS-ENS. RESERVOIR AUX, CARB | 77103-02090 · 77103-02100 · 77103-K0030 · 77103-K0040 |
| 77131C | No. 1 auxiliary fuel tank | 77131-F4010 |
| 77144 | Fuel pump instrument fixture | 77144-F4010 |
| 77169A | Fuel suction pipe fixed gasket | 77169-F4050 |
| 77174 | No. 1 oil suction pipe bracket | 77174-05010 |
| 77175 | No. 2 oil suction pipe bracket | 77175-02050 · 77175-F4010 |
| 77209F | Fuel tank main pipe sub-assembly | 77209-02380 · 77209-F4110 |
| 77210 | ENS. TUYAU, REMPLISSAGE DU RESERVOIR A CARBURANT | 77210-02690 · 77210-02691 · 77210-02692 · 77210-02A00 |
| 77211B | Clamp (for fuel filler tube) | 90460-50008 |
| 77213E | Fuel tank to filler pipe hose | 77213-F4010 |
| 77216A | No. 1 fuel tank filler pipe bracket | 77216-F4010 |
| 77216B | No. 2 fuel tank filler pipe bracket | 77216-F4030 |
| 77226A | No. 6 fuel tank breather pipe | 77226-02130 · 77226-02131 |
| 77241W | Pipe joint clip | 77241-32060 |
| 77251B | main fuel pipe | 77251-02A70 · 77251-02A80 · 77251-02A90 · 77251-02B00 · 77251-02D80 · 77251-02D90 |
| 77261D | Fuel tank to charcoal canister pipe | 77261-02760 · 77261-02770 · 77261-02780 · 77261-02790 · 77261-02800 · 77261-02810 · 77261-02B80 · 77261-02B90 |
| 77285K | No. 1 fuel pipe clamp | 77285-10060 · 77285-30350 |
| 77286F | No. 2 fuel pipe clamp | 77286-12250 · 77286-12260 · 77286-12320 · 77286-76010 |
| 77286H | No. 3 fuel pipe clamp | 77286-12220 · 77286-12240 |
| 77286J | No. 4 fuel pipe clamp | 77289-12070 · 77289-12080 |
| 77286L | No. 5 fuel pipe clamp | 77298-12160 · 77298-12180 |
| 77286M | No. 6 fuel pipe clamp | 77298-12170 · 77298-12190 |
| 77291A | Fuel tank filler pipe cover | 77291-02350 |
| 77306 | Fuel filler cap lock opening lever sub-assembly | 77306-12010 · 77306-12020 |
| 77310A | Fuel tank cap assembly | 77300-12020 · 77300-48020 |
| 77316 | fuel tank cap gasket | 77316-52040 · 77316-75020 |
| 77350 | Fuel filler cap assembly | 77350-02220 · 77350-02240 |
| 77366 | Fuel filler cap hinge spring | 77366-52010 |
| 77377 | Fuel filler cap lock retainer | 77377-02180 |
| 77379A | ENTRETOISE, LEVIER OUV TRAPPE CARB | 77379-02040 |
| 77391 | fuel inlet ring | 77391-20040 |
| 77391A | fuel inlet ring | 77391-12020 |
| 77411B | No. 1 fuel pipe retaining ring bracket | 77411-02060 · 77411-02070 · 77411-02140 · 77411-02170 · 77411-F4010 · 77411-F4020 · 77411-F4030 · 77411-F4040 |
| 77511A | fuel tank bracket | 77512-35140 |
| 77601B | No. 1 fuel tank right side band sub-assembly | 77601-F4010 |
| 77602B | No. 1 fuel tank left side band sub-assembly | 77602-F4010 |
| 77606 | No. 1 fuel tank protective shell sub-assembly | 77606-F4020 |
| 77613 | Fuel tank strap fixing bolts | 90119-W0120 |
| 77641A | No. 1 fuel tank protective shell | 77641-F4090 |
| 77651A | No. 1 fuel tank liner | 77651-F4010 |
| 77754B | Carbon canister outlet hose | 77754-02190 · 77754-F4010 |
| 77785 | fuel pump wiring harness | 77785-02081 · 77785-02160 · 77785-12010 · 77785-76010 |
