Toyota COROLLA 丰田徽标和铭牌(车外和车内) — Figure 7501

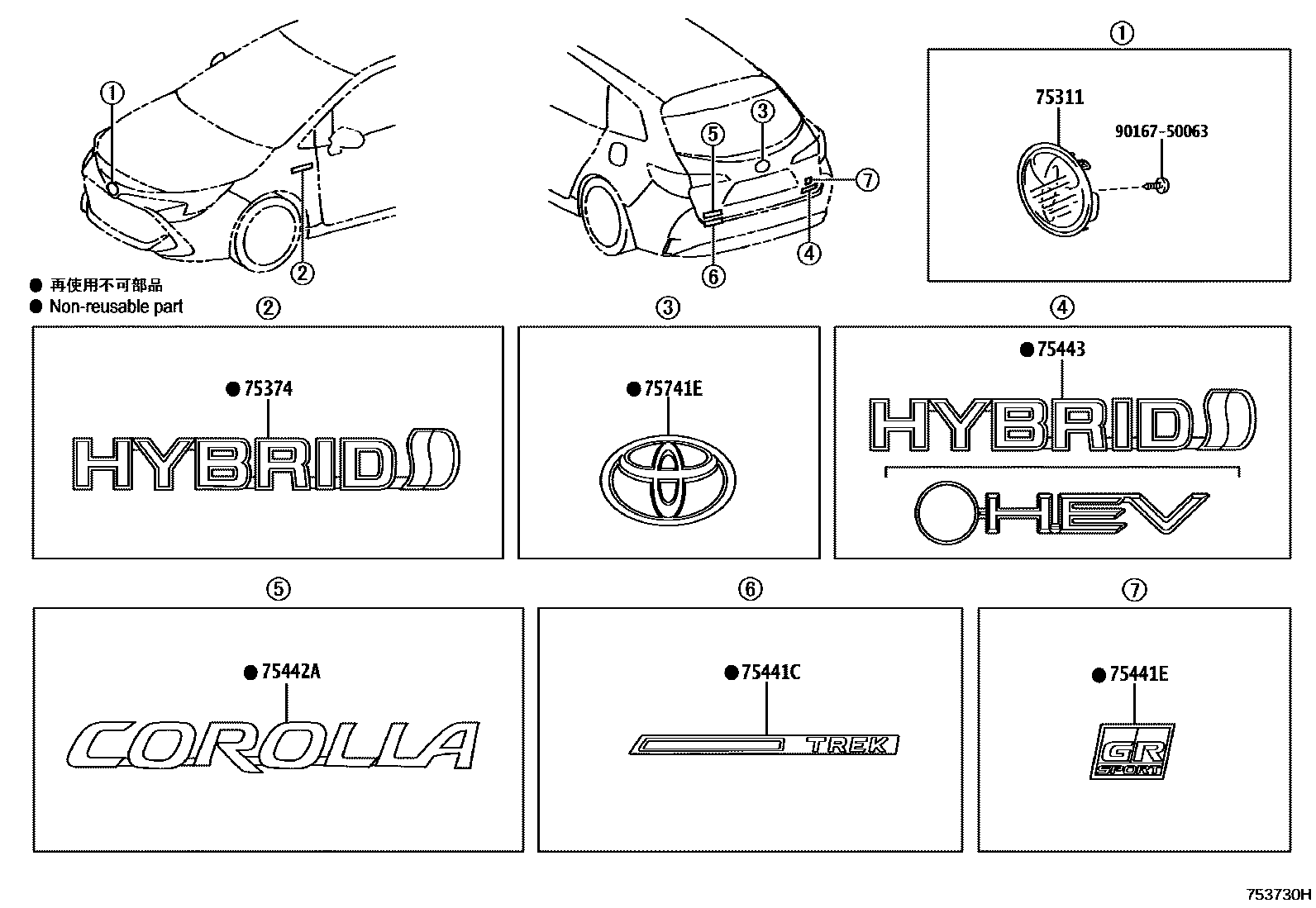

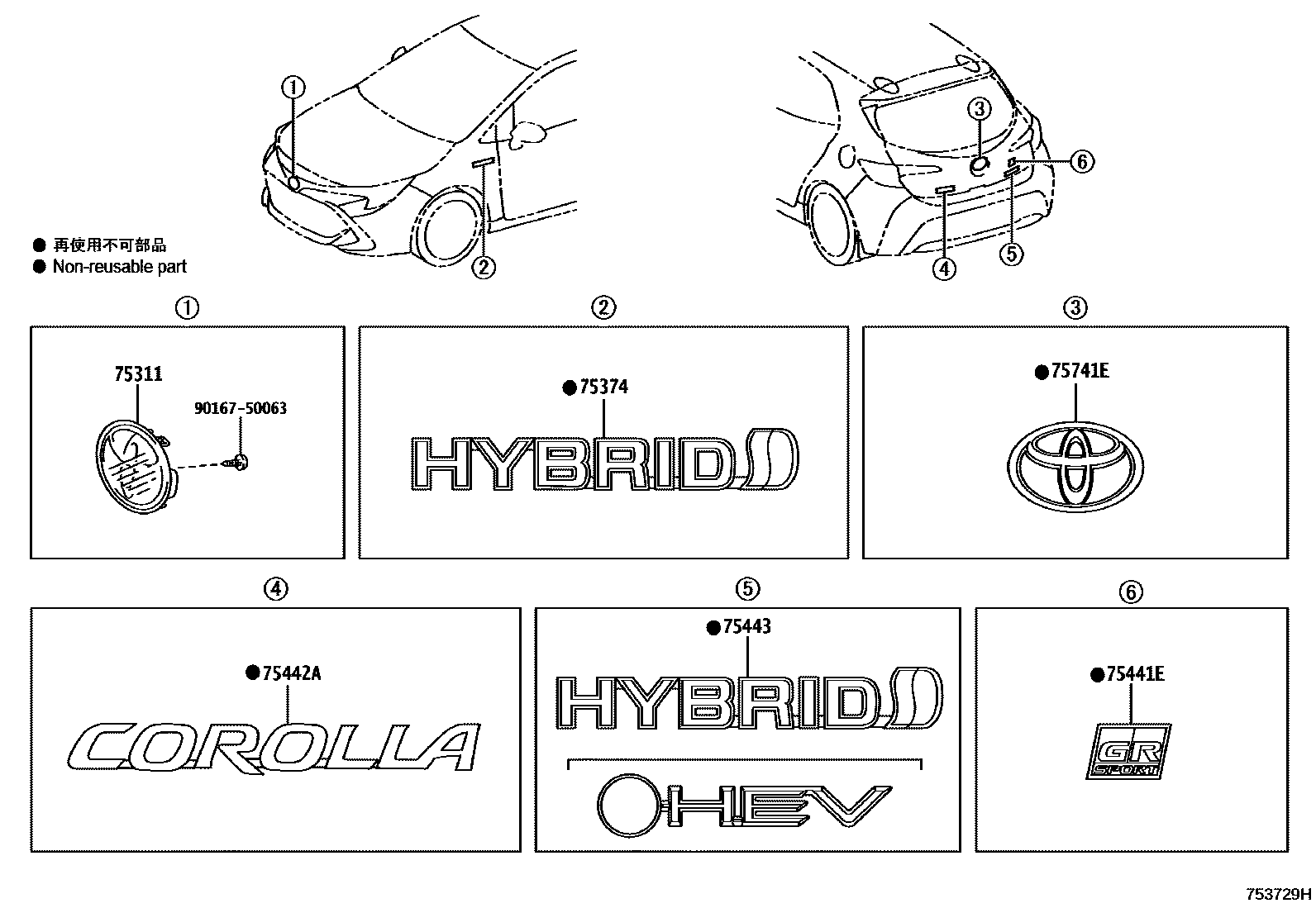

Toyota COROLLA EPC diagram 7501, 丰田徽标和铭牌(车外和车内), with 2 images and 7 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 75311 | Radiator grille (or front panel) plate | 53141-12270 · 53141-12280 · 75310-02050 · 75310-02060 · 90975-02124 · 90975-02136 |
| 75374 | side panel sign | 75374-02210 · 75374-02220 |
| 75441C | Back door nameplate | 75441-YY210 |
| 75441E | Back door No. 1 nameplate | 75441-YY220 · 75441-YY240 |
| 75442A | No. 2 nameplate on back door | 75442-02430 · 75442-02431 · 75442-02600 · 75442-02601 · 75442-12C00 |
| 75443 | No. 3 nameplate on back door | 75440-02080 · 75443-02300 · 75443-02301 · 75443-02330 · 75443-02331 |
| 75741E | logo | 75403-02050 · 75403-02051 · 75403-02110 · 75403-02111 · 75431-0D050 · 75431-0D051 |
