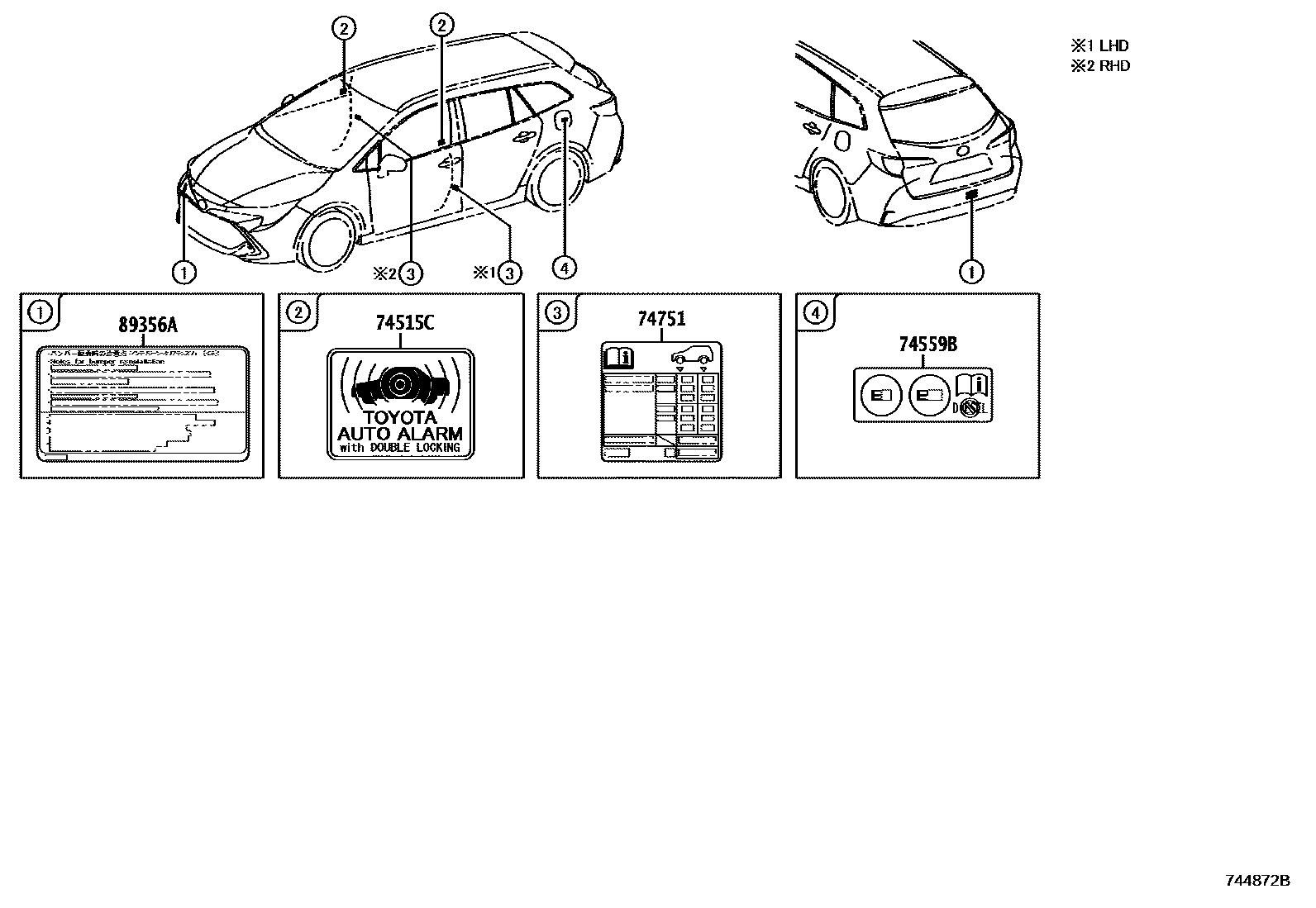

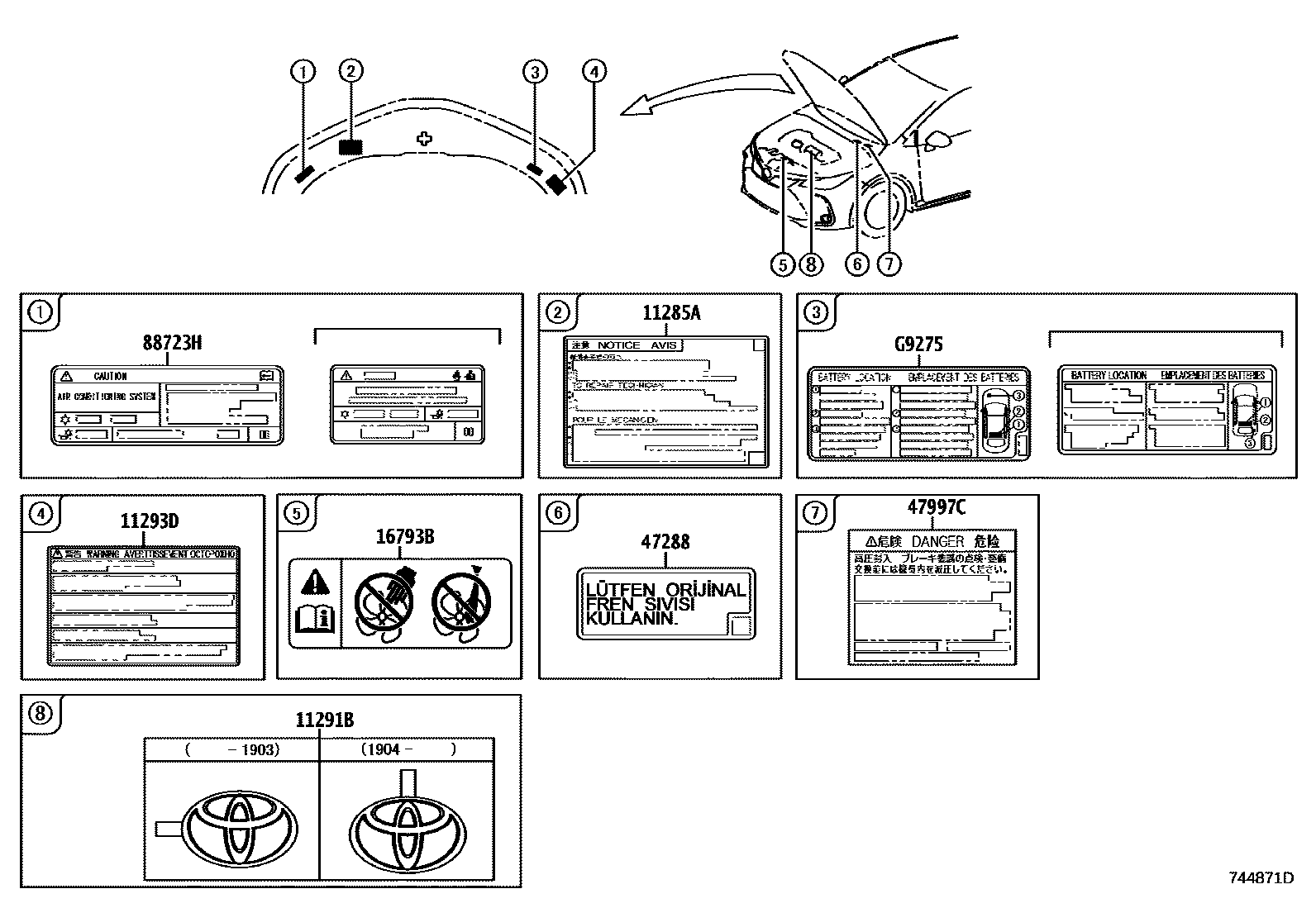

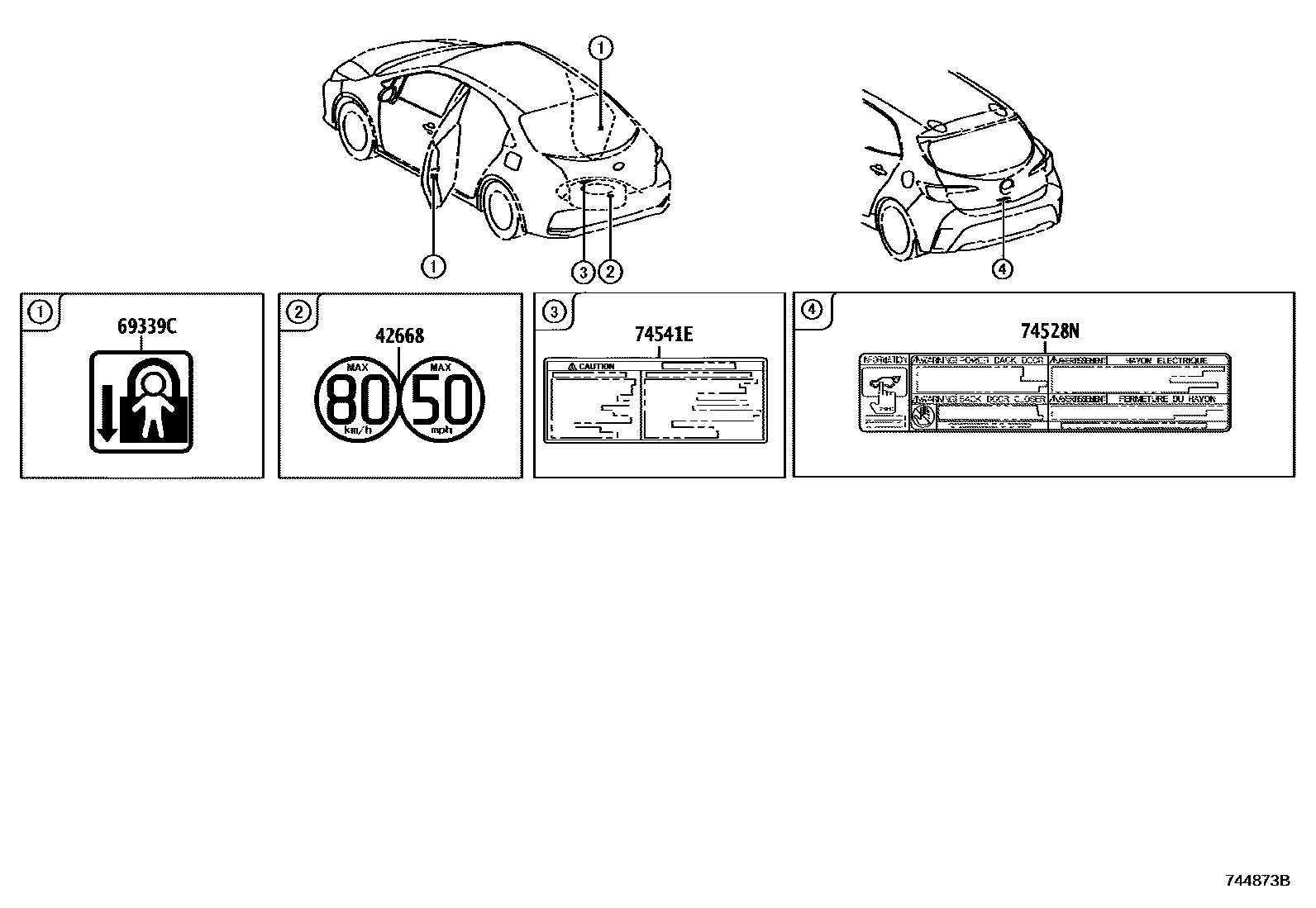

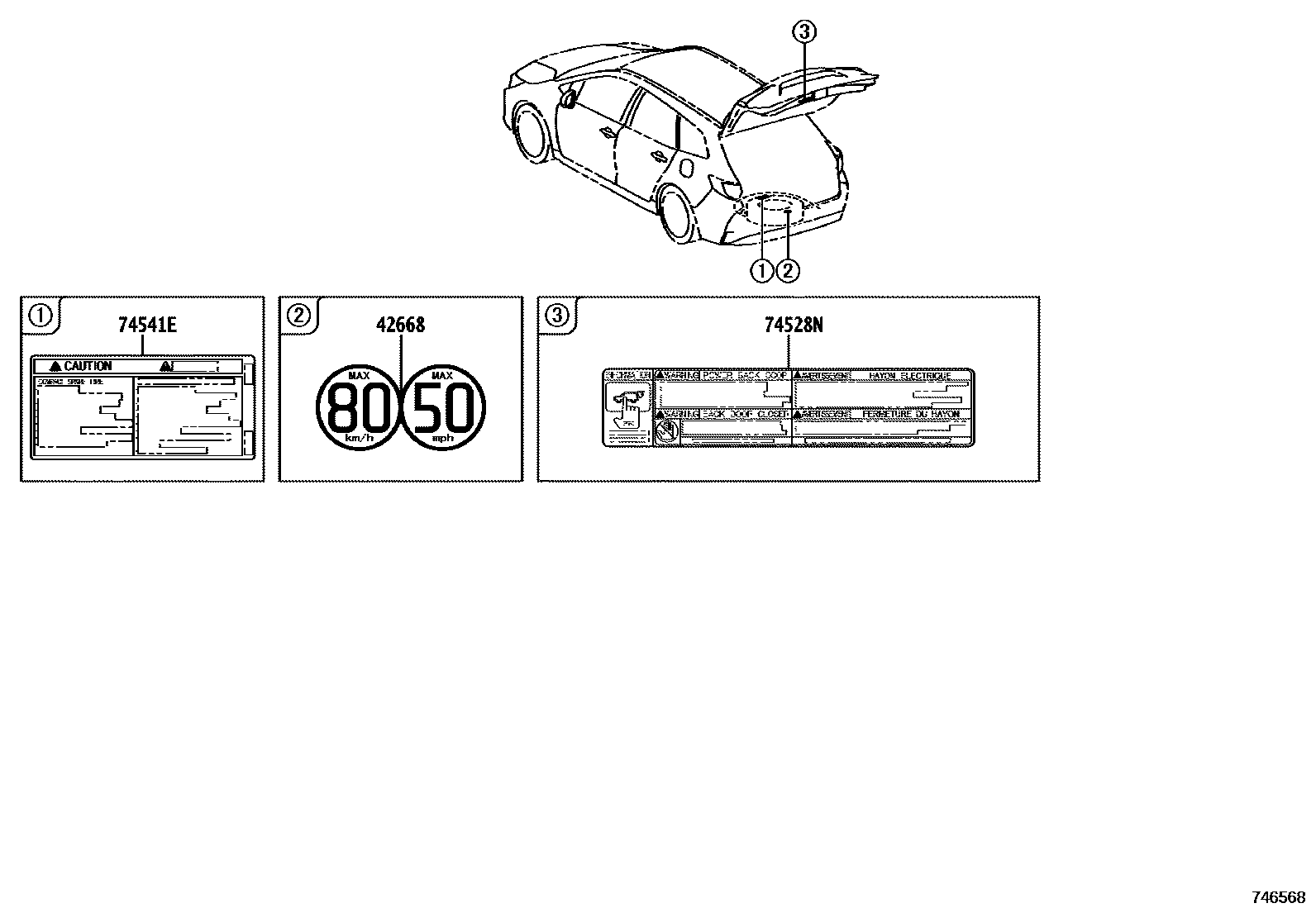

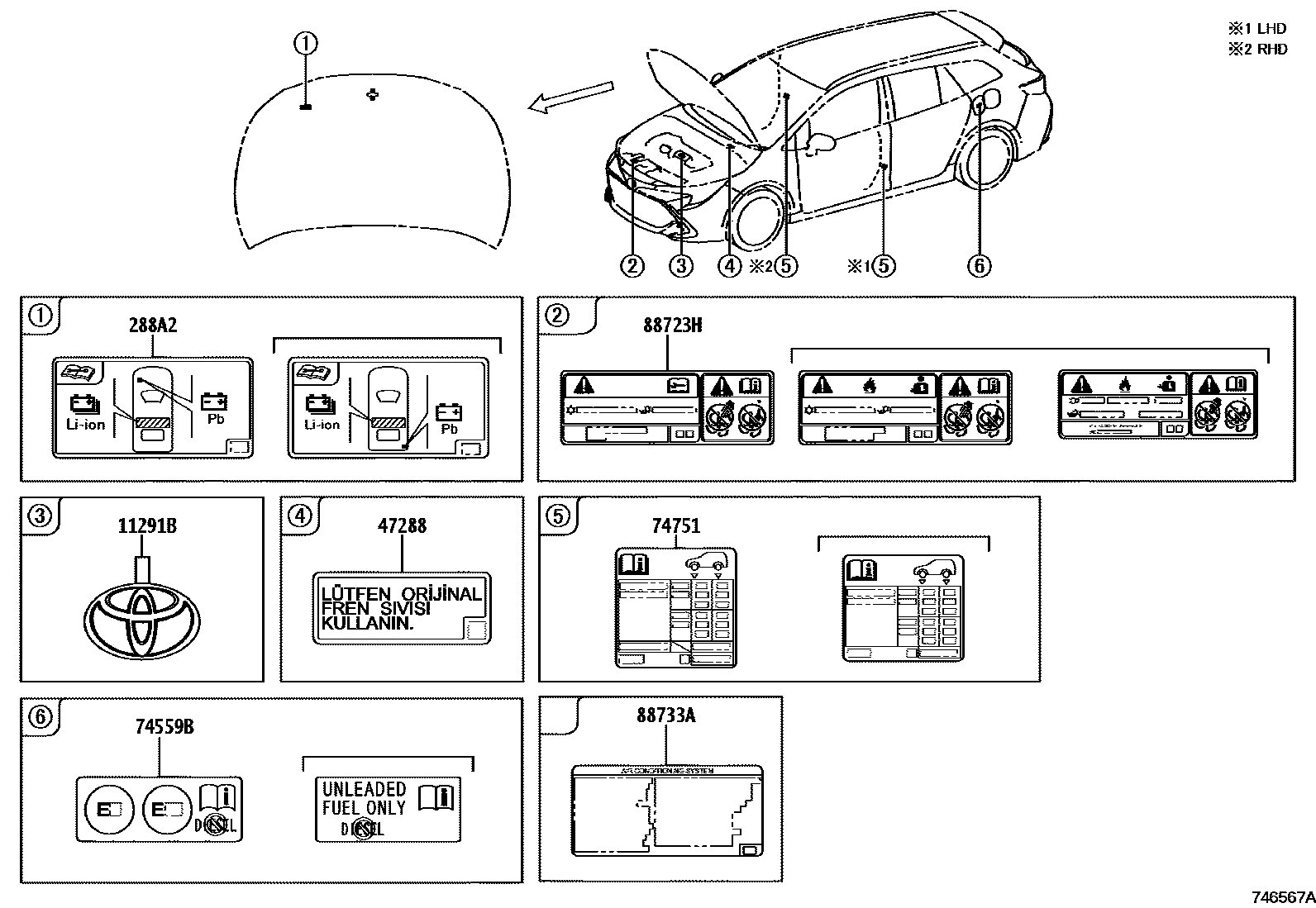

Toyota COROLLA 警示铭牌(车外和车内) — Figure 7403
Toyota COROLLA EPC diagram 7403, 警示铭牌(车外和车内), with 5 images and 18 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 11285A | Coolant System Caution Labels | 11285-33030 · 11285-36040 |
| 11291B | PLAQUE INDICATRICE DE MOTEUR | 11290-37010 · 11291-37100 · 11291-37130 |
| 11293D | engine warning label | 11293-36070 |
| 16793B | Cooling fan information label | 16793-36030 |
| 288A2 | ETIQUETTE, EMPLACEMENT BATT | 288A2-0T010 · 288A2-24020 |
| 42668 | Small spare tire warning label | 42668-0F030 |
| 47288 | Brake Fluid Caution Label | 47288-64010 |
| 47997C | Accumulator No. 1 Warning Label | 47997-76010 · 47997-F4010 |
| 69339C | Child Restraint Information Label | 69339-0D040 |
| 74515C | Anti-theft warning information label | 74515-42010 |
| 74528N | ETIQUETTE, PRECAUTION HAYON, NO.2 | 74528-02010 |
| 74541E | Small spare tire warning plate | 42668-02090 · 42668-02100 · 42668-02110 · 42668-02120 |
| 74559B | fuel information label | 74559-0D060 · 74559-11030 · 74559-20140 · 74559-60030 |
| 74751 | tire pressure information label | 42661-02Q80 · 42661-02Q90 · 42661-02R00 · 42661-02R10 · 42661-02R20 · 42661-02R30 · 42661-02R40 · 42661-02R50 |
| 88723H | Cooler maintenance warning label | 88723-02350 · 88723-02410 · 88723-02420 · 88723-02610 · 88723-02770 · 88723-02780 · 88723-F4100 |
| 88733A | PLAQUETTE D'INSTRUCTIONS D'ENTRETIEN DE CLIMATISEUR | 88733-0H010 |
| 89356A | ETIQUETTE RENSEIGNEMENTS GABARIT | 89356-47020 |
| G9275 | No. 1 battery warning label | G9275-12010 · G9275-47140 |
