Toyota COROLLA battery holder — Figure 7402

Toyota COROLLA EPC diagram 7402, battery holder, with 4 images and 4 PNC and OE references.

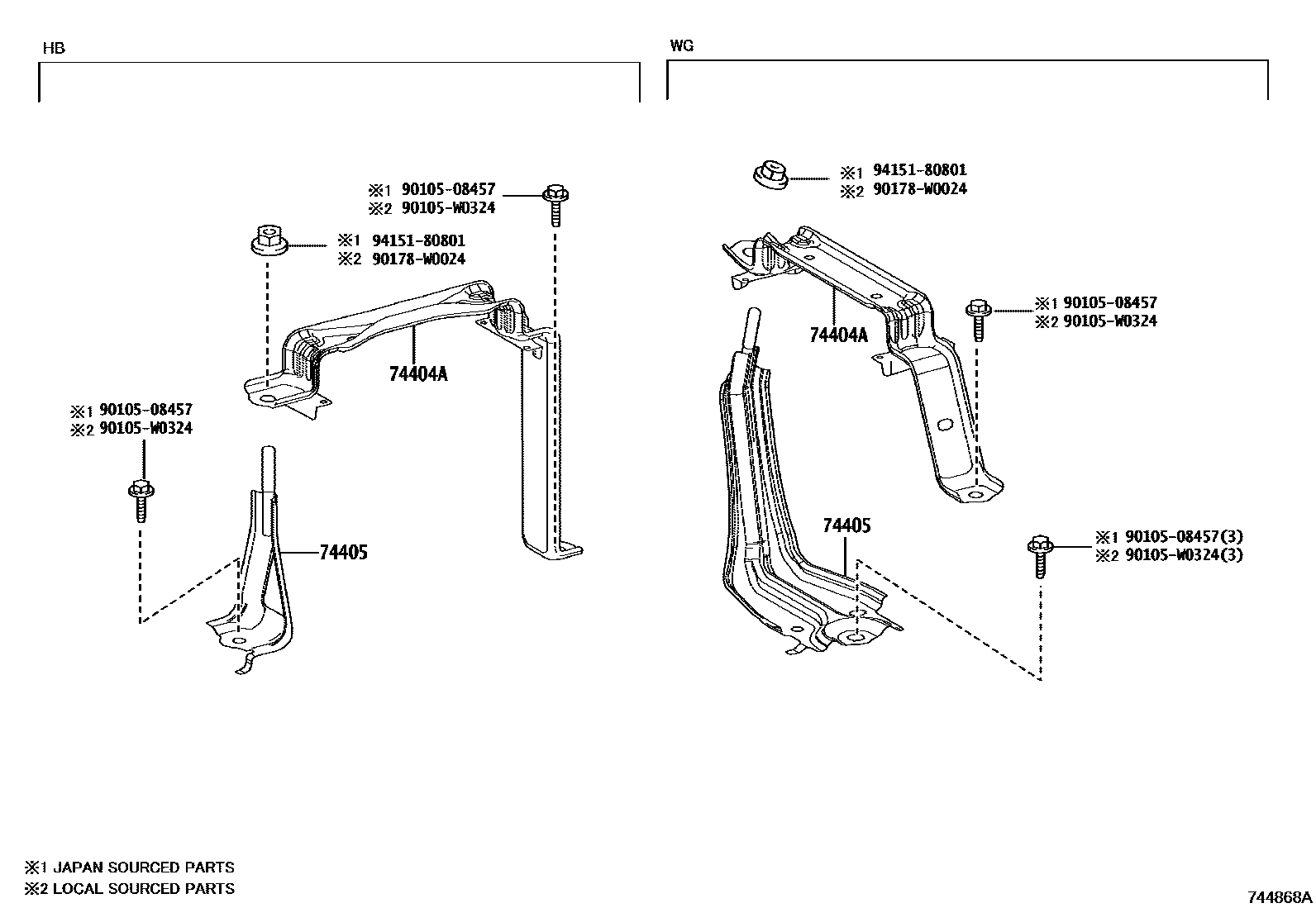

Toyota COROLLA battery holder EPC diagram — 744868A — battery holder — 744868A (201902 – 999999)

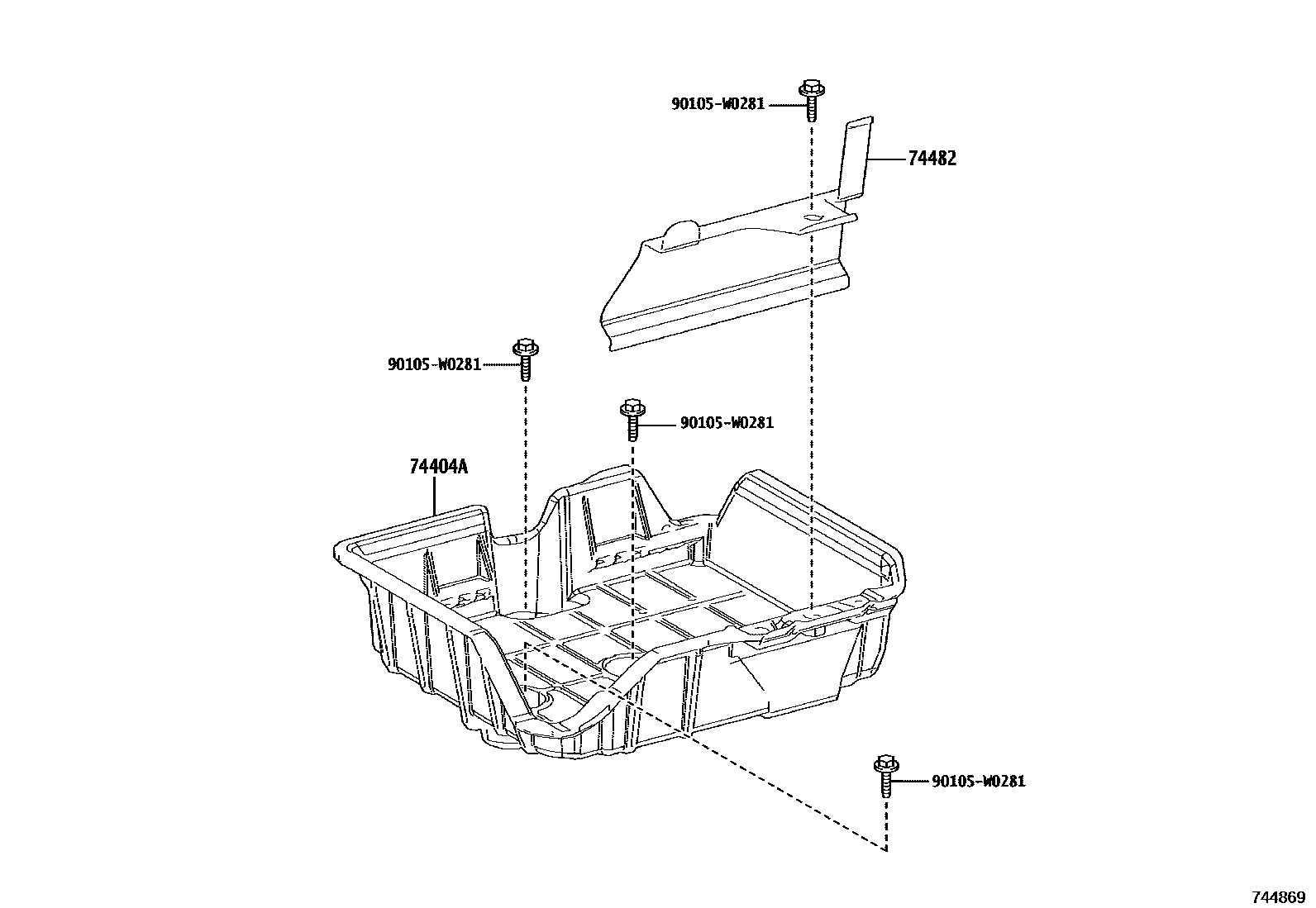

Toyota COROLLA battery holder EPC diagram — 744869 — battery holder — 744869 (201901 – 999999)

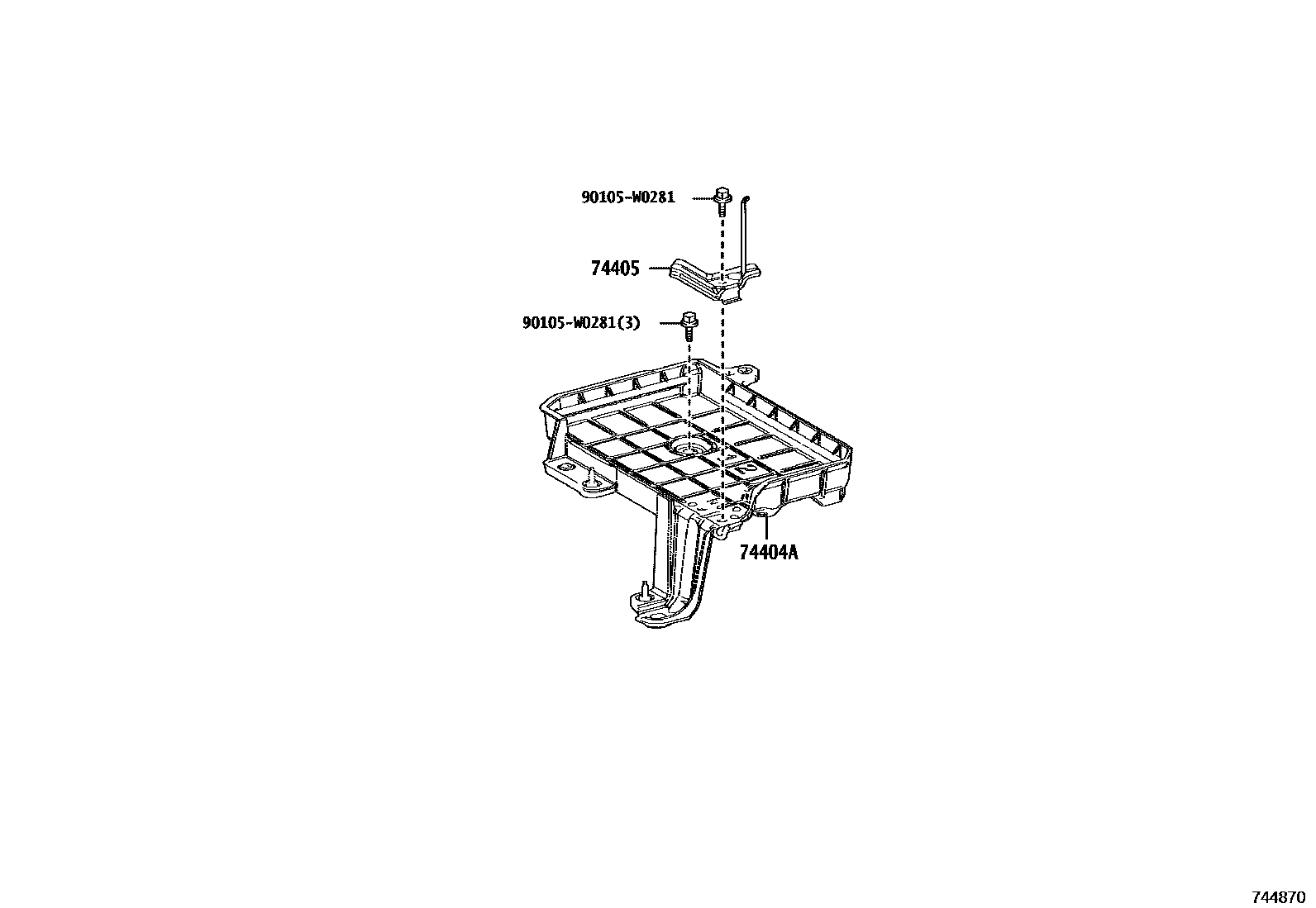

Toyota COROLLA battery holder EPC diagram — 744870 — battery holder — 744870 (201901 – 999999)

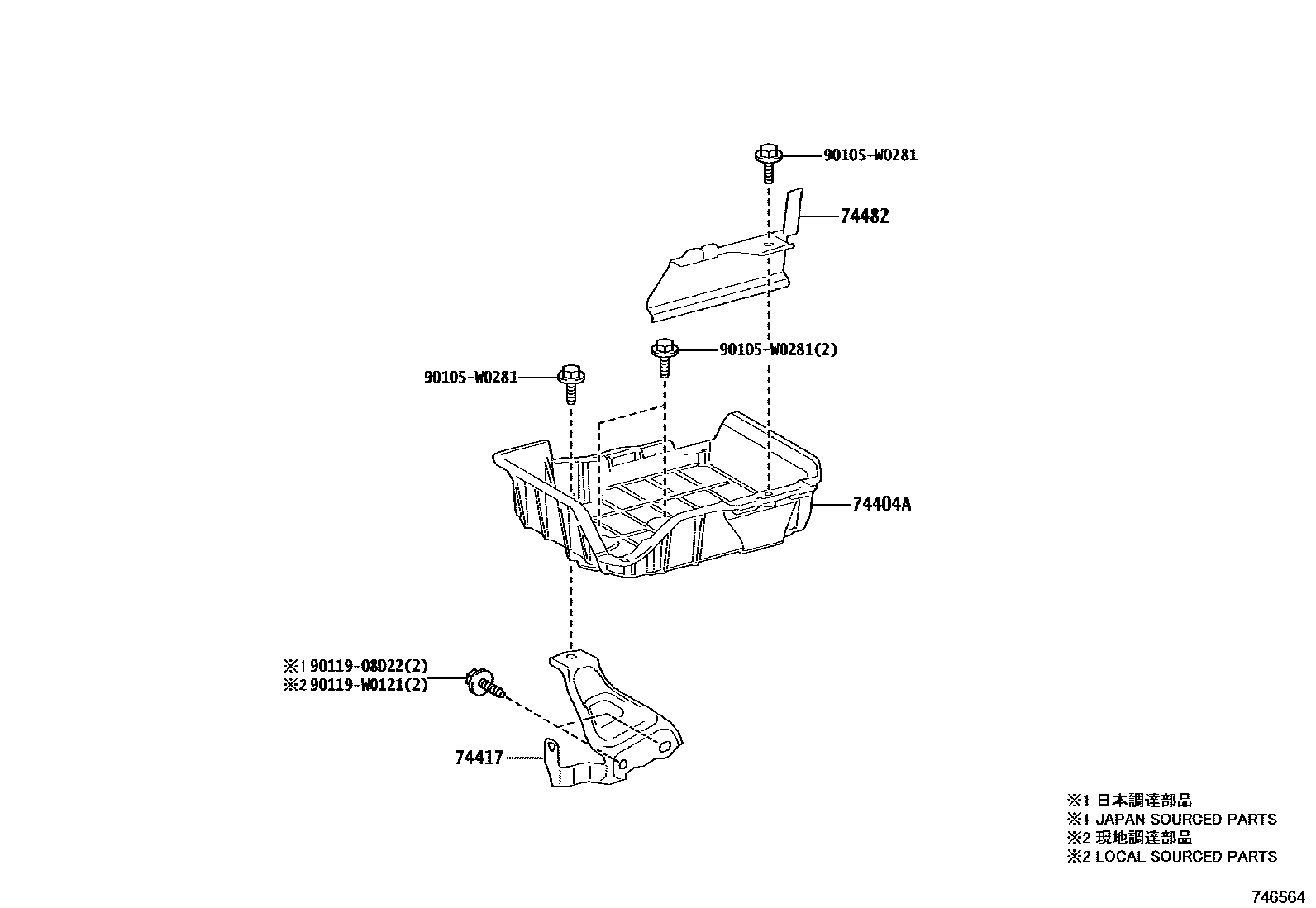

Toyota COROLLA battery holder EPC diagram — 746564 — battery holder — 746564 (202301 – 999999)

PNC and OE references

PNC	Part name	OE numbers
74404A	Battery clip sub-assembly	74404-02630 · 74404-02700 · 74404-02800 · 74404-02820 · 74404-02830 · 74404-02A50
74405	No. 2 battery clip sub-assembly	74405-02030 · 74405-02060 · 74405-02100
74417	battery holder bracket	74417-02170
74482	No. 2 battery clip	74482-F4010
