Toyota COROLLA 扶手和遮阳板 — Figure 7401
Toyota COROLLA EPC diagram 7401, 扶手和遮阳板, with 5 images and 6 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|

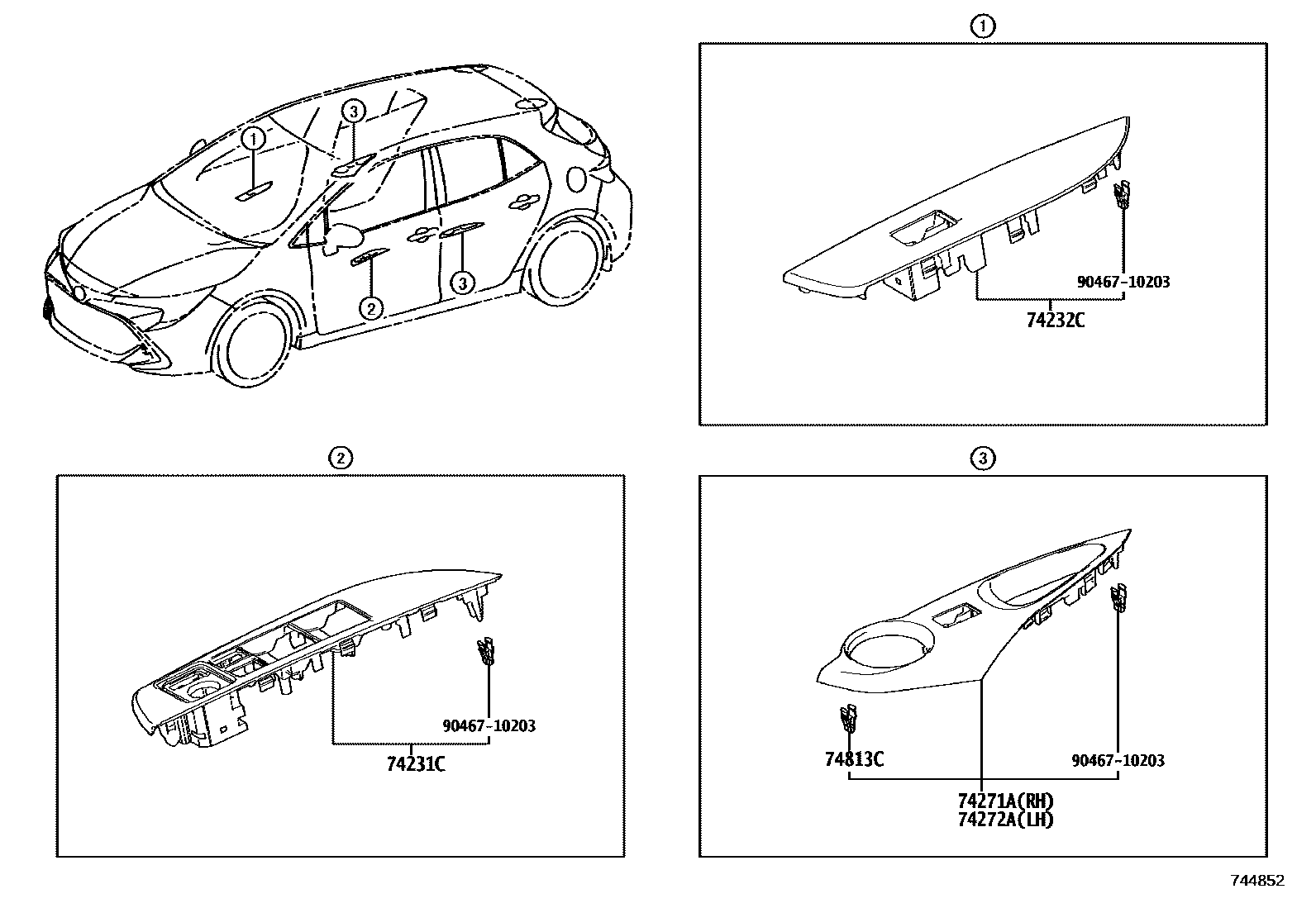

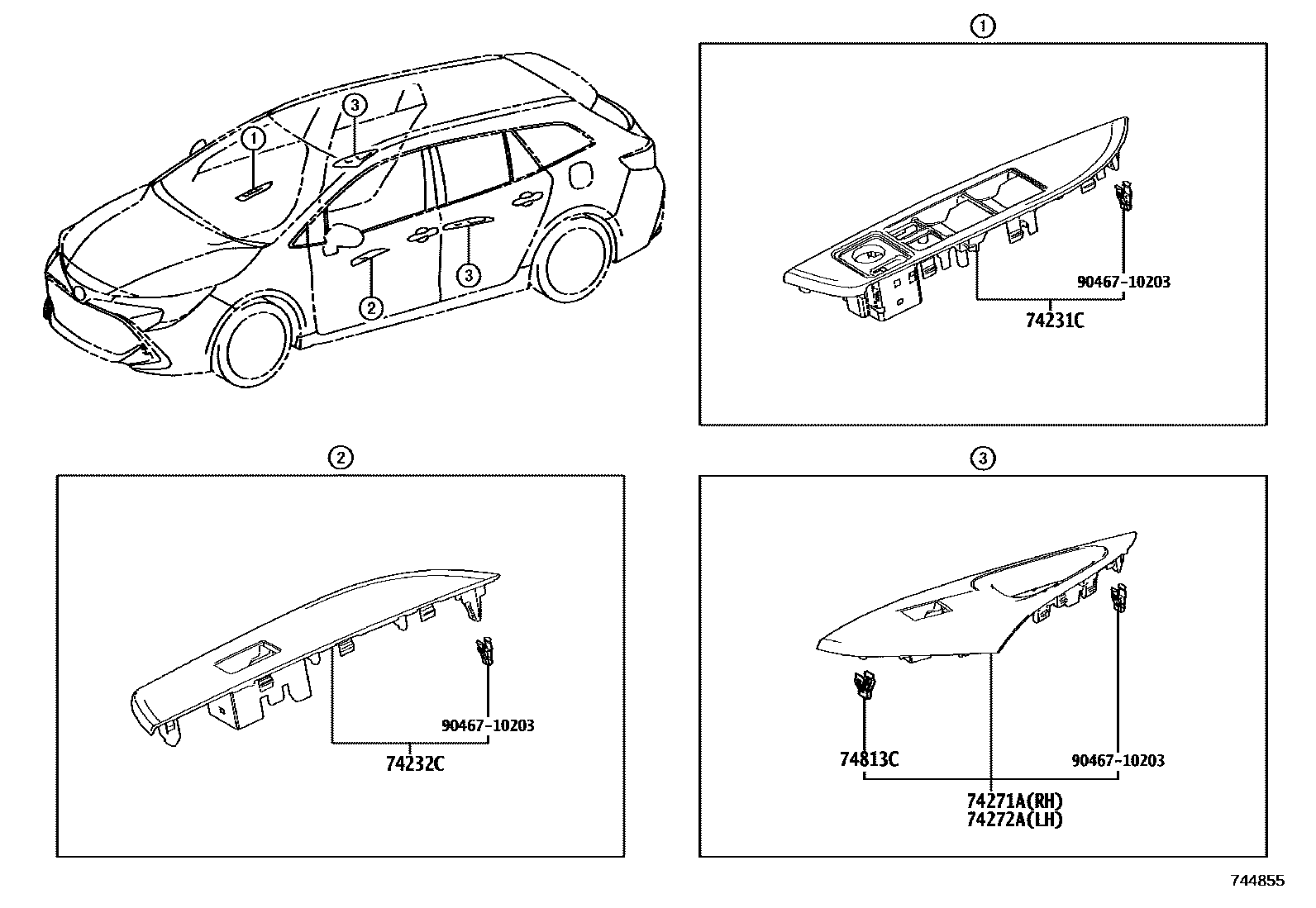

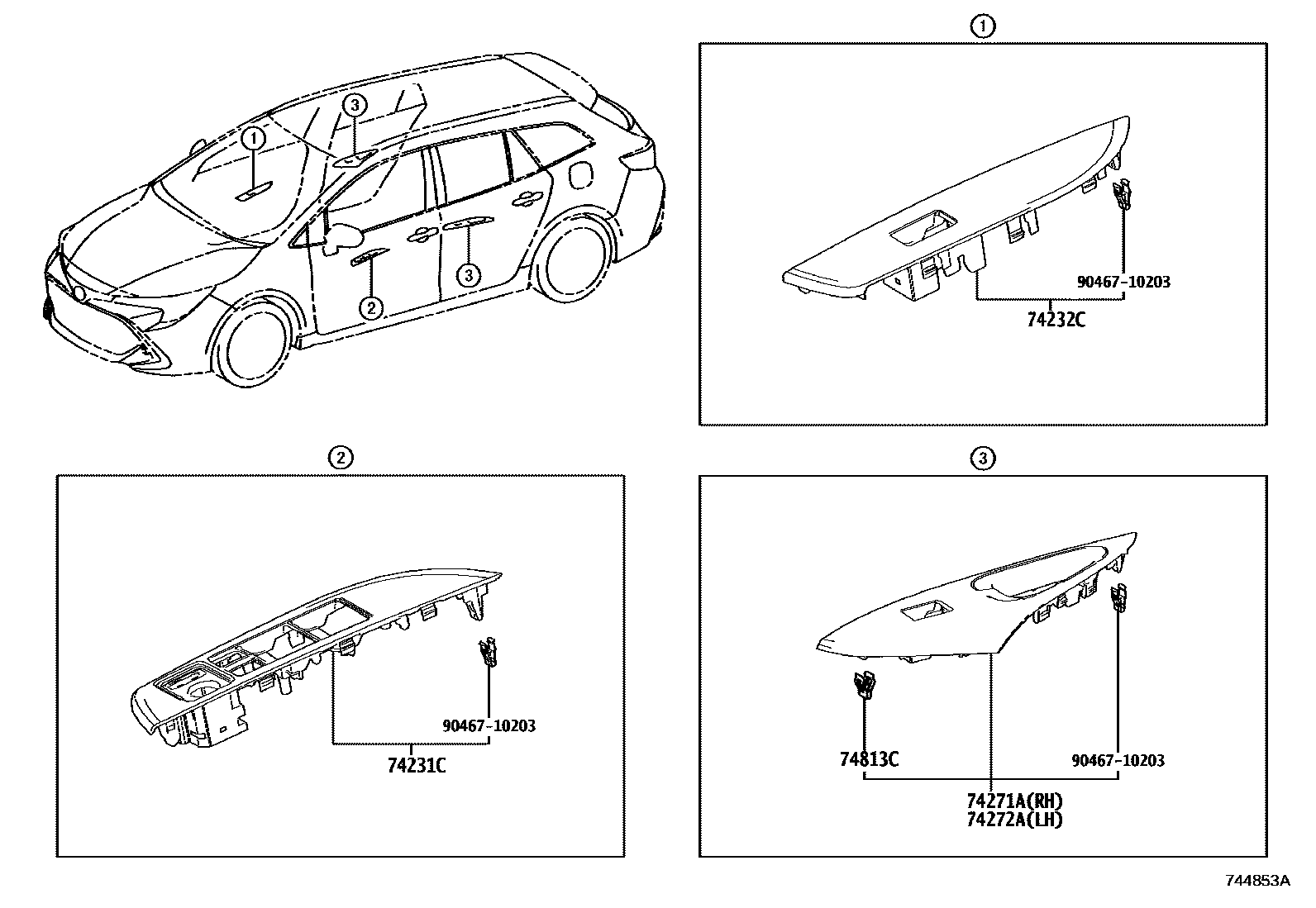

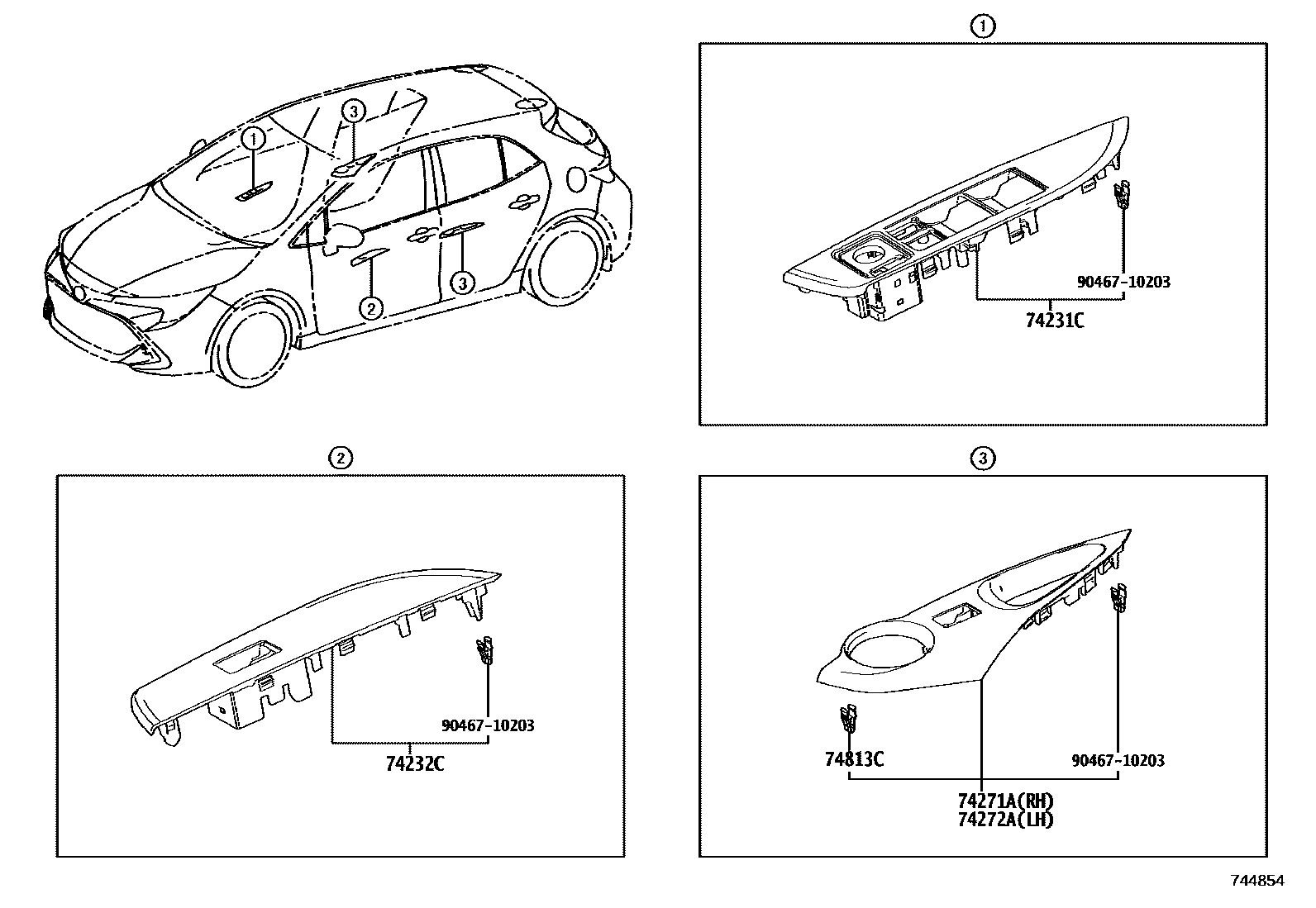

| 74231C | Driver's side front armrest upper panel | 74231-02F80 · 74231-02J10 · 74232-02G20 · 74232-02J70 |
| 74232C | Passenger side front armrest seat upper panel | 74231-02F60 · 74232-02G40 |
| 74271A | Right rear door armrest upper panel | 74271-02790 · 74271-02830 · 74271-02A30 |
| 74272A | Left rear door armrest upper panel | 74272-02780 · 74272-02820 · 74272-02A20 |
| 74614C | PLAQUE, VERROUIL. POIGNEE ASSISTANCE | 74614-12020 |
| 74813C | clip | 55416-60030 · 90467-12080 |
